Removal And Installation: Tailpipe: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Muffler inlet pipes will vary in configuration with different wheelbases and powertrains. Typical application shown.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

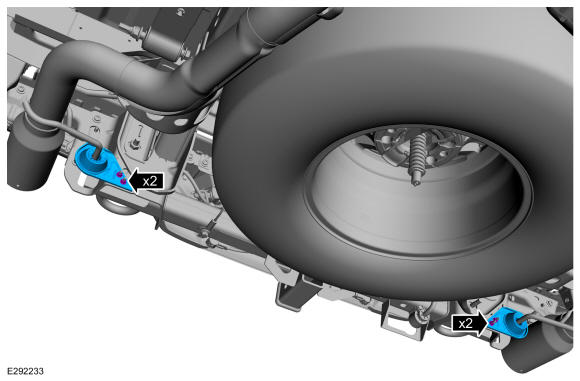

- Remove the tailpipe hanger brackets.
Torque: 106 lb.in (12 Nm)
- Remove the rear muffler clamps.
Torque: 41 lb.ft (55 Nm)

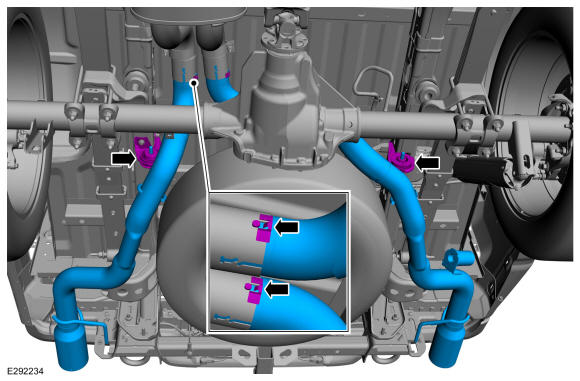

- During removal, release the RH (right hand) and LH (left hand) tailpipe clips and separate the tailpipes. Release the tailpipe from the exhaust isolator hangers then carefully remove the tailpipes from the vehicle.
