Muffler Inlet Pipe: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Muffler inlet pipes will vary in configuration with different wheelbases and powertrains. Typical application shown.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Loosen the clamp.
Torque: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY

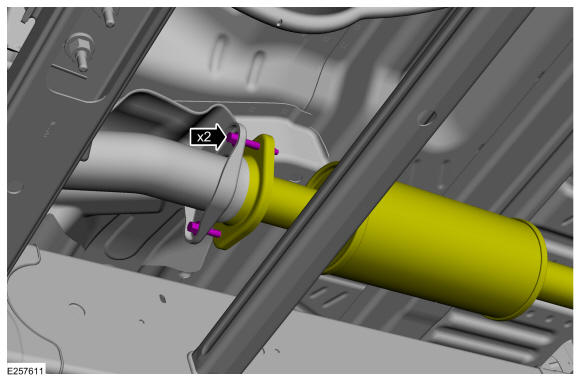

Loosen the bolts and the muffler inlet pipe.

Courtesy of FORD MOTOR COMPANY
Twist the muffler inlet to release the locator tab from muffler.

Courtesy of FORD MOTOR COMPANY
Slide the muffler and tailpipe rearward out of the isolators. and remove from the vehicle.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the muffler inlet pipe.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
