Muffler Inlet Pipe - Vehicles With: Dual Exhaust System: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Muffler inlet pipes will vary in configuration with different wheelbases and powertrains. Typical application shown.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Remove the tailpipe hanger brackets.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
Loosen the muffler inlet pipe rear clamps.
Torque: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY

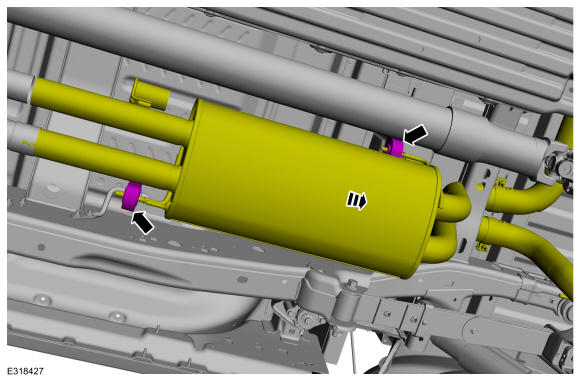

Release the muffler isolators and position the muffler and tailpipe assembly rearward.

Courtesy of FORD MOTOR COMPANY
Loosen the clamp.
Torque: 41 lb.ft (55 Nm)
Remove the bolts.
Torque: 30 lb.ft (40 Nm)
Remove the muffler inlet pipe.

Courtesy of FORD MOTOR COMPANY
