Muffler - Vehicles With: Dual Exhaust System: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Muffler inlet pipes will vary in configuration with different wheelbases and powertrains. Typical application shown.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Remove the tailpipes. Refer to: Tailpipe .

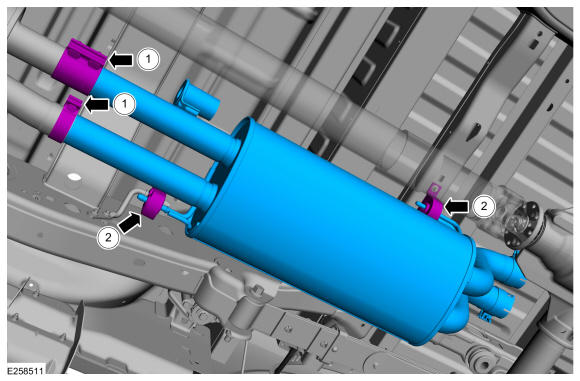

1. Loosen the muffler front clamps.
  Torque: 41 lb.ft (55 Nm)
2. Release the muffler assembly from the exhaust isolator hangers then carefully remove the muffler from the vehicle.

Courtesy of FORD MOTOR COMPANY
