Catalytic Converter RH: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Disconnect the HO2S electrical connector and detach the wire clips.
    GFD464965Courtesy of FORD MOTOR COMPANY
  3. Remove the LH catalytic converter. Refer to: Catalytic Converter LH - Vehicles With: Dual Exhaust System .
  4. Remove the muffler inlet pipe. Refer to: Muffler Inlet Pipe .
  5. Remove the transmission fluid cooler. Refer to: Transmission Fluid Cooler - 2.7L EcoBoost (238kW/324PS)/3.5L EcoBoost (272kW/370PS)/5.0L 32V Ti-VCT .
  6. Remove the transmission support insulator. Refer to: Transmission Support Insulator .
  7. Disconnect the HO2S electrical connector.
    GFD464966Courtesy of FORD MOTOR COMPANY
  8. Remove the bolt and the heat shield.
    GFD464967Courtesy of FORD MOTOR COMPANY

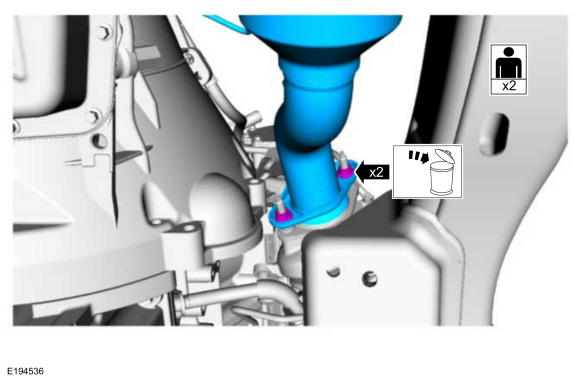

  9. Remove the RH catalytic converter nuts and discard. Remove the RH catalytic converter.
    GFD464968Courtesy of FORD MOTOR COMPANY
    NOTE: The following 2 steps are only required if servicing the exhaust manifold adapter.

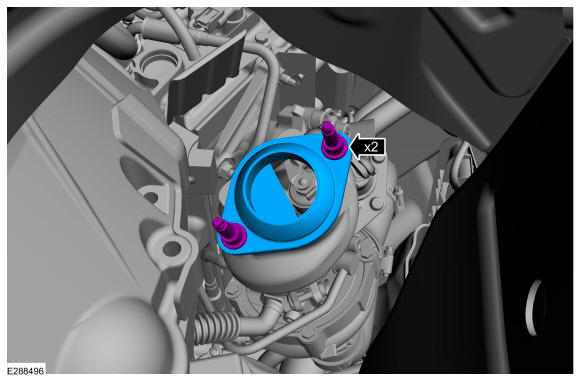

  10. NOTE: Install the new studs if necessary.

    Remove the studs and the exhaust manifold adaptor.

    GFD464969Courtesy of FORD MOTOR COMPANY

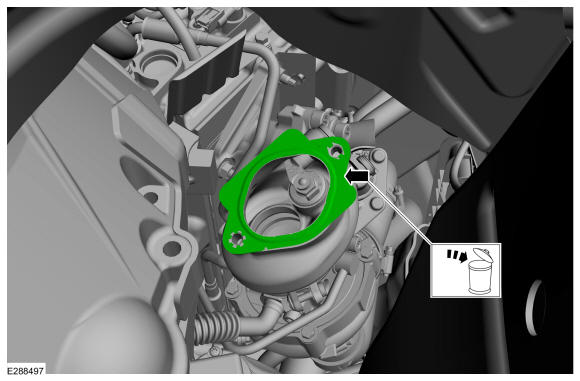

  11. Remove and discard the gasket.
GFD464970Courtesy of FORD MOTOR COMPANY
