Catalytic Converter LH: Installation
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- Clean all exhaust connections before reassembly.
-
NOTE: Evenly tighten the LH catalytic converter nuts.

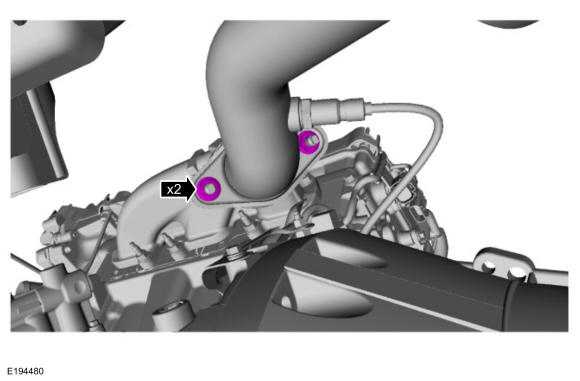

Position the LH catalytic converter in vehicle. Install the new LH catalytic converter nuts.
Torque: 30 lb.ft (40 Nm)

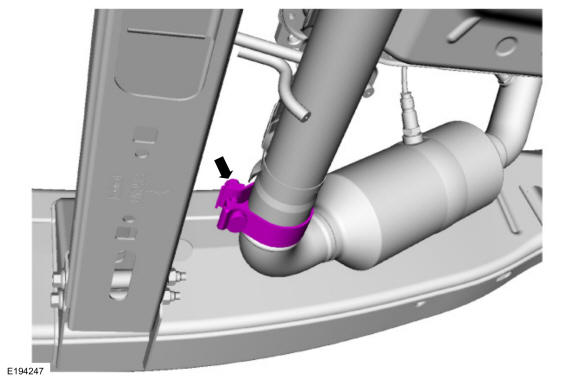

- Tighten the clamp.
Torque: 41 lb.ft (55 Nm)

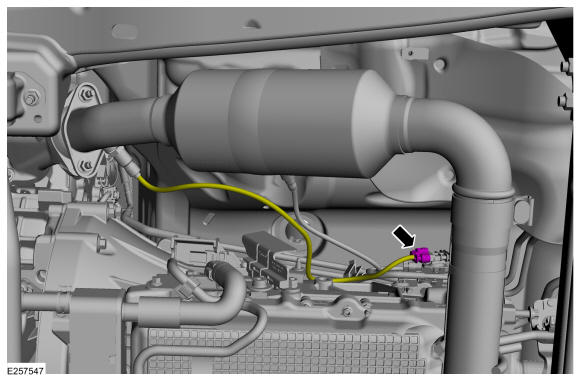

- Connect the HO2S electrical connector.

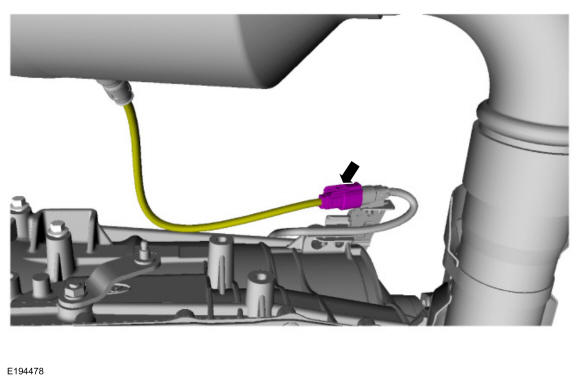

- Connect the HO2S electrical connector.

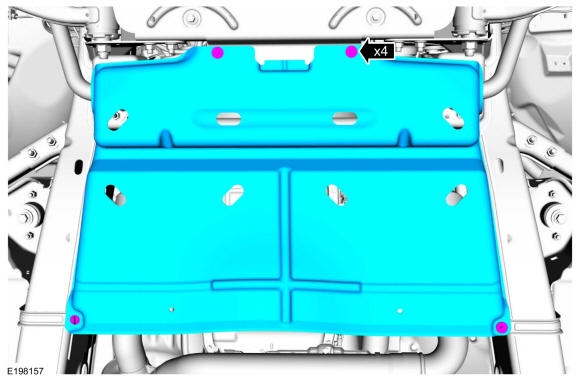

- If equipped, install the underbody shield.
Torque: 71 lb.in (8 Nm)
- Check the exhaust system for leaks.
