Reductant Tank Filler Hose: Installation
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

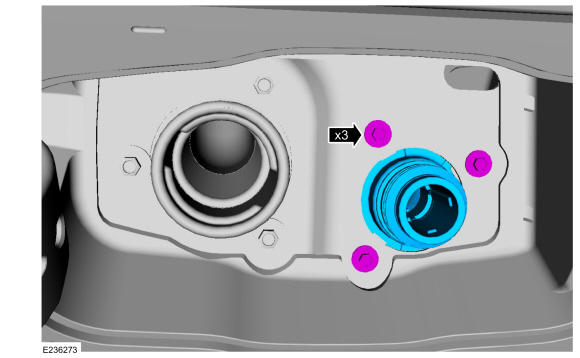

- Install the reductant tank fill hose, then install and tighten the reductant tank filler screws.
Torque: 22 lb.in (2.5 Nm)

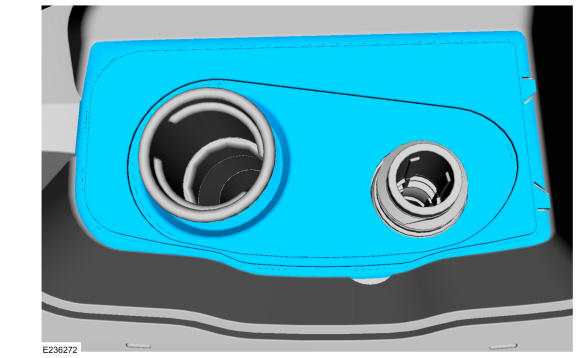

- Install the rubber filler panel.

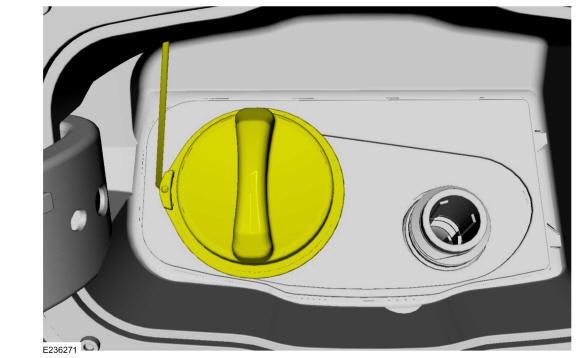

- Install the fuel cap.
-

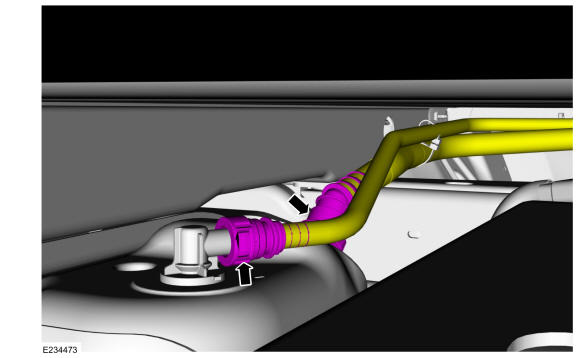

NOTE: Inboard frame mounted reductant tank filler and vent hoses are shown, outboard frame mounted reductant tank is similar.
- Connect the reductant tank vent hose.
- Connect the reductant tank fill hose.
-
NOTE: Always refill the reductant tank with NEW reductant fluid to avoid reductant system contamination.
Fill the reductant tank with new reductant fluid.

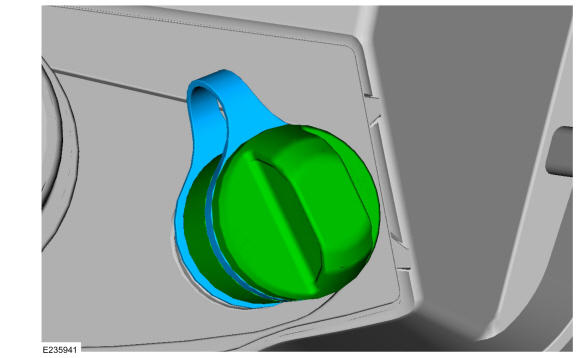

- Attach the reductant cap retaining strap to the reductant tank filler hose and then install the reductant cap.
