Exhaust Crossover Pipe: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: When the engine and exhaust system are hot, they can cause severe burns or injury. Turn off the engine and wait until they are cool before removing the exhaust system.

NOTE: The exhaust crossover pipe heat wrap cannot be reused if removed.

NOTE: Removal steps in this procedure may contain installation details.

Refer to: Health and Safety Precautions .
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Remove front fender splash shields on both RH and LH sides. Refer to: Fender Splash Shield .

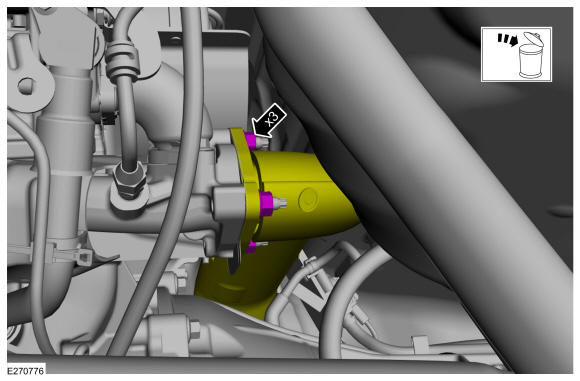

RH side. Remove and discard the nuts.

Courtesy of FORD MOTOR COMPANY

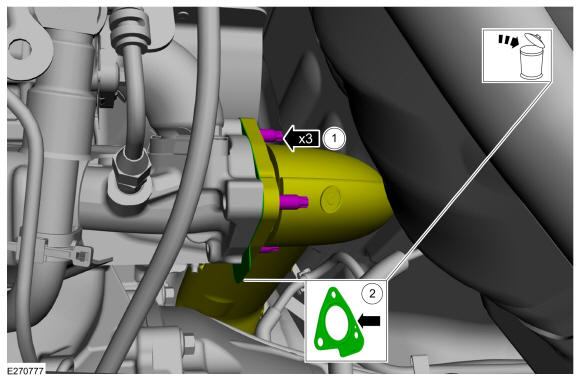

RH side.
- Remove the studs.
  Torque: 115 lb.in (13 Nm)
- Remove and discard the gasket.
Courtesy of FORD MOTOR COMPANY

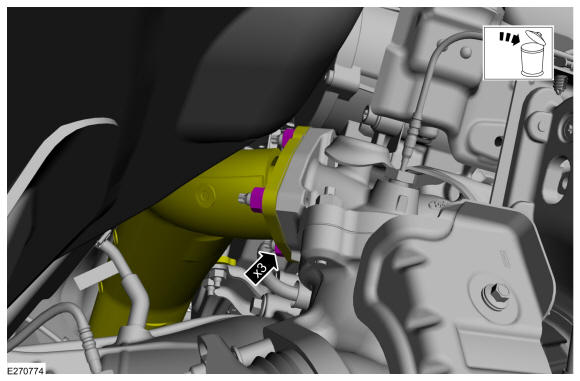

LH side. Remove and discard the nuts.

Courtesy of FORD MOTOR COMPANY

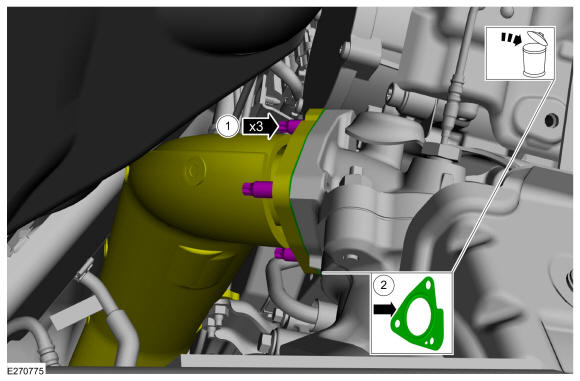

LH side.
- Remove the studs.
  Torque: 115 lb.in (13 Nm)
- Remove and discard the gasket.
Courtesy of FORD MOTOR COMPANY

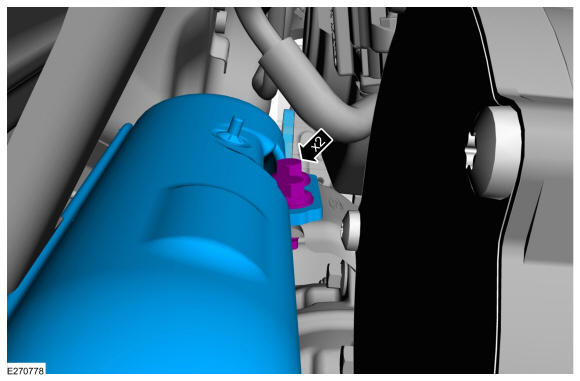

Remove the exhaust crossover pipe support bolts.

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only required if replacing the heat wrap.

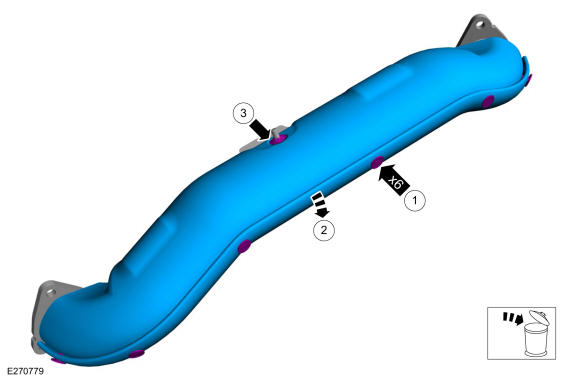

The exhaust crossover pipe heat wrap cannot be reused if removed. If removed, discard the heat wrap.

Courtesy of FORD MOTOR COMPANY
