Exhaust Crossover Pipe: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

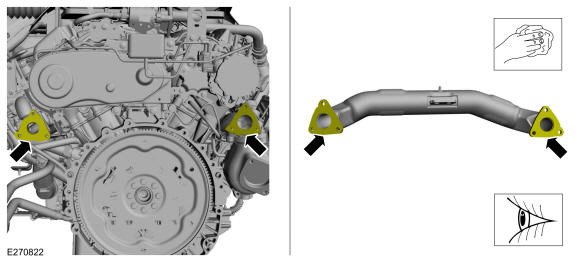

Clean and Inspect the gasket surface.

Courtesy of FORD MOTOR COMPANY
NOTE: If any part of the crossover pipe heat wrap becomes undone or is damaged during the removal and installation of the crossover pipe, the heat wrap must be replaced. Do not reuse an undone or damaged heat wrap.

To install, reverse the removal procedure.

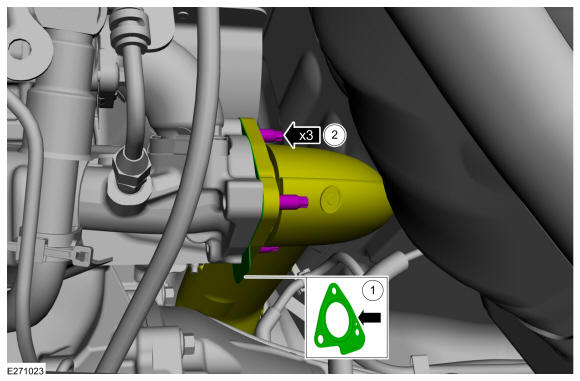

LH side.
- Install the studs.
  Torque: 115 lb.in (13 Nm)
- Install the new gasket.
Courtesy of FORD MOTOR COMPANY

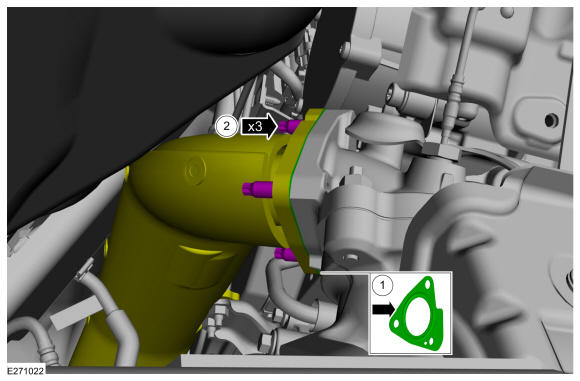

RH side.
- Install the studs.
  Torque: 115 lb.in (13 Nm)
- Install the new gasket.
Courtesy of FORD MOTOR COMPANY

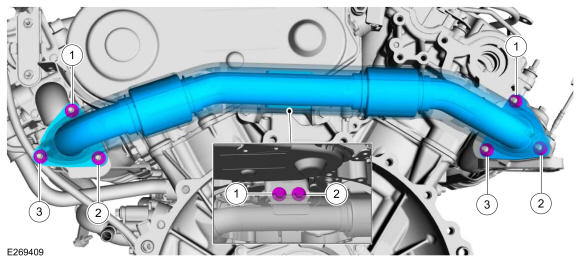

NOTE: Tighten the nuts and bolts in the sequence shown.

Install the crossover pipe, nuts and the support bolts.
- Hand start the RH exhaust manifold nuts.
- Hand start the LH exhaust manifold nuts.
- Hand start the crossover pipe bracket bolts.
- Tighten the RH exhaust manifold nuts in the following sequence: 1, 2, 3, 1, 2.
  Torque: 18 lb.ft (24 Nm)
- Tighten the LH exhaust manifold nuts in the following sequence: 1, 2, 3, 1, 2.
  Torque: 18 lb.ft (24 Nm)
- Tighten the crossover pipe bracket bolts in the sequence shown.
  Torque: 18 lb.ft (24 Nm)
Courtesy of FORD MOTOR COMPANY
Check the exhaust system for leaks.
