Muffler and Tailpipe: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Muffler and tailpipe assemblies will vary in configuration with different wheelbases and powertrains. Typical application shown.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

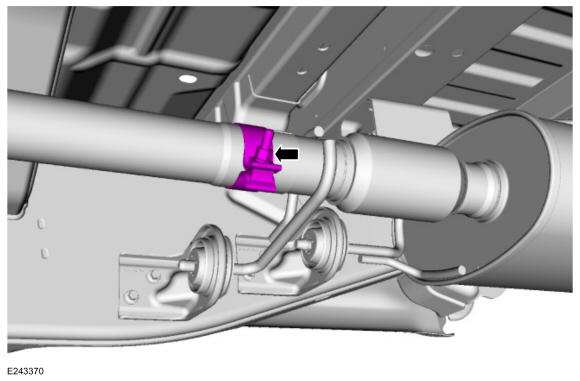

- Loosen the clamp.
Torque: 35 lb.ft (48 Nm)

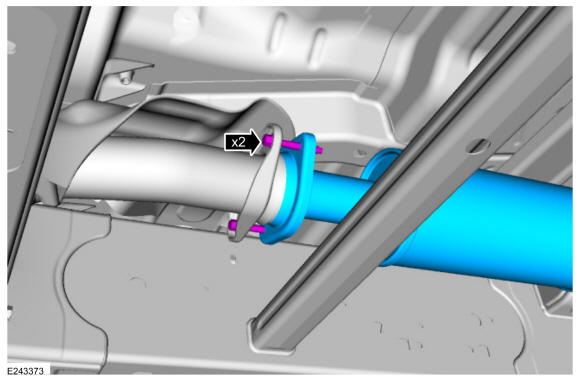

- Loosen the muffler inlet bolts.
Torque: 30 lb.ft (40 Nm)
- Rotate inlet pipe to allow muffler release.

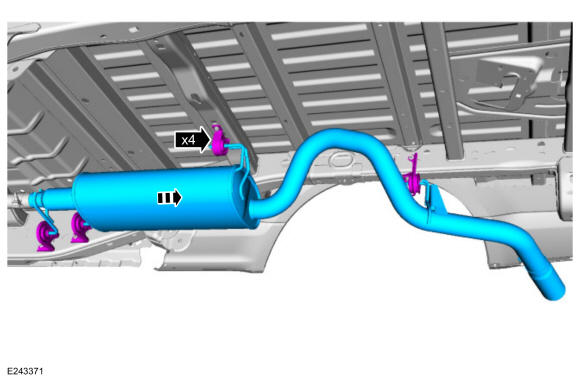

- Slide the muffler and tailpipe rearward out of the isolators and remove the muffler and tailpipe.
