Muffler Inlet Pipe: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Muffler inlet pipes will vary in configuration with different wheelbases and powertrains. Typical application shown.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

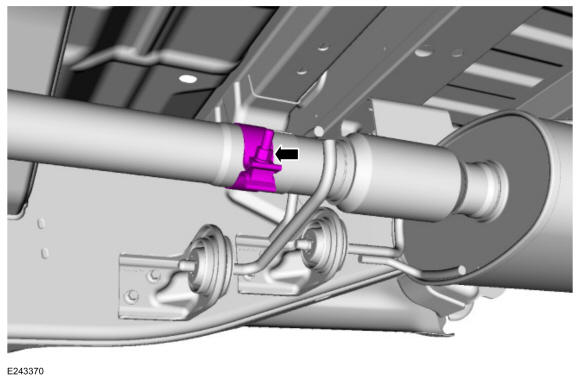

Loosen the clamp.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
Loosen the muffler inlet bolts.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
Rotate inlet pipe to allow muffler release.

Courtesy of FORD MOTOR COMPANY

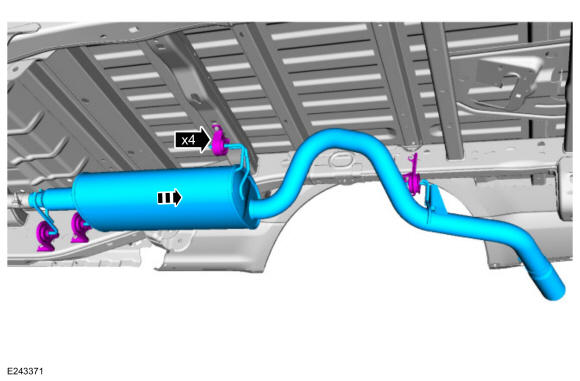

Slide the muffler and tailpipe rearward out of the insulators and remove the muffler and tailpipe

Courtesy of FORD MOTOR COMPANY

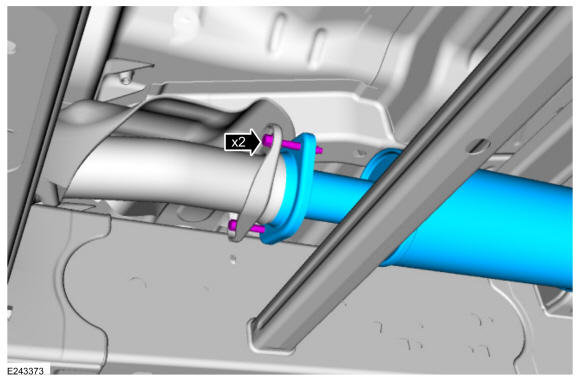

Remove the bolts and the muffler inlet pipe.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
