Catalytic Converter RH: Installation
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- Clean all exhaust connections before reassembly.
-
NOTE: Loosely install the new RH catalytic converter nuts. Do not tighten at this time.

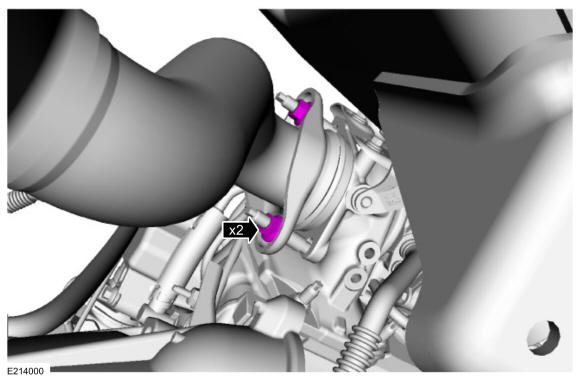

Position the RH catalytic converter in vehicle with a new gasket. Loosely install the RH catalytic converter nuts.
- Install the transmission support insulator. Refer to: Transmission Support Insulator .
-

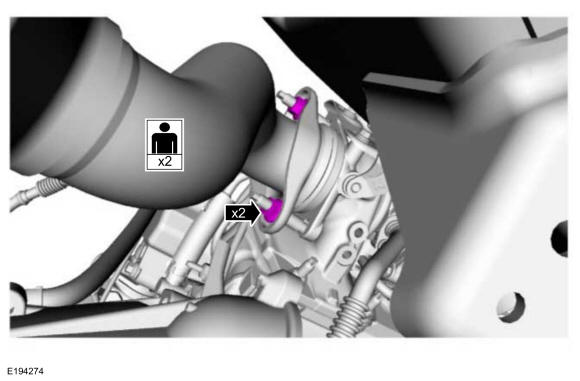

NOTE: Evenly tighten the RH catalytic converter nuts.
Tighten the RH catalytic converter nuts.
Torque: 30 lb.ft (40 Nm)
- Install the transmission fluid cooler. Refer to: Transmission Fluid Cooler - 2.7L EcoBoost (238kW/324PS)/3.5L EcoBoost (272kW/370PS)/5.0L 32V Ti-VCT .
- Install the LH catalytic converter. Refer to: Catalytic Converter LH .

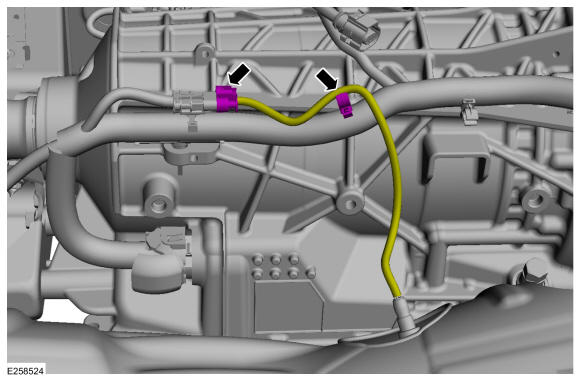

- Connect the HO2S electrical connector and attach the wire clip.

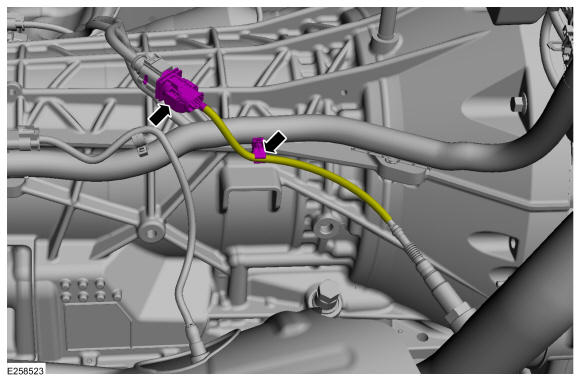

- Connect the HO2S electrical connector and attach the wire clip.
- Install the muffler inlet pipe. Refer to: Muffler Inlet Pipe .
- Check the exhaust system for leaks.
