Fuel Pump and Sender Unit: Installation
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- To install, reverse the removal procedure.
-
NOTE:

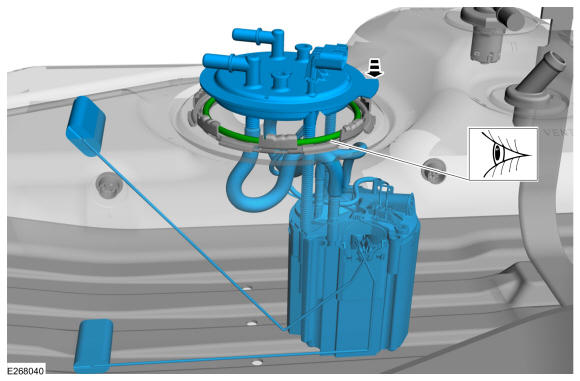

Take extra care not to damage the fuel tank level sensor and float arm.
NOTE:
Use new O-Ring Seal.
NOTE:
Make sure that the seal is correctly located.
 Courtesy of FORD MOTOR COMPANY
|
-
NOTE:
Make sure that the location marks are aligned.
 Courtesy of FORD MOTOR COMPANY
|
