Fuel Level Sender: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the Fuel Pump and Sender Unit. Refer to: Fuel Pump and Sender Unit .

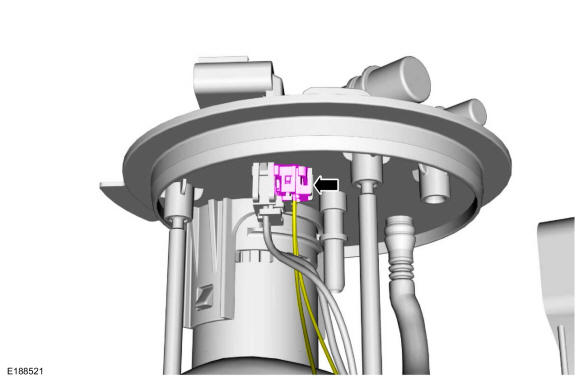

Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY

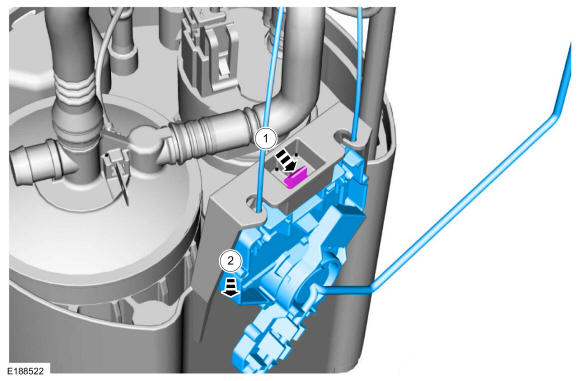

1. Release the retainer tab.
2. Remove the Fuel Level Sender.

Courtesy of FORD MOTOR COMPANY
