Spring - Raptor: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Do not apply heat or flame to the shock absorber or strut tube. The shock absorber and strut tube are gas pressurized and could explode if heated. Failure to follow this instruction may result in serious personal injury.

WARNING: : Keep all body parts clear of shock absorbers or strut rods. Shock absorbers or struts can extend unassisted. Failure to follow this instruction may result in serious personal injury.

NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

For the LH spring. Lower the fuel tank to gain access to the spring-to-frame bolt. Refer to: Fuel Tank .
For the RH spring. Remove the muffler to gain access to the spring-to-frame bolt. Refer to: Muffler - Vehicles With: Dual Exhaust System .
Remove the wheel and tire. Refer to: Wheel and Tire .

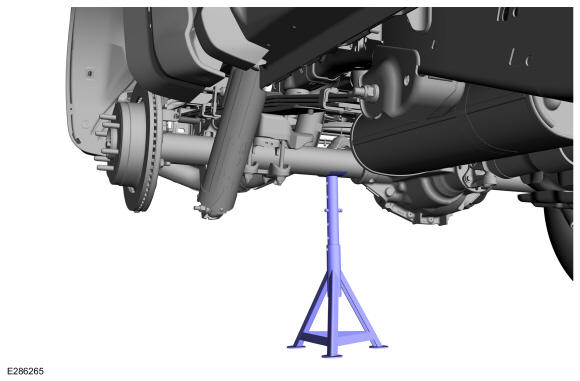

Support the rear axle assembly. Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped with dynamic suspension.

NOTE: LH side only.

Disconnect the rear shock absorber electric connector and wiring harness clips.

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped with dynamic suspension.

NOTE: RH side only.

Disconnect the rear shock absorber electric connector and wiring harness clip.

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY

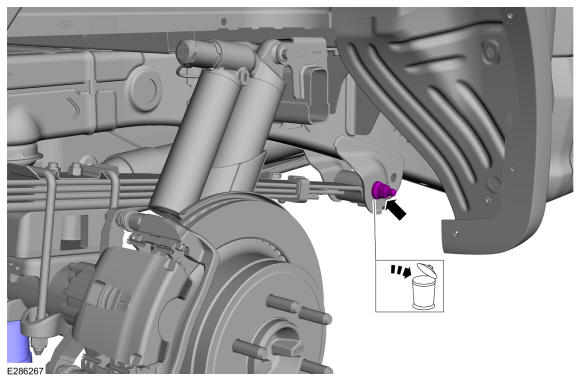

1. Remove and discard the rear shock absorber lower nut and bolt.
1. NOTE: Do not use power tools to remove or install the axle bump stop bolt. Damage to the axle bump stop may occur.

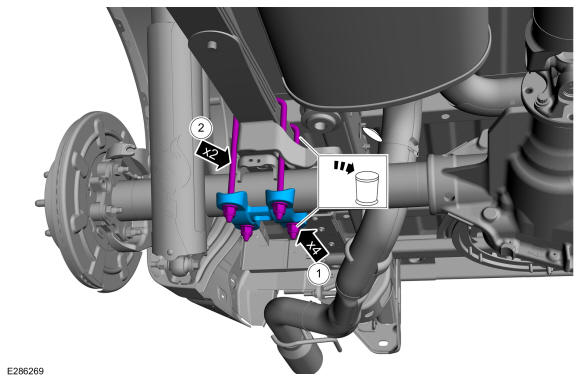

  Remove and discard the 4 U-nuts.
2. Remove and discard the 2 U bolts.
3. Remove the spring clamp.
Courtesy of FORD MOTOR COMPANY

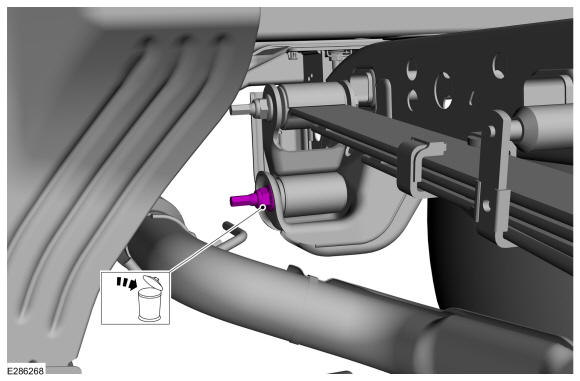

Remove and discard the spring-to-frame nut and bolt.

Courtesy of FORD MOTOR COMPANY
Remove and discard the spring shackle-to-frame nut and bolt.

Courtesy of FORD MOTOR COMPANY

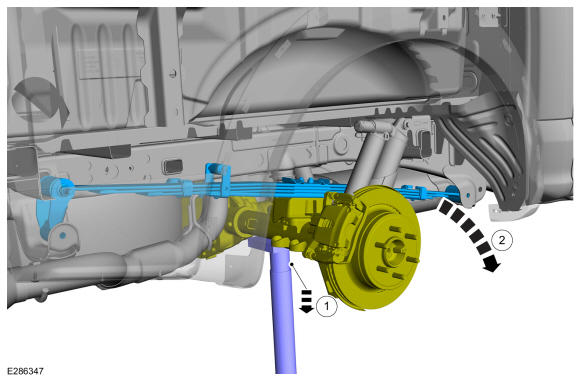

NOTE: Only lower the axle enough to gain access to remove the spring.
1. Lower the axle. Use the General Equipment: Vehicle/Axle Stands
2. Remove the spring and shackle assembly.
Courtesy of FORD MOTOR COMPANY

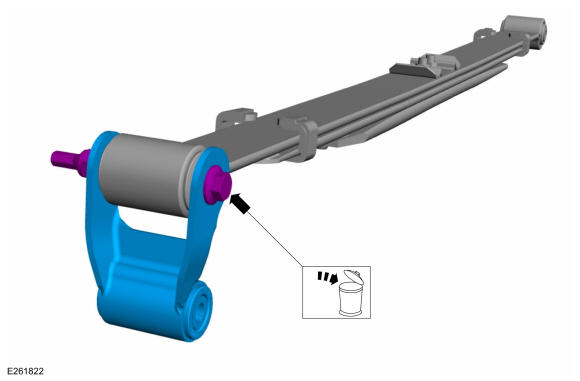

If necessary. Remove and discard the spring-to-shackle bolt and nut and remove the spring shackle.

Courtesy of FORD MOTOR COMPANY
Remove the 4WD spring spacer.
