Spring - Raptor: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of FORD MOTOR COMPANY

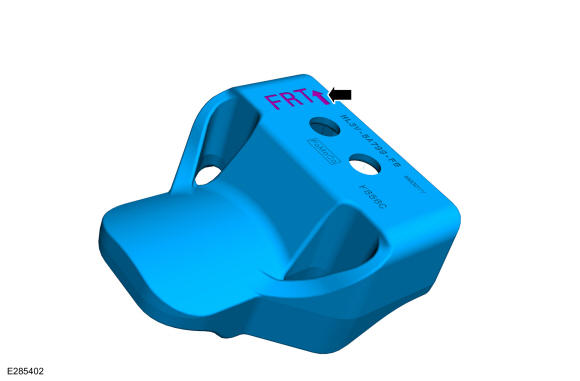

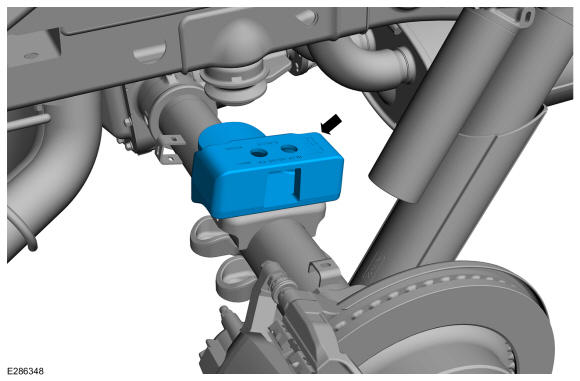

NOTE: Make sure the spring spacer is correctly seated between the axle and spring.

Install the 4WD spring spacer.

Courtesy of FORD MOTOR COMPANY
NOTE: Tighten the fasteners with the suspension loaded or with the weight of the vehicle resting on the wheels and tires, otherwise incorrect clamp load and bushing damage may occur.

NOTE: Only tighten the nut and bolt to snug at this stage.

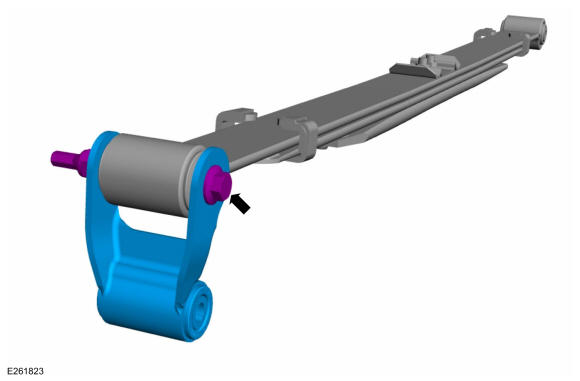

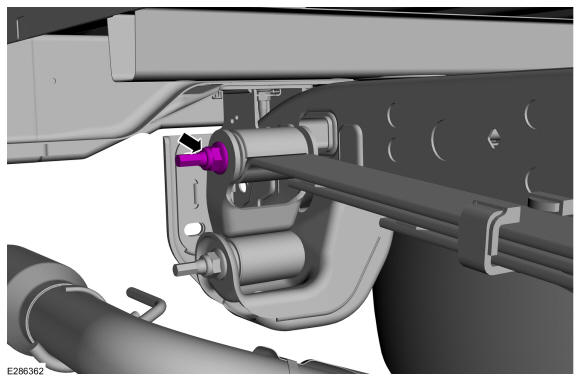

If necessary. Install a new shackle-to-spring bolt and nut.

Courtesy of FORD MOTOR COMPANY

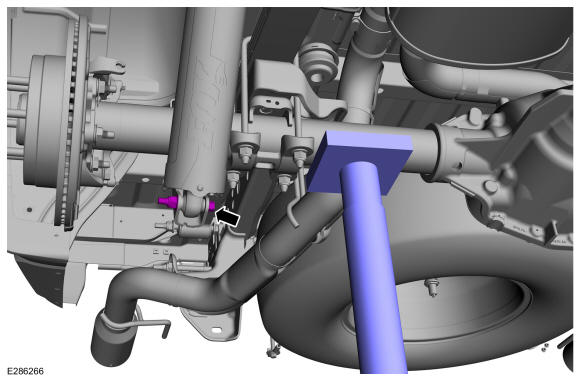

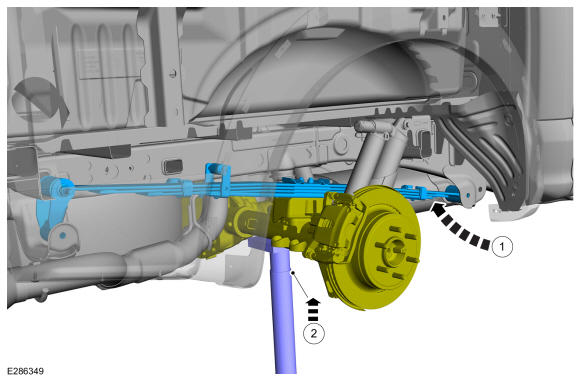

1. Position the spring and shackle assembly.
2. Raise the axle. Use the General Equipment: Vehicle/Axle Stands
Courtesy of FORD MOTOR COMPANY
NOTE: Only tighten the nut and bolt to snug at this stage.

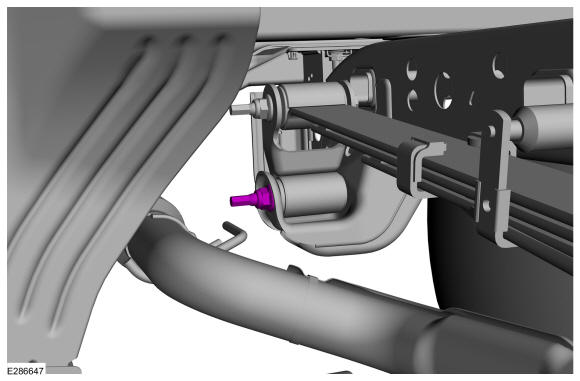

Install the new spring shackle-to-frame nut and bolt.

Courtesy of FORD MOTOR COMPANY
NOTE: Only tighten the nut and bolt to snug at this stage.

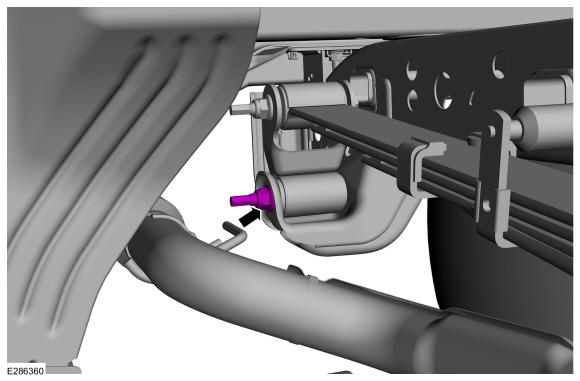

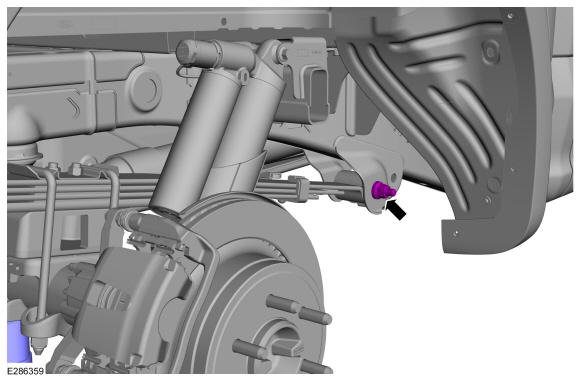

Install the new spring-to-frame nut and bolt.

Courtesy of FORD MOTOR COMPANY

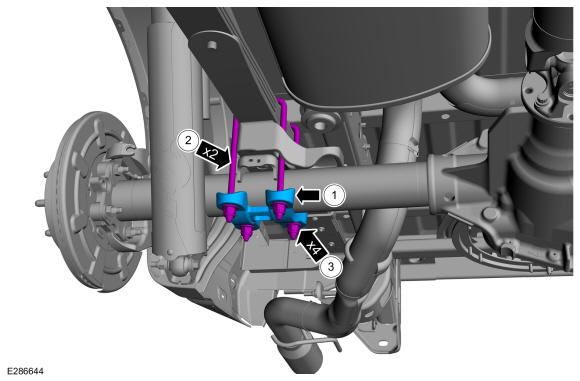

1. Install spring clamp.
2. NOTE: Verify U-bolts are perpendicular and on center to leaf spring. Maintain equal side-to-side clearance to leaf spring stack when securing.

  Install the new U-bolts.
3. NOTE: Only tighten the nut and bolt to snug at this stage.

  Install the new U-bolt nuts.
Courtesy of FORD MOTOR COMPANY
NOTE: Only tighten the nut and bolt to snug at this stage.

Install the new rear shock absorber lower nut and bolt.

Courtesy of FORD MOTOR COMPANY
Install the wheel and tire. Refer to: Wheel and Tire .
Lower the vehicle until the weight of the vehicle is resting on the wheels and tires (curb height).
Tighten the new spring shackle-to-frame nut and bolt.
Torque: 173 lb.ft (235 Nm)

Courtesy of FORD MOTOR COMPANY
Tighten the new spring-to-frame nut and bolt.
Torque: 258 lb.ft (350 Nm)

Courtesy of FORD MOTOR COMPANY
If necessary. Tighten the new shackle-to-spring bolt and nut.
Torque: 173 lb.ft (235 Nm)

Courtesy of FORD MOTOR COMPANY

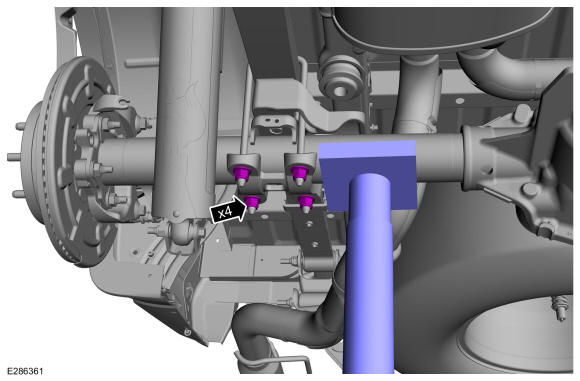

Tighten the U-bolt nuts in a cross pattern in 4 stages.
Torque: Stage 1: 26 lb.ft (35 Nm) | Stage 2: 52 lb.ft (70 Nm) | Stage 3: 74 lb.ft (100 Nm) | Stage 4: 98 lb.ft (133 Nm)

Courtesy of FORD MOTOR COMPANY
Tighten the new rear shock absorber lower nut and bolt.
Torque: 66 lb.ft (90 Nm)

Courtesy of FORD MOTOR COMPANY

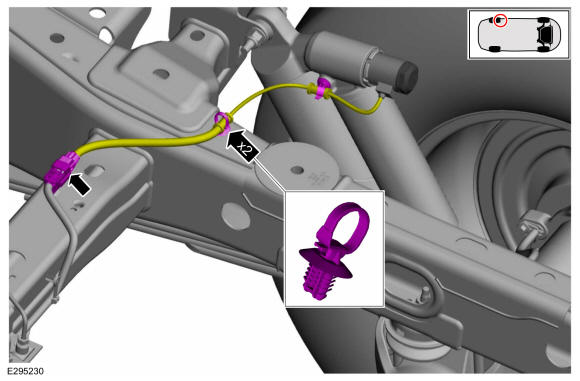

NOTE: If equipped with dynamic suspension.

NOTE: LH side only.

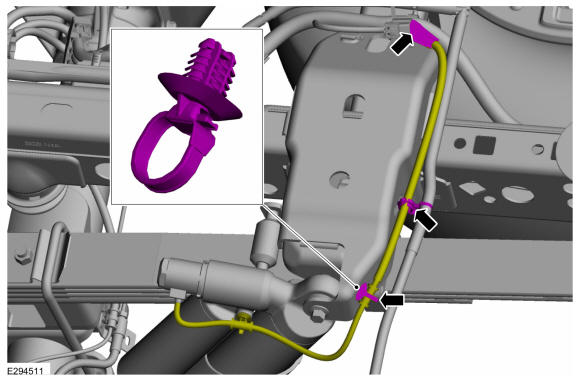

Connect the rear shock absorber electric connector and wiring harness clips.

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped with dynamic suspension.

NOTE: RH side only.

Connect the rear shock absorber electric connector and wiring harness clips.

Courtesy of FORD MOTOR COMPANY
For the RH spring. Install the muffler. Refer to: Muffler - Vehicles With: Dual Exhaust System .
For the LH spring. Raise the fuel tank. Refer to: Fuel Tank .
