Front Stabilizer Bar: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

NOTE: Removal steps in this procedure may contain installation details.

Position vehicle on a hoist. Refer to: Jacking and Lifting - Overview .
NOTE: Use the hex-holding feature to prevent the stud from turning while removing the nut.

On both sides. Remove and discard the front stabilizer bar link upper nut.

Torque: 59 lb.ft (80 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped.

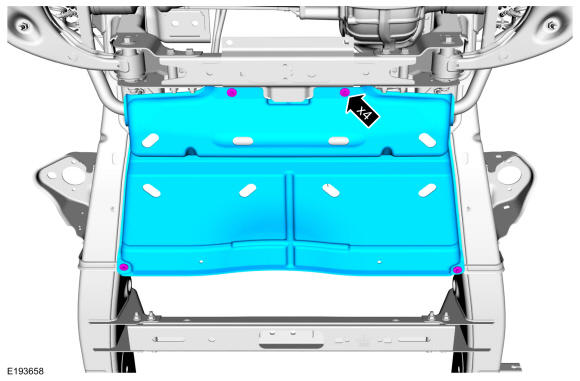

Remove the 4 underbody shield retainers and the underbody shield.

Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

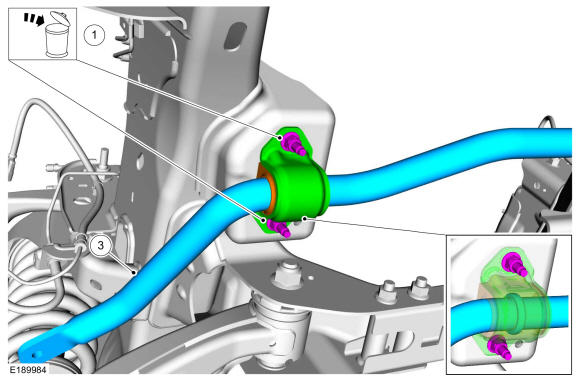

NOTE: To prevent the stabilizer bar from moving freely in the suspension system, increasing the possibility of contacting or damaging surrounding components such as the tires or front driveshaft; the raised ring on the stabilizer bar must be secured in the inner groove of the stabilizer bar bushing on the driver's side of the vehicle.
1. On both sides. Remove and discard the front stabilizer bar bracket nuts.
  Torque: 46 lb.ft (63 Nm)
2. Remove the front stabilizer bar.
Courtesy of FORD MOTOR COMPANY
Inspect and if necessary, install new front stabilizer bar bushings.
