Wheel Trim Ring: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

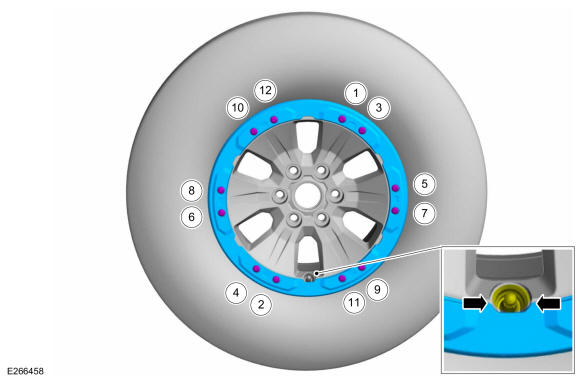

NOTE: Make sure that the wheel trim ring aligns with the valve stem position of the wheel.
- Install the wheel trim ring and finger tighten the bolts.
- Tighten the bolts in following sequence.
  Torque: 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY
