Front Brake Flexible Hose: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure that all openings are sealed.

NOTE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

NOTE: Removal steps in this procedure may contain installation details.

All vehicles

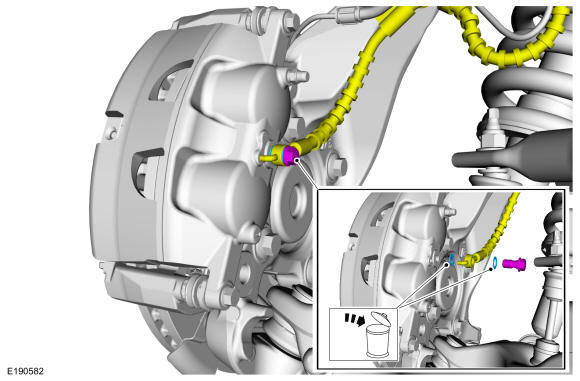

Remove the bolt and disconnect the brake hose. Discard the washers.
Torque

: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY

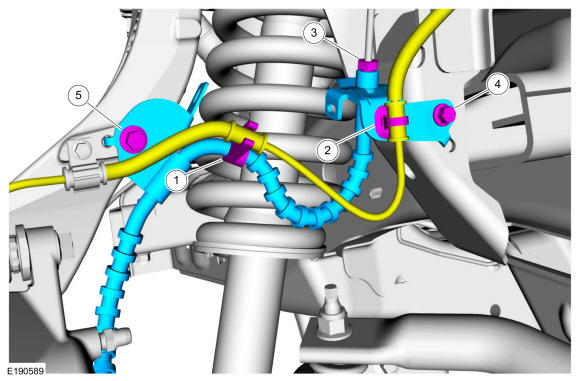

Front wheel drive (FWD) vehicles
1. Unclip the wheel speed sensor harness from the brake hose.
2. Detach the wheel speed sensor wiring retainer.
3. Disconnect the brake tube fitting.
  Torque

  : 159 lb.in (18 Nm)
4. Remove the brake hose bracket bolt.
  Torque

  : 159 lb.in (18 Nm)
5. Remove the brake hose bracket bolt and the brake hose.
  Torque

  : 22 lb.ft (30 Nm)
Courtesy of FORD MOTOR COMPANY

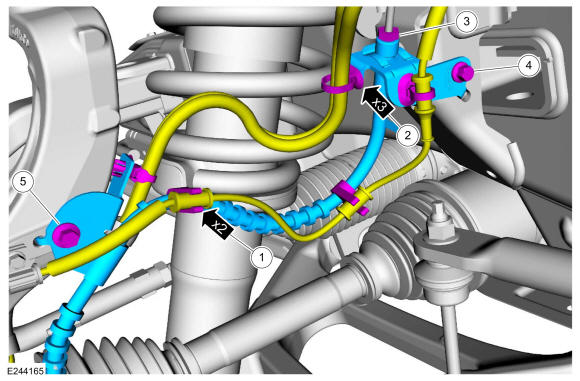

Four wheel drive (4x4) vehicles
1. Unclip the wheel speed sensor harness from the brake hose.
2. Detach the vacuum hose retainers and the wheel speed sensor harness retainer.
3. Disconnect the brake tube fitting.
  Torque

  : 159 lb.in (18 Nm)
4. Remove the brake hose bracket bolt.
  Torque

  : 159 lb.in (18 Nm)
5. Remove the brake hose bracket bolt and the brake hose.
  Torque

  : 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
