Wheel Knuckle: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

If necessary. Install the brake disc shield and the brake disc shield bolts.
Torque

: 150 lb.in (17 Nm)

Courtesy of FORD MOTOR COMPANY
1. Install the wheel knuckle.
2. Install the new lower ball joint nut.
  Torque

  : 76 lb.ft (103 Nm)
Courtesy of FORD MOTOR COMPANY
Install the new upper ball joint nut.
Torque

: 46 lb.ft (63 Nm)

Courtesy of FORD MOTOR COMPANY

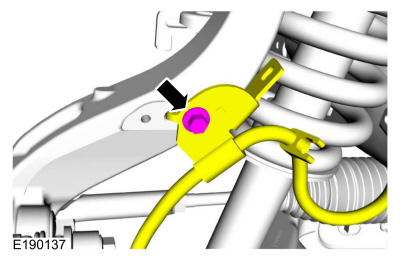

Position the brake hose and install the brake hose bracket bolt.
Torque

: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
Position the tie rod end and install the new tie rod end nut.
Torque

: 76 lb.ft (103 Nm)

Courtesy of FORD MOTOR COMPANY
Install the front wheel bearing and wheel hub. Refer to: Front Wheel Bearing and Wheel Hub .
