Shock Absorber and Spring Assembly: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Install the shock absorber and the upper mount. Use the General Equipment: Spring Compressor

Courtesy of FORD MOTOR COMPANY
NOTE: If the individual spring and/or shock components are not being serviced, continue to the installation procedure.

NOTE: For reference during assembly, index the upper mount, spring and shock absorber.

Compress the spring until the tension is released from the shock absorber. Use the General Equipment: Spring Compressor

Courtesy of FORD MOTOR COMPANY
NOTE: Use the hex-holding feature to prevent the shock rod from turning while installing the nut.

While holding the shock rod, install the new shock absorber and the shock rod nut.

Torque

: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY

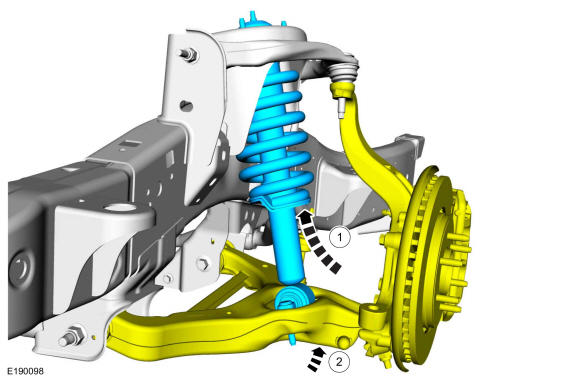

1. Install the shock absorber and spring assembly.
2. Position the lower arm and wheel knuckle up.
Courtesy of FORD MOTOR COMPANY
Install the new shock absorber and spring assembly upper nuts.
Torque

: 52 lb.ft (70 Nm)

Courtesy of FORD MOTOR COMPANY
Install the new upper ball joint nut.
Torque

: 46 lb.ft (63 Nm)

Courtesy of FORD MOTOR COMPANY

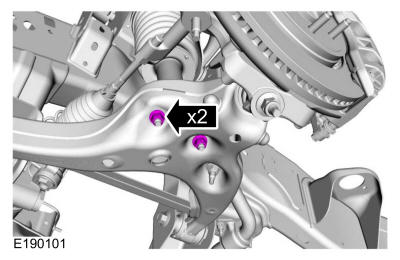

Install the new shock absorber and spring assembly lower nuts.
Torque

: 66 lb.ft (90 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Use the hex-holding feature to prevent the stud from turning while installing the nut.

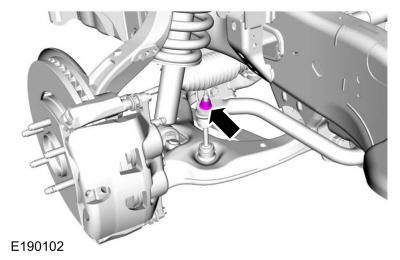

Install the new front stabilizer link upper nut.

Torque

: 59 lb.ft (80 Nm)

Courtesy of FORD MOTOR COMPANY
1. Position the wheel speed sensor wire harness and install the wheel speed sensor bolt.
  Torque

  : 106 lb.in (12 Nm)
2. Position the brake hose and install the brake hose bracket bolt.
  Torque

  : 22 lb.ft (30 Nm)
Courtesy of FORD MOTOR COMPANY
Position the tie rod end and install the new tie rod end nut.
Torque

: 76 lb.ft (103 Nm)

Courtesy of FORD MOTOR COMPANY
Install the wheel and tire. Refer to: Wheel and Tire .
