Lower Ball Joint: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the wheel knuckle. Refer to: Wheel Knuckle .
- Remove and discard the lower ball joint snap ring.

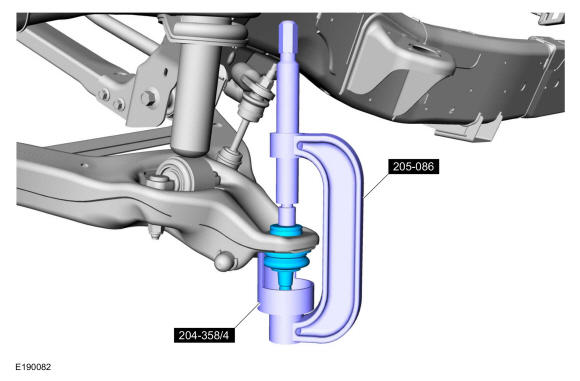

- Remove the ball joint from the lower arm. Use Special Service Tool: 204-358 Remover/Installer, Ball Joint, 205-086 (T74P-4635-C) Installer/Remover, C-Frame and Screw.
