Front Wheel Bearing and Wheel Hub: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

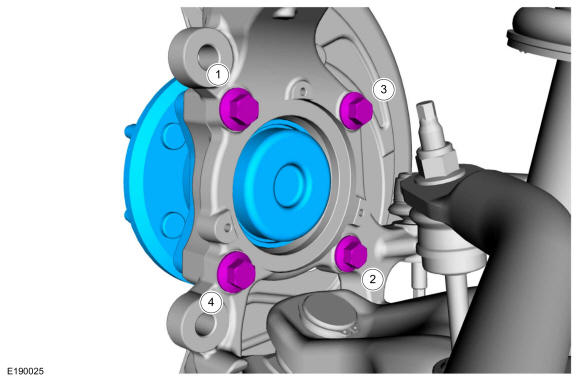

NOTE: Tighten the bolts in a cross pattern.

Install the front wheel bearing and wheel hub and install the 4 front wheel bearing and wheel hub bolts.

Torque

: 129 lb.ft (175 Nm)

Courtesy of FORD MOTOR COMPANY
1. Position the wheel speed sensor wire and clip the 2 wheel speed sensor wire retainers.
2. Clip the wheel speed sensor wire to the brake hose.
3. Install the wheel speed sensor wire bracket bolt.
  Torque

  : 106 lb.in (12 Nm)
Courtesy of FORD MOTOR COMPANY
Install the brake disc. Refer to: Brake Disc .
NOTE: The wheel speed sensor electrical connector is located in the engine compartment secured to the fender apron.

Connect the wheel speed sensor electrical connector.

Courtesy of FORD MOTOR COMPANY
