Service Action Icons
Service action icons may be used to add information regarding the required action.For additional information, refer to: Symbols Glossary .

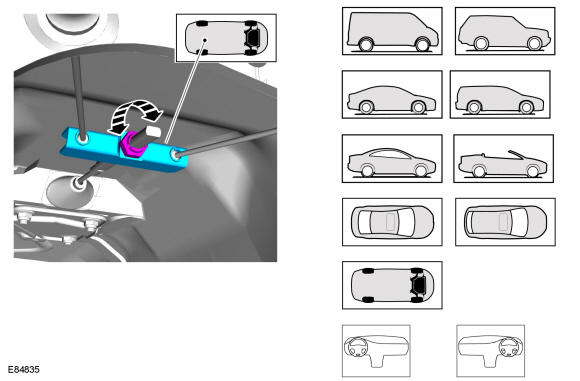

Location symbols show the location of a component or system on the vehicle.

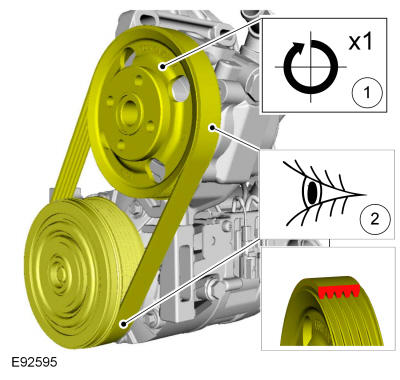

Example of service action icons pointing to highlighted components.

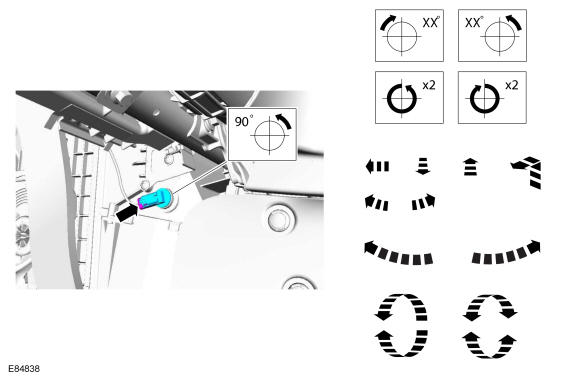

Movement arrows and service action icons show three dimensional or rotational movements.

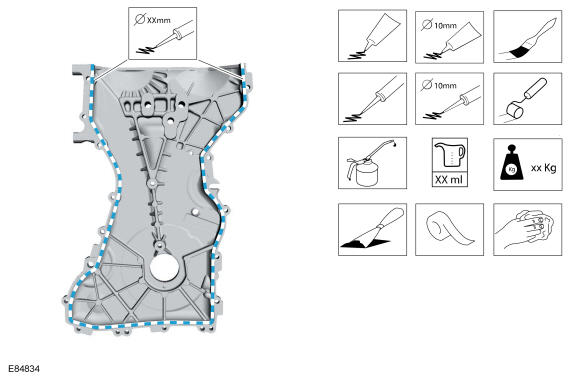

Instruction symbols are used to apply sealer, lubricant, weight, tape or cleaning detergent to a component.

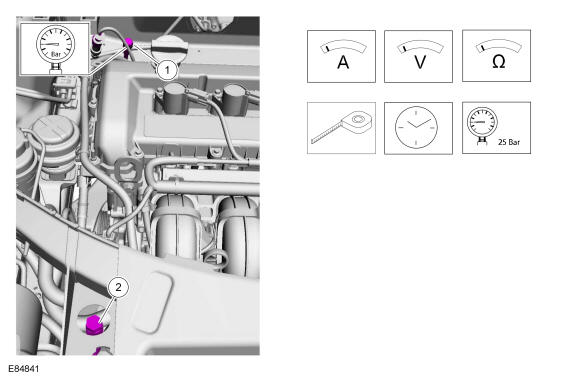

Measurement symbols provide the information required to perform a specific measurement. These symbols may include specific values.
SPECIAL TOOLS, EQUIPMENT, MATERIALS AND TORQUE VALUES
When Ford special tools are required for the procedure, the tool and tool number are shown in an illustration. Special tool numbers, general equipment, materials or torque values for the procedure step are shown in the text steps.

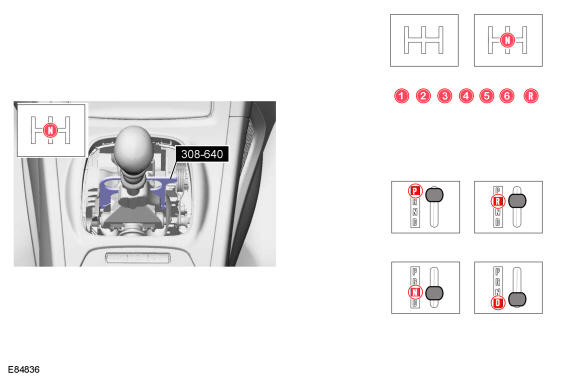

Example of special service tool and symbol used to hold the gear shift in the required gear position. Other possible symbols are shown on the right.

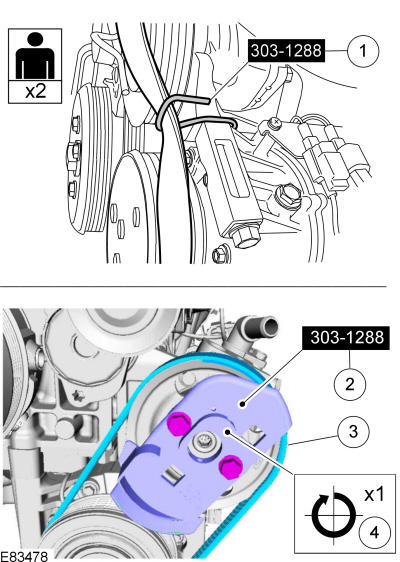

Example of two illustrations used together with sequence steps, service action icons and special service tools

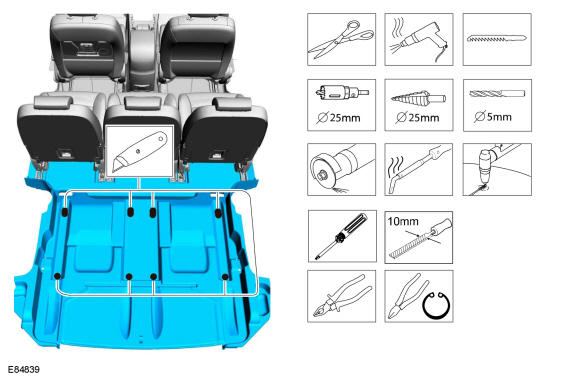

Tool symbols direct the use of standard tools. The tool size or dimension may be specified.
