Transmission Controls - 6R80

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

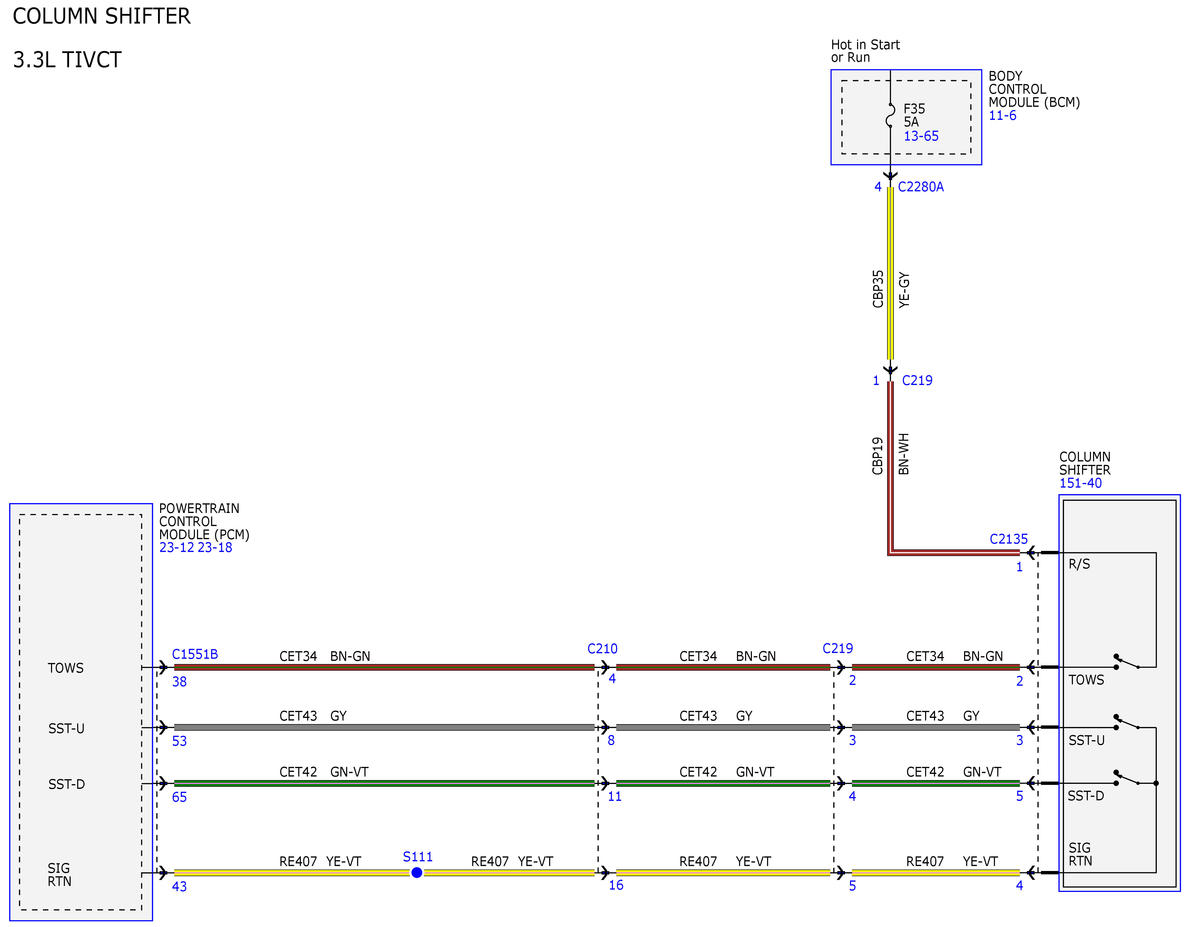

Fig 1: Transmission Controls - 6R80 (1 Of 4)

Courtesy of FORD MOTOR COMPANY

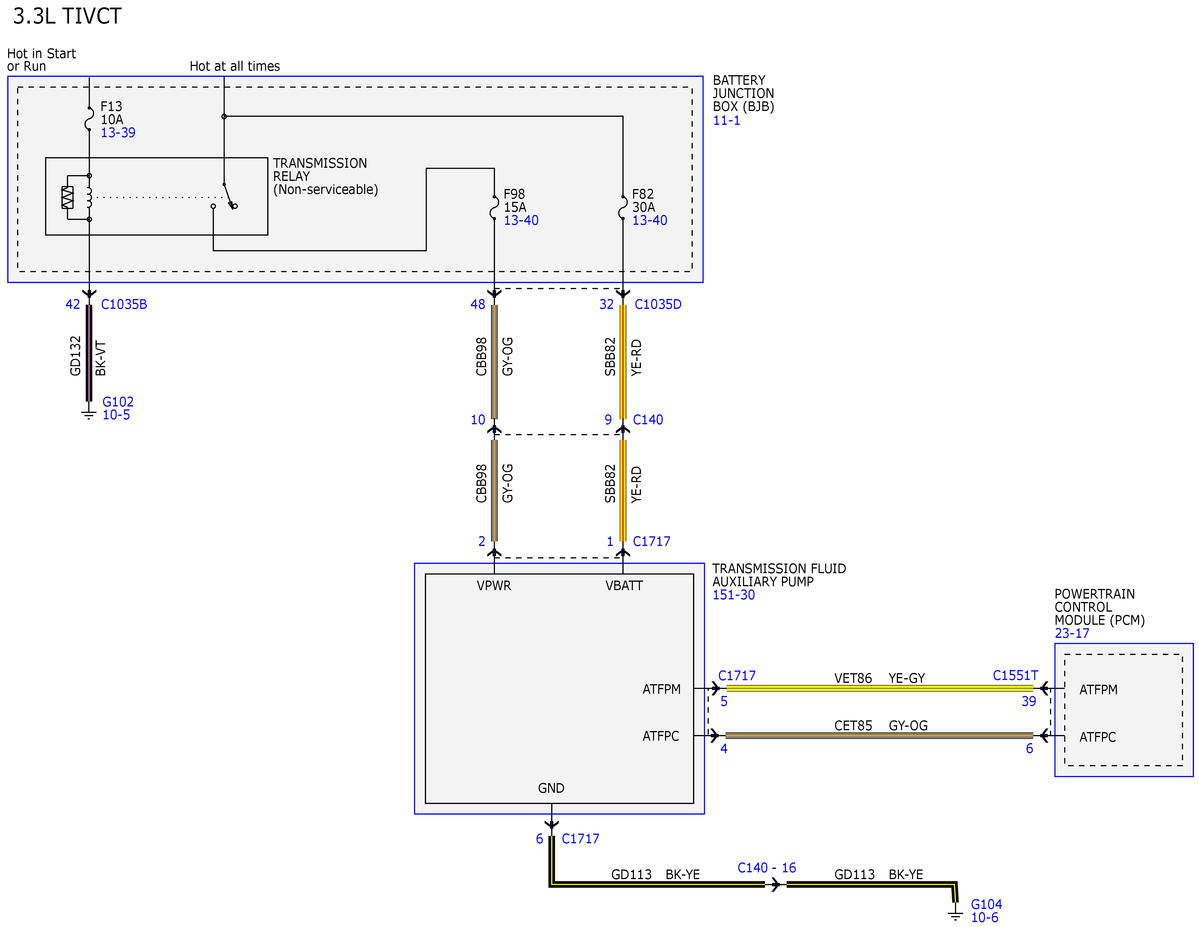

Fig 2: Transmission Controls - 6R80 (2 Of 4)

Courtesy of FORD MOTOR COMPANY

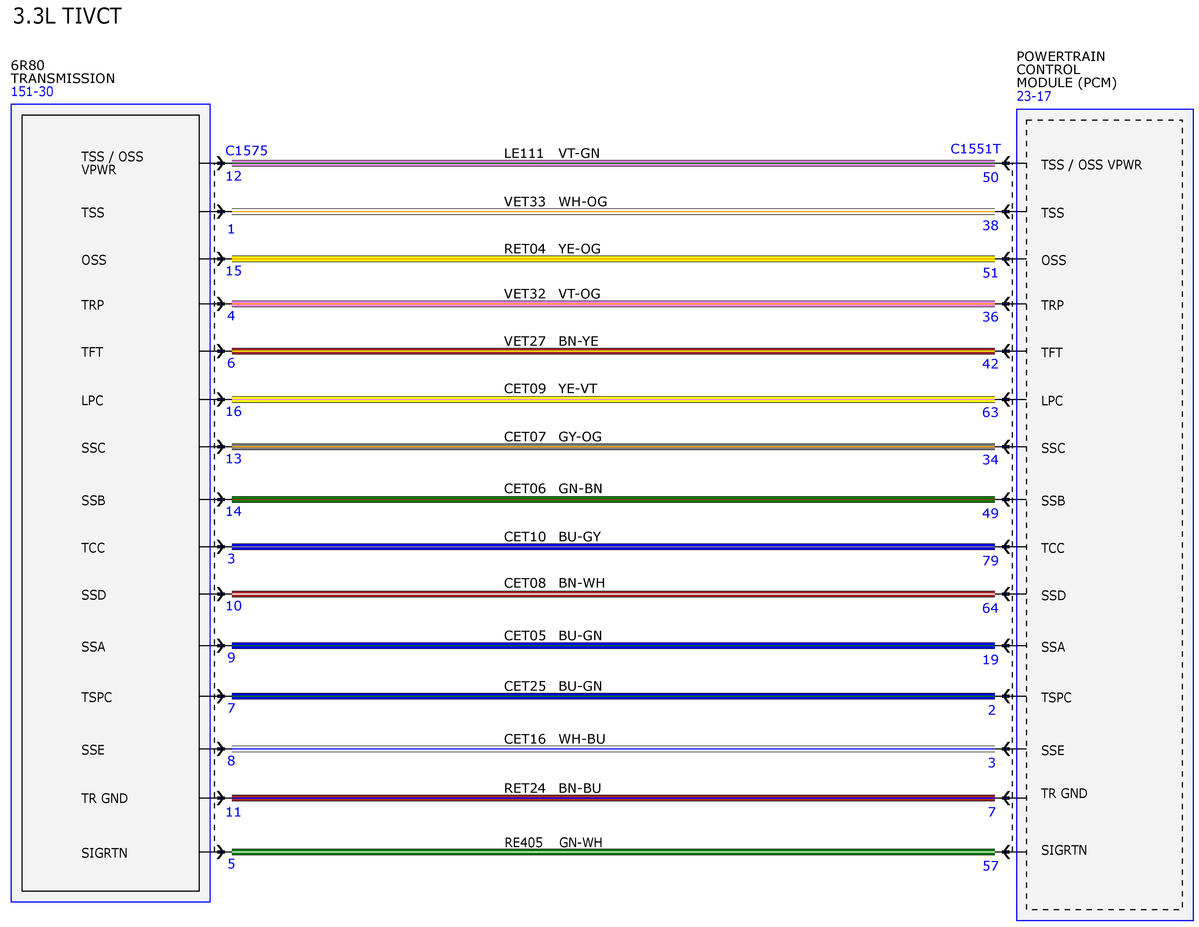

Fig 3: Transmission Controls - 6R80 (3 Of 4)

Courtesy of FORD MOTOR COMPANY

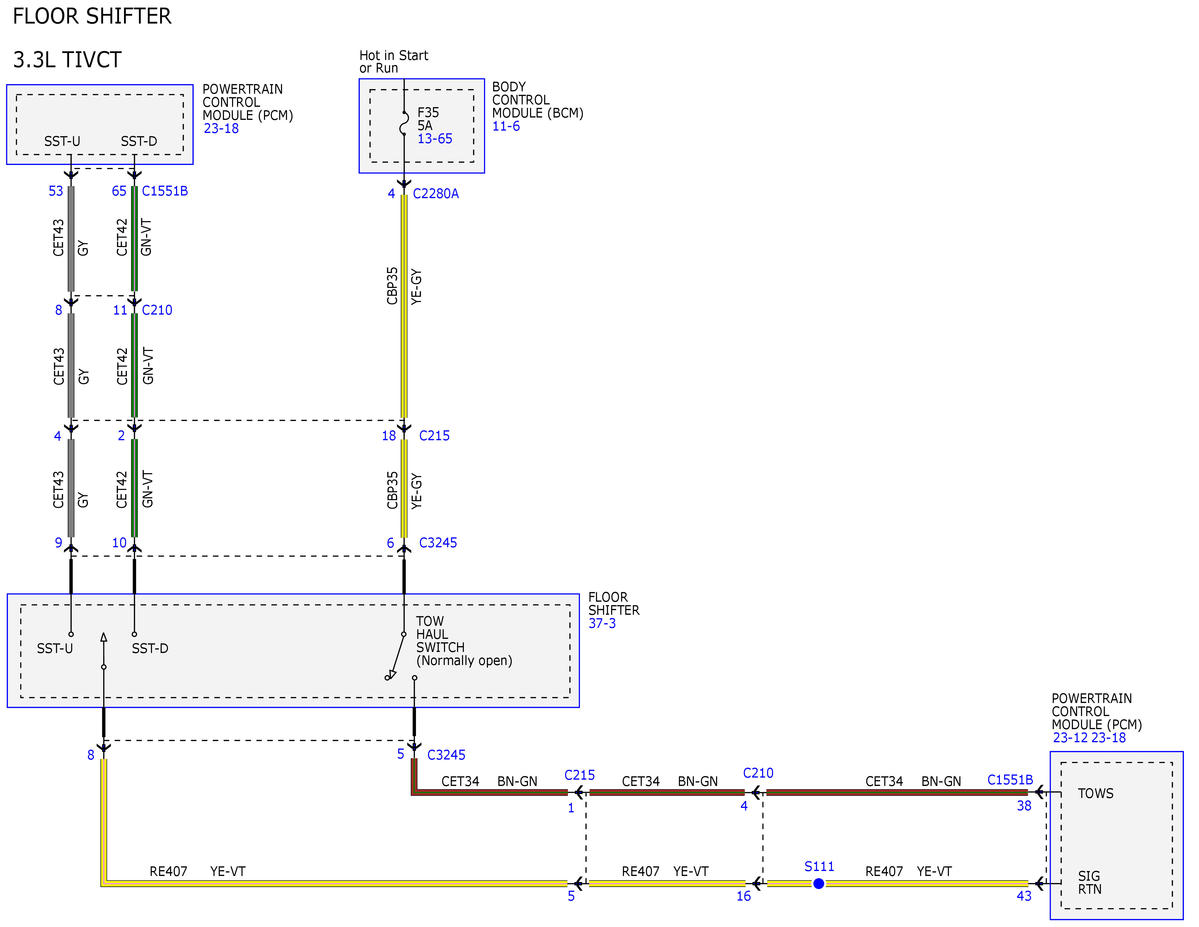

Fig 4: Transmission Controls - 6R80 (4 Of 4)

Courtesy of FORD MOTOR COMPANY
