Transmission Controls - 10R80

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

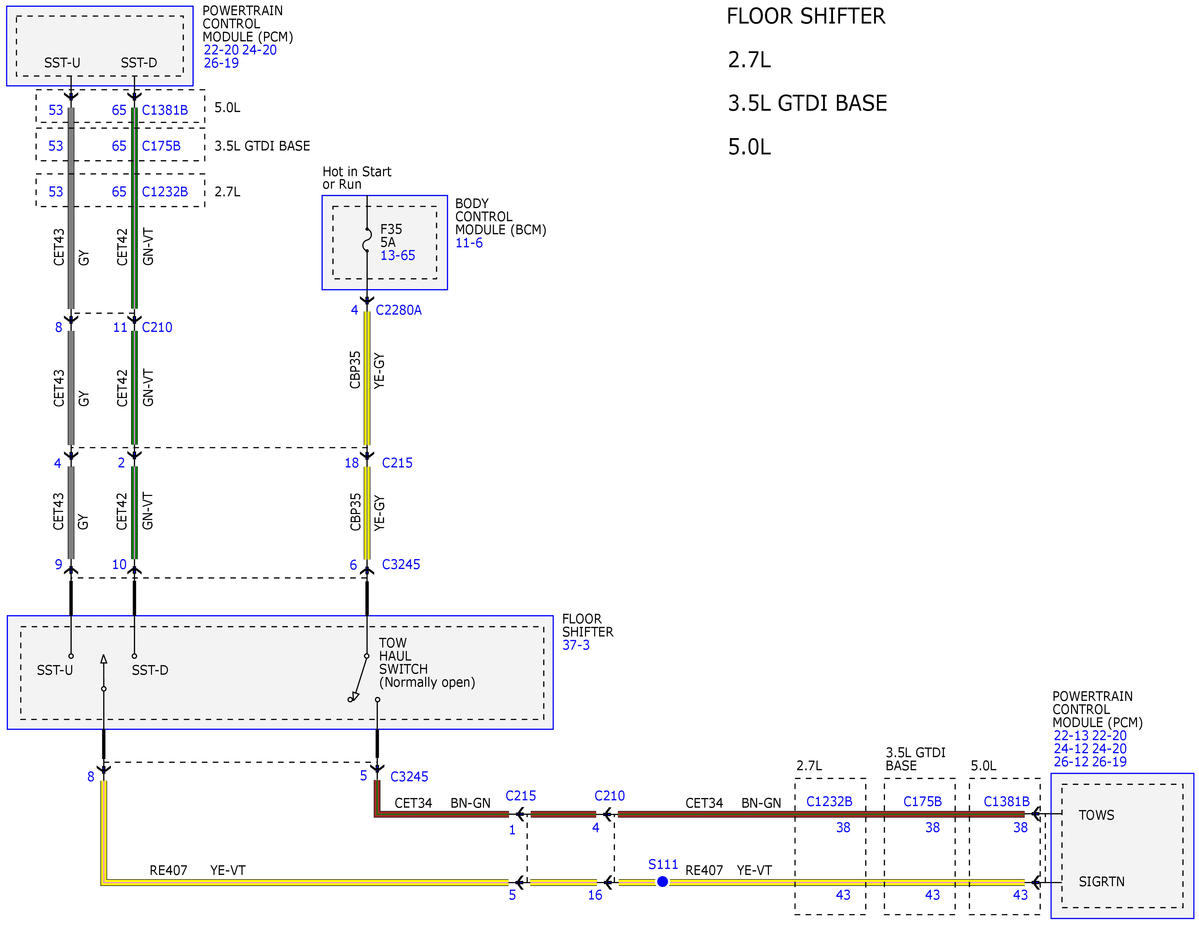

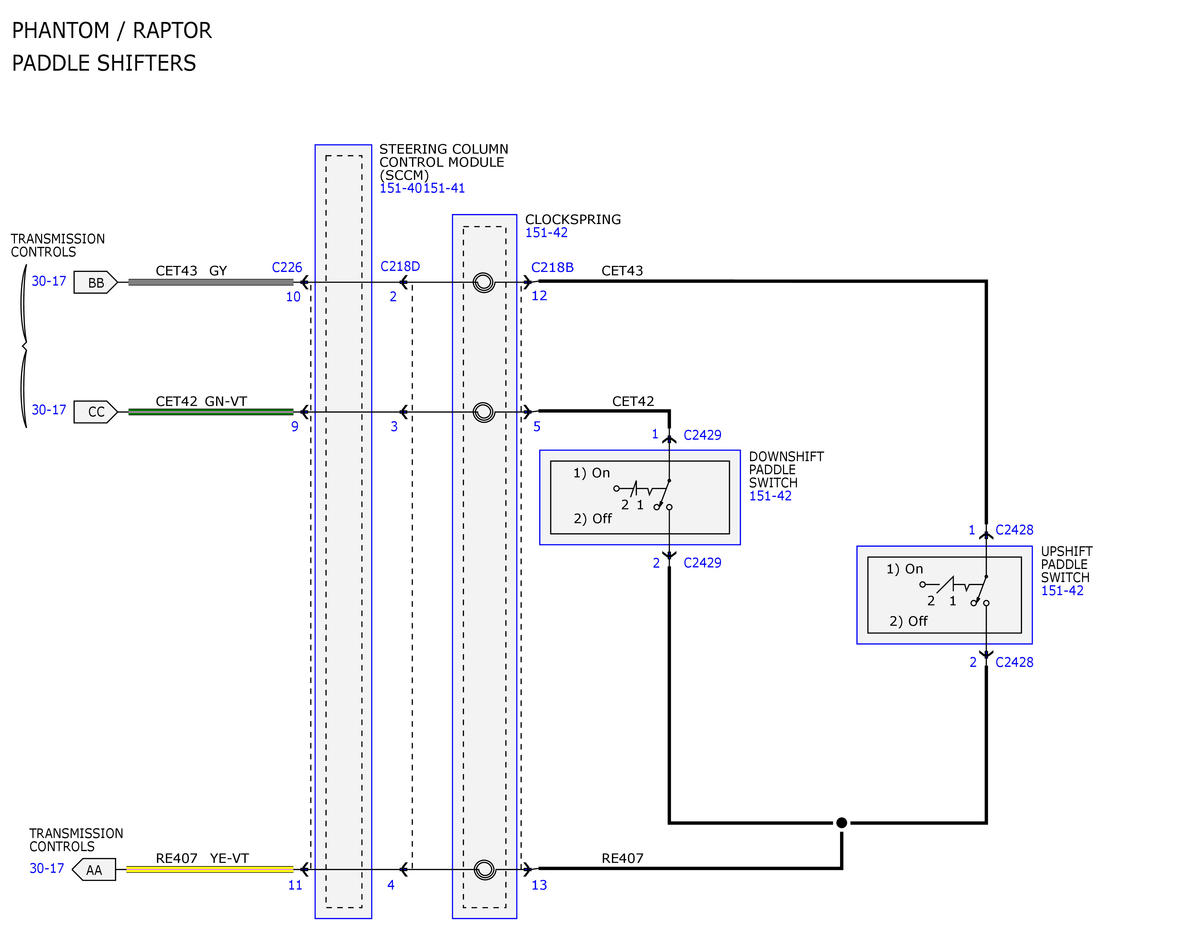

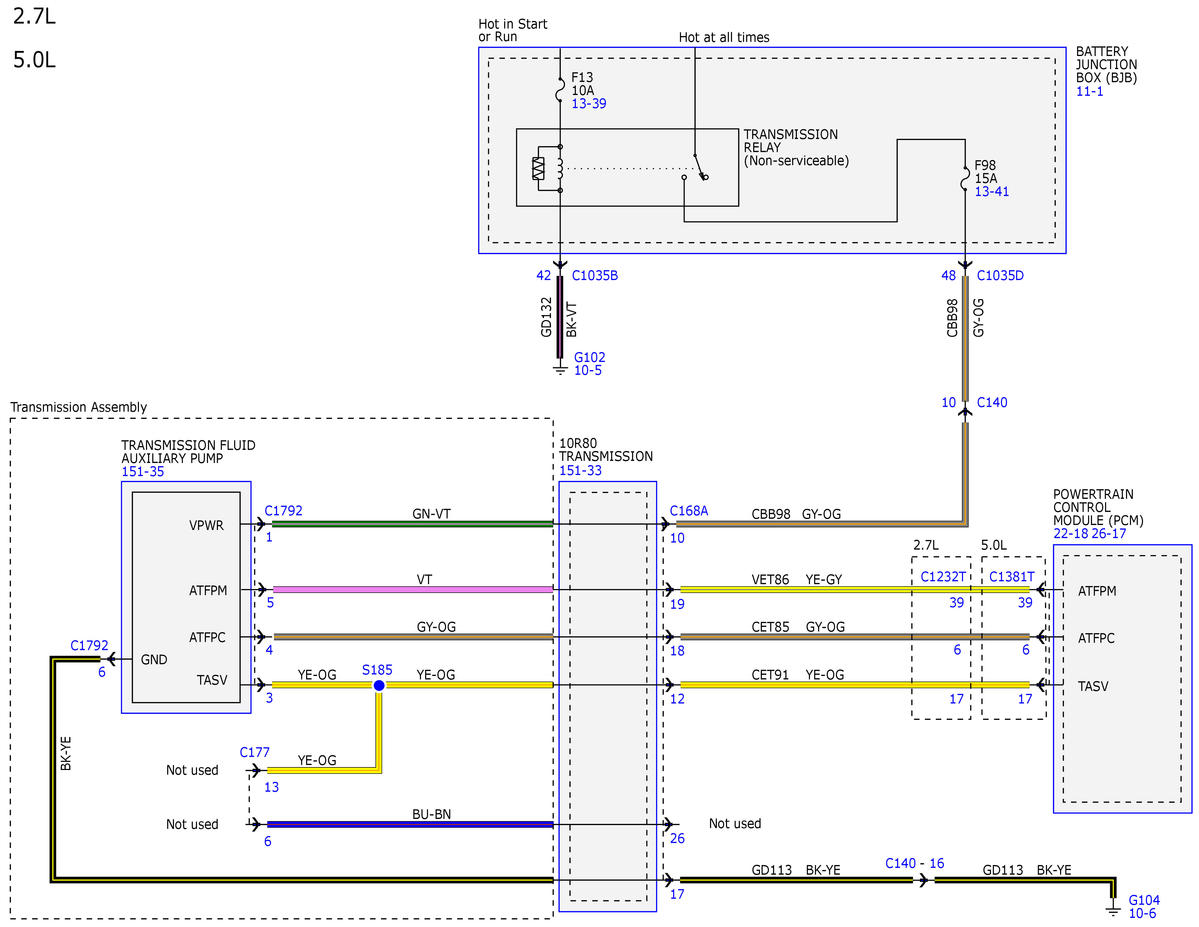

Fig 1: Transmission Controls - 10R80 Wiring Diagram (1 Of 18)

Courtesy of FORD MOTOR COMPANY

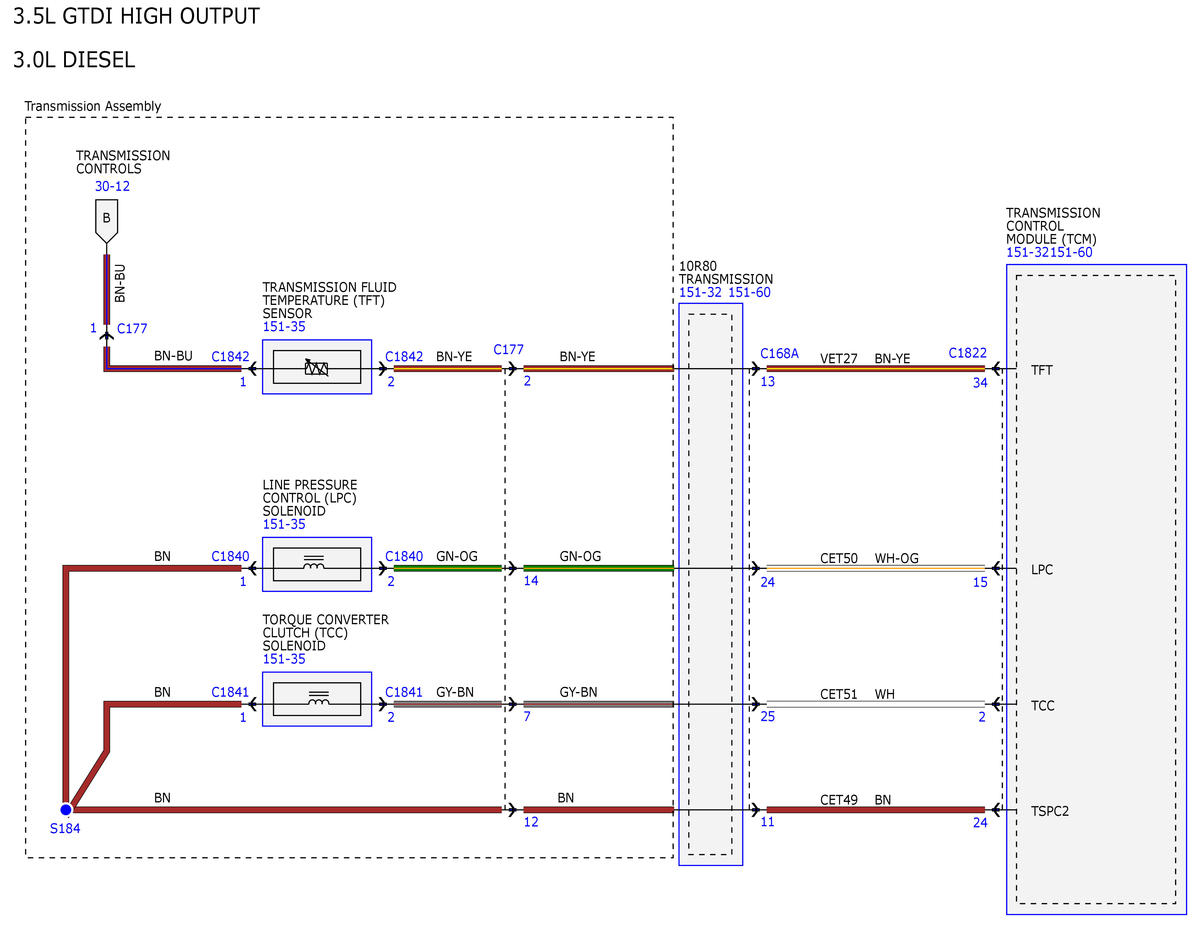

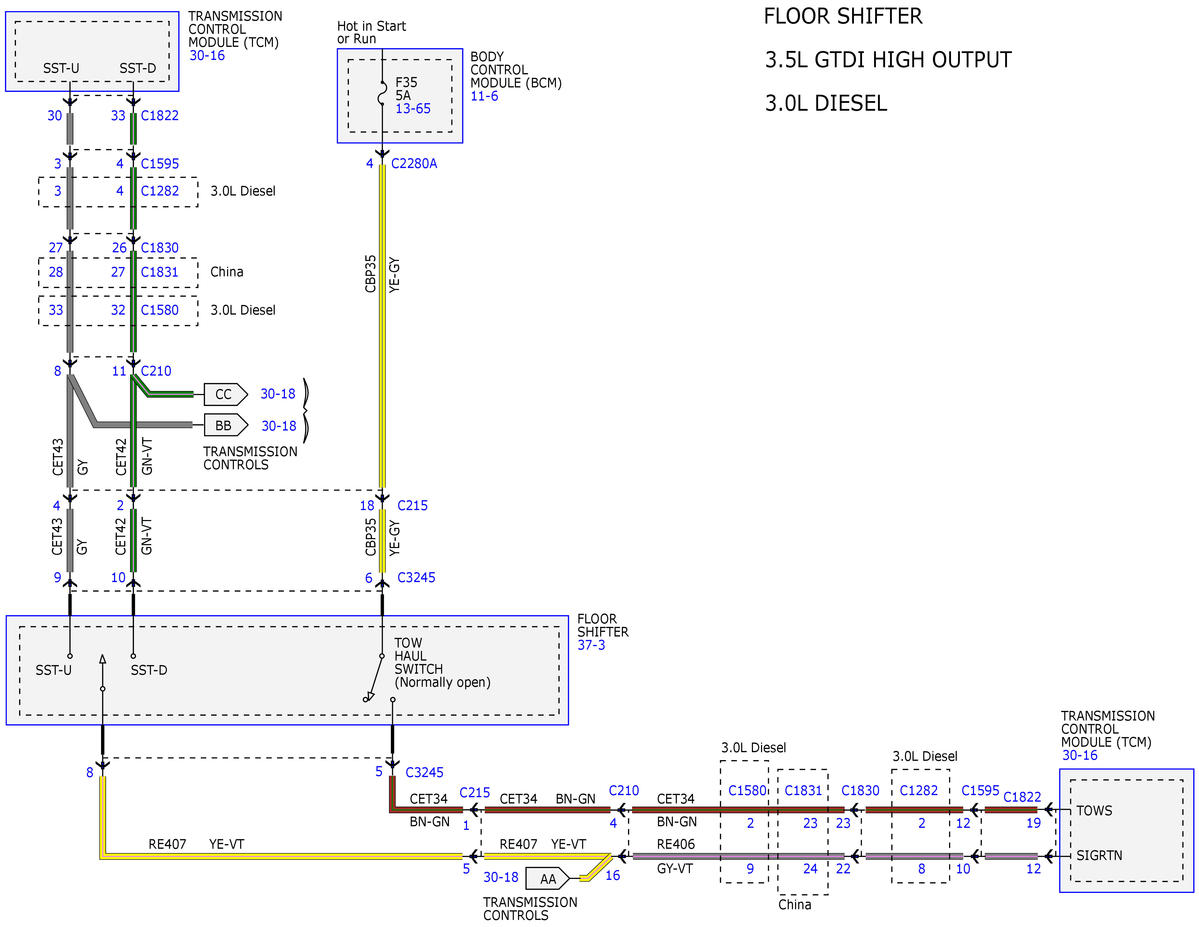

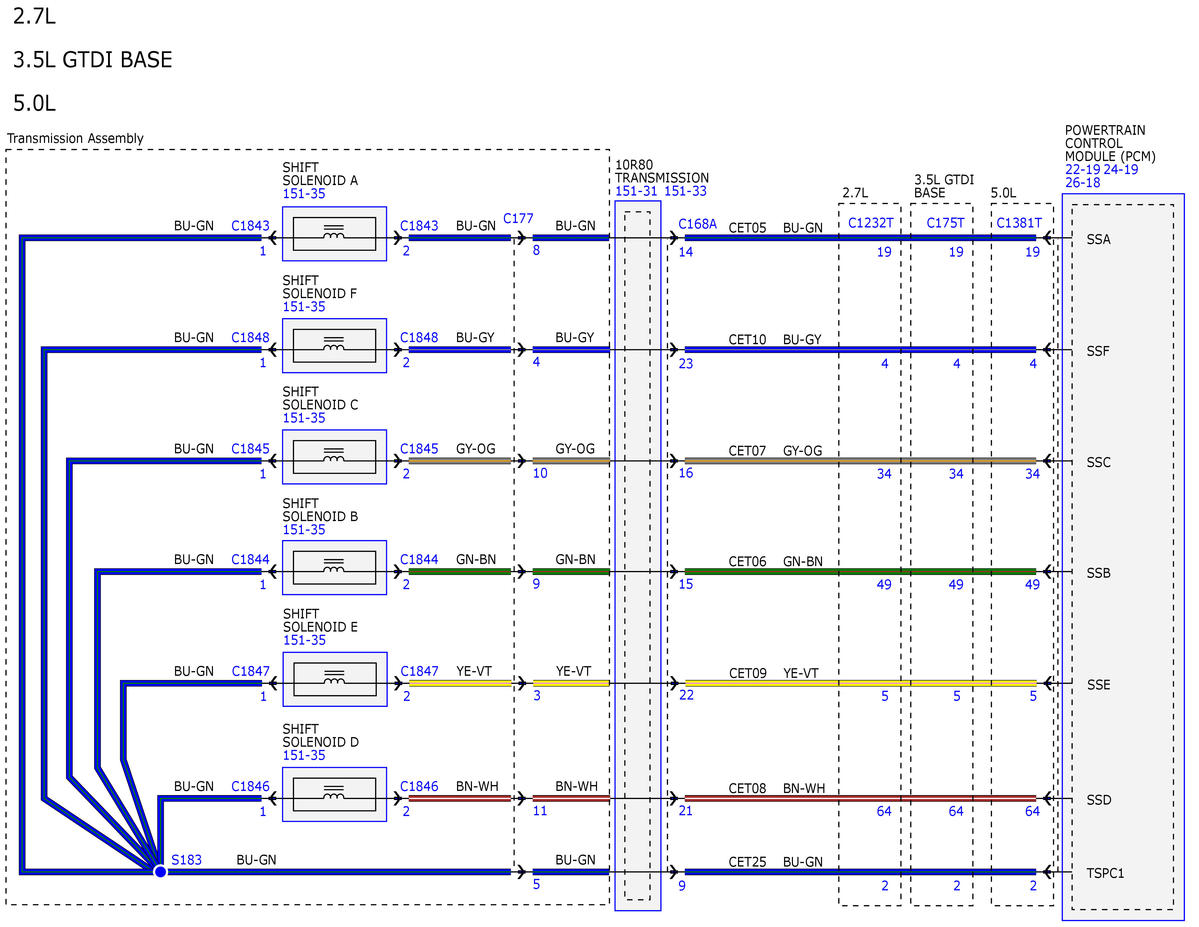

Fig 2: Transmission Controls - 10R80 Wiring Diagram (2 Of 18)

Courtesy of FORD MOTOR COMPANY

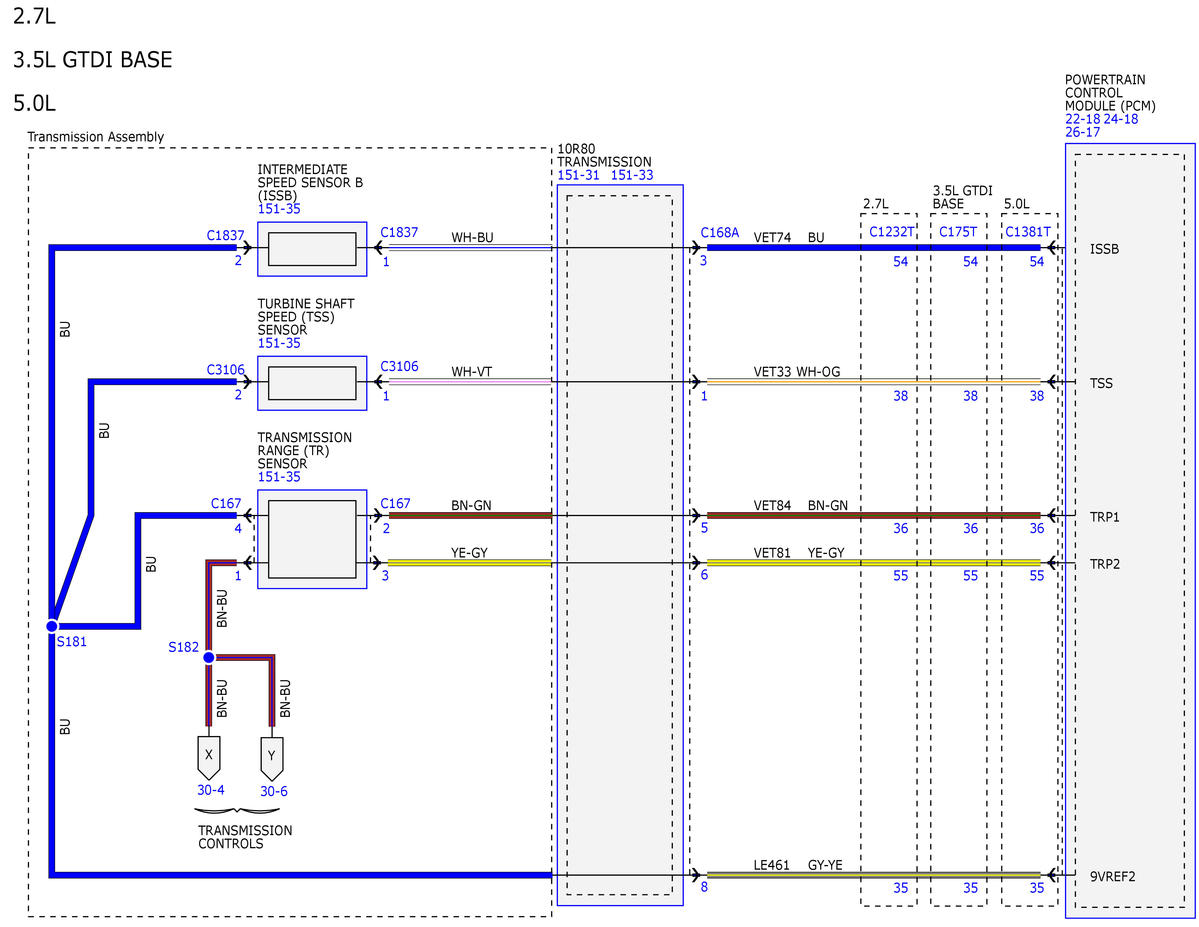

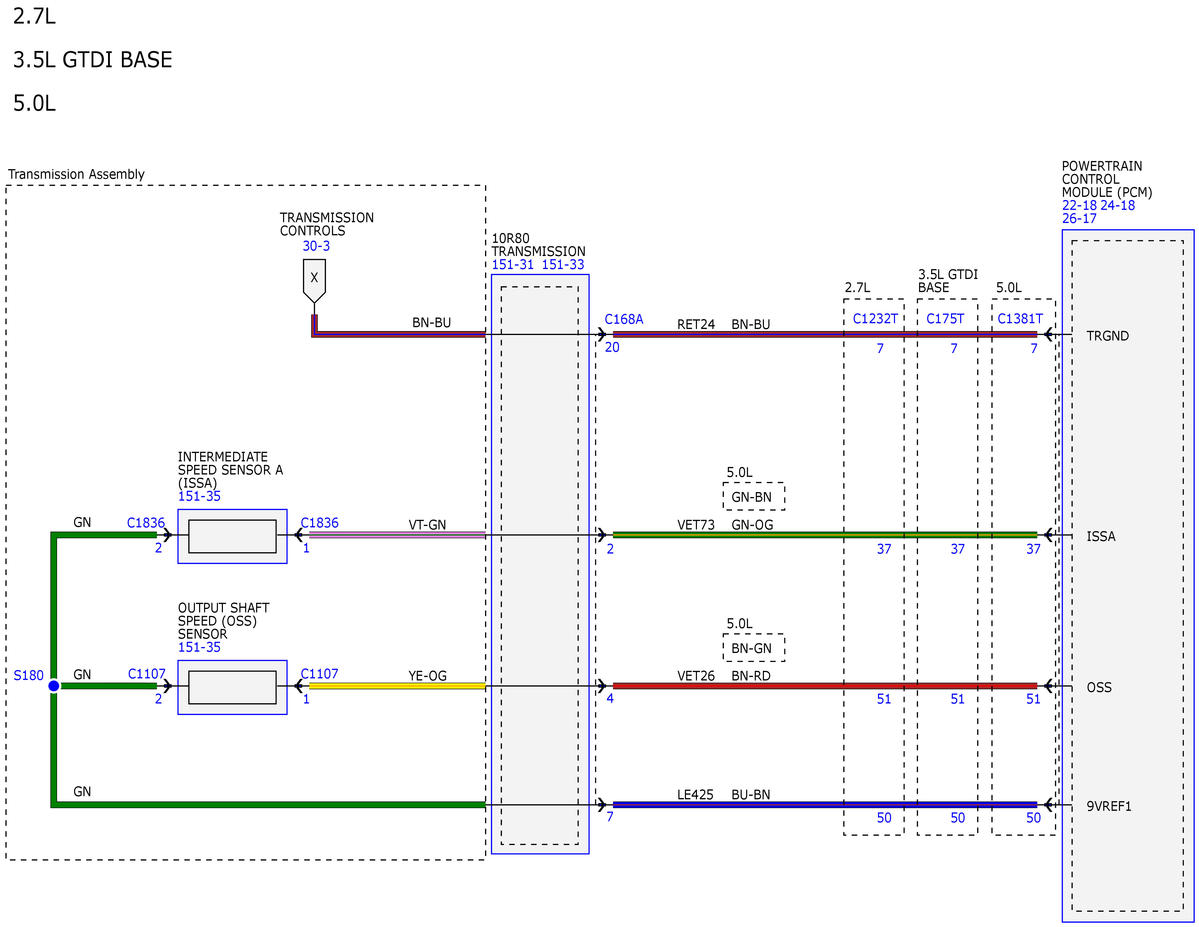

Fig 3: Transmission Controls - 10R80 Wiring Diagram (3 Of 18)

Courtesy of FORD MOTOR COMPANY

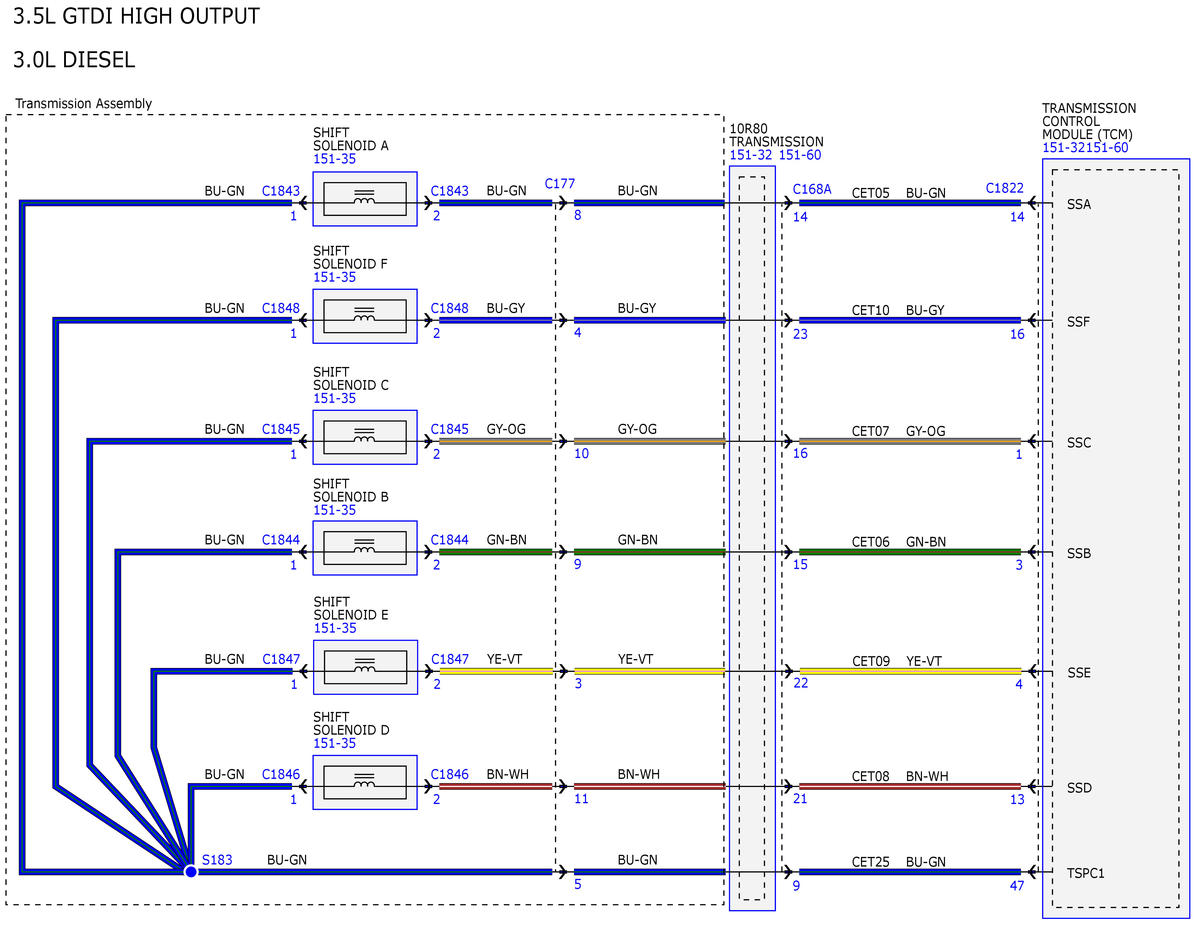

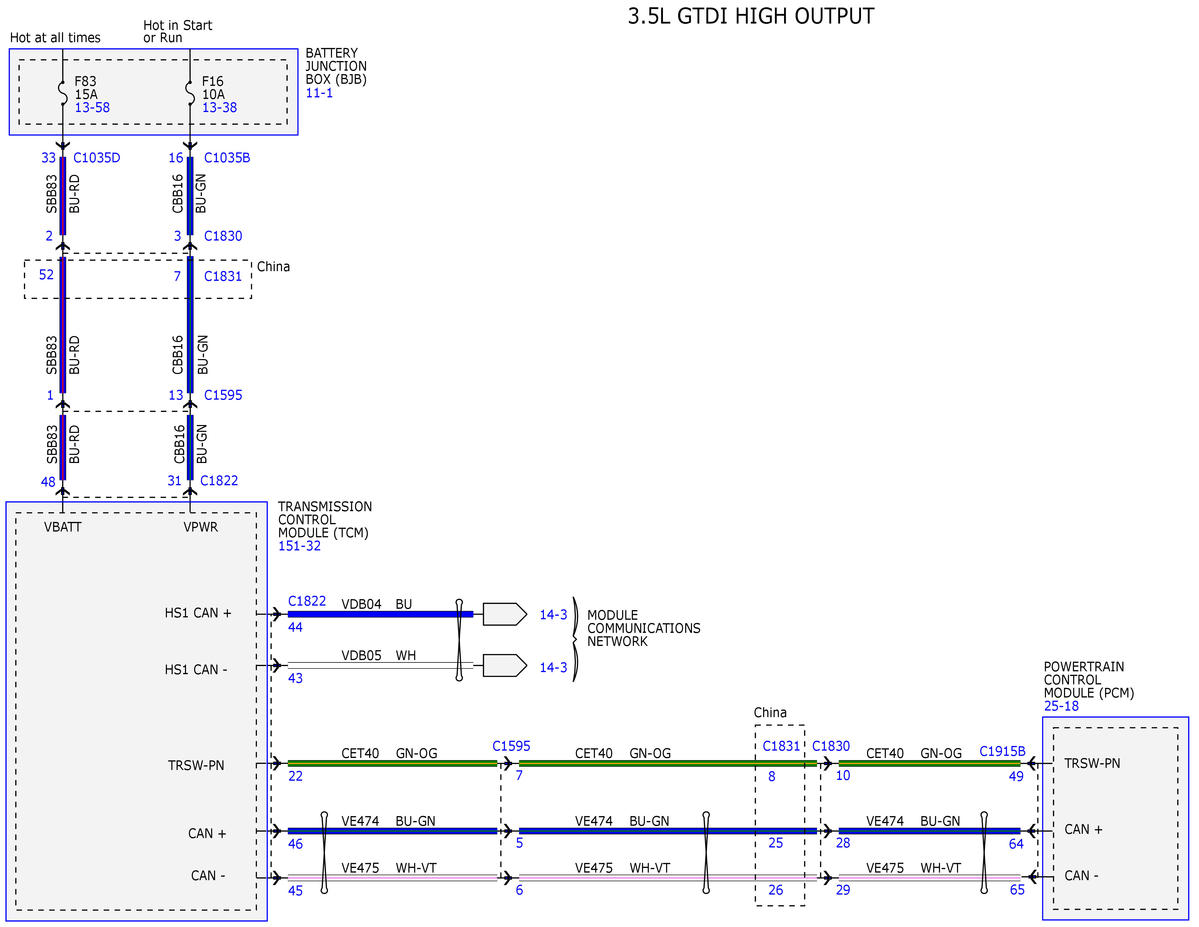

Fig 4: Transmission Controls - 10R80 Wiring Diagram (4 Of 18)

Courtesy of FORD MOTOR COMPANY

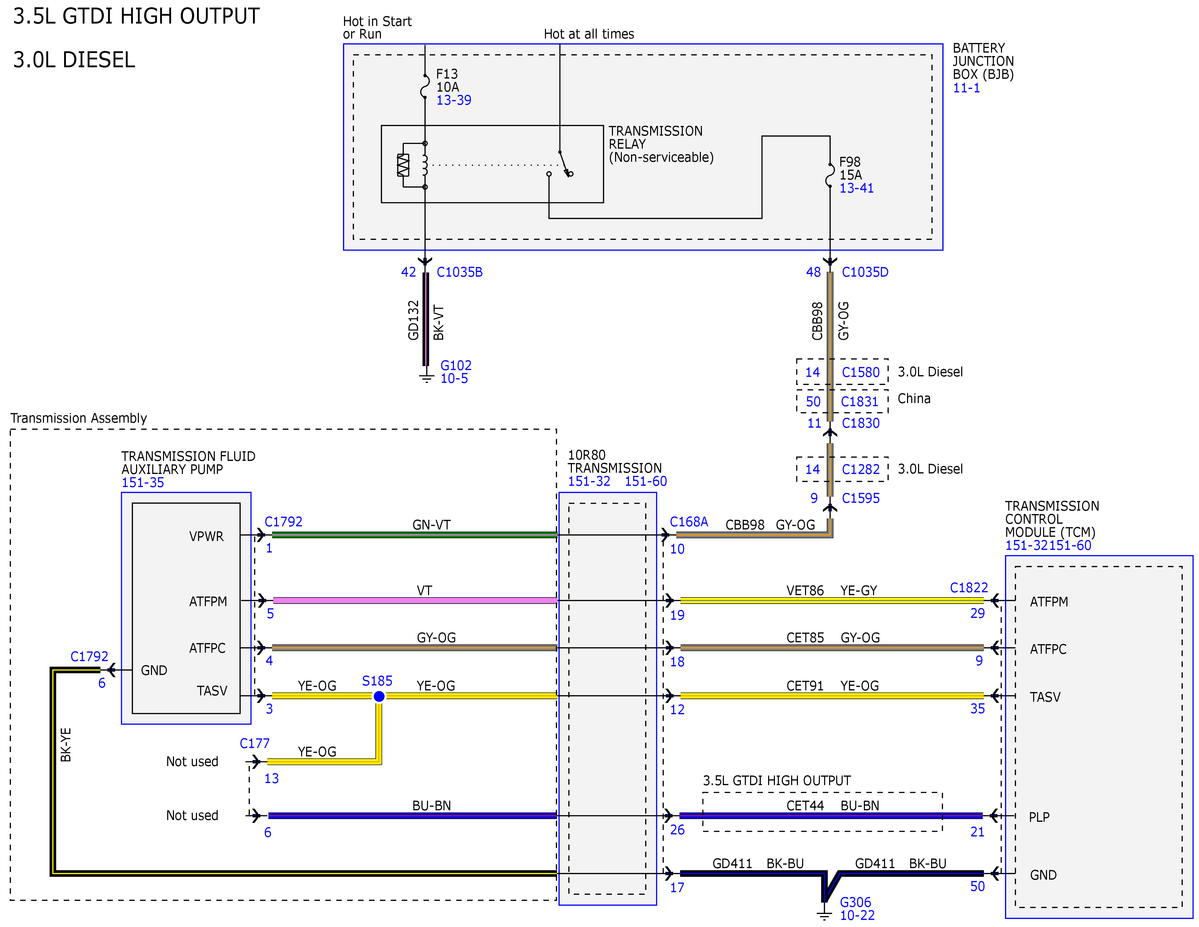

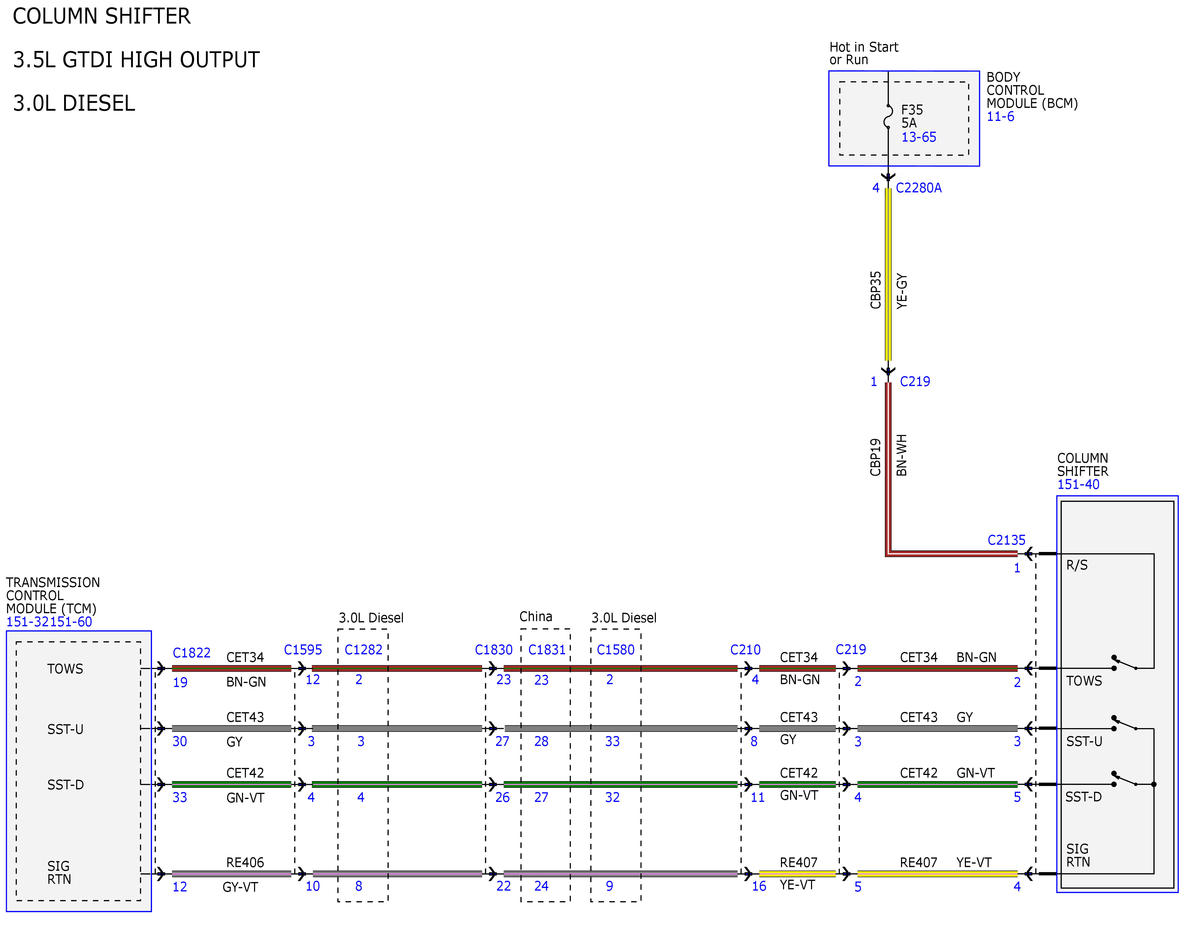

Fig 5: Transmission Controls - 10R80 Wiring Diagram (5 Of 18)

Courtesy of FORD MOTOR COMPANY

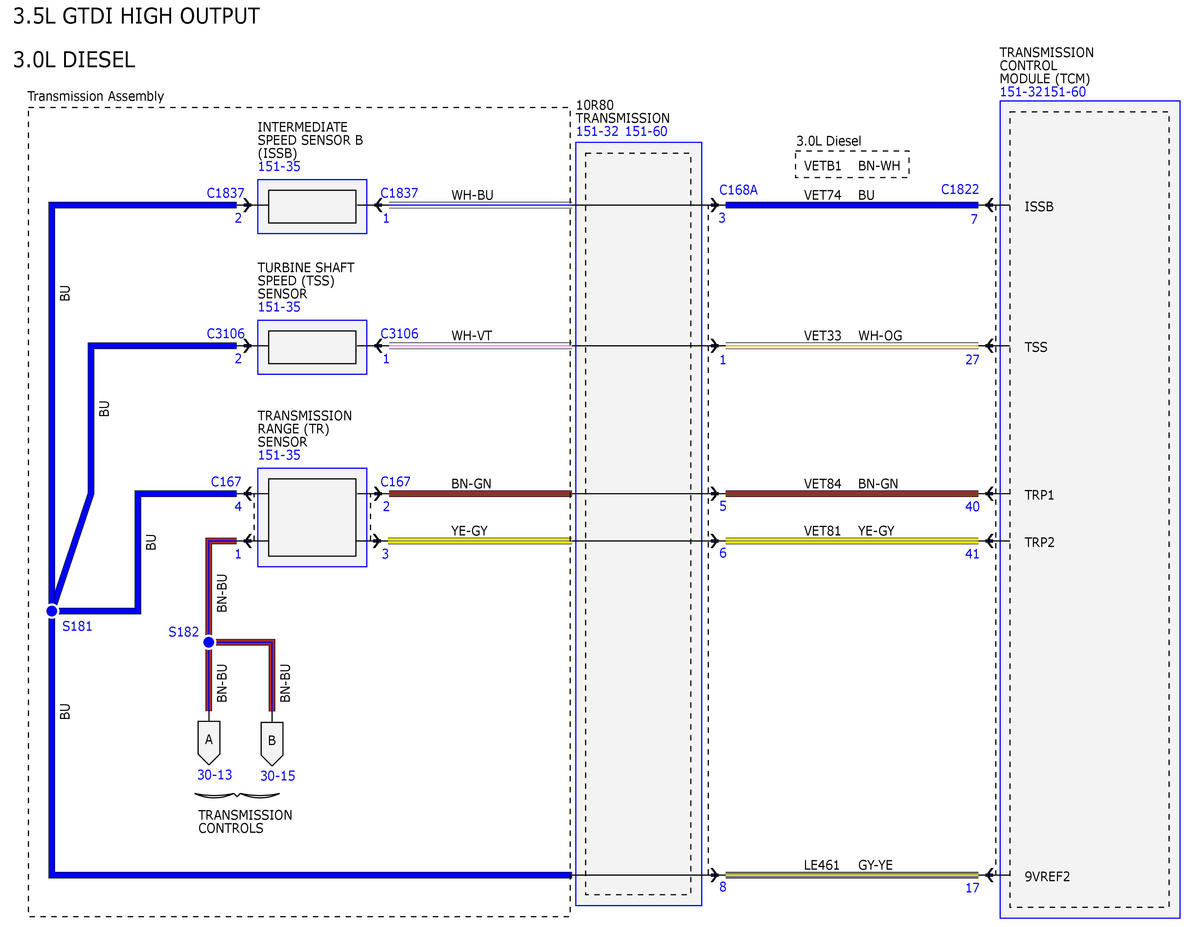

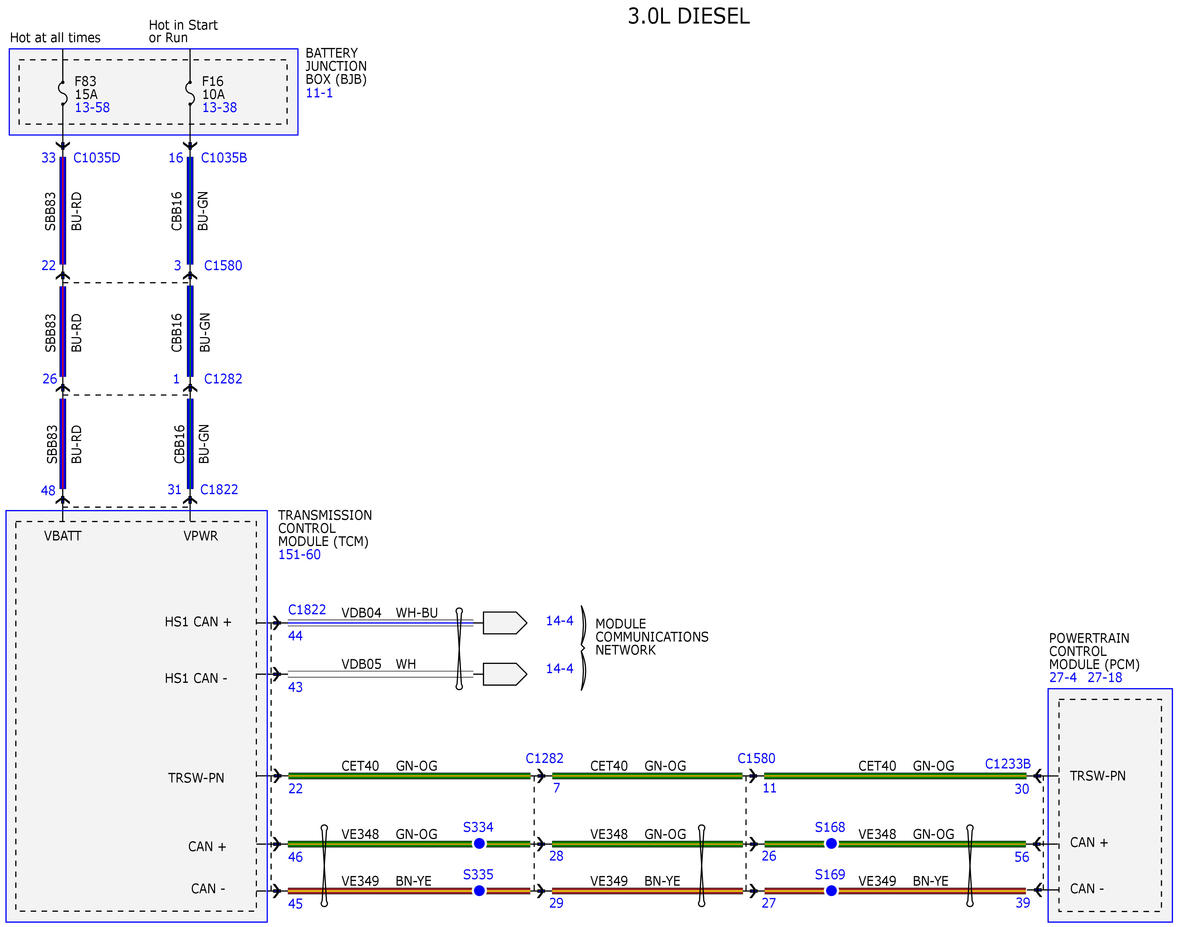

Fig 6: Transmission Controls - 10R80 Wiring Diagram (6 Of 18)

Courtesy of FORD MOTOR COMPANY

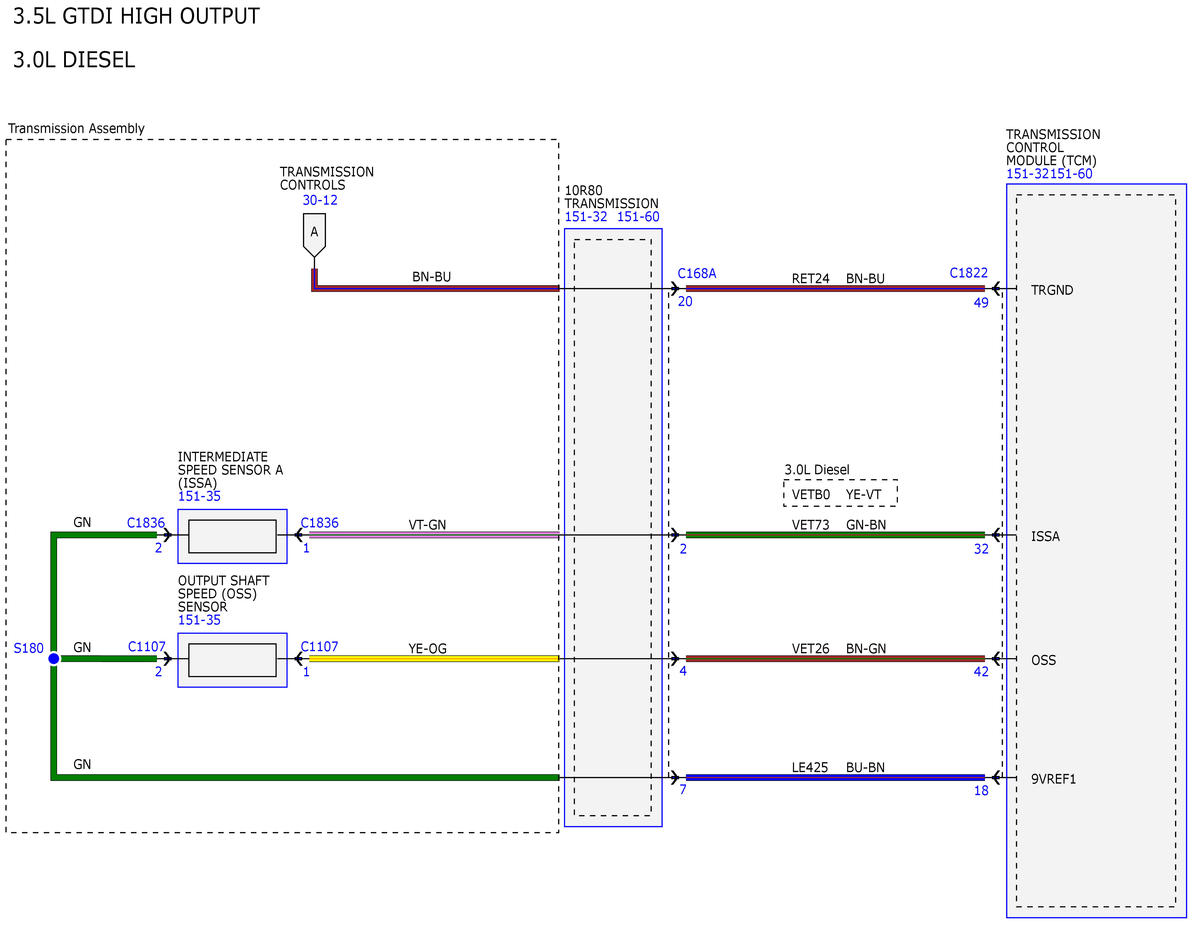

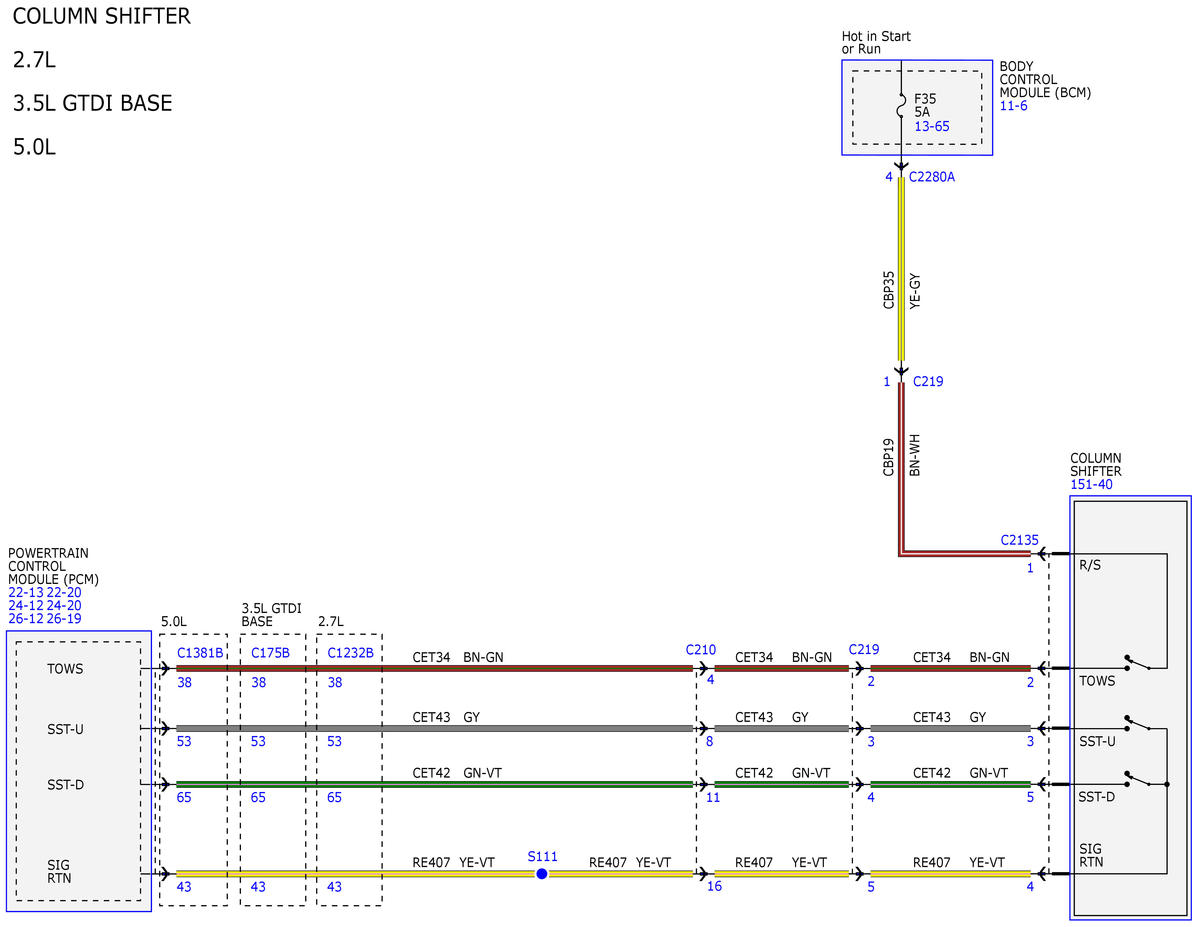

Fig 7: Transmission Controls - 10R80 Wiring Diagram (7 Of 18)

Courtesy of FORD MOTOR COMPANY

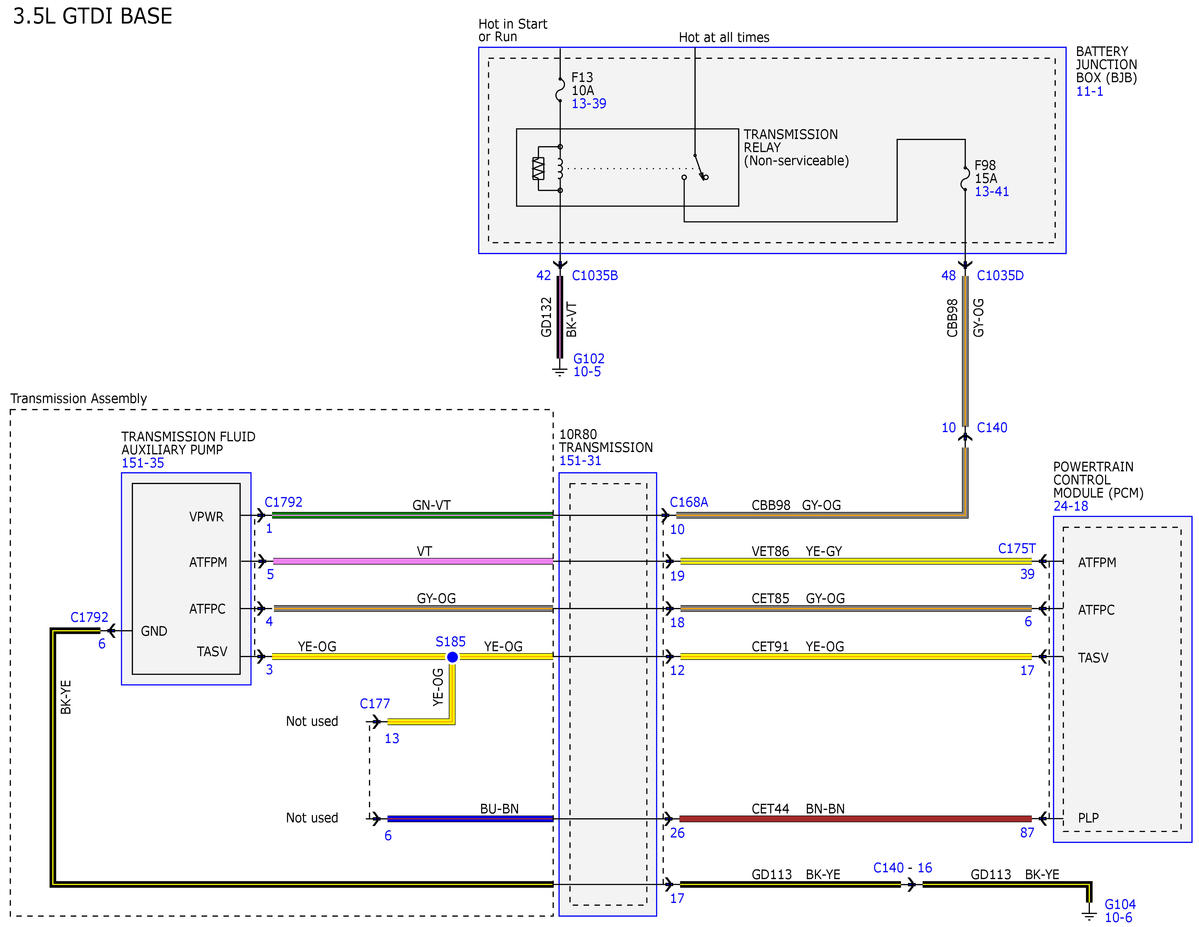

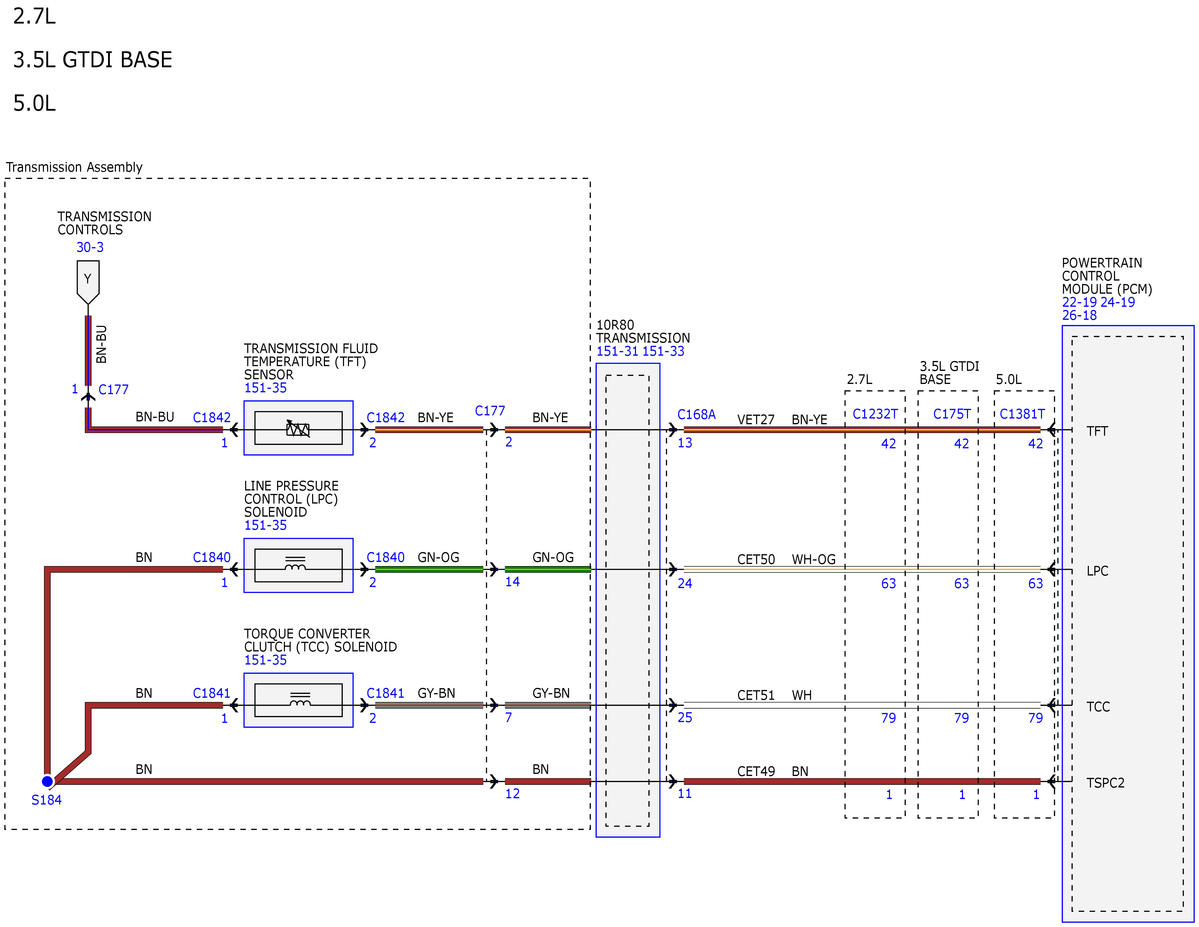

Fig 8: Transmission Controls - 10R80 Wiring Diagram (8 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 9: Transmission Controls - 10R80 Wiring Diagram (9 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 10: Transmission Controls - 10R80 Wiring Diagram (10 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 11: Transmission Controls - 10R80 Wiring Diagram (11 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 12: Transmission Controls - 10R80 Wiring Diagram (12 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 13: Transmission Controls - 10R80 Wiring Diagram (13 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 14: Transmission Controls - 10R80 Wiring Diagram (14 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 15: Transmission Controls - 10R80 Wiring Diagram (15 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 16: Transmission Controls - 10R80 Wiring Diagram (16 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 17: Transmission Controls - 10R80 Wiring Diagram (17 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 18: Transmission Controls - 10R80 Wiring Diagram (18 Of 18)

Courtesy of FORD MOTOR COMPANY
