Section 302 (OEM Wiring Diagrams)
>>
Reversing Lamps
Reversing Lamps
WARNING:
This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

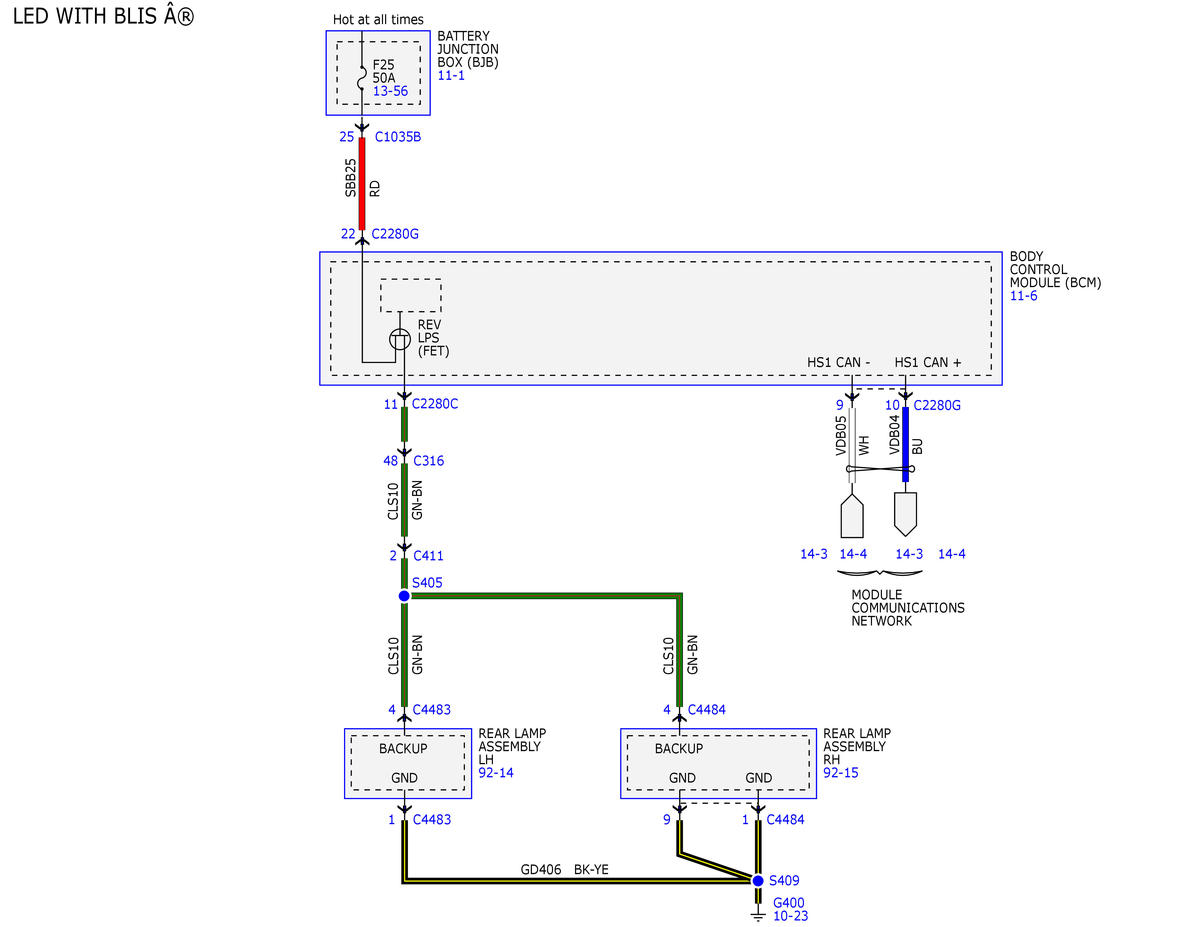

Fig 1: Reversing Lamps Wiring Diagram (1 Of 3)
Courtesy of FORD MOTOR COMPANY

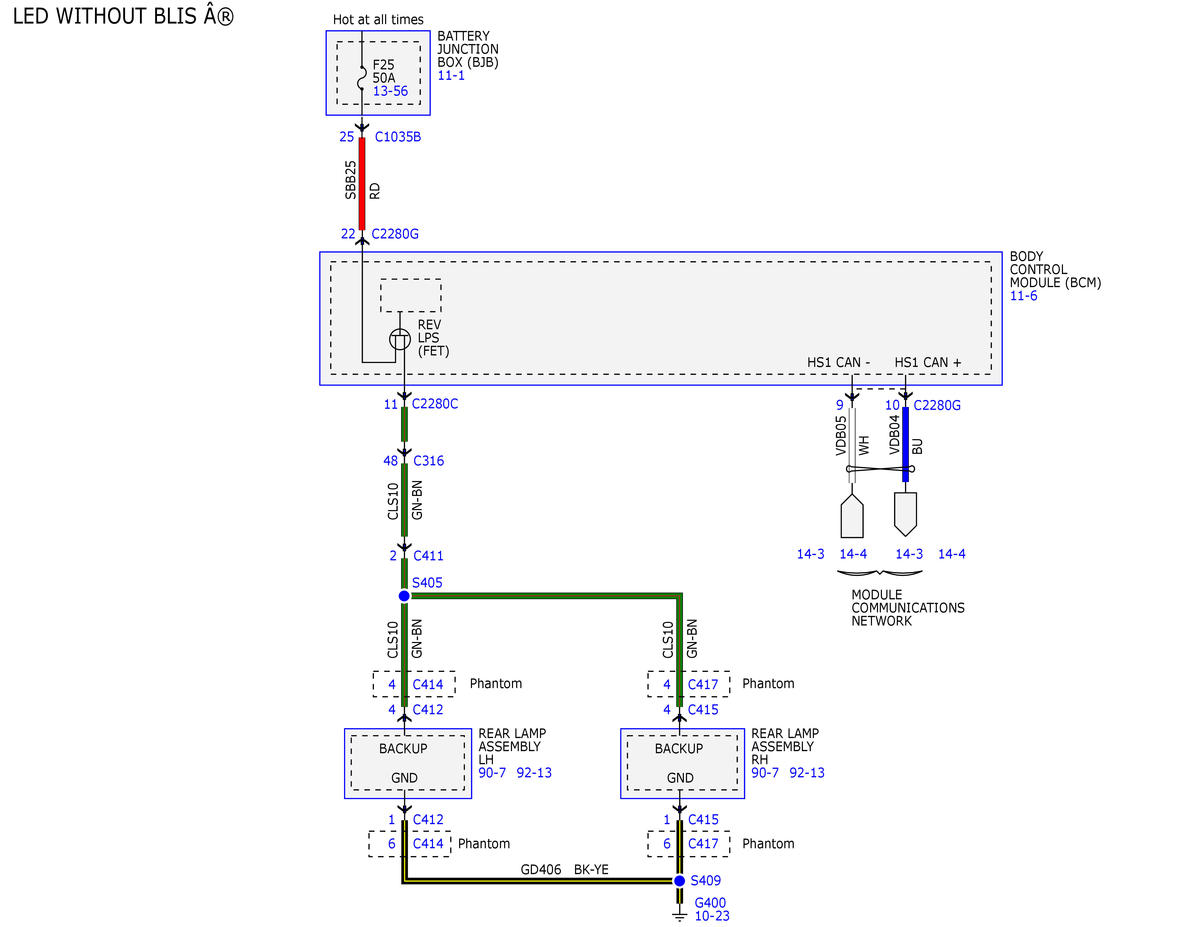

Fig 2: Reversing Lamps Wiring Diagram (2 Of 3)
Courtesy of FORD MOTOR COMPANY

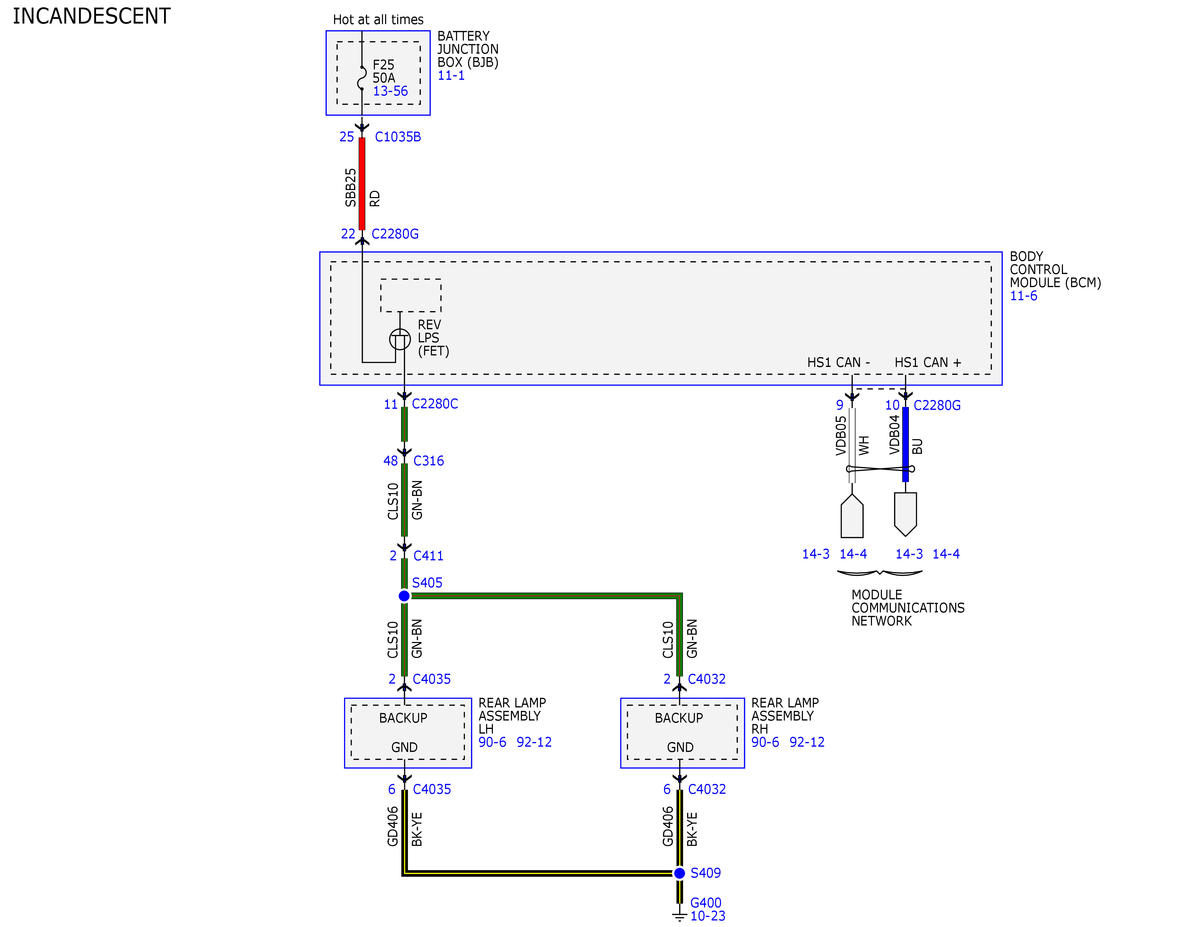

Fig 3: Reversing Lamps Wiring Diagram (3 Of 3)
Courtesy of FORD MOTOR COMPANY
