Power Windows

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

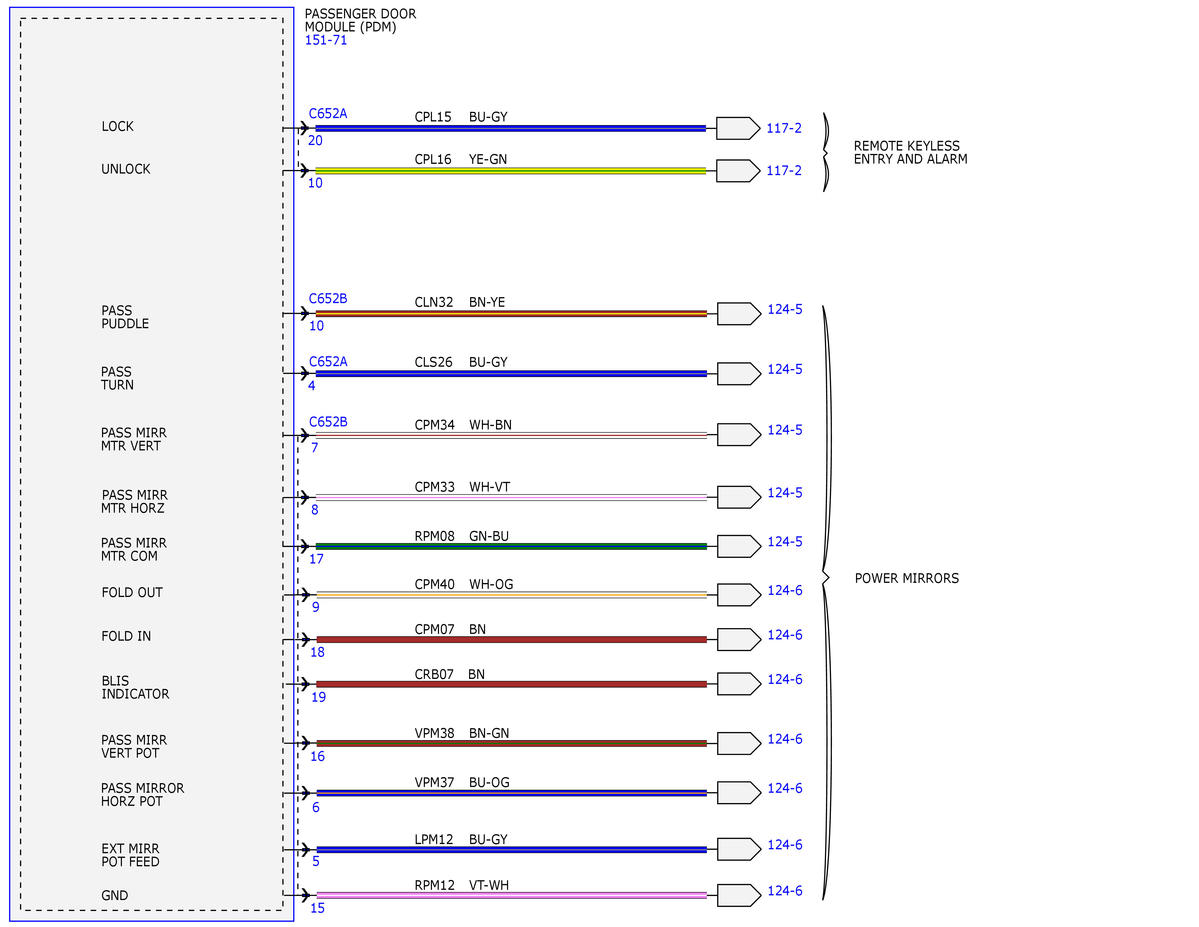

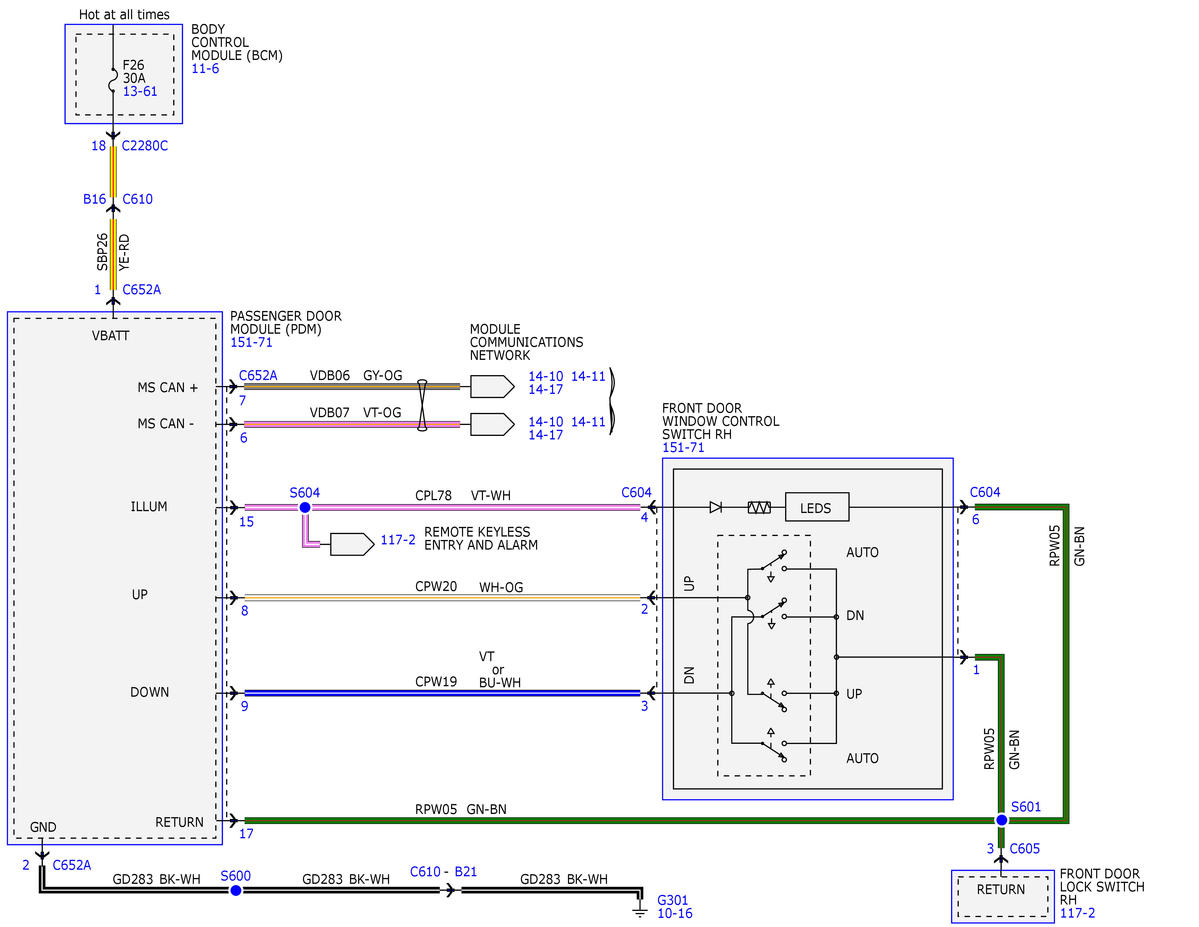

Fig 1: Power Windows Wiring Diagram (1 Of 11)

Courtesy of FORD MOTOR COMPANY

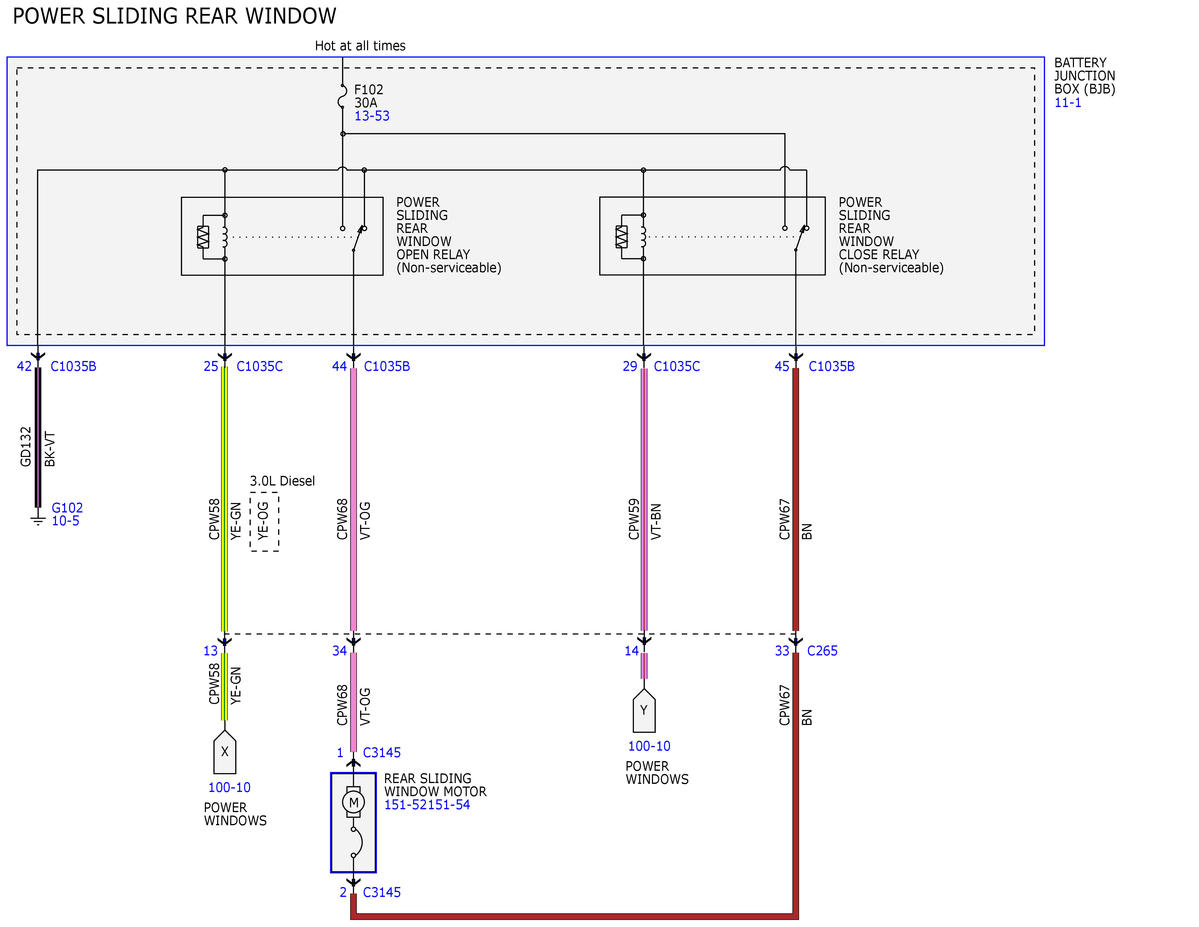

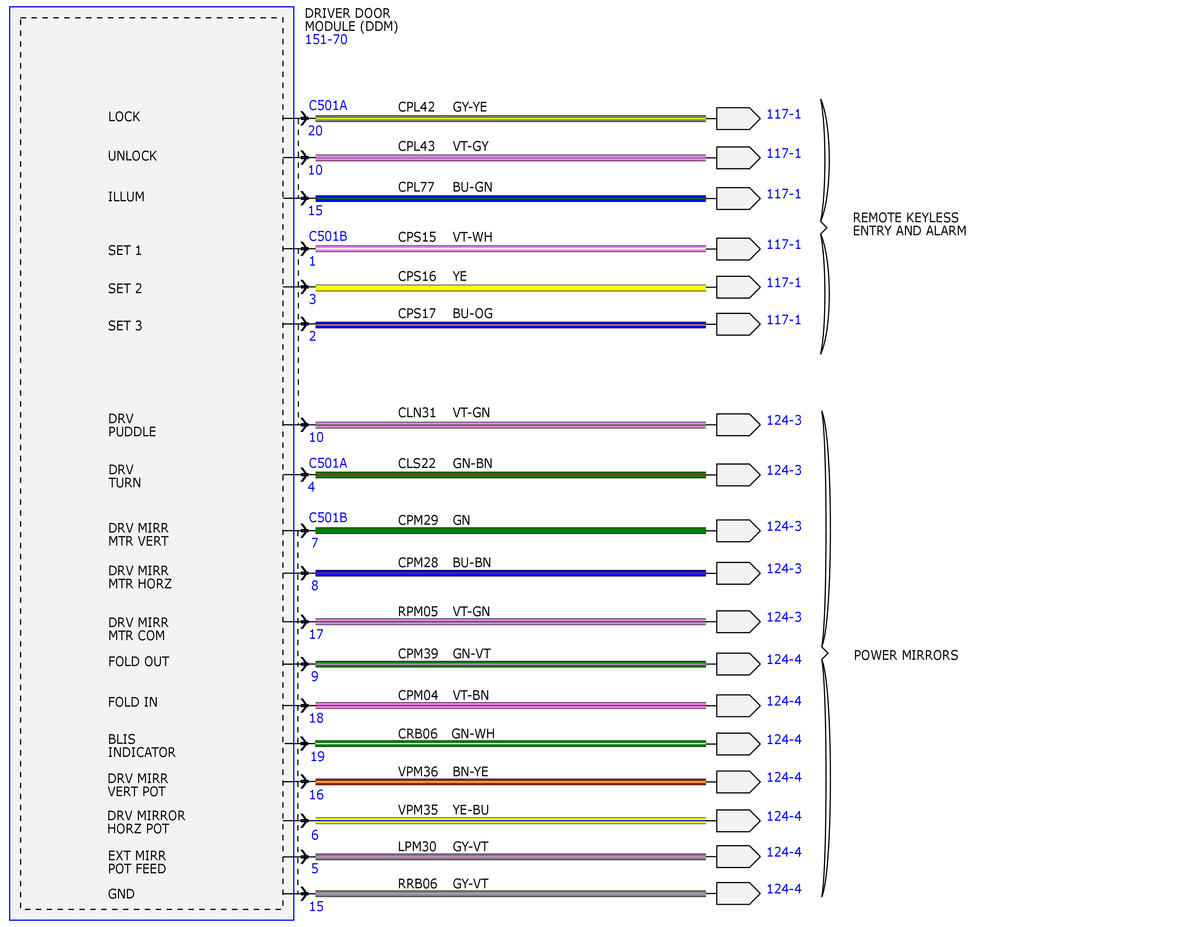

Fig 2: Power Windows Wiring Diagram (2 Of 11)

Courtesy of FORD MOTOR COMPANY

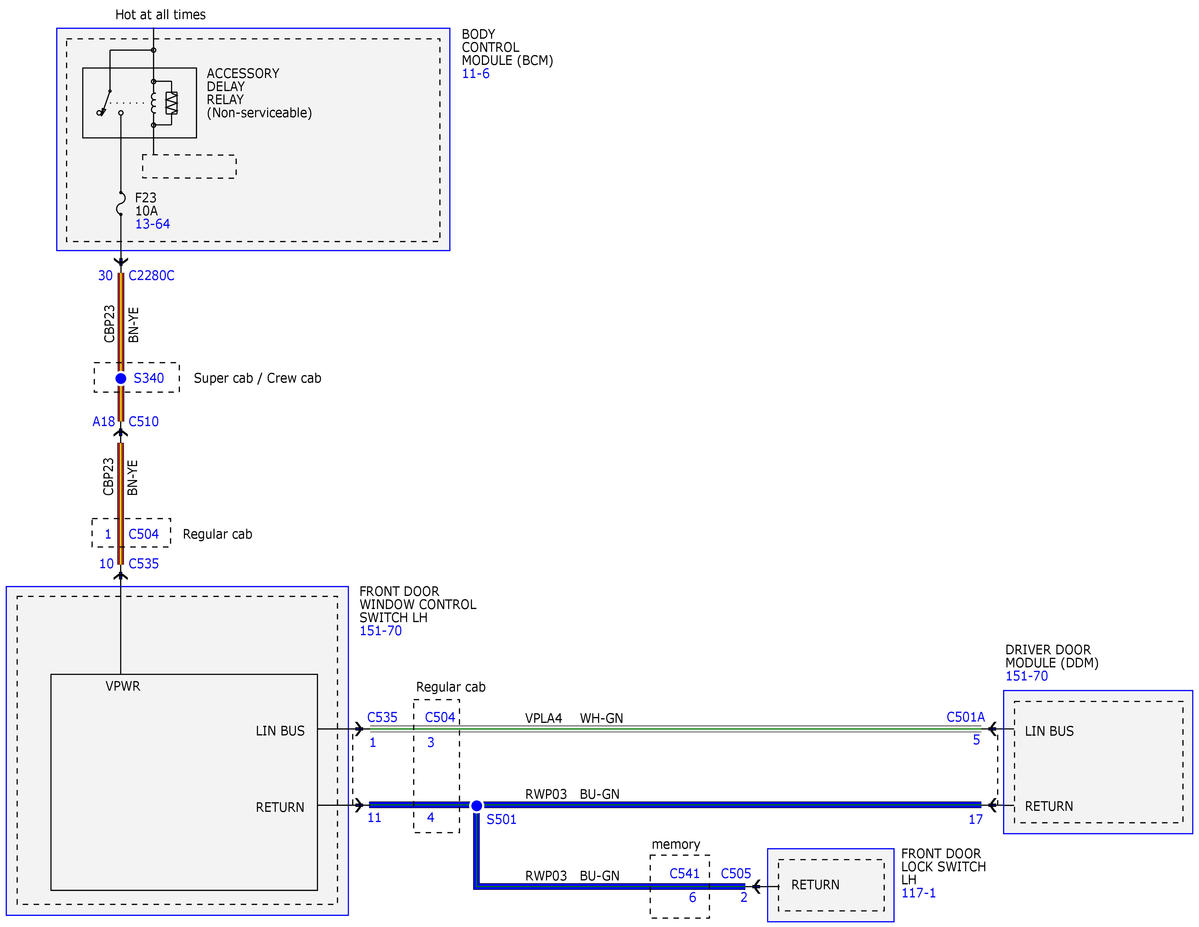

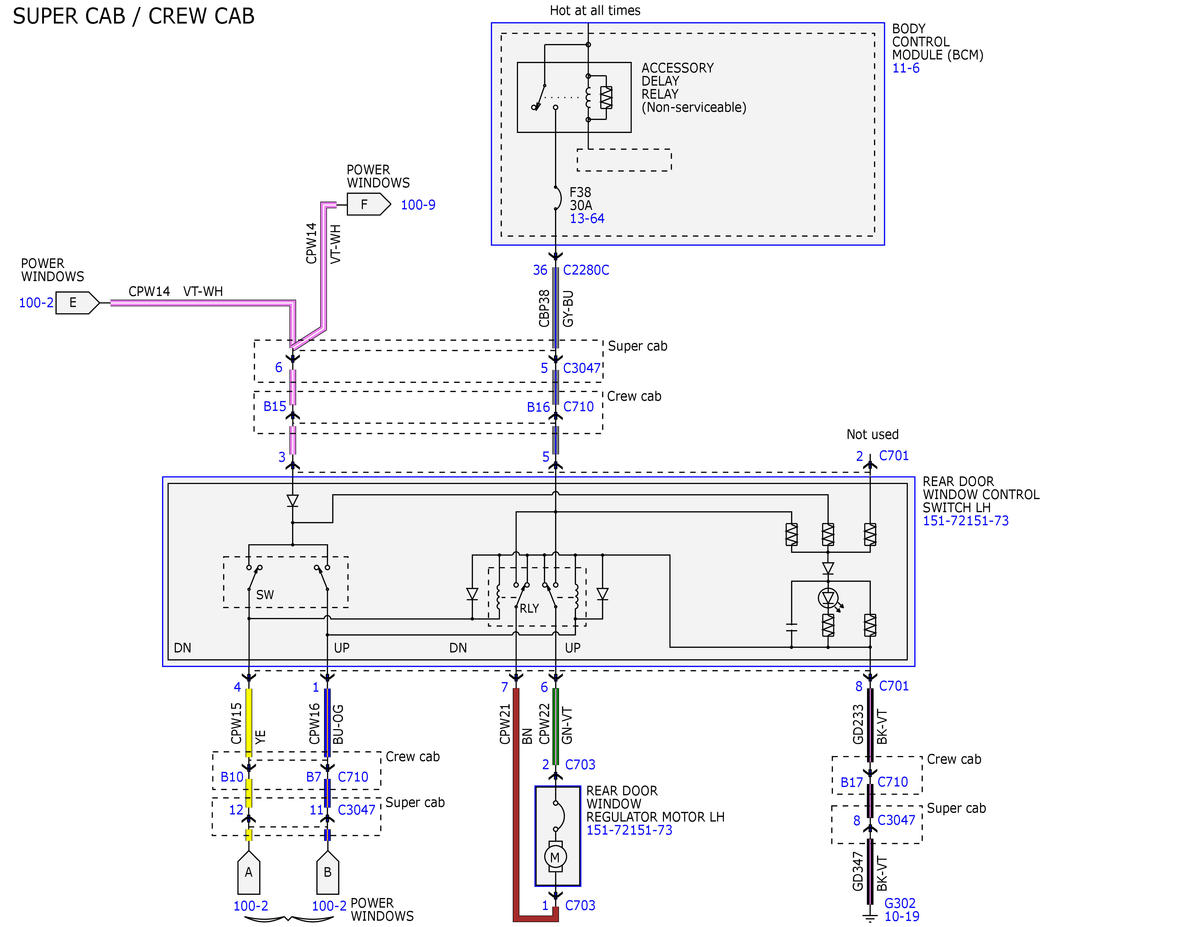

Fig 3: Power Windows Wiring Diagram (3 Of 11)

Courtesy of FORD MOTOR COMPANY

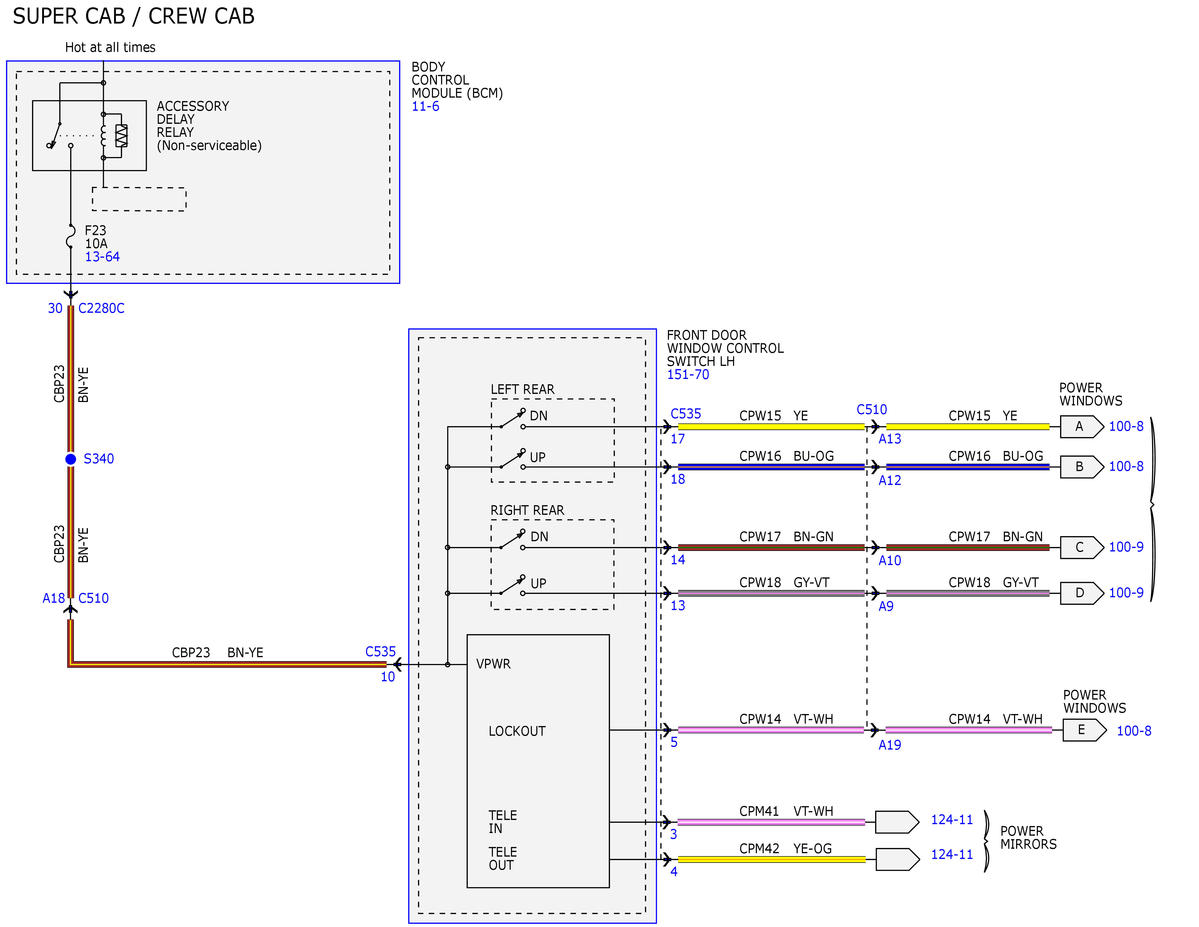

Fig 4: Power Windows Wiring Diagram (4 Of 11)

Courtesy of FORD MOTOR COMPANY

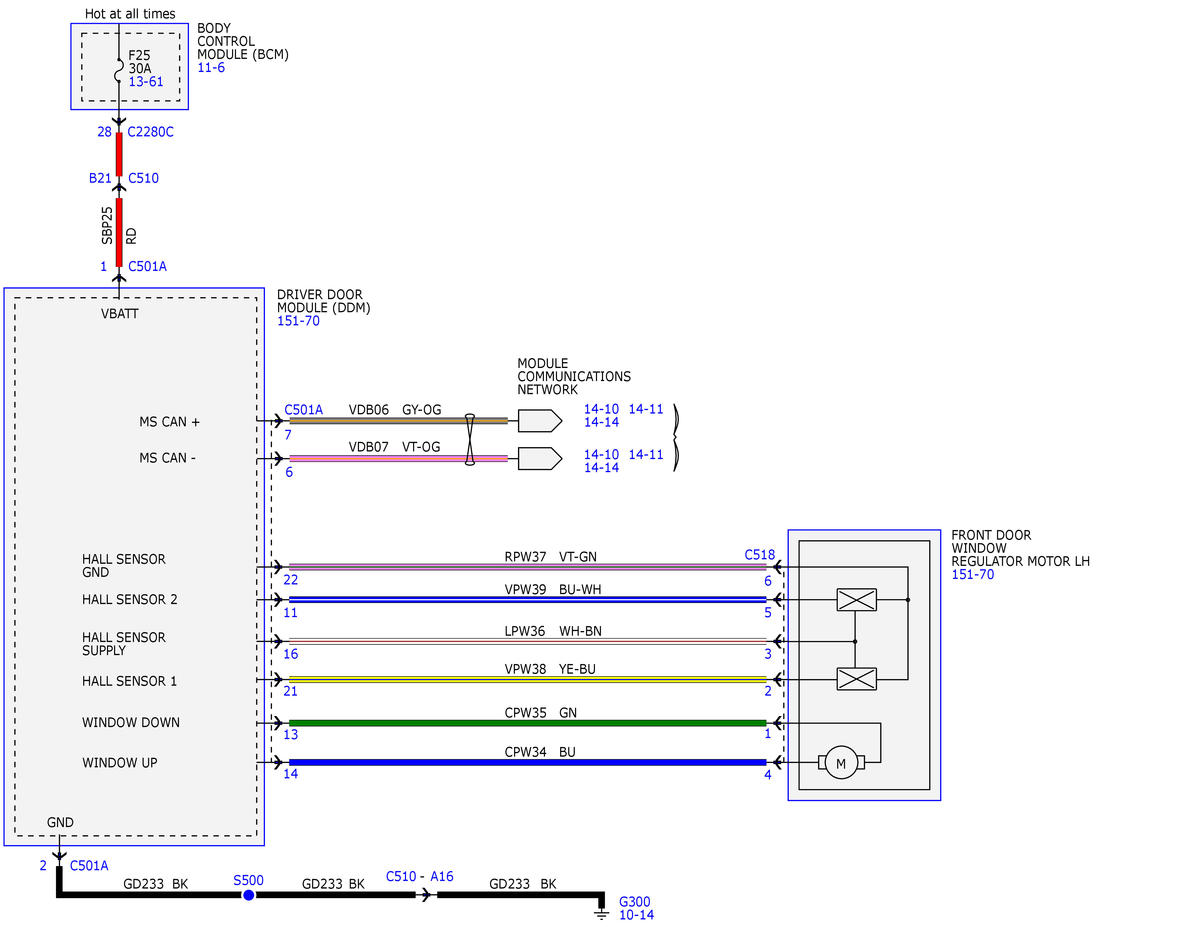

Fig 5: Power Windows Wiring Diagram (5 Of 11)

Courtesy of FORD MOTOR COMPANY

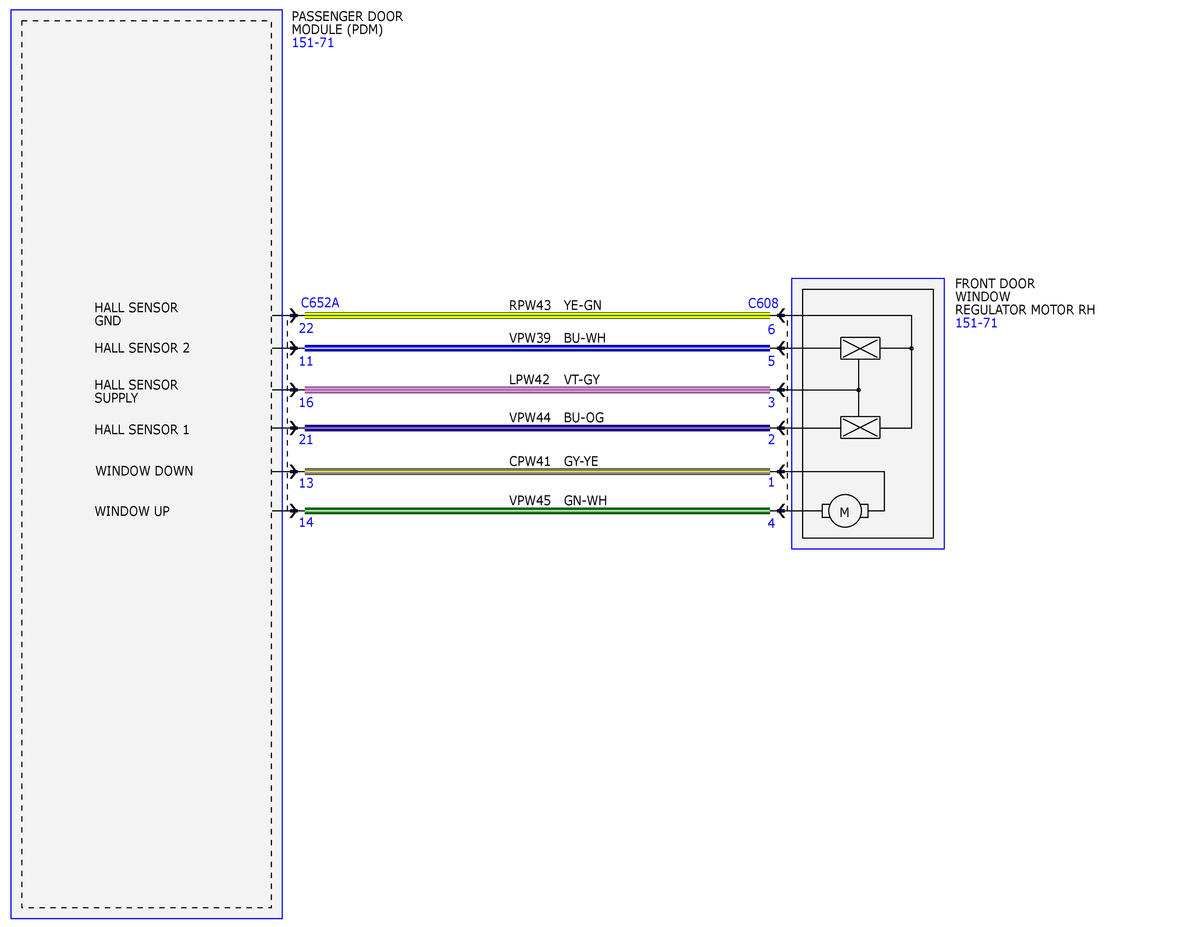

Fig 6: Power Windows Wiring Diagram (6 Of 11)

Courtesy of FORD MOTOR COMPANY

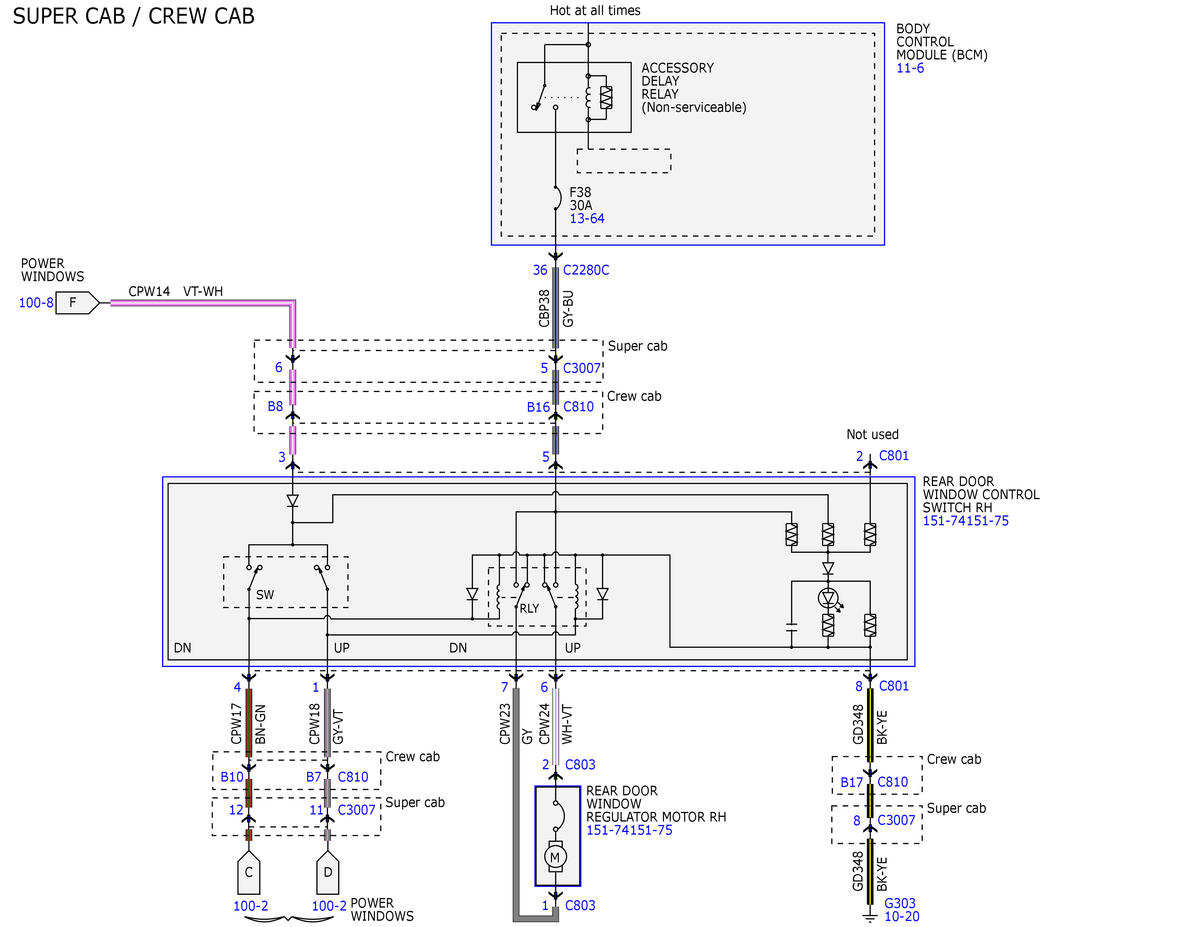

Fig 7: Power Windows Wiring Diagram (7 Of 11)

Courtesy of FORD MOTOR COMPANY

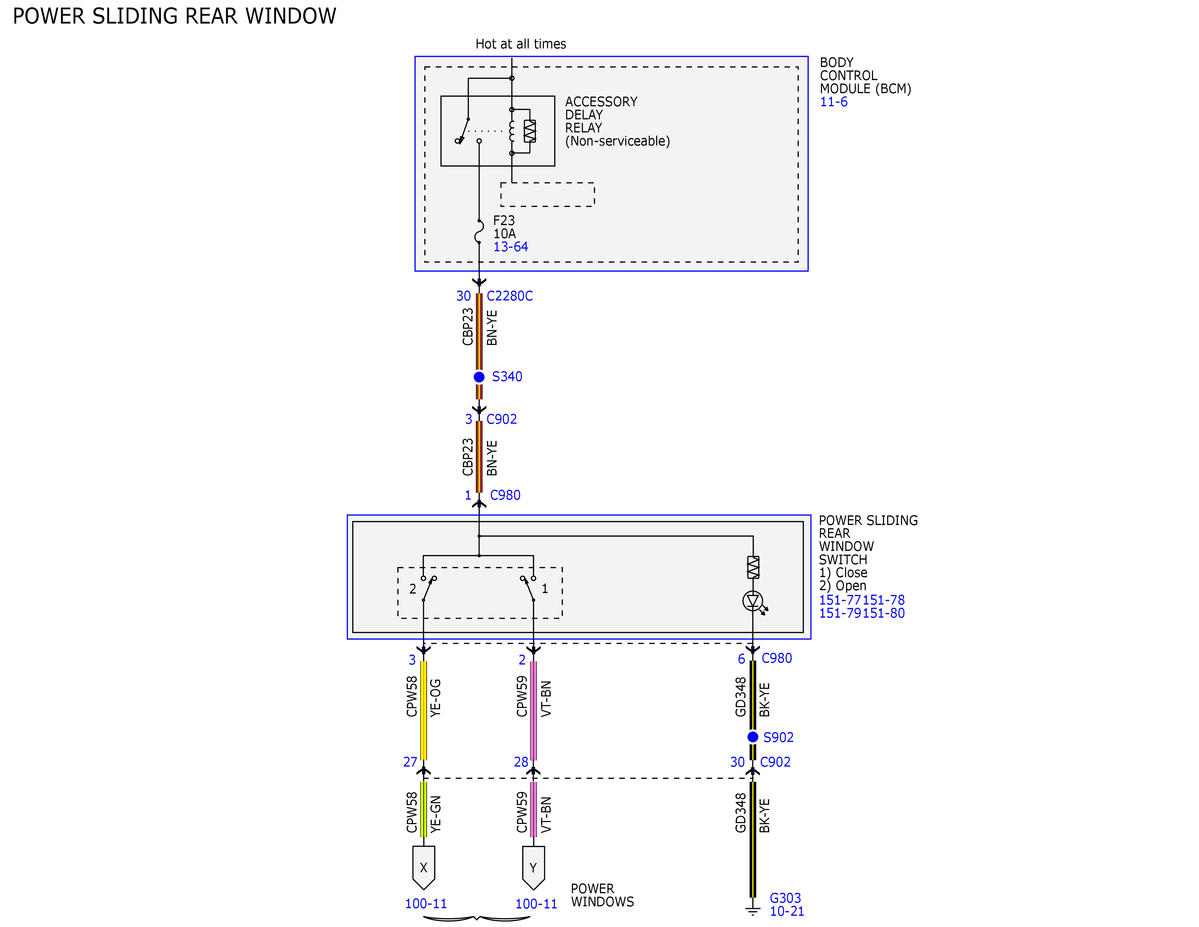

Fig 8: Power Windows Wiring Diagram (8 Of 11)

Courtesy of FORD MOTOR COMPANY

Fig 9: Power Windows Wiring Diagram (9 Of 11)

Courtesy of FORD MOTOR COMPANY

Fig 10: Power Windows Wiring Diagram (10 Of 11)

Courtesy of FORD MOTOR COMPANY

Fig 11: Power Windows Wiring Diagram (11 Of 11)

Courtesy of FORD MOTOR COMPANY
