Power Seats

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

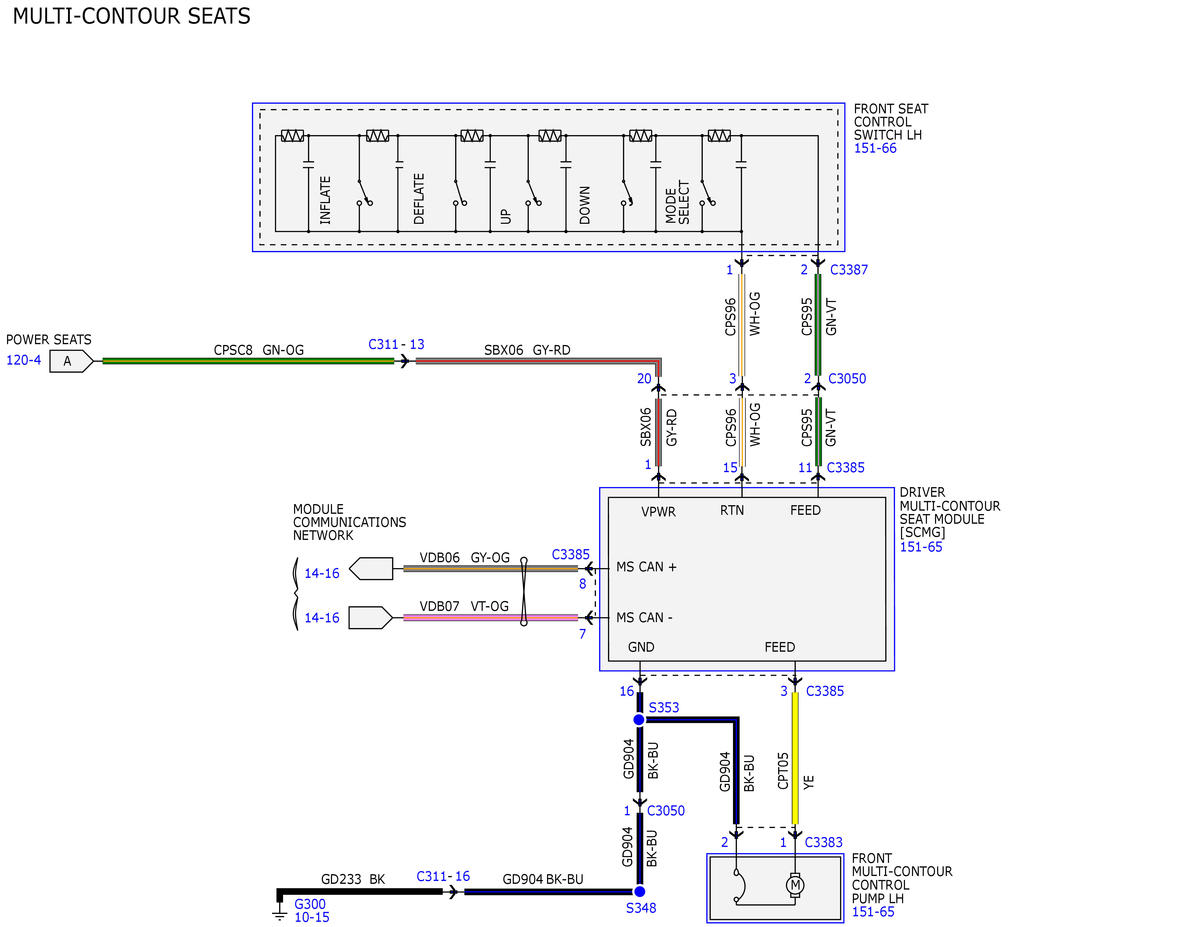

Fig 1: Power Seats Wiring Diagram (1 Of 6)

Courtesy of FORD MOTOR COMPANY

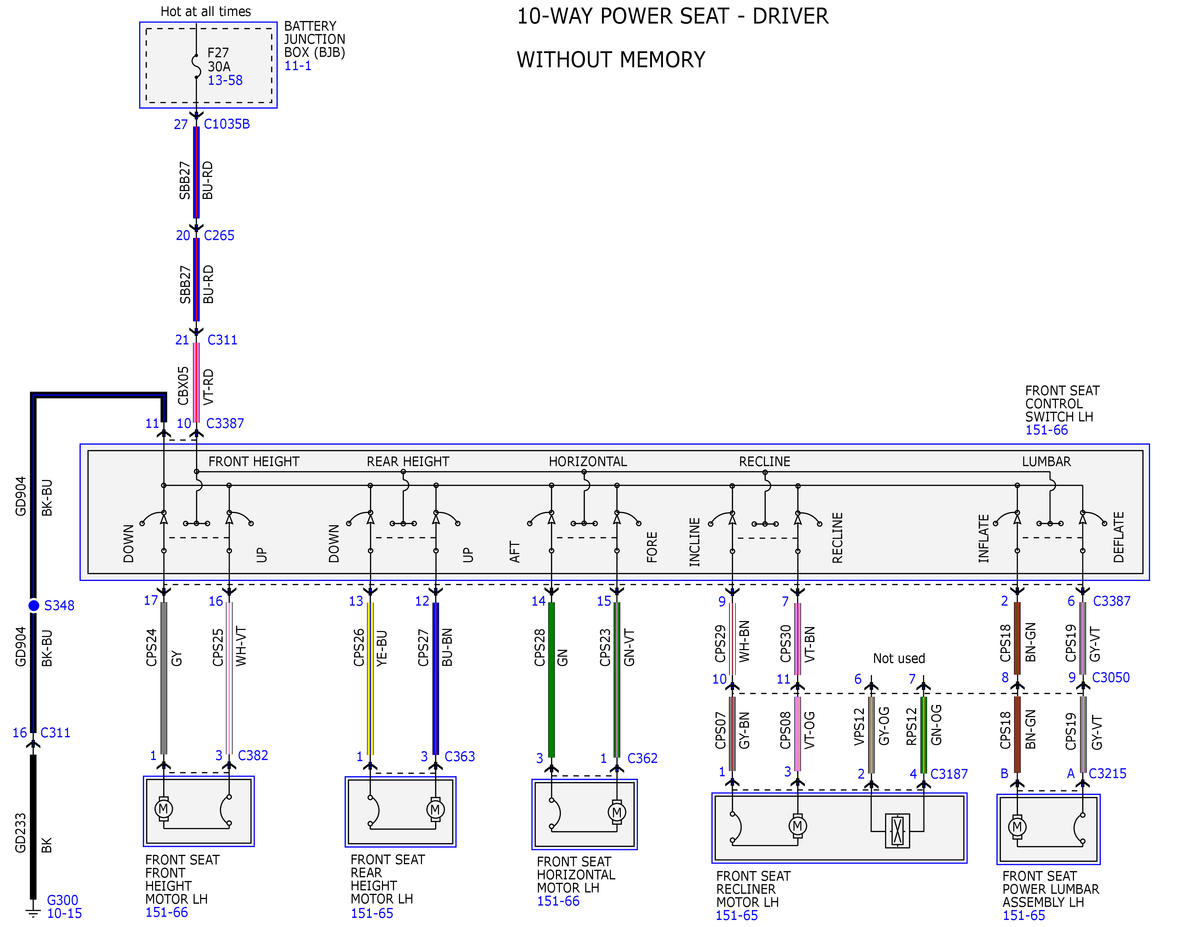

Fig 2: Power Seats Wiring Diagram (2 Of 6)

Courtesy of FORD MOTOR COMPANY

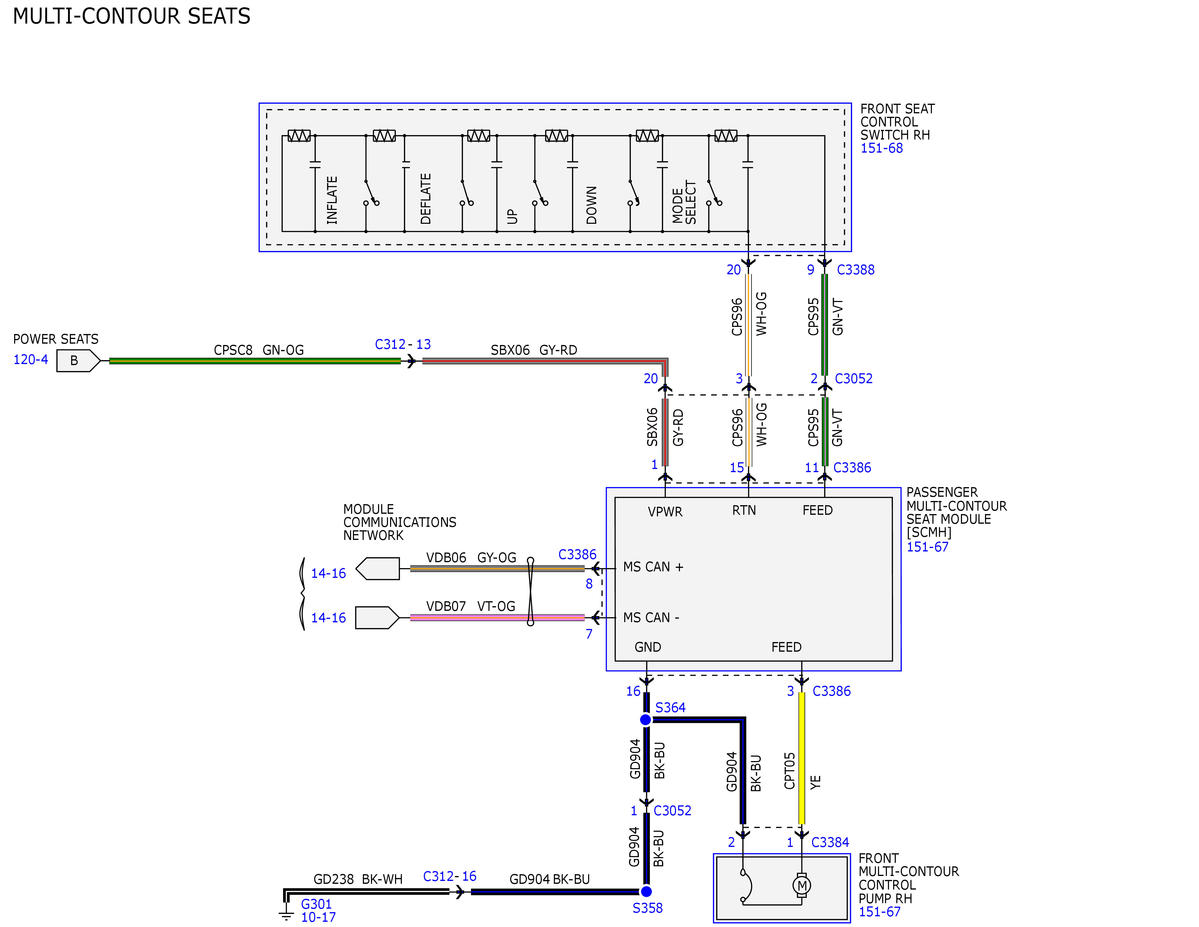

Fig 3: Power Seats Wiring Diagram (3 Of 6)

Courtesy of FORD MOTOR COMPANY

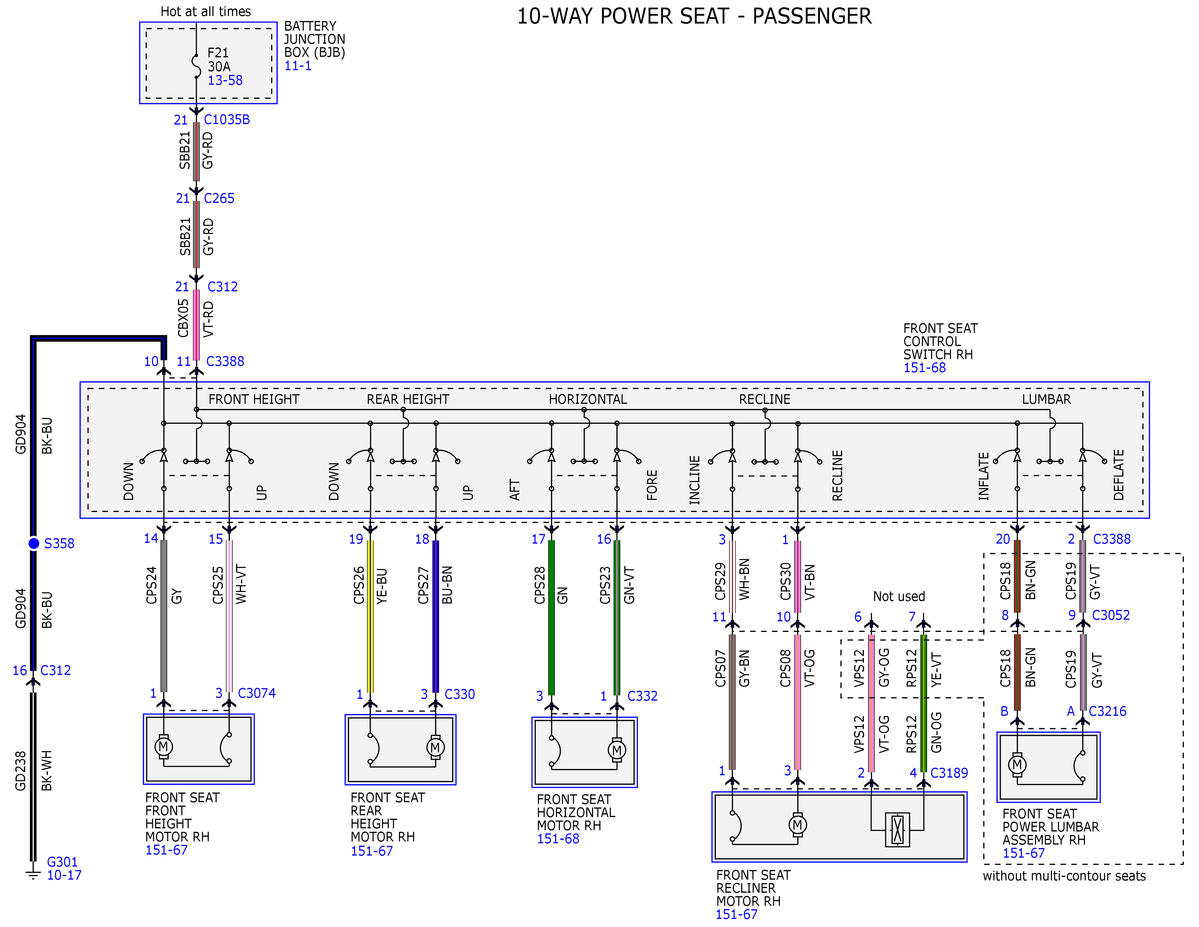

Fig 4: Power Seats Wiring Diagram (4 Of 6)

Courtesy of FORD MOTOR COMPANY

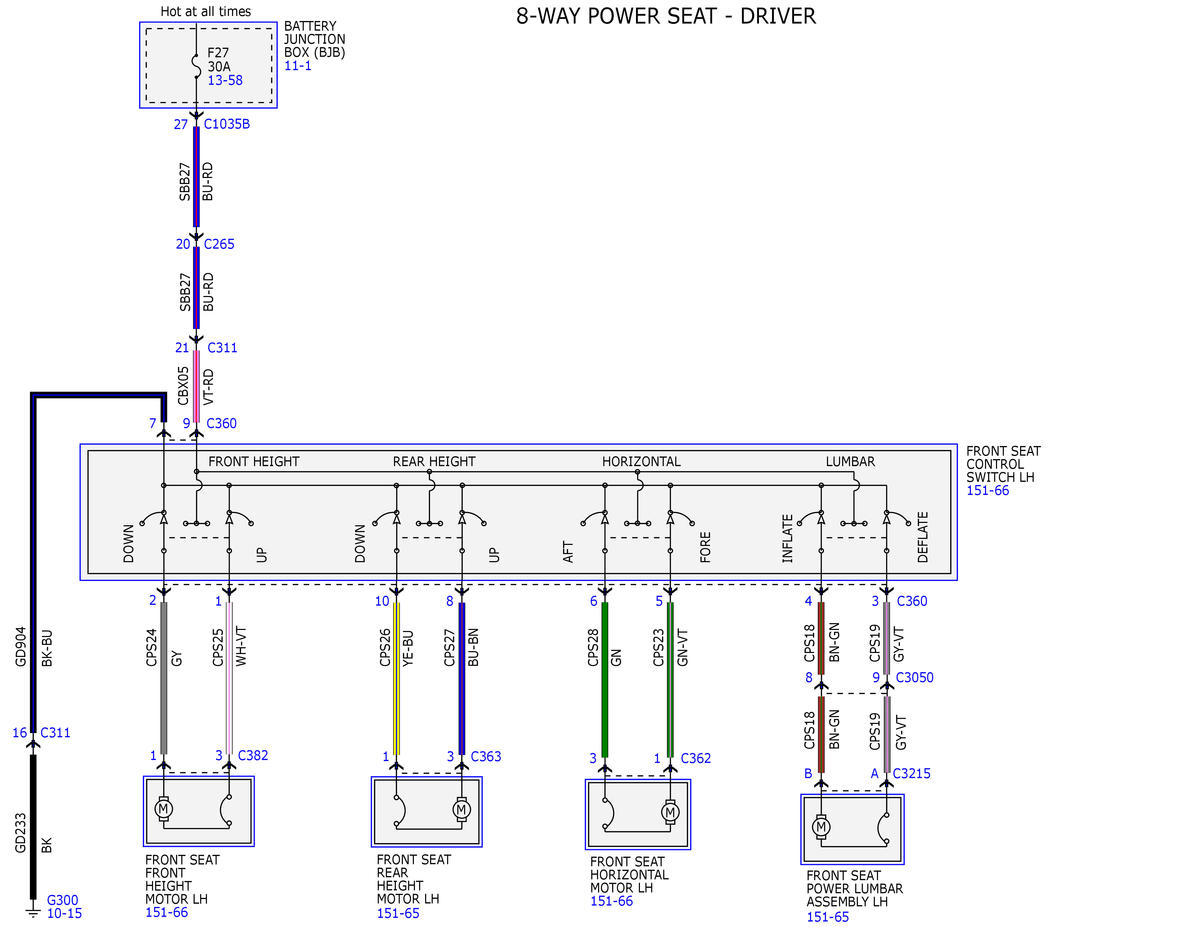

Fig 5: Power Seats Wiring Diagram (5 Of 6)

Courtesy of FORD MOTOR COMPANY

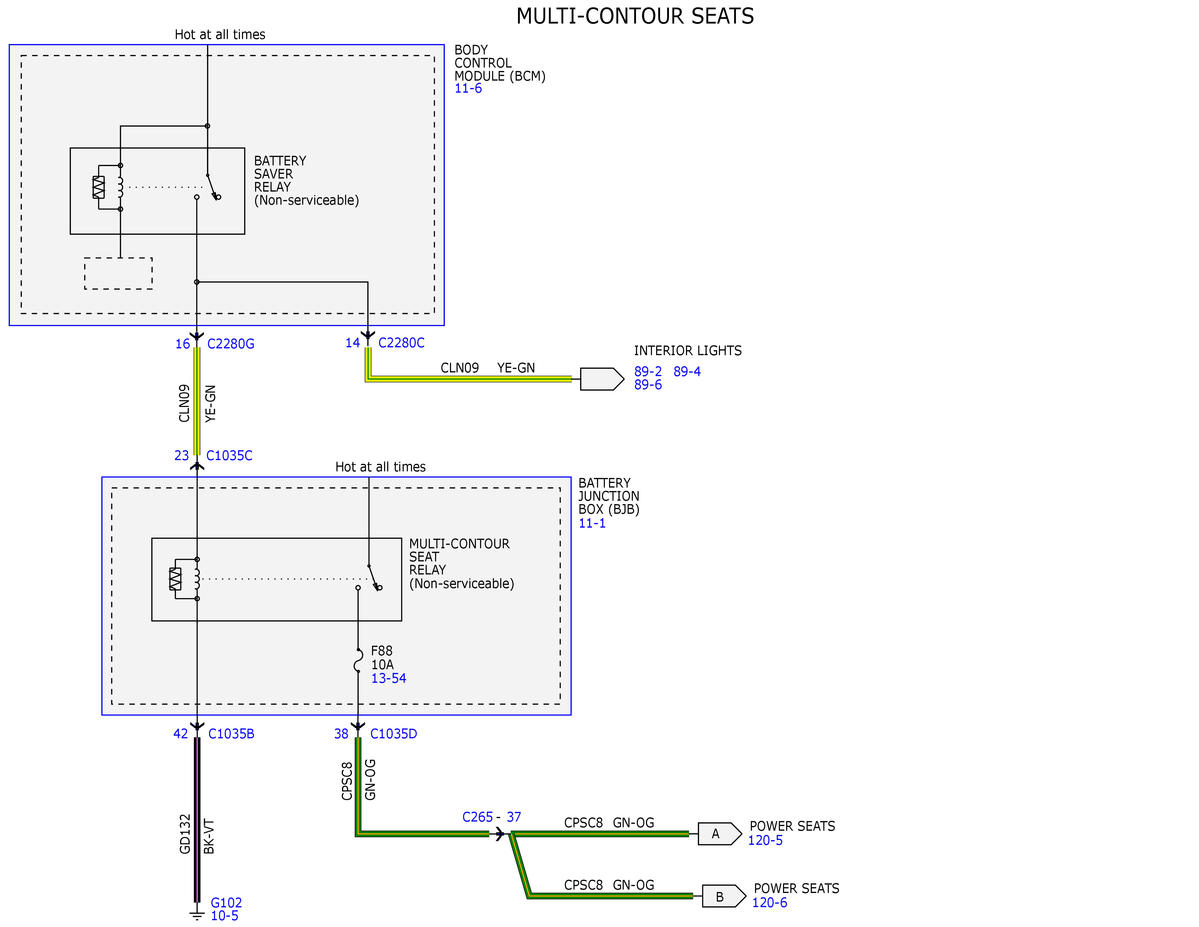

Fig 6: Power Seats Wiring Diagram (6 Of 6)

Courtesy of FORD MOTOR COMPANY
