Interior Lamps

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

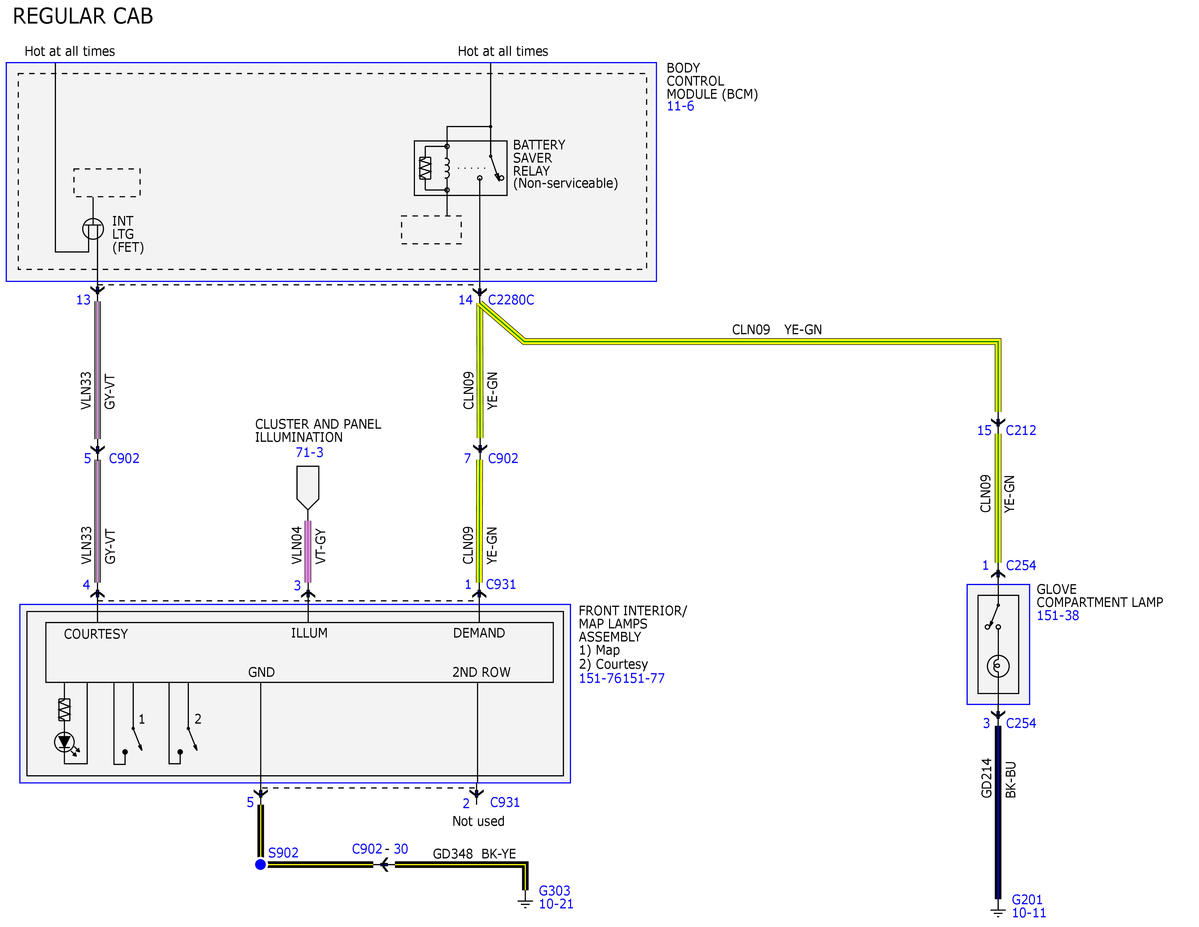

Fig 1: Interior Lamps Wiring Diagram (1 Of 13)

Courtesy of FORD MOTOR COMPANY

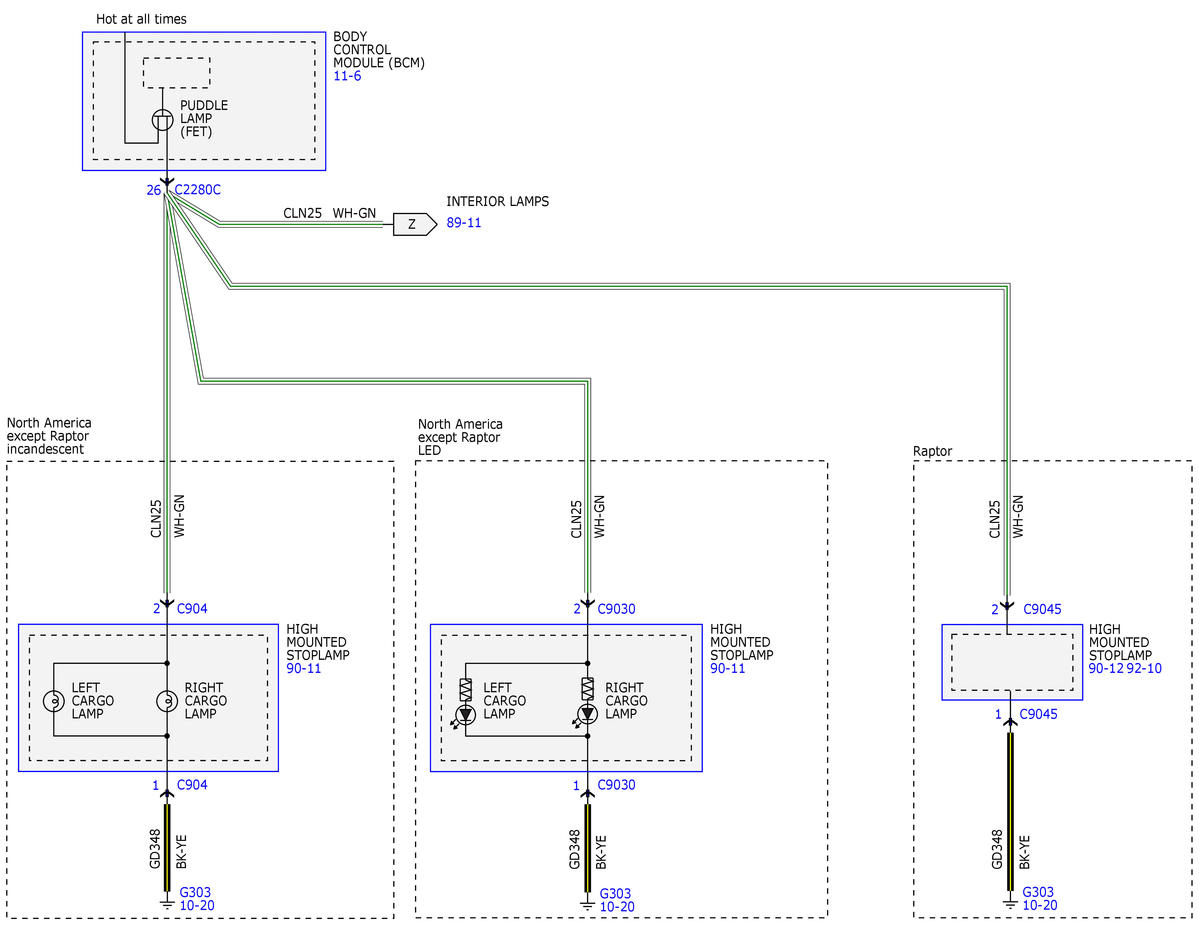

Fig 2: Interior Lamps Wiring Diagram (2 Of 13)

Courtesy of FORD MOTOR COMPANY

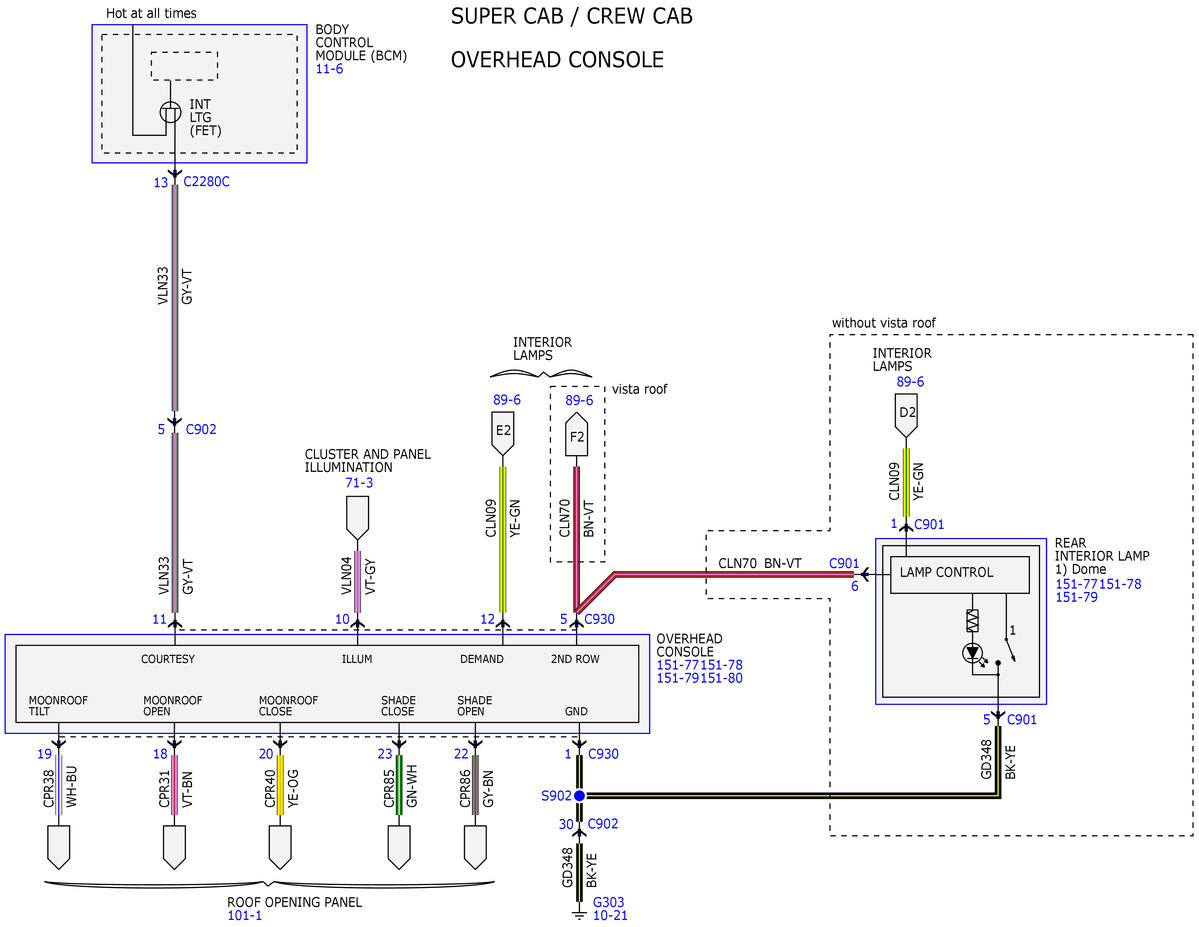

Fig 3: Interior Lamps Wiring Diagram (3 Of 13)

Courtesy of FORD MOTOR COMPANY

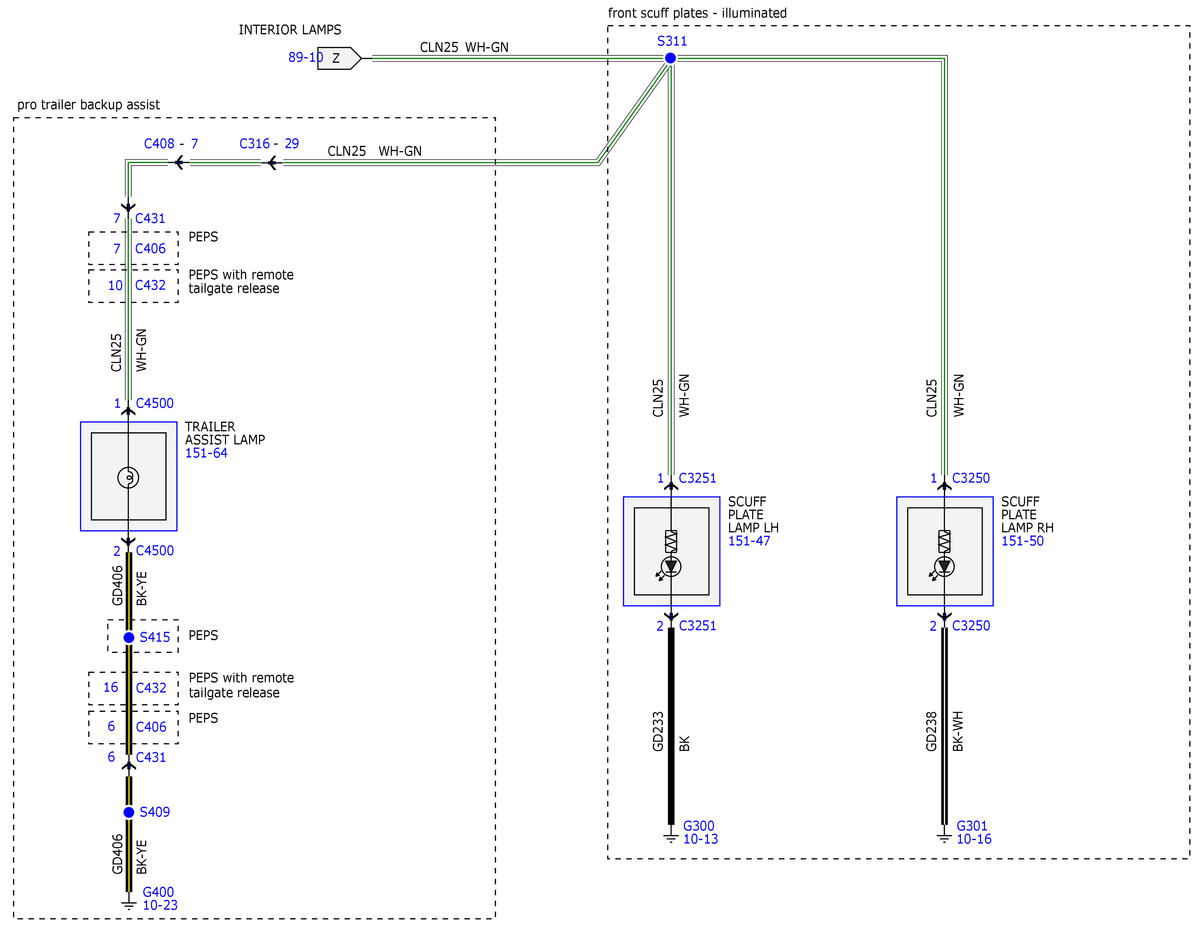

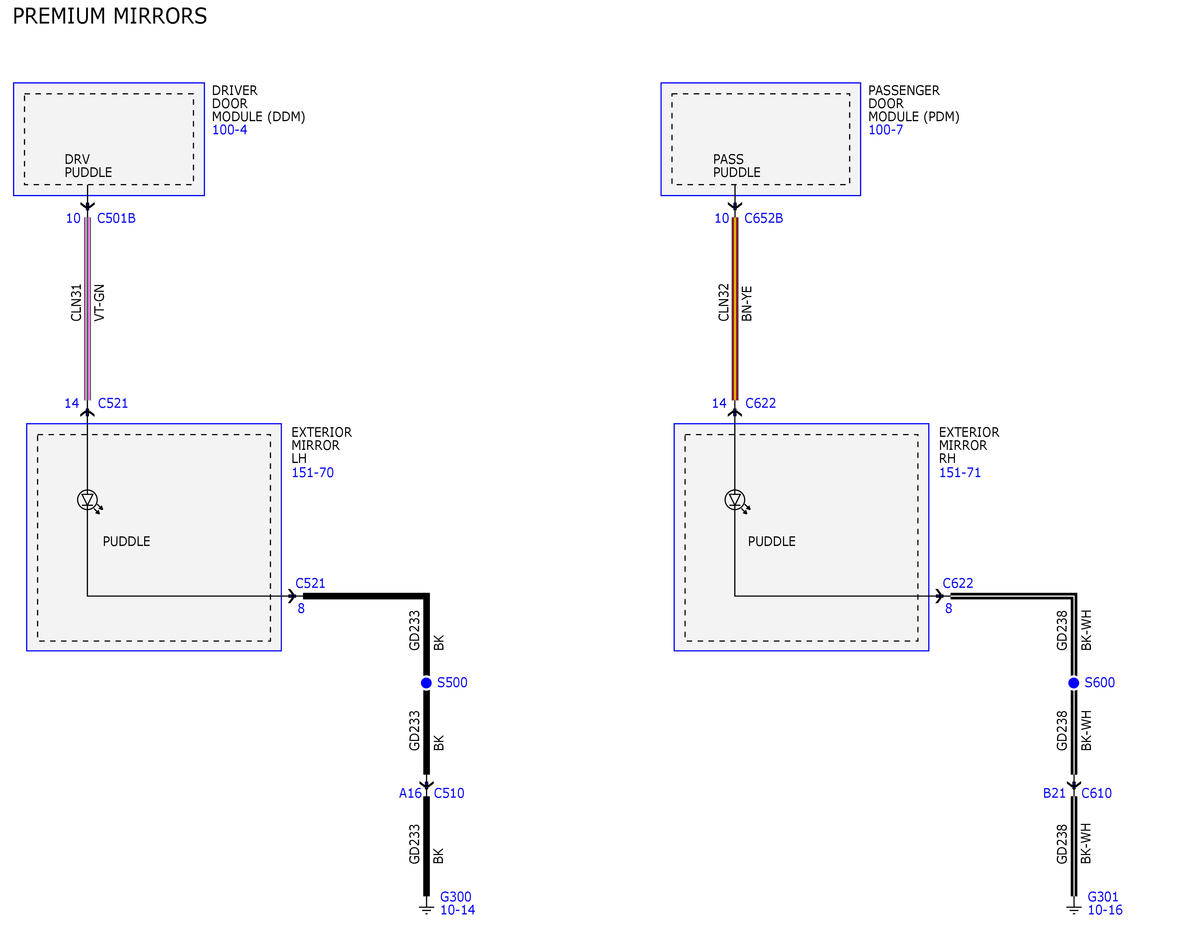

Fig 4: Interior Lamps Wiring Diagram (4 Of 13)

Courtesy of FORD MOTOR COMPANY

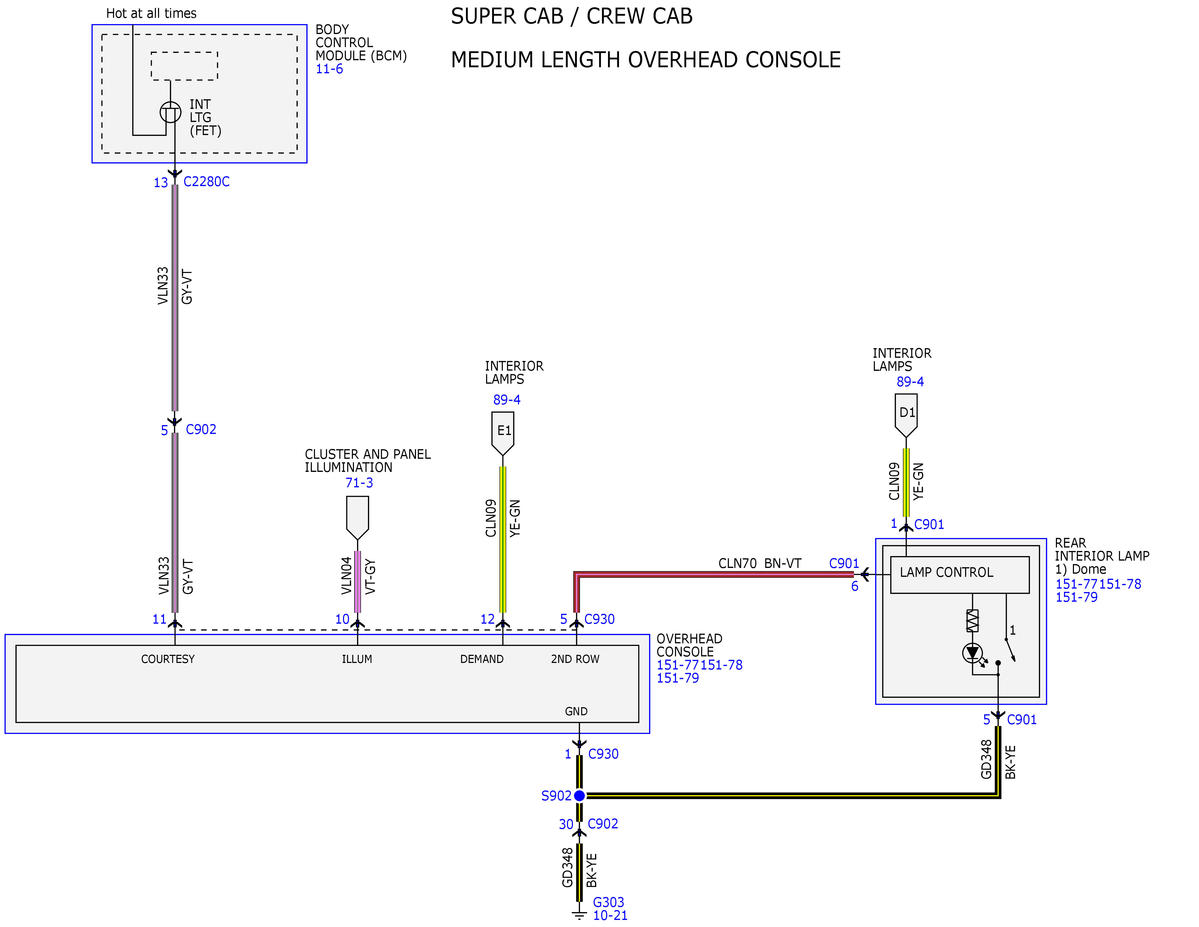

Fig 5: Interior Lamps Wiring Diagram (5 Of 13)

Courtesy of FORD MOTOR COMPANY

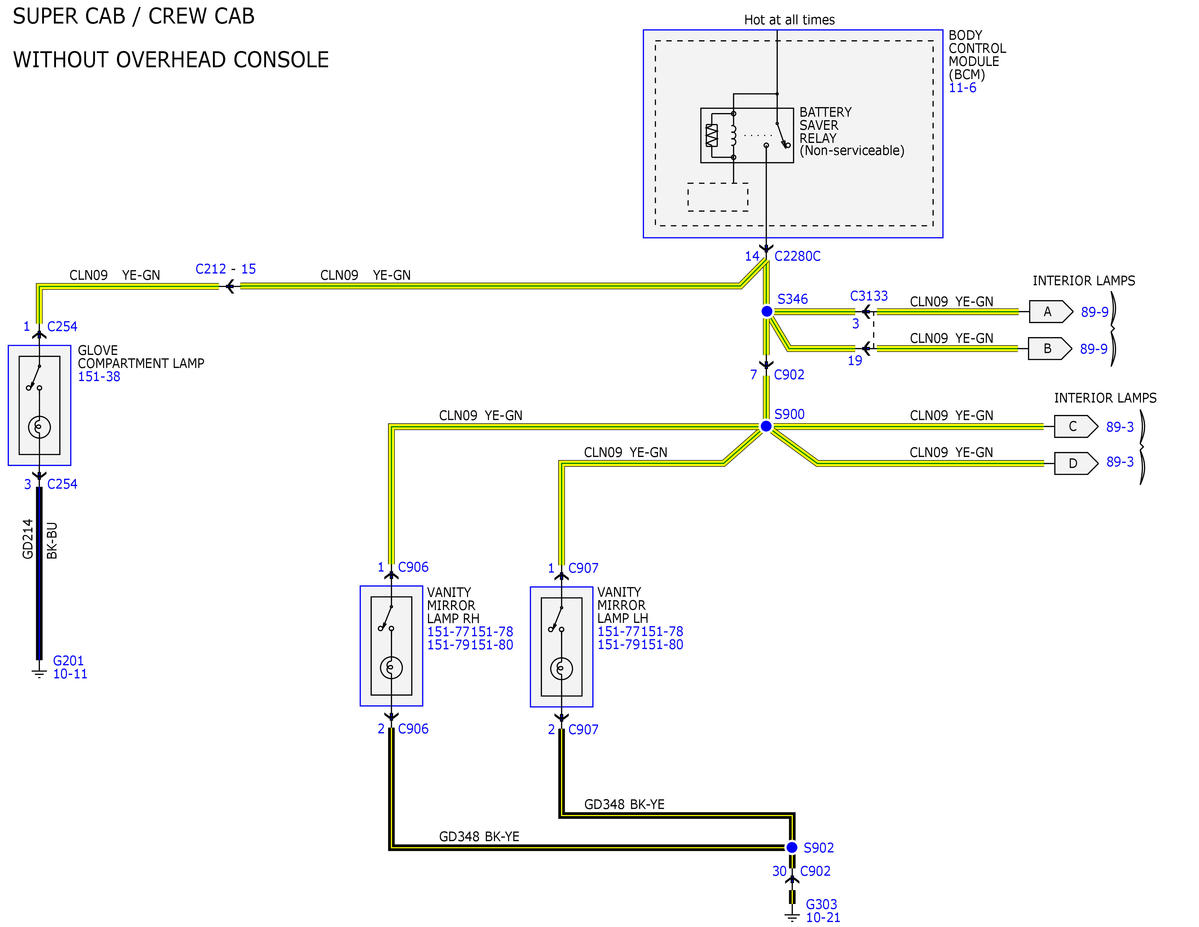

Fig 6: Interior Lamps Wiring Diagram (6 Of 13)

Courtesy of FORD MOTOR COMPANY

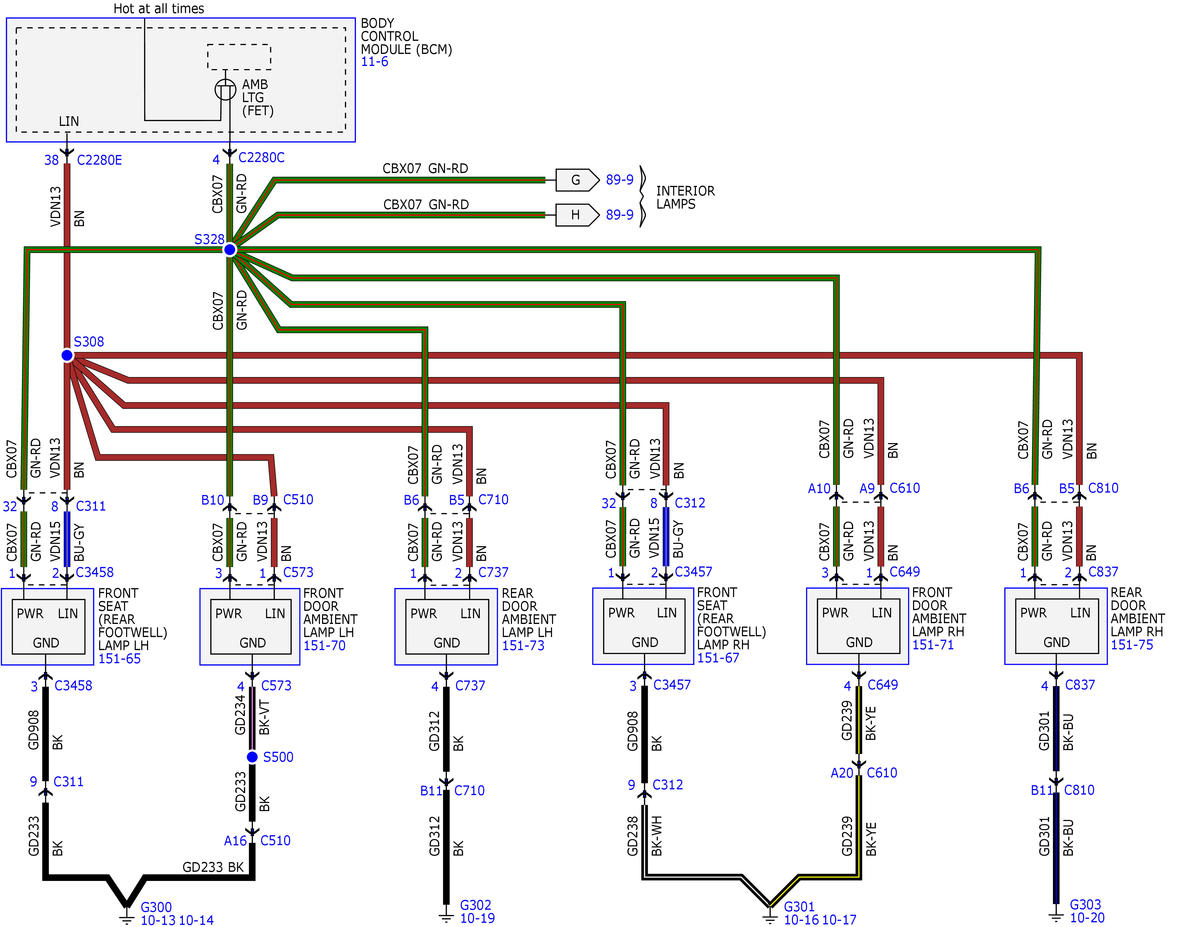

Fig 7: Interior Lamps Wiring Diagram (7 Of 13)

Courtesy of FORD MOTOR COMPANY

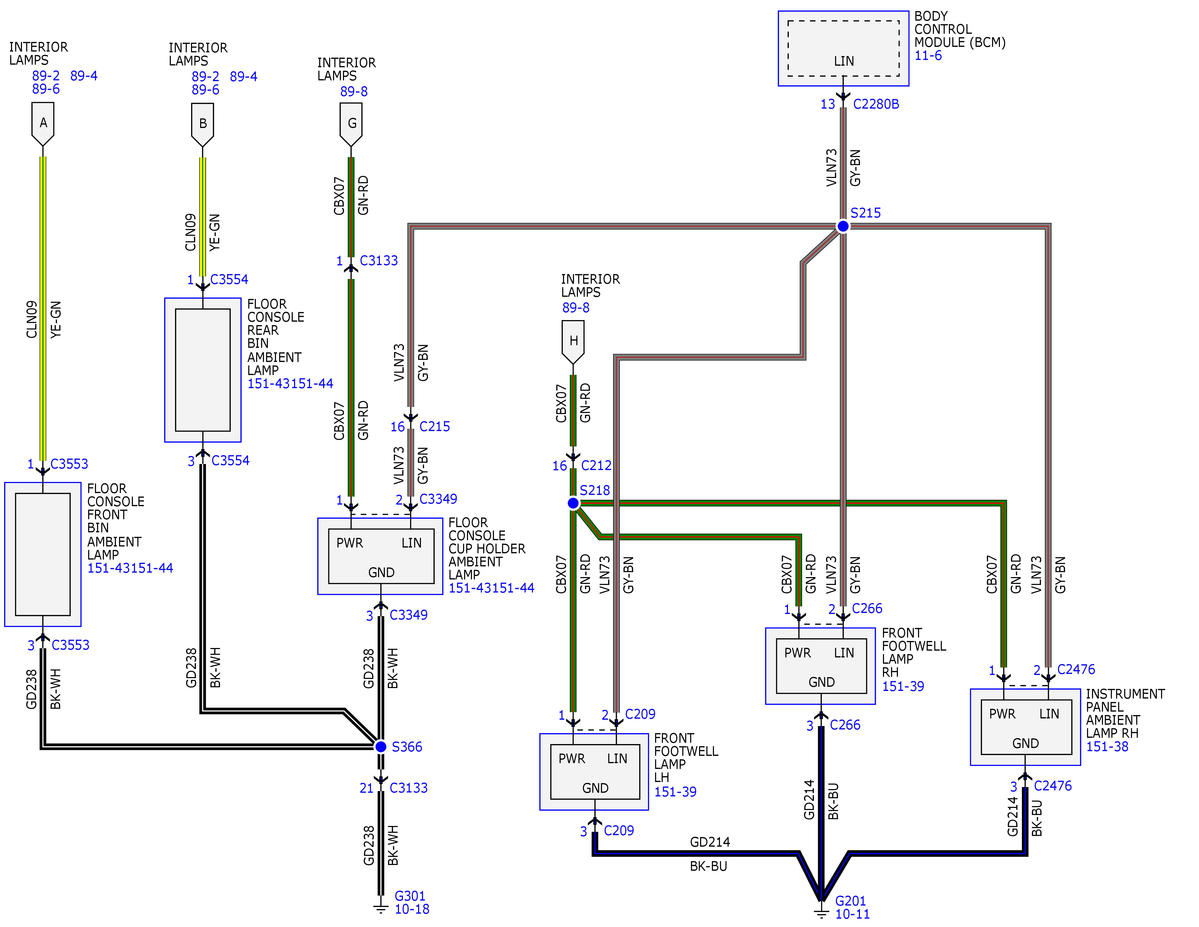

Fig 8: Interior Lamps Wiring Diagram (8 Of 13)

Courtesy of FORD MOTOR COMPANY

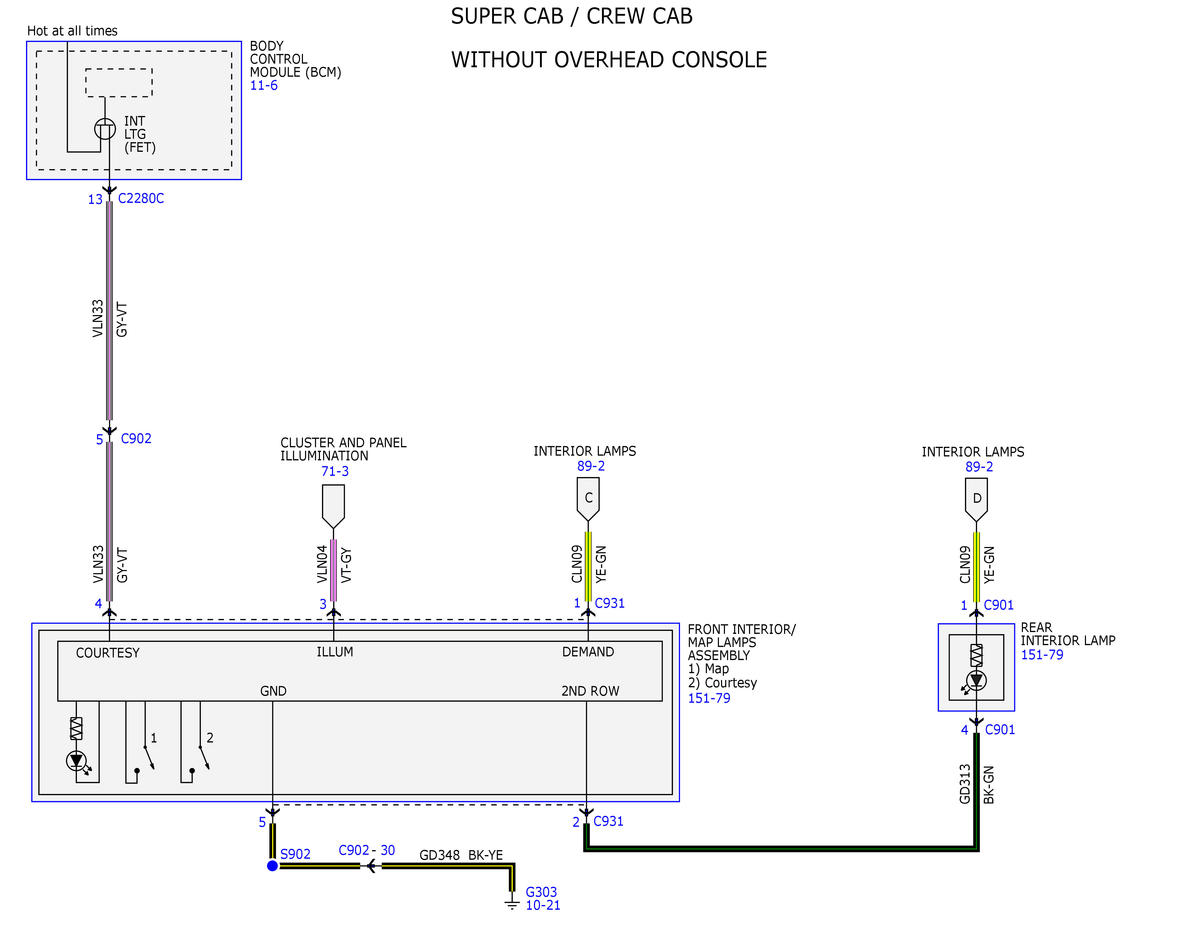

Fig 9: Interior Lamps Wiring Diagram (9 Of 13)

Courtesy of FORD MOTOR COMPANY

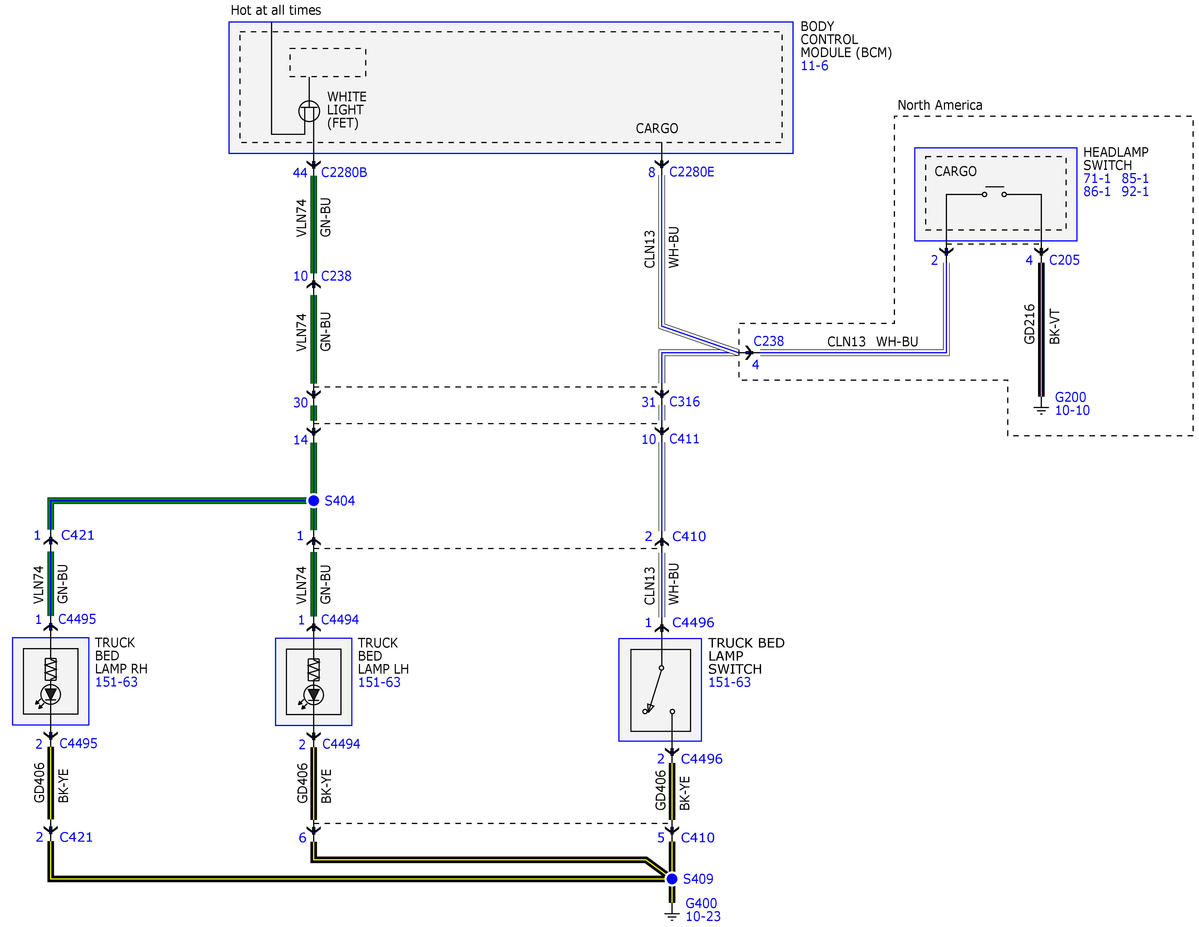

Fig 10: Interior Lamps Wiring Diagram (10 Of 13)

Courtesy of FORD MOTOR COMPANY

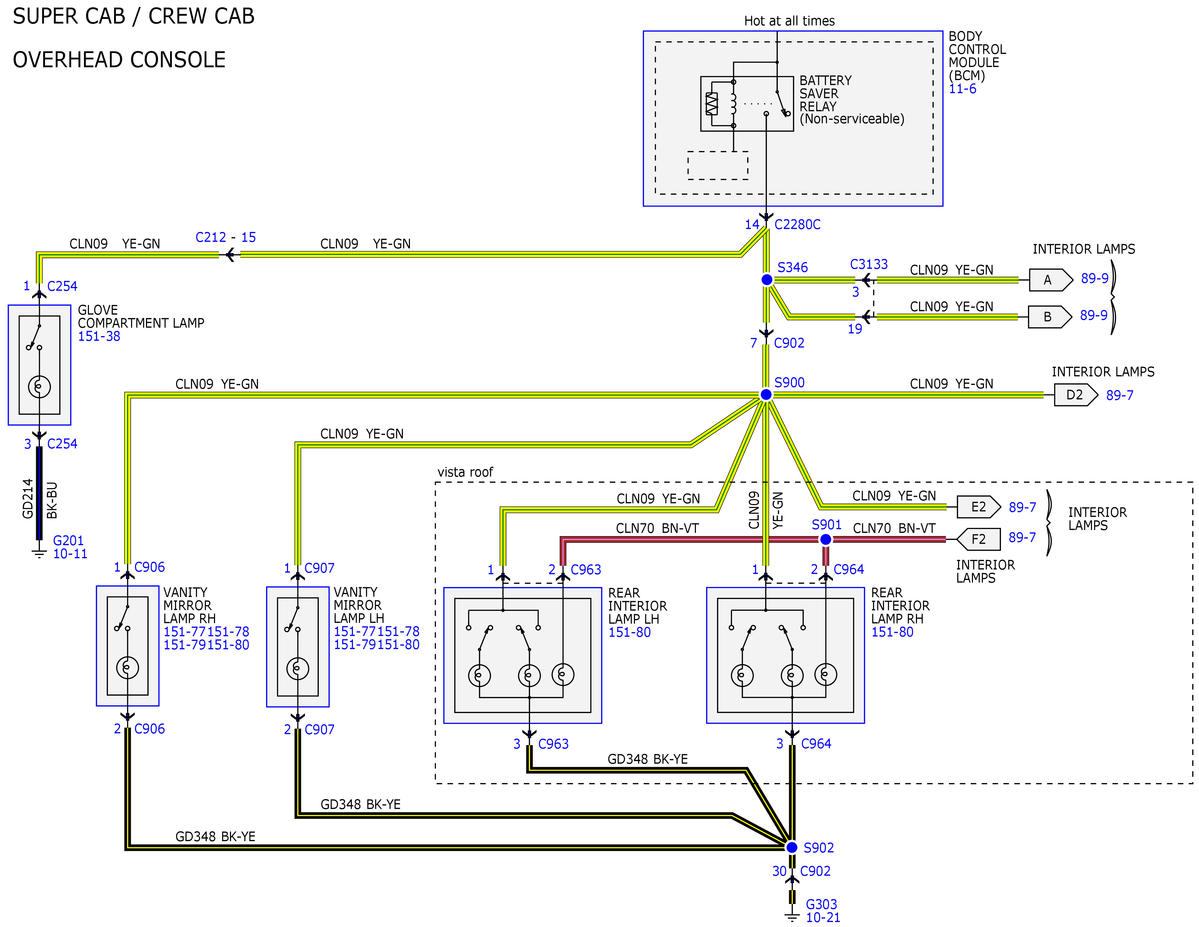

Fig 11: Interior Lamps Wiring Diagram (11 Of 13)

Courtesy of FORD MOTOR COMPANY

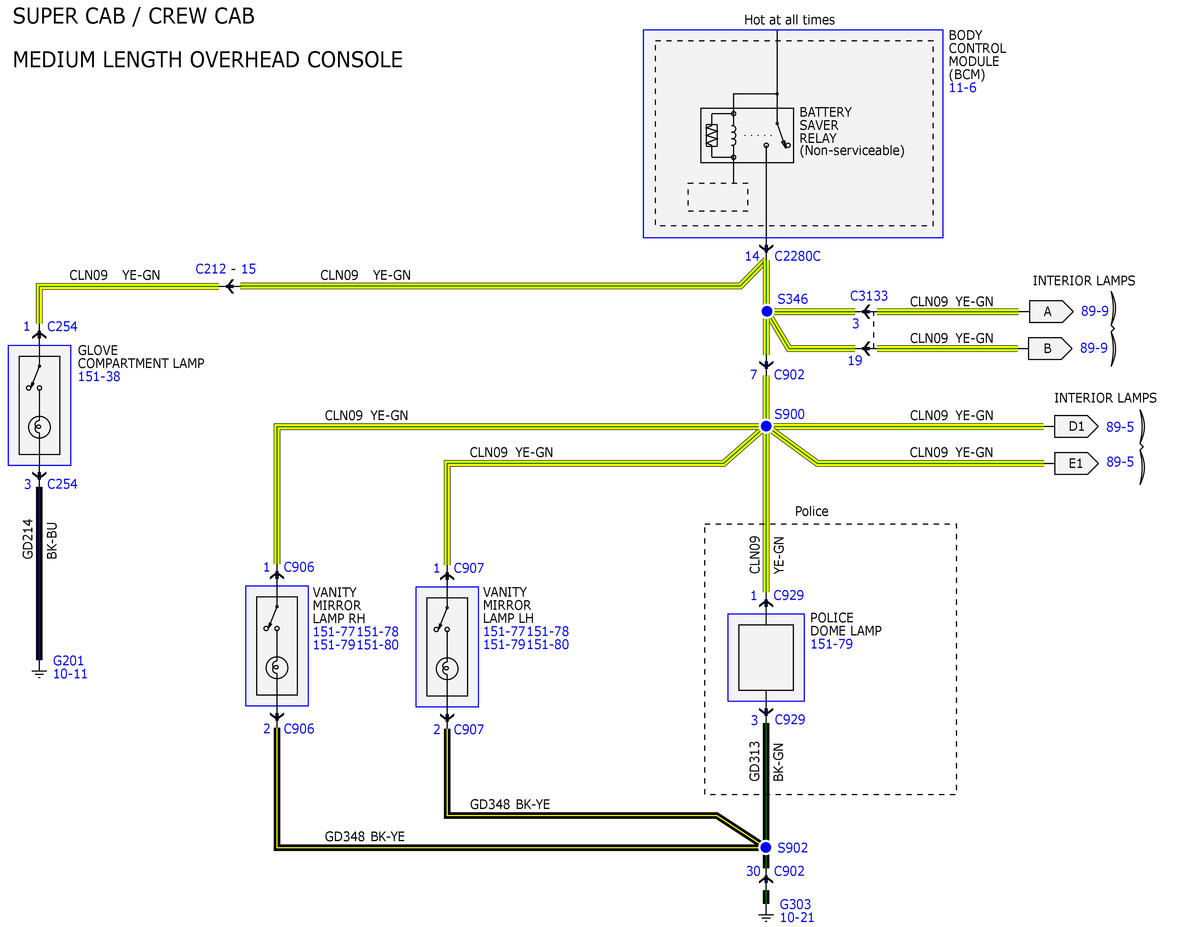

Fig 12: Interior Lamps Wiring Diagram (12 Of 13)

Courtesy of FORD MOTOR COMPANY

Fig 13: Interior Lamps Wiring Diagram (13 Of 13)

Courtesy of FORD MOTOR COMPANY
