Section 302 (OEM Wiring Diagrams): Headlamps/Autolamps

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

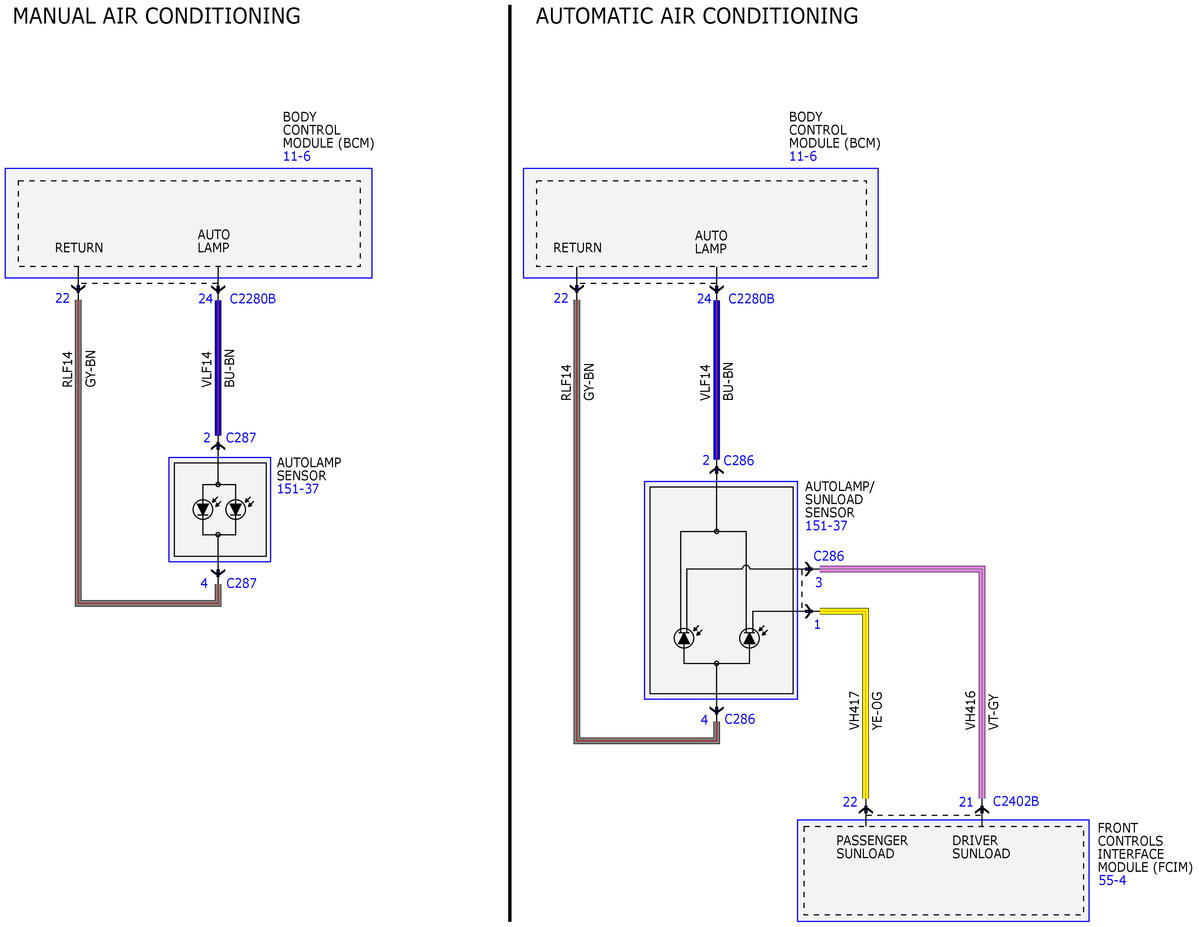

Fig 1: Headlamps/Autolamps Wiring Diagram (1 Of 8)

Courtesy of FORD MOTOR COMPANY

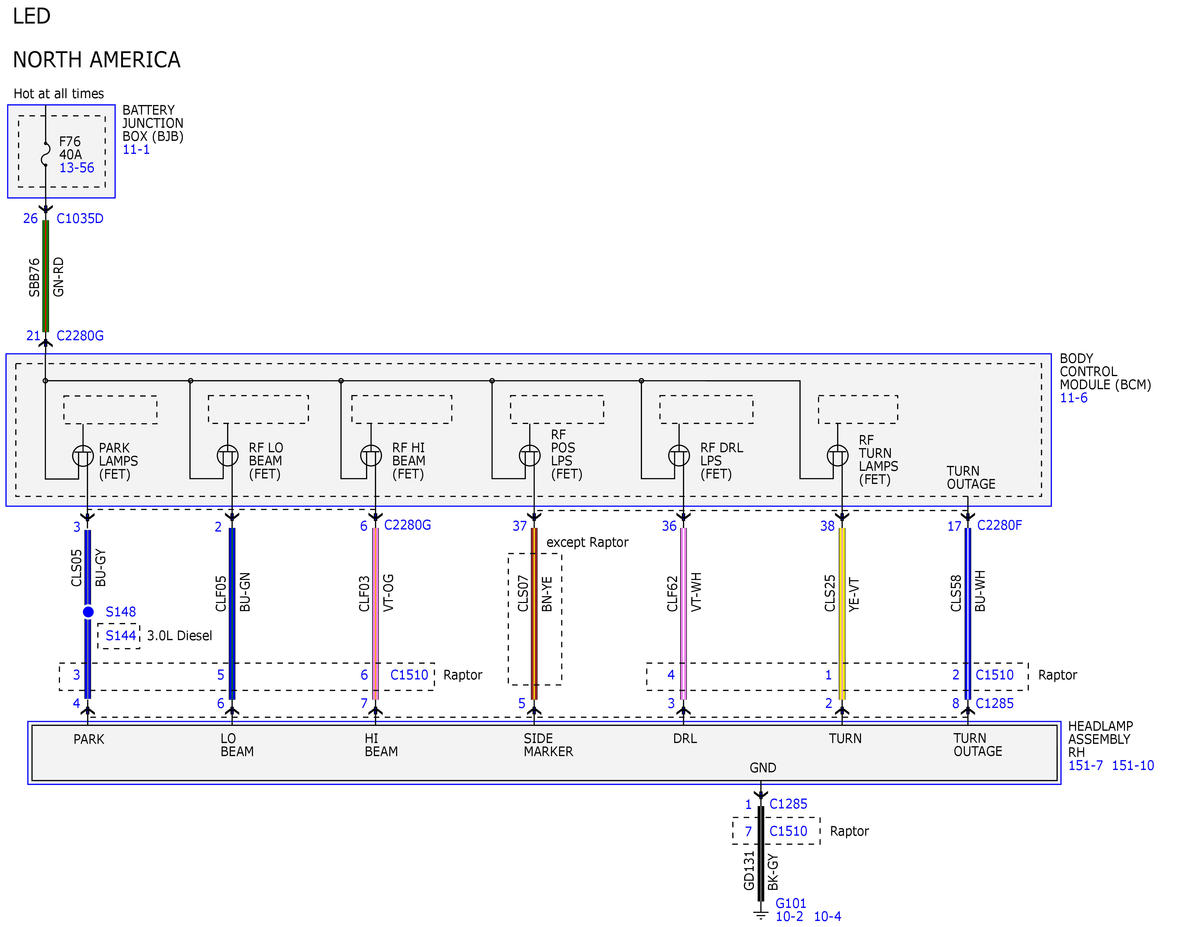

Fig 2: Headlamps/Autolamps Wiring Diagram (2 Of 8)

Courtesy of FORD MOTOR COMPANY

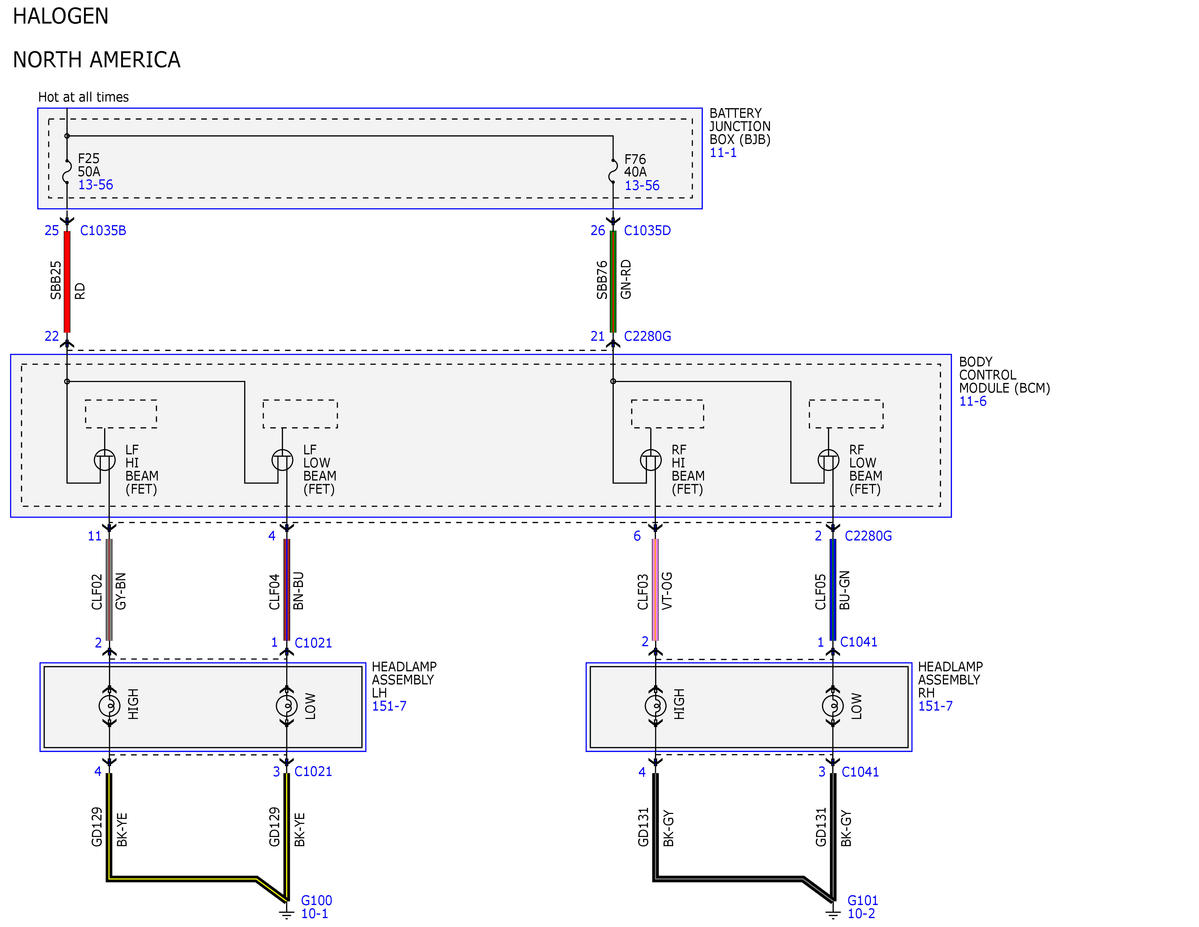

Fig 3: Headlamps/Autolamps Wiring Diagram (3 Of 8)

Courtesy of FORD MOTOR COMPANY

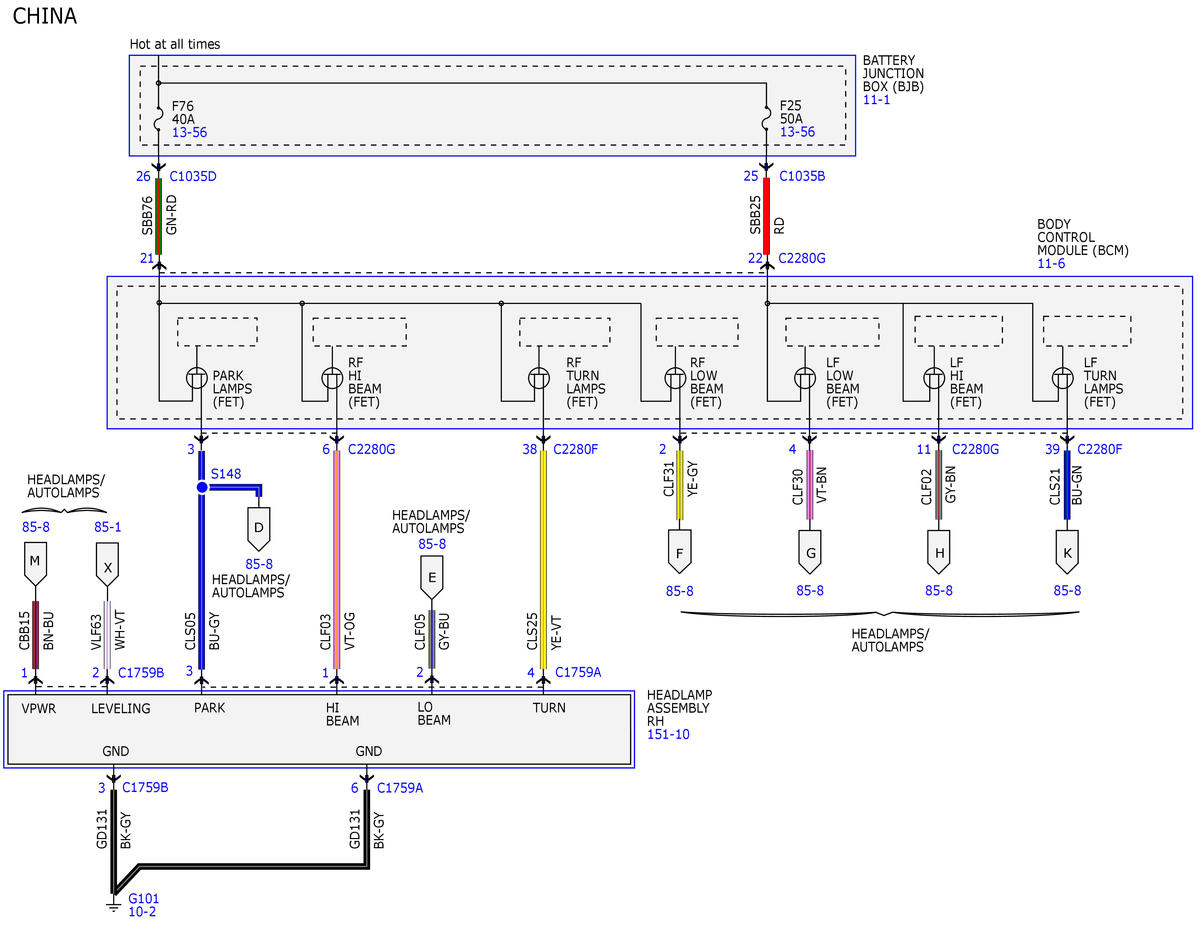

Fig 4: Headlamps/Autolamps Wiring Diagram (4 Of 8)

Courtesy of FORD MOTOR COMPANY

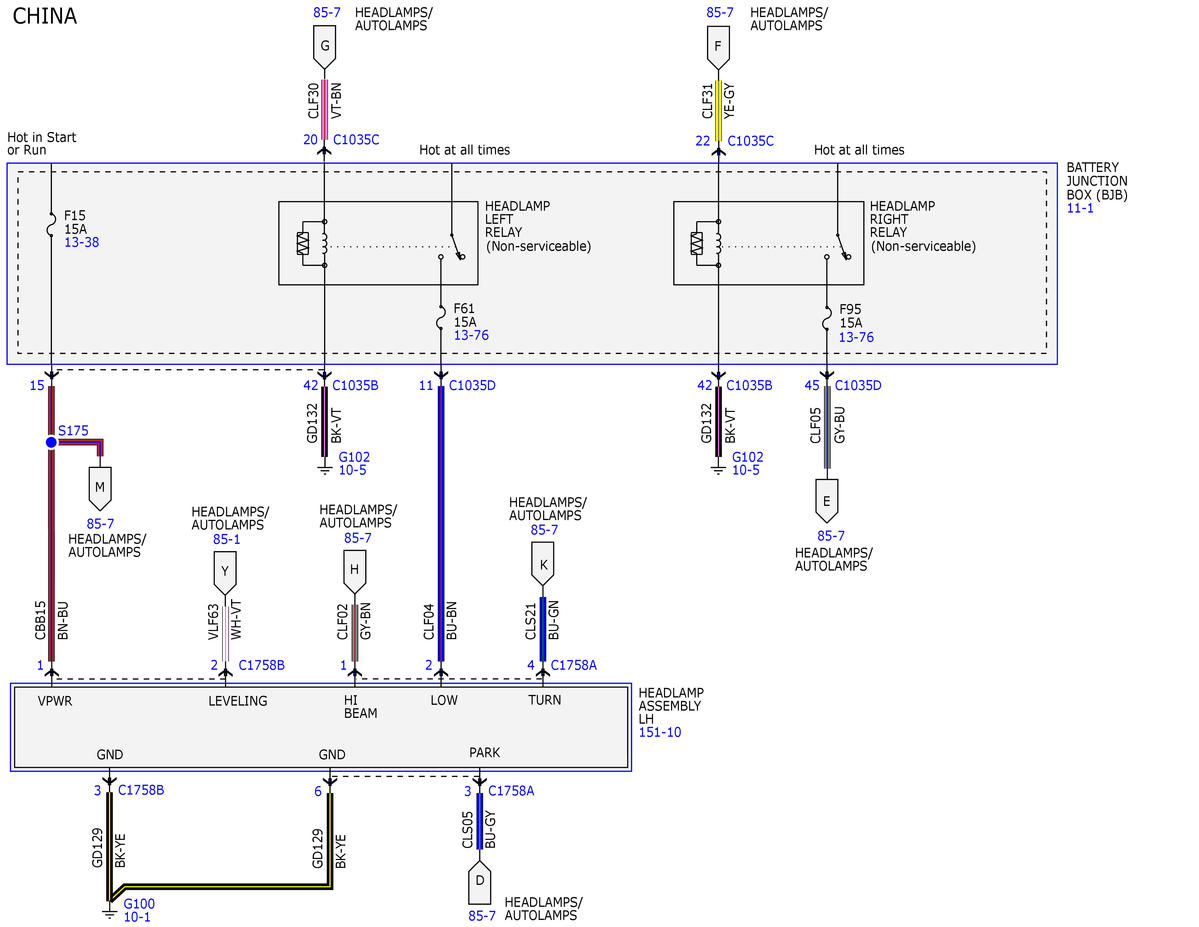

Fig 5: Headlamps/Autolamps Wiring Diagram (5 Of 8)

Courtesy of FORD MOTOR COMPANY

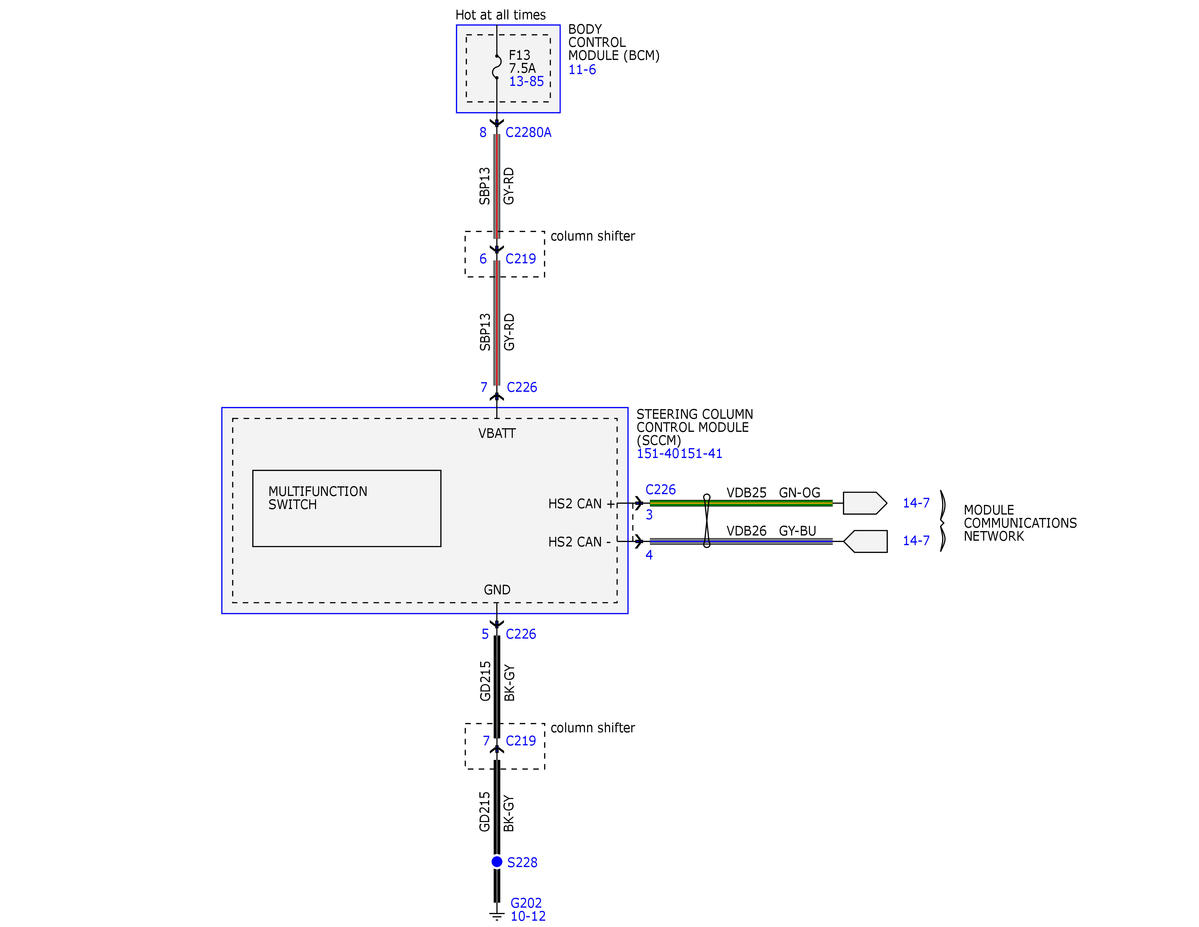

Fig 6: Headlamps/Autolamps Wiring Diagram (6 Of 8)

Courtesy of FORD MOTOR COMPANY

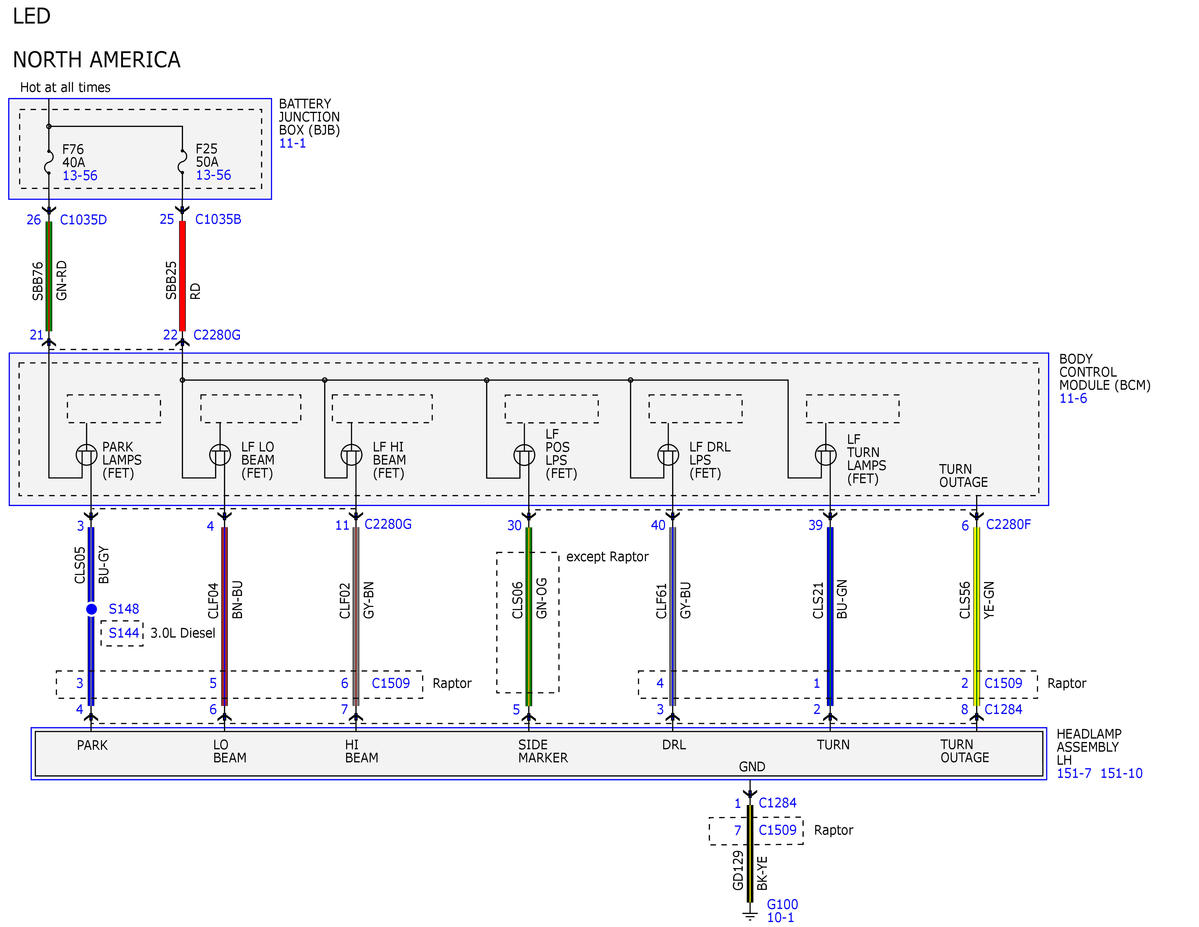

Fig 7: Headlamps/Autolamps Wiring Diagram (7 Of 8)

Courtesy of FORD MOTOR COMPANY

Fig 8: Headlamps/Autolamps Wiring Diagram (8 Of 8)

Courtesy of FORD MOTOR COMPANY
