Electronic Engine Controls - 3.3L TIVCT

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

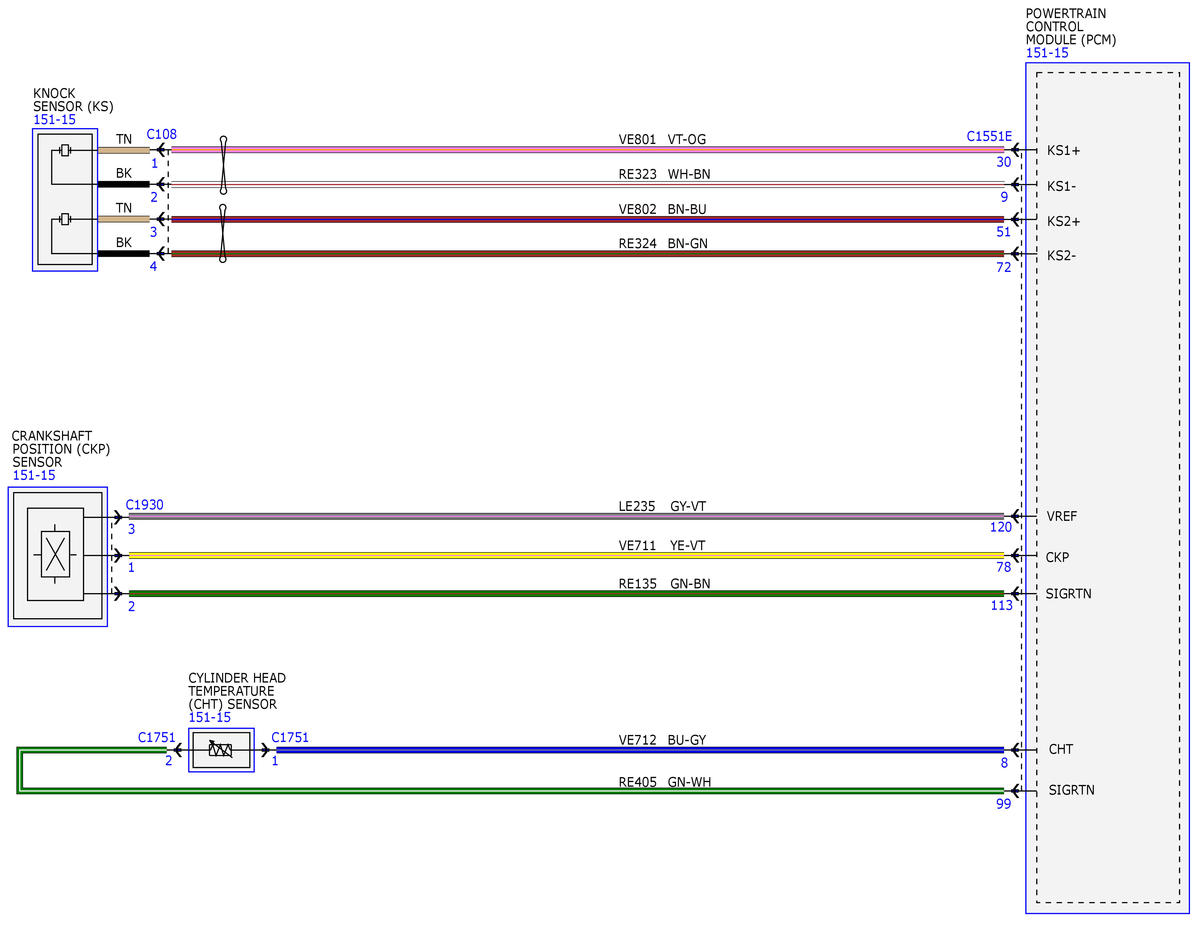

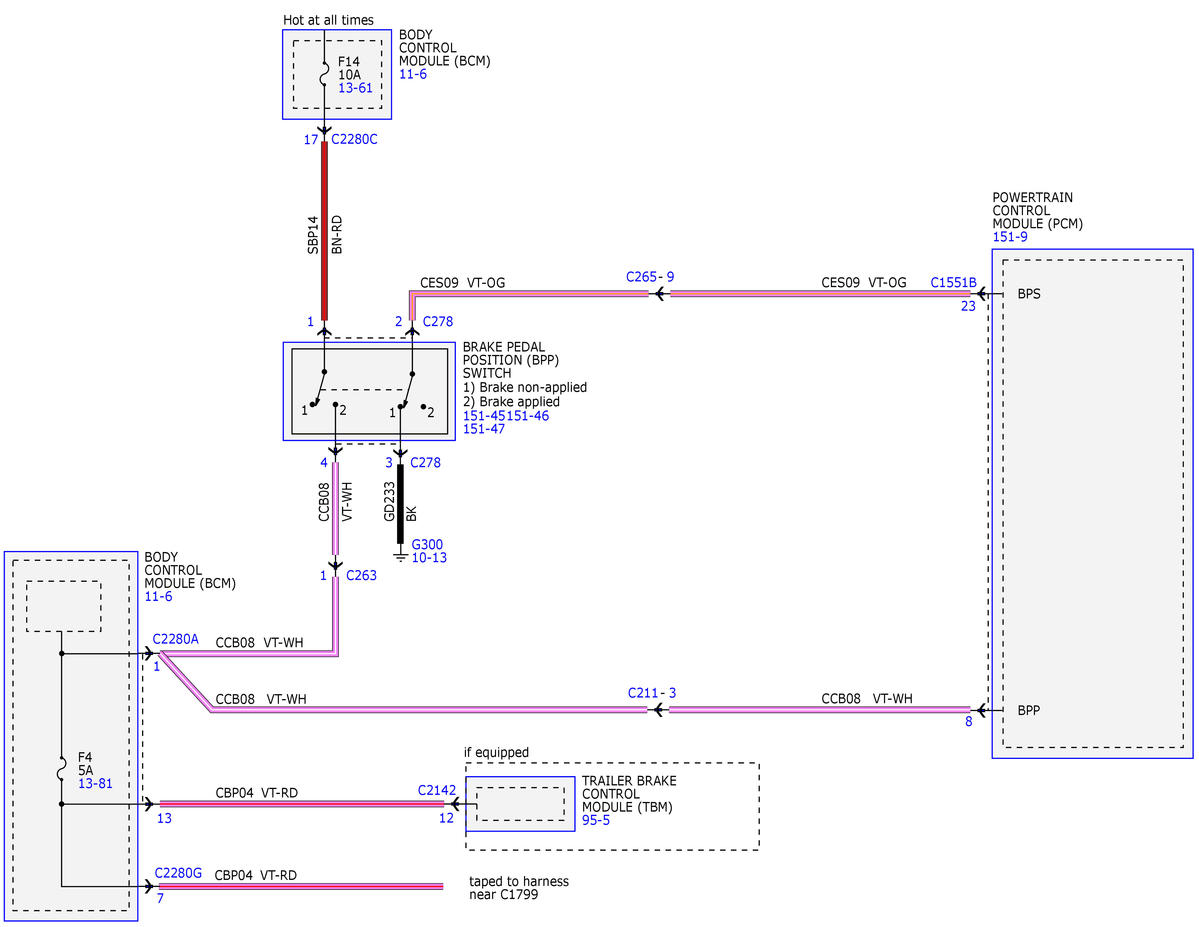

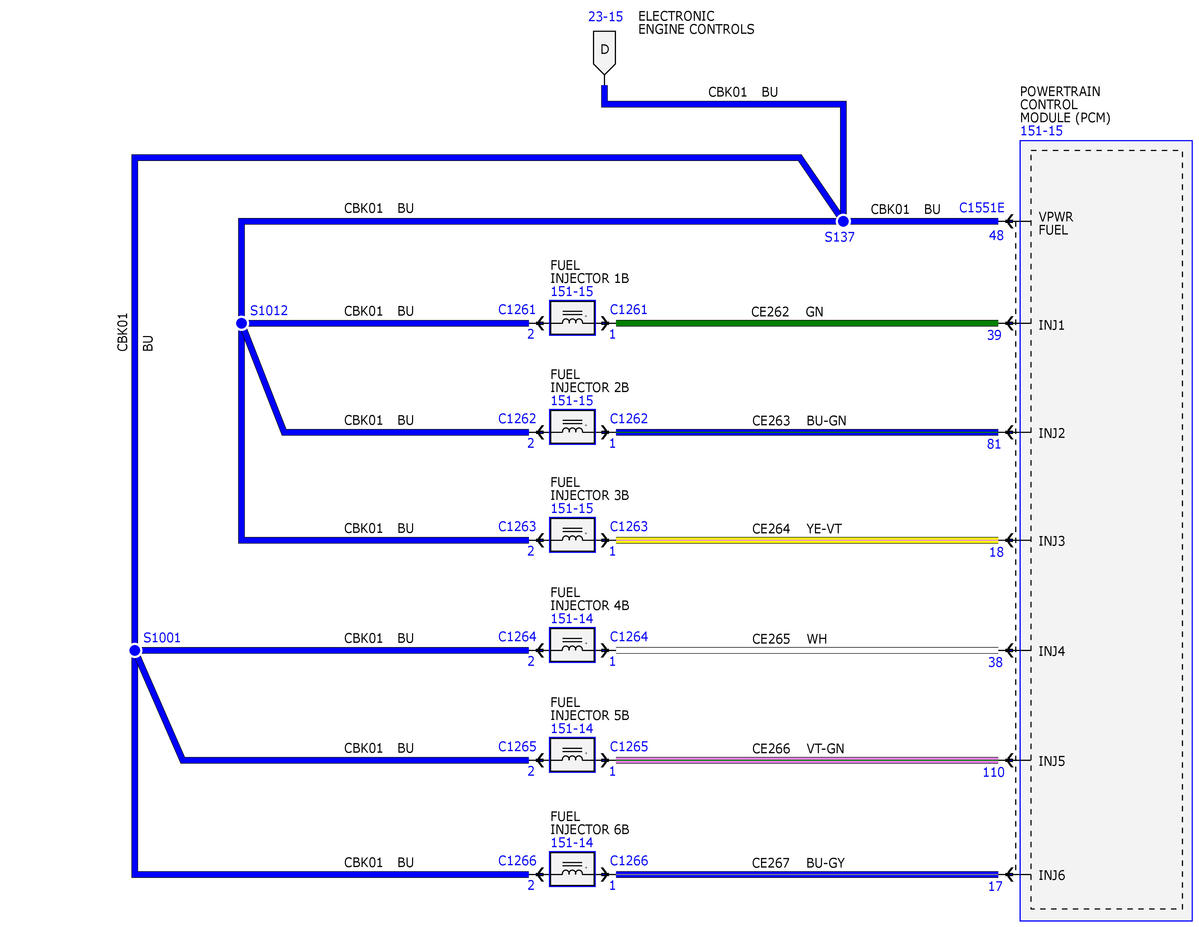

Fig 1: Electronic Engine Controls - 3.3L TIVCT Wiring Diagram (1 Of 18)

Courtesy of FORD MOTOR COMPANY

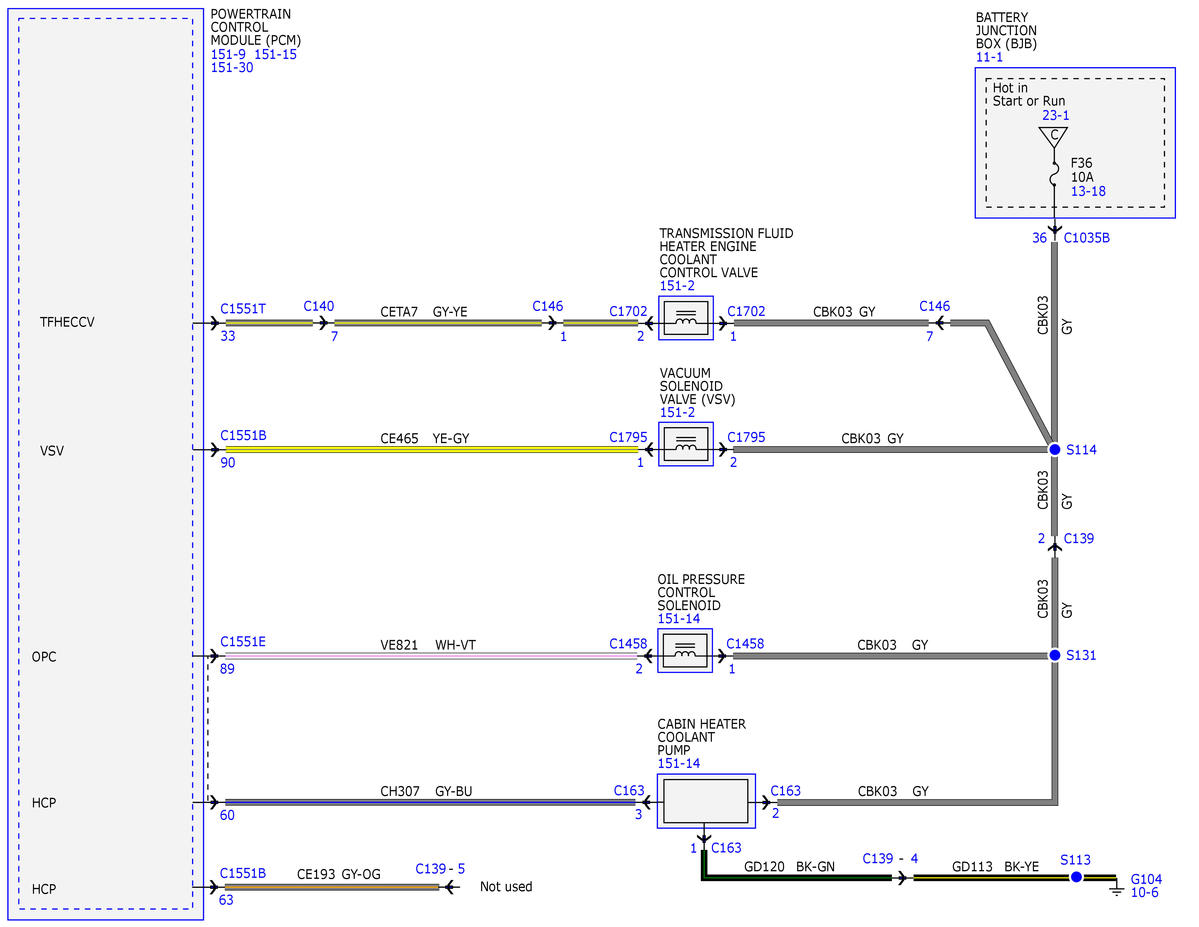

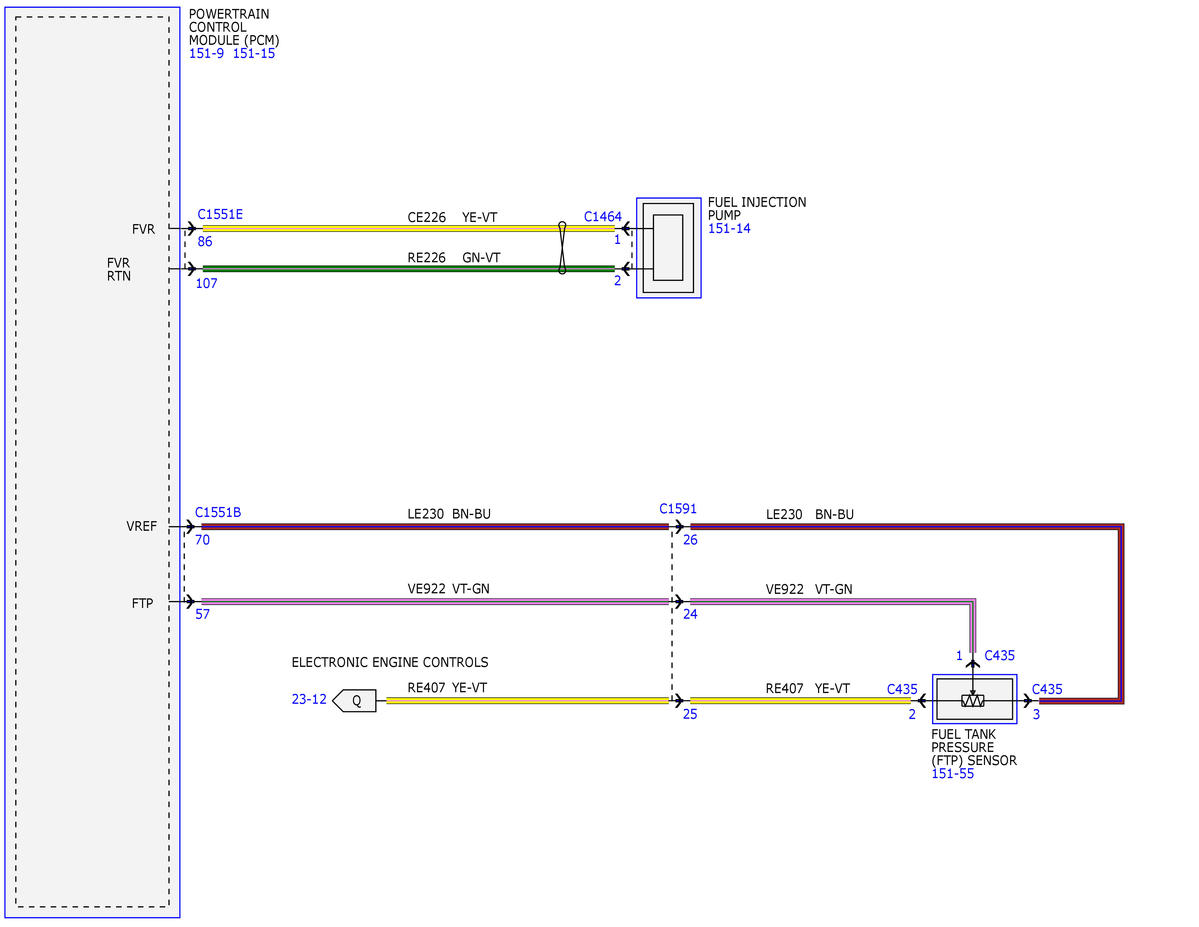

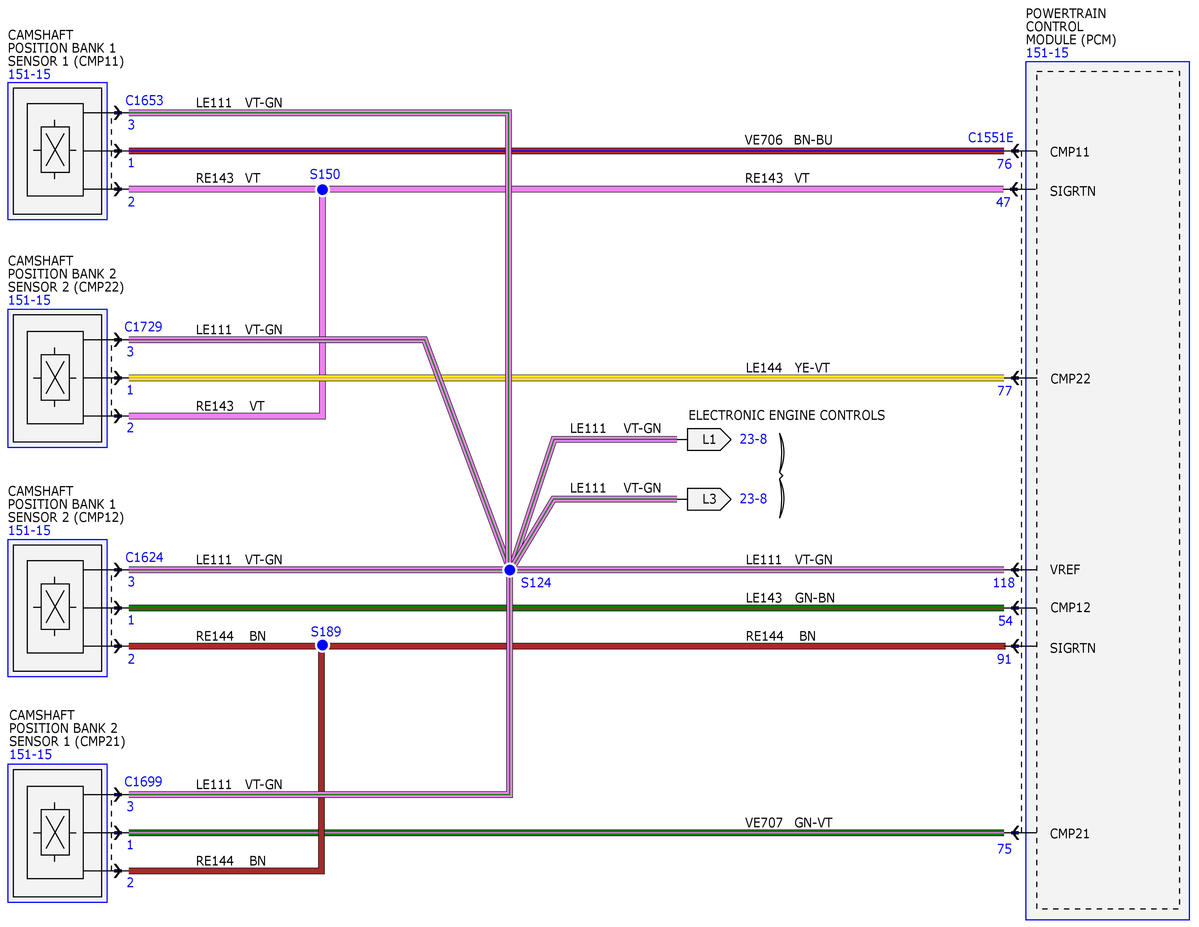

Fig 2: Electronic Engine Controls - 3.3L TIVCT Wiring Diagram (2 Of 18)

Courtesy of FORD MOTOR COMPANY

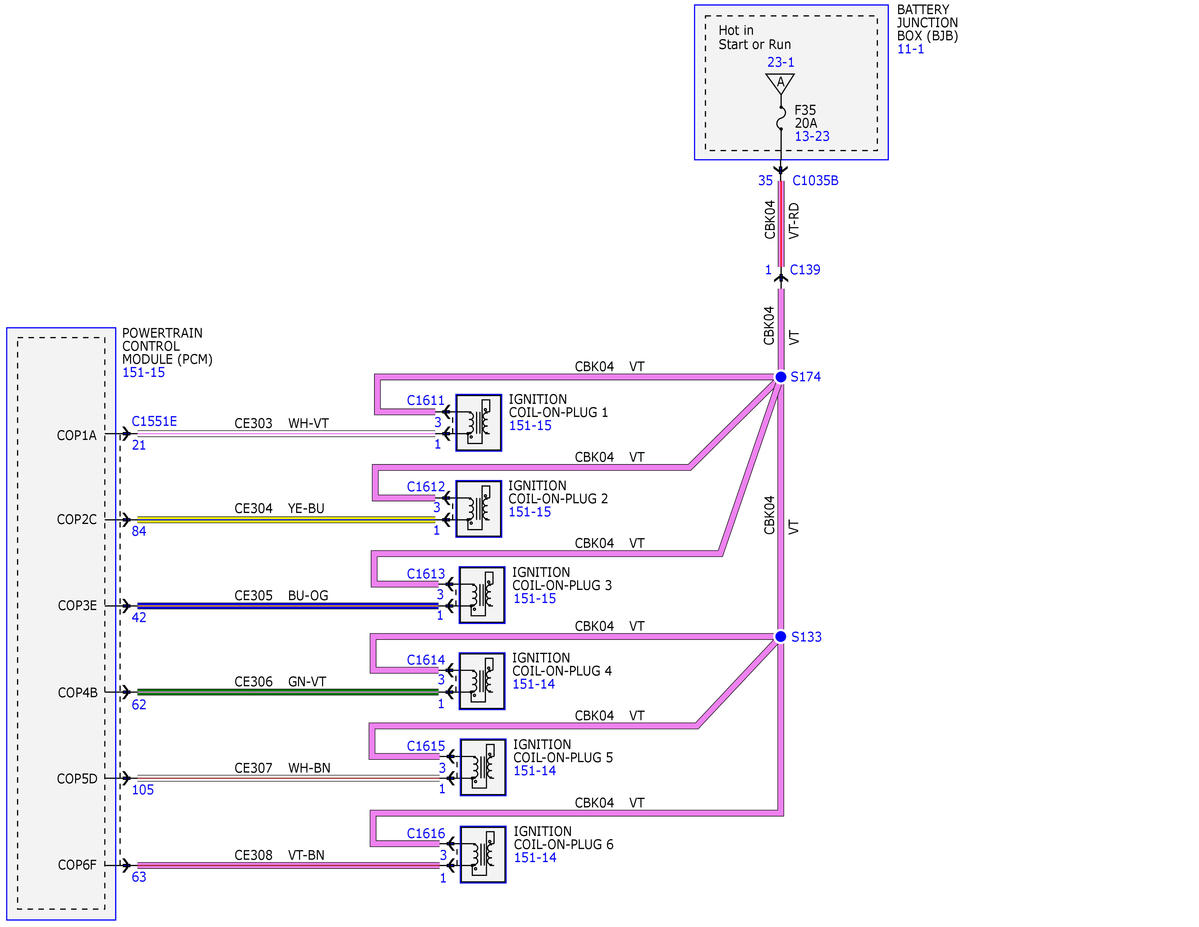

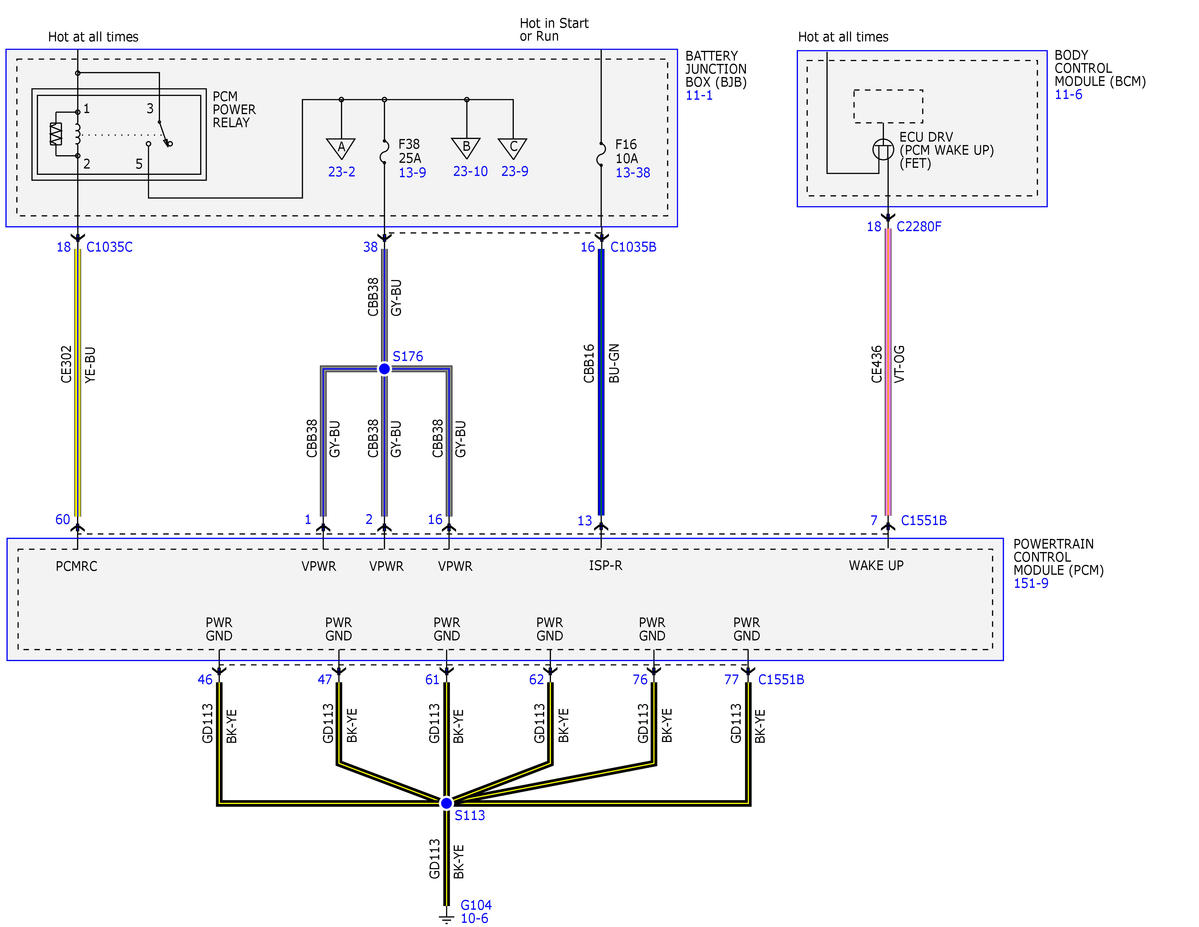

Fig 3: Electronic Engine Controls - 3.3L TIVCT Wiring Diagram (3 Of 18)

Courtesy of FORD MOTOR COMPANY

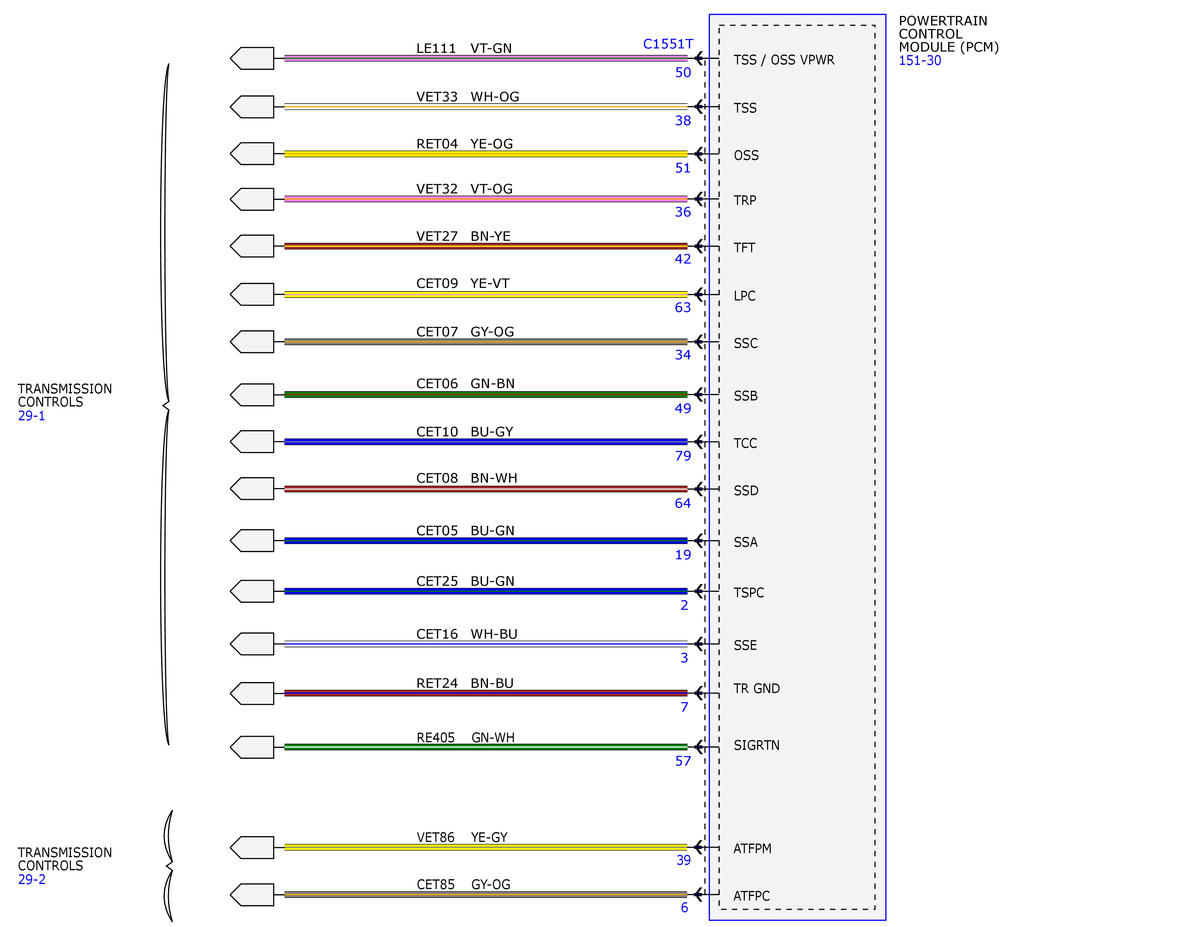

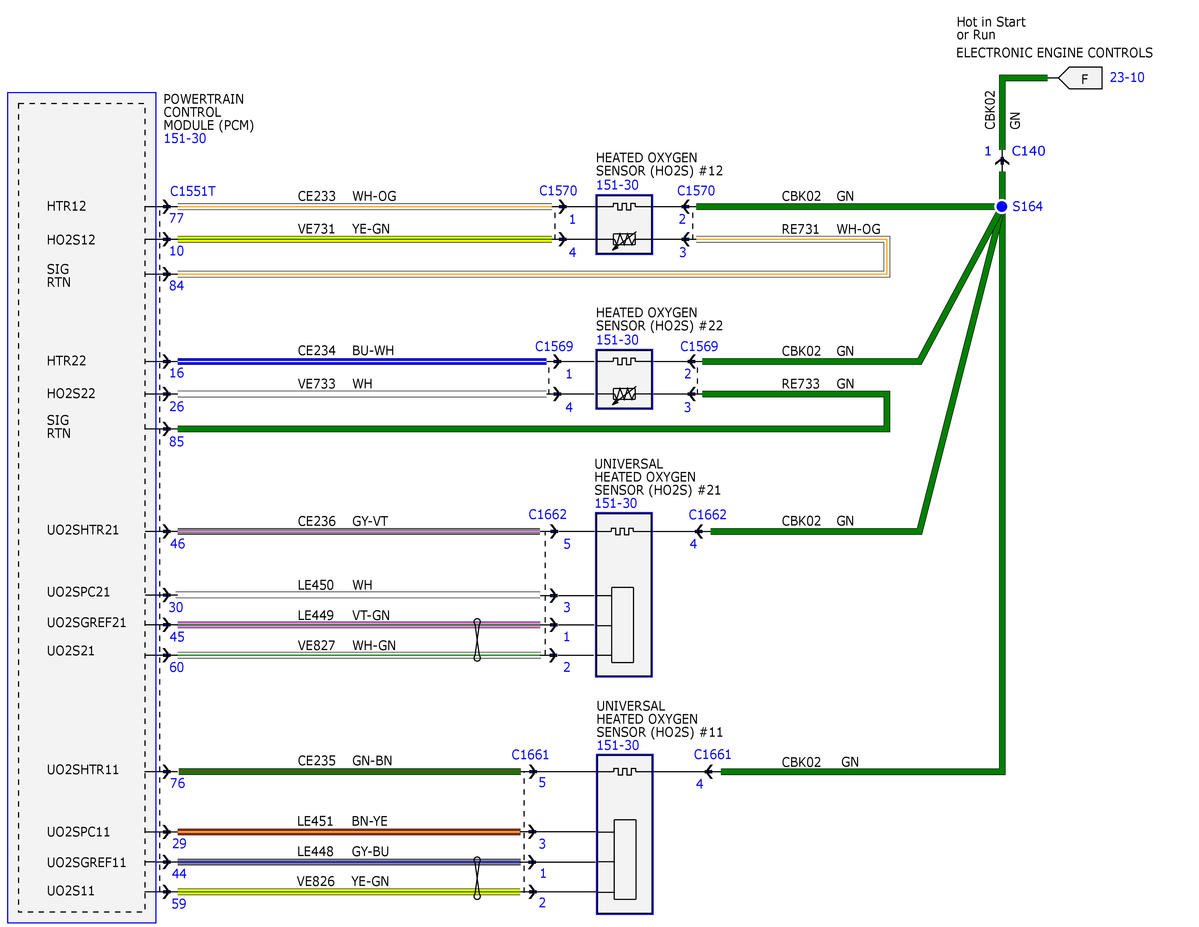

Fig 4: Electronic Engine Controls - 3.3L TIVCT Wiring Diagram (4 Of 18)

Courtesy of FORD MOTOR COMPANY

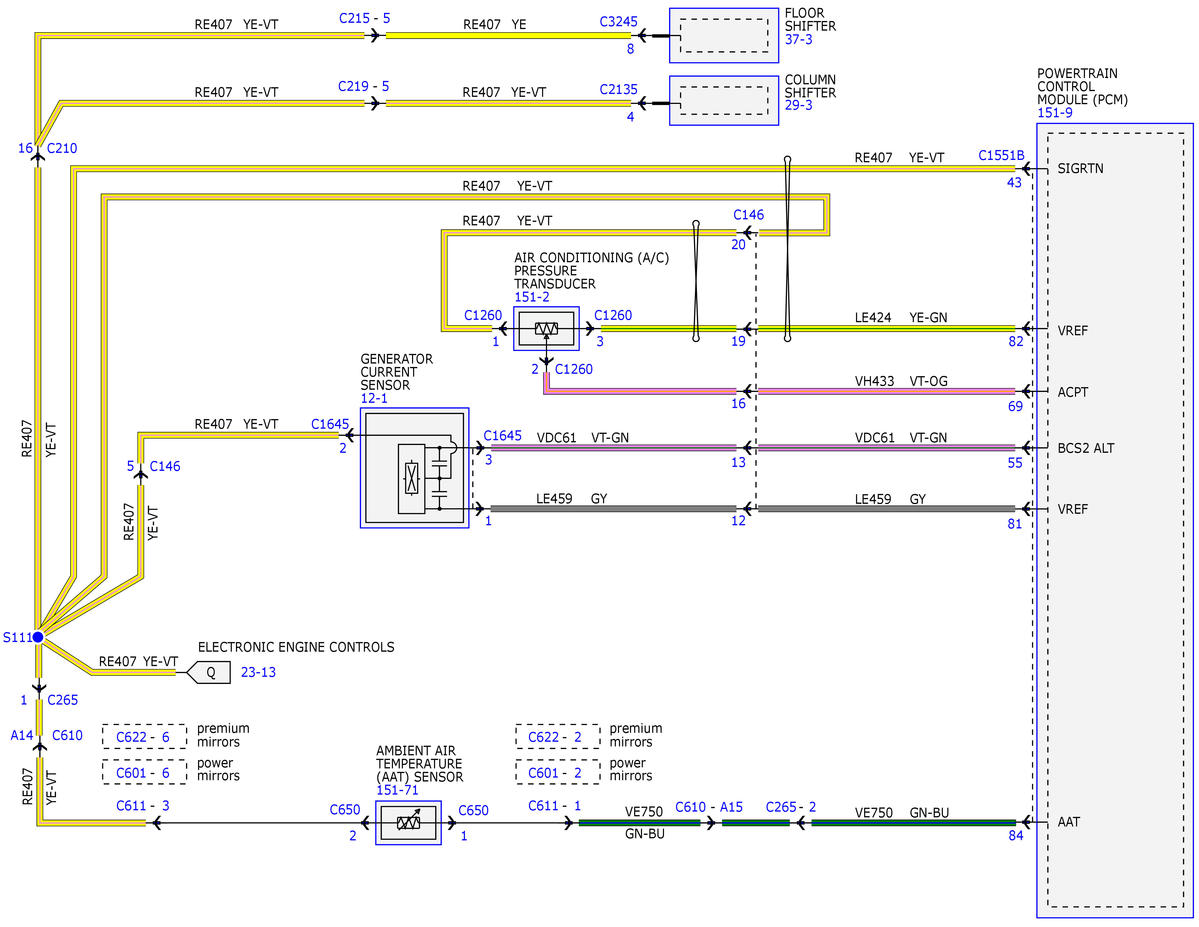

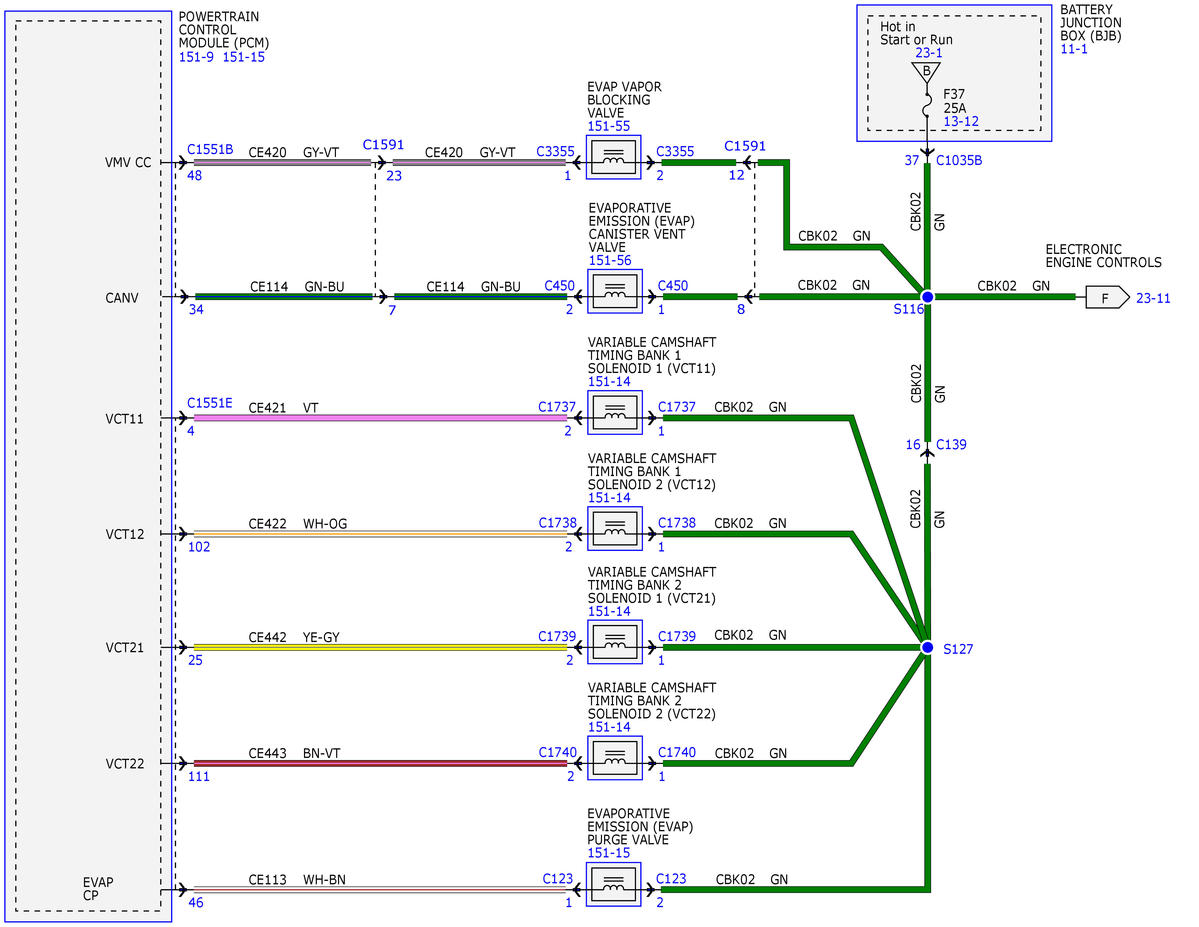

Fig 5: Electronic Engine Controls - 3.3L TIVCT Wiring Diagram (5 Of 18)

Courtesy of FORD MOTOR COMPANY

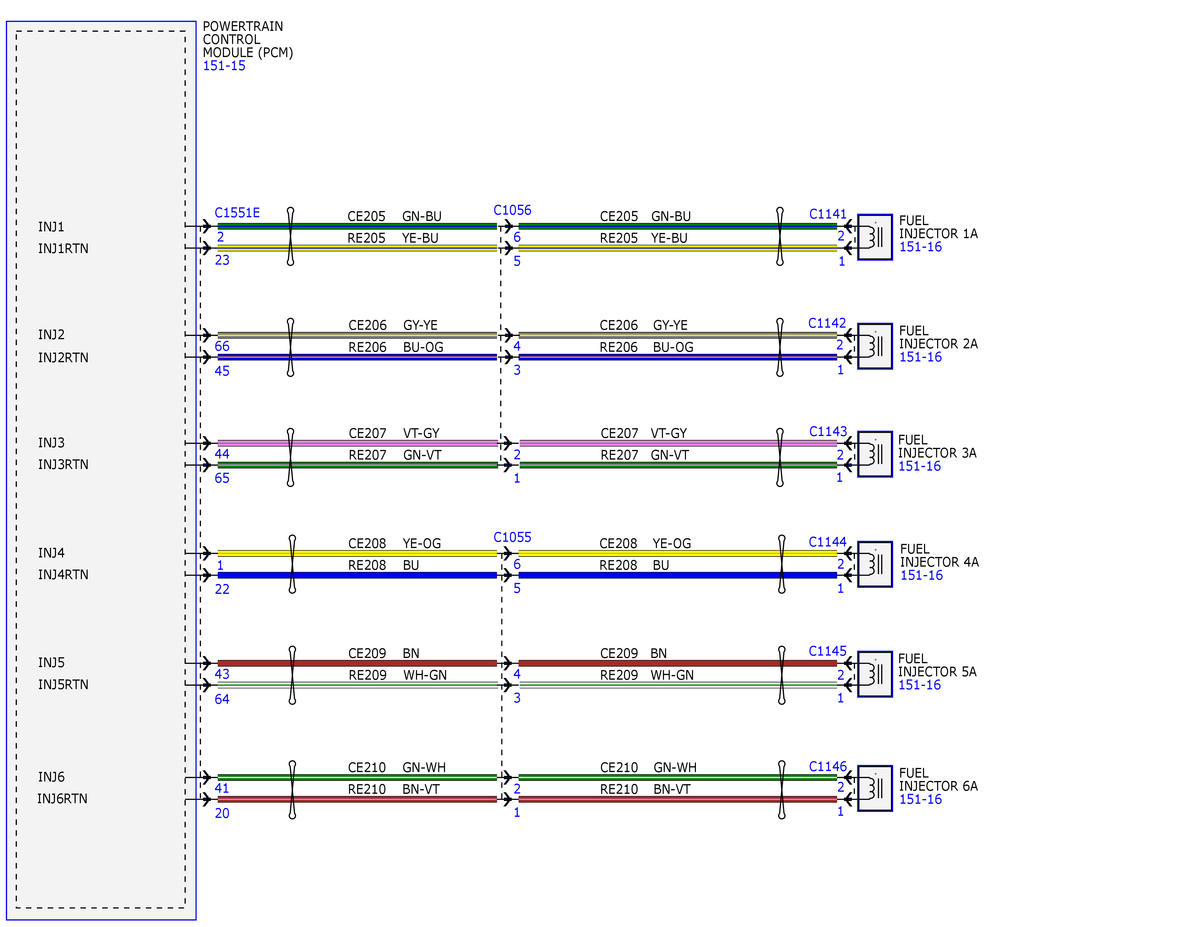

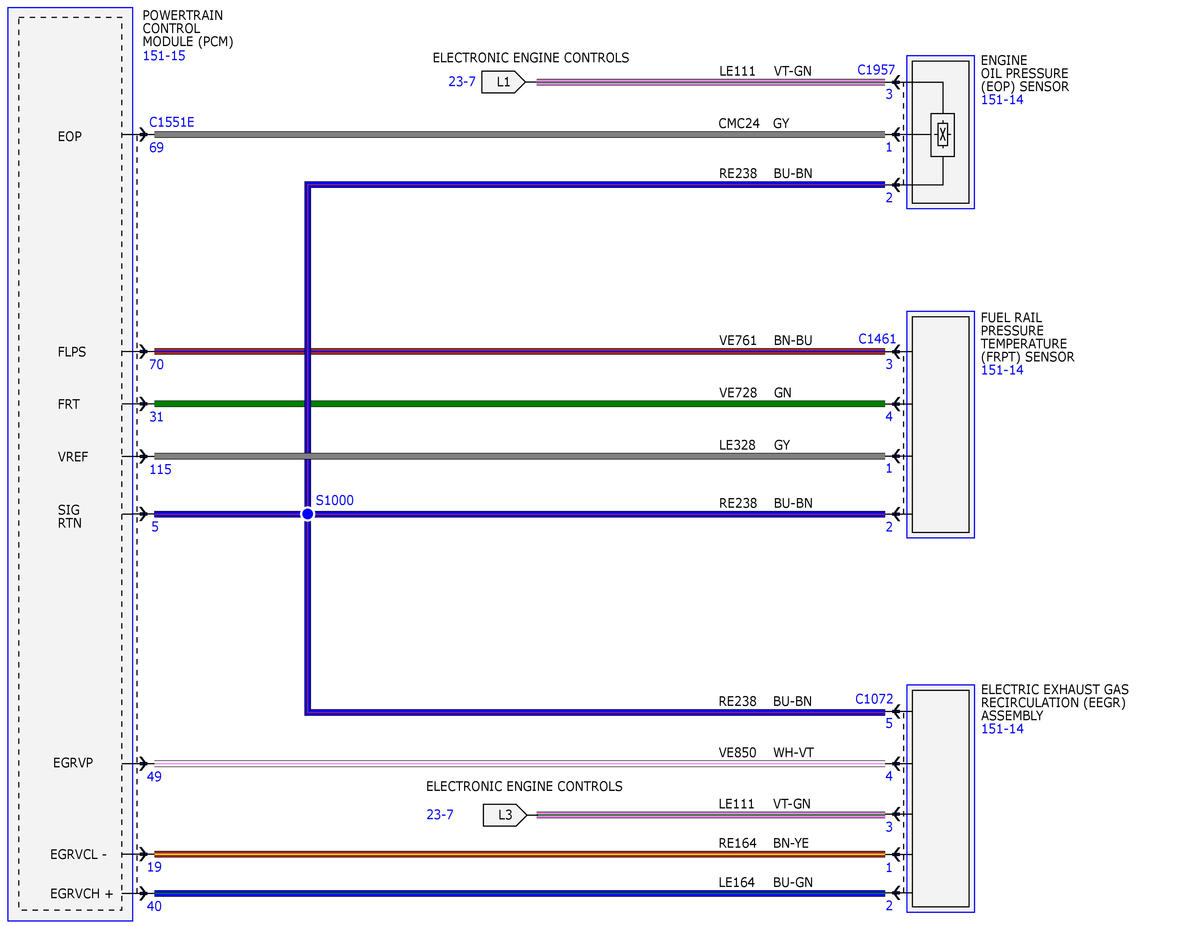

Fig 6: Electronic Engine Controls - 3.3L TIVCT Wiring Diagram (6 Of 18)

Courtesy of FORD MOTOR COMPANY

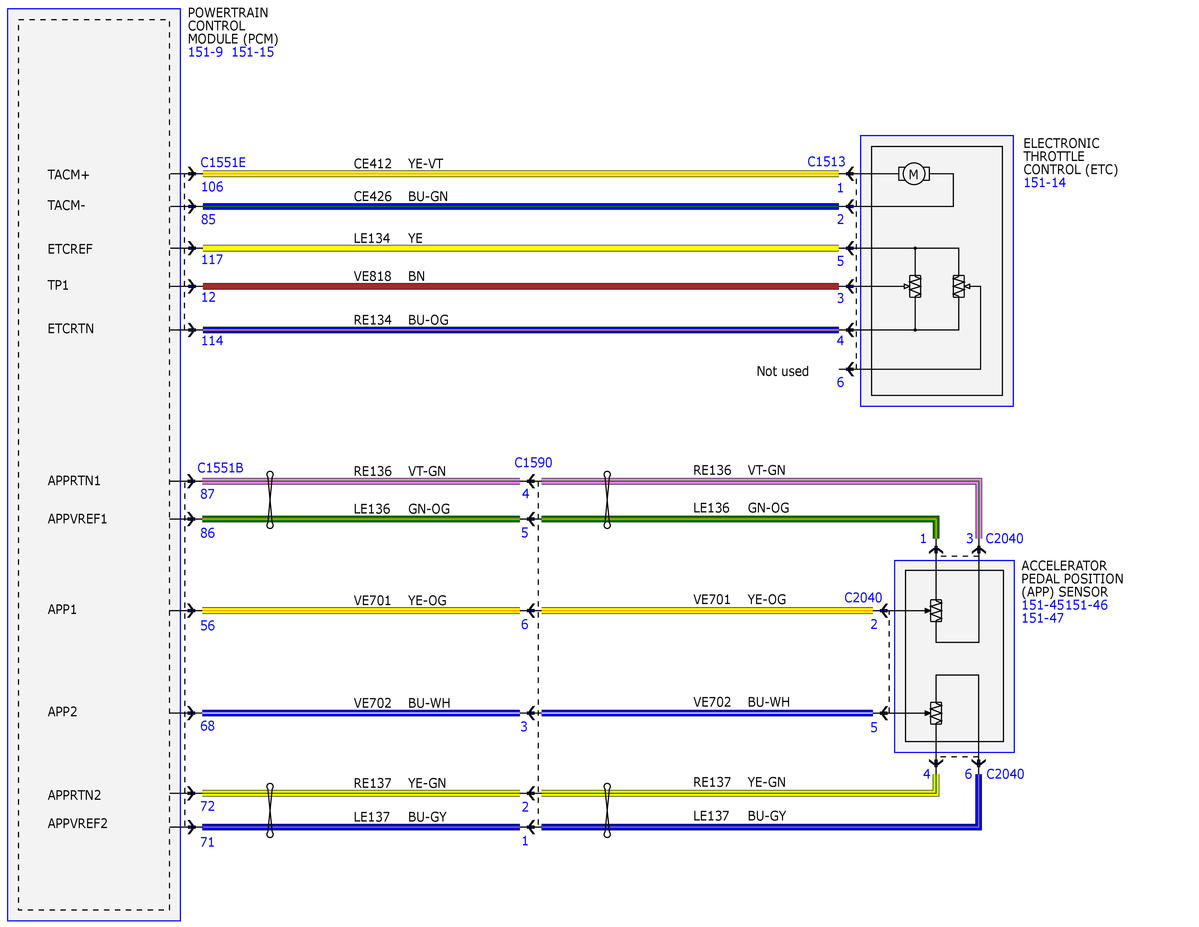

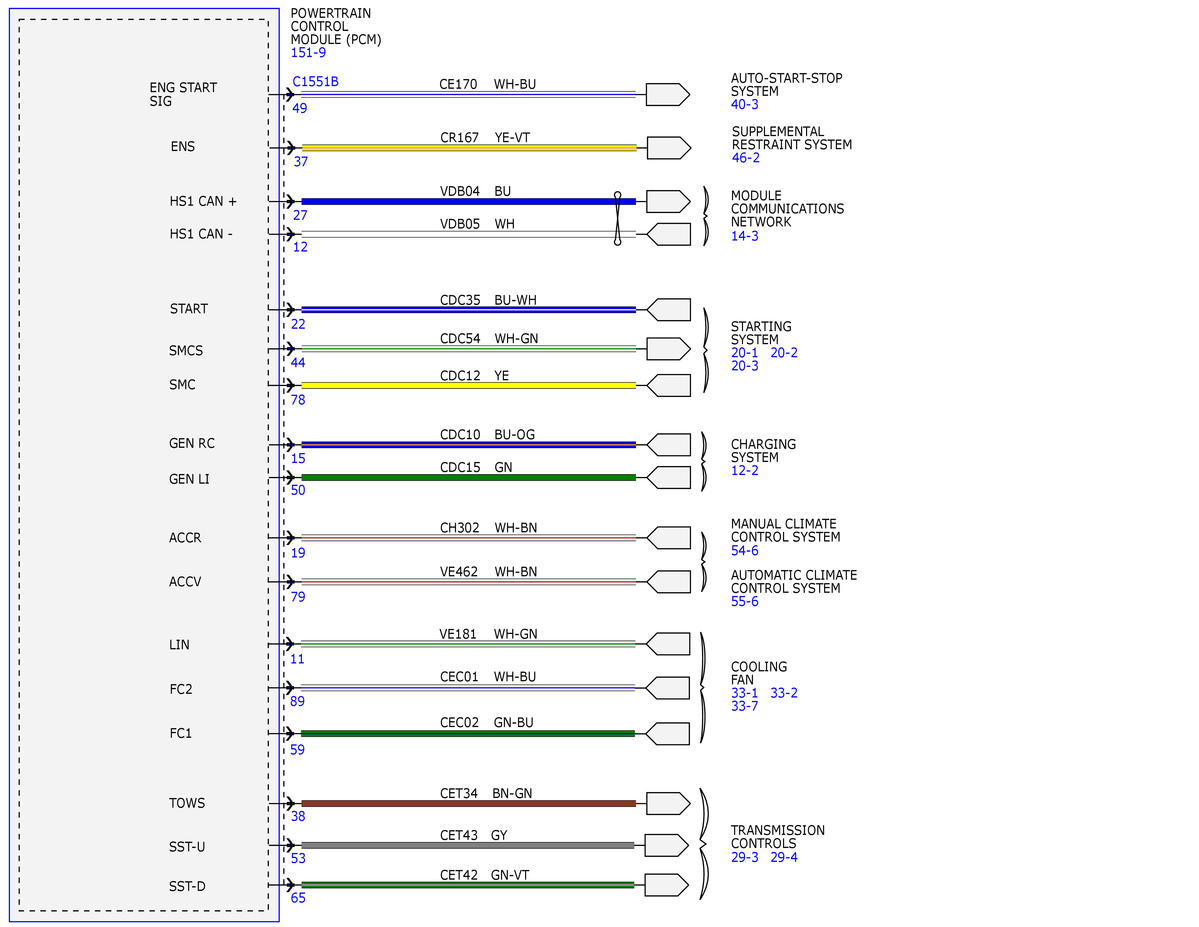

Fig 7: Electronic Engine Controls - 3.3L TIVCT Wiring Diagram (7 Of 18)

Courtesy of FORD MOTOR COMPANY

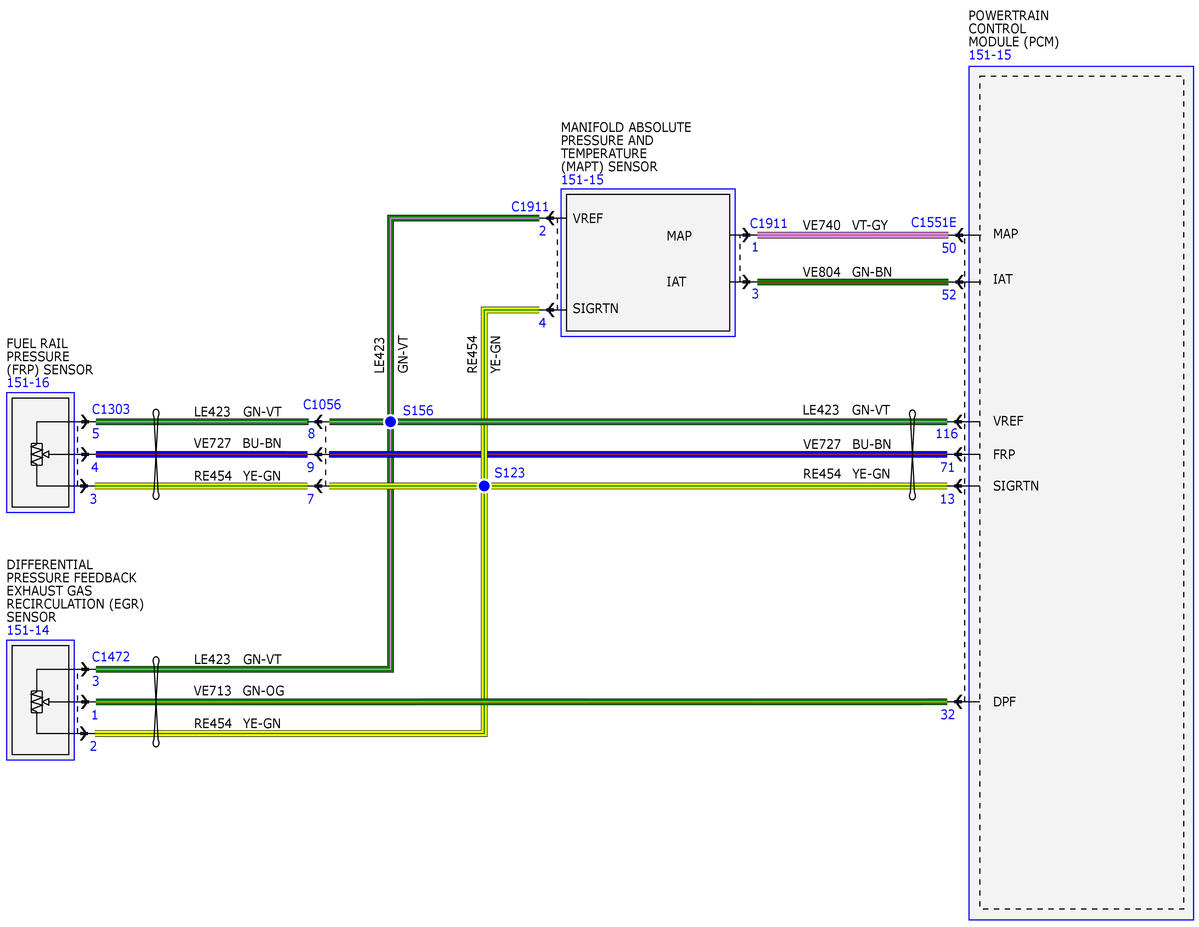

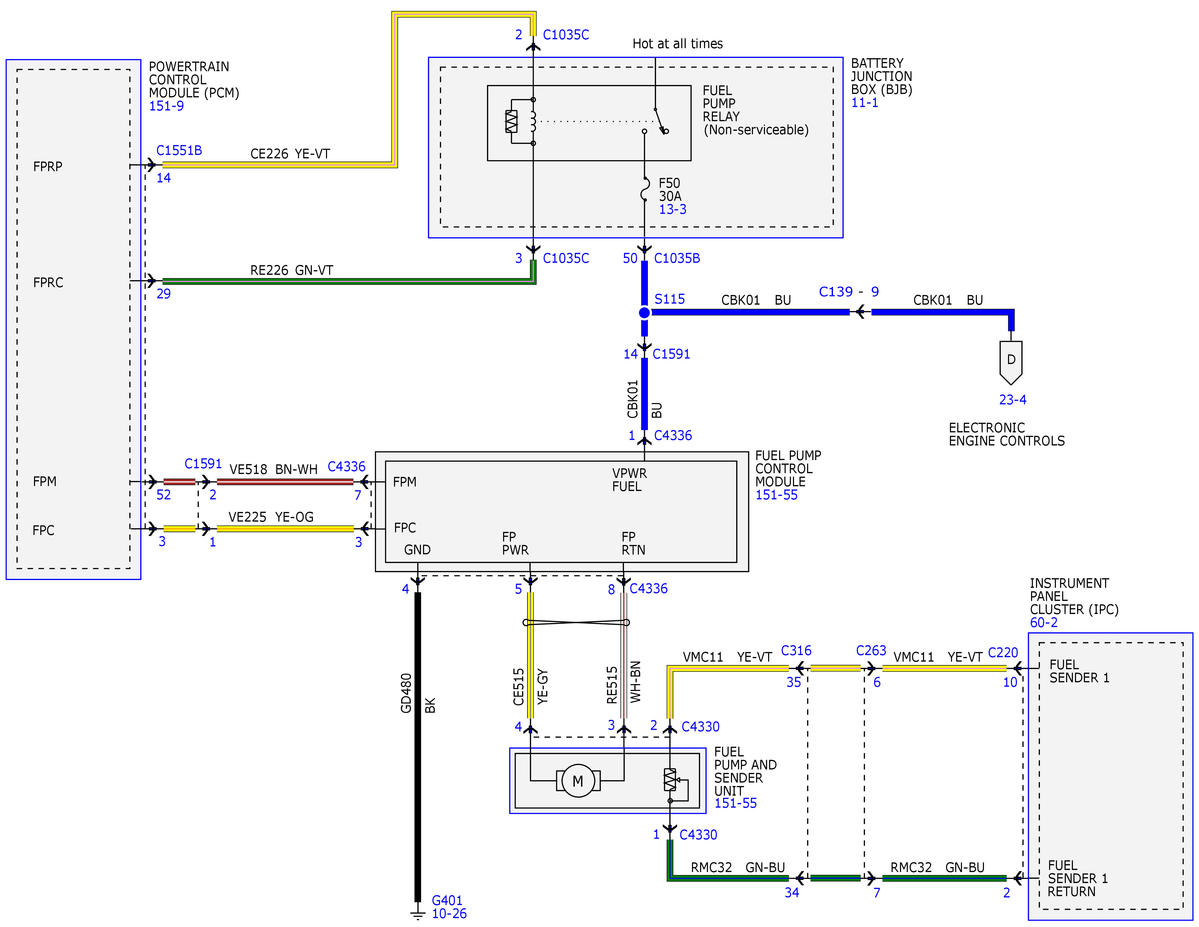

Fig 8: Electronic Engine Controls - 3.3L TIVCT Wiring Diagram (8 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 9: Electronic Engine Controls - 3.3L TIVCT Wiring Diagram (9 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 10: Electronic Engine Controls - 3.3L TIVCT Wiring Diagram (10 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 11: Electronic Engine Controls - 3.3L TIVCT Wiring Diagram (11 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 12: Electronic Engine Controls - 3.3L TIVCT Wiring Diagram (12 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 13: Electronic Engine Controls - 3.3L TIVCT Wiring Diagram (13 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 14: Electronic Engine Controls - 3.3L TIVCT Wiring Diagram (14 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 15: Electronic Engine Controls - 3.3L TIVCT Wiring Diagram (15 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 16: Electronic Engine Controls - 3.3L TIVCT Wiring Diagram (16 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 17: Electronic Engine Controls - 3.3L TIVCT Wiring Diagram (17 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 18: Electronic Engine Controls - 3.3L TIVCT Wiring Diagram (18 Of 18)

Courtesy of FORD MOTOR COMPANY
