Section 302 (OEM Wiring Diagrams)
>>
Electronic Engine Controls - 2.7L
Electronic Engine Controls - 2.7L
WARNING:
This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

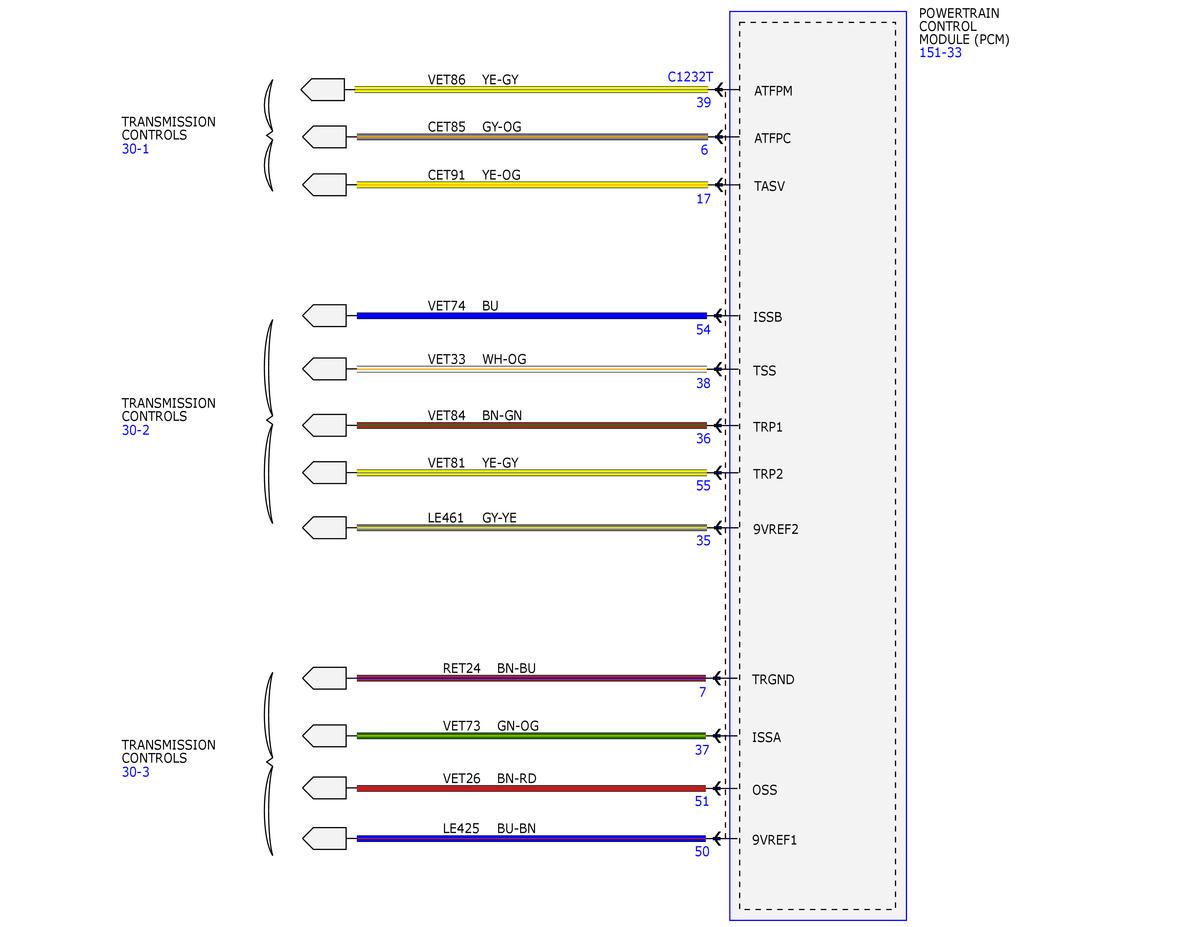

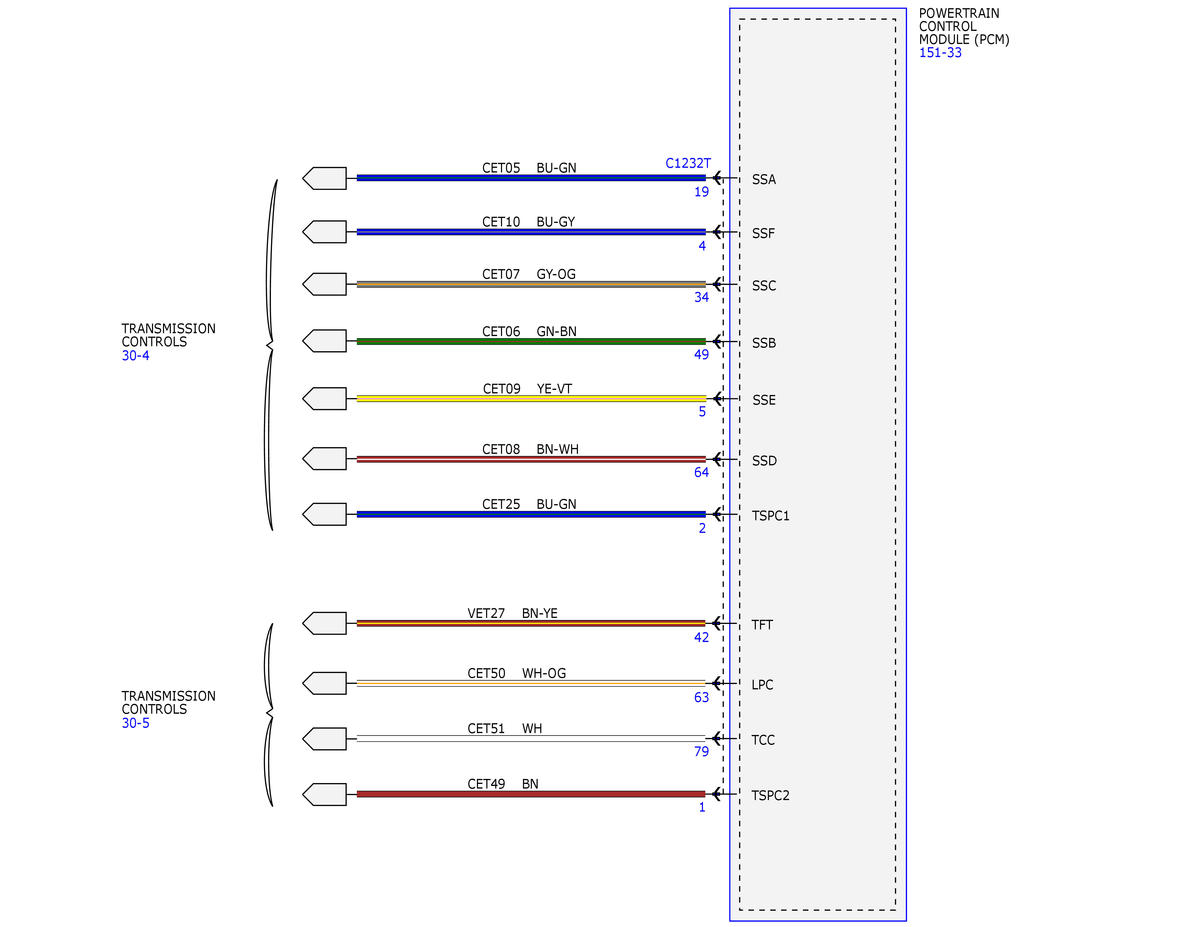

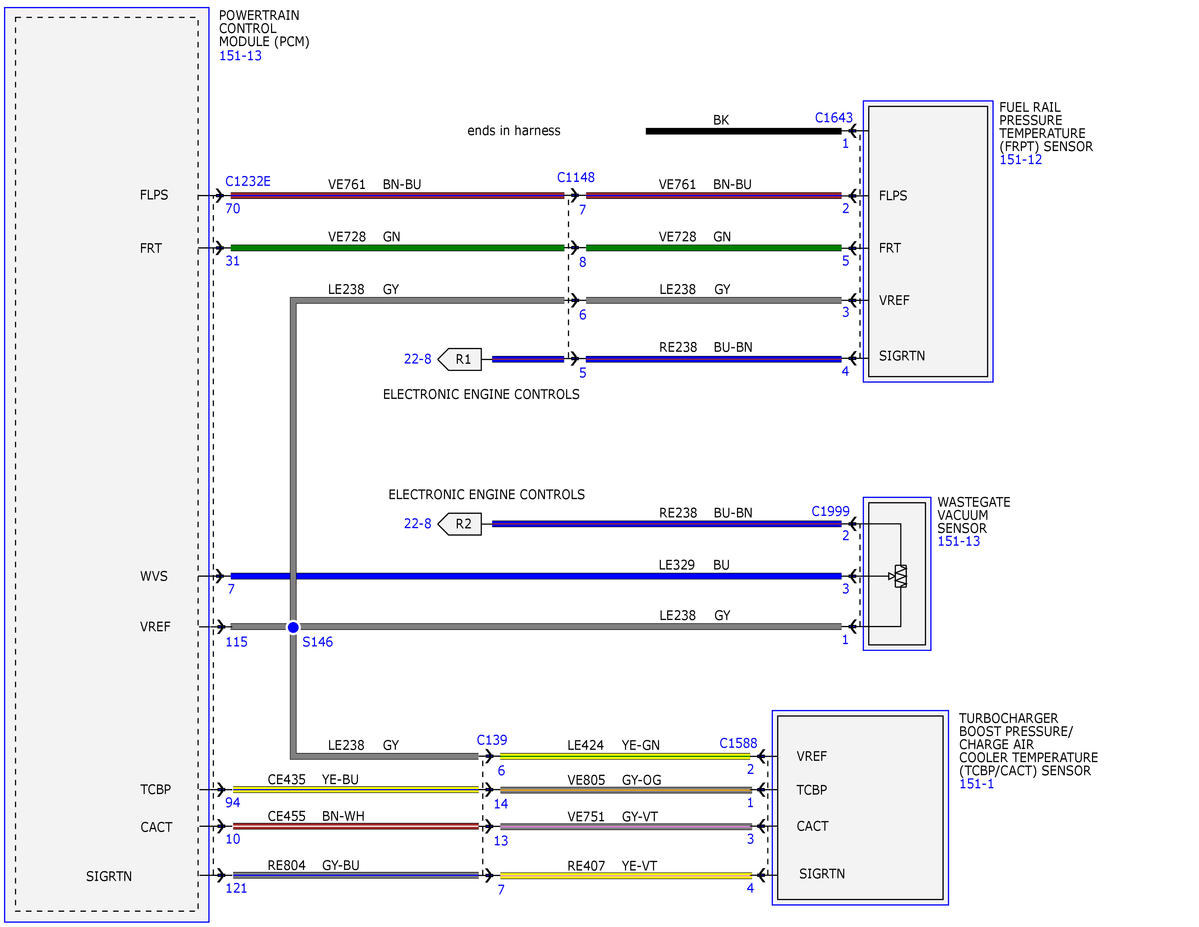

Fig 1: Electronic Engine Controls - 2.7L Wiring Diagram (1 Of 20)
Courtesy of FORD MOTOR COMPANY

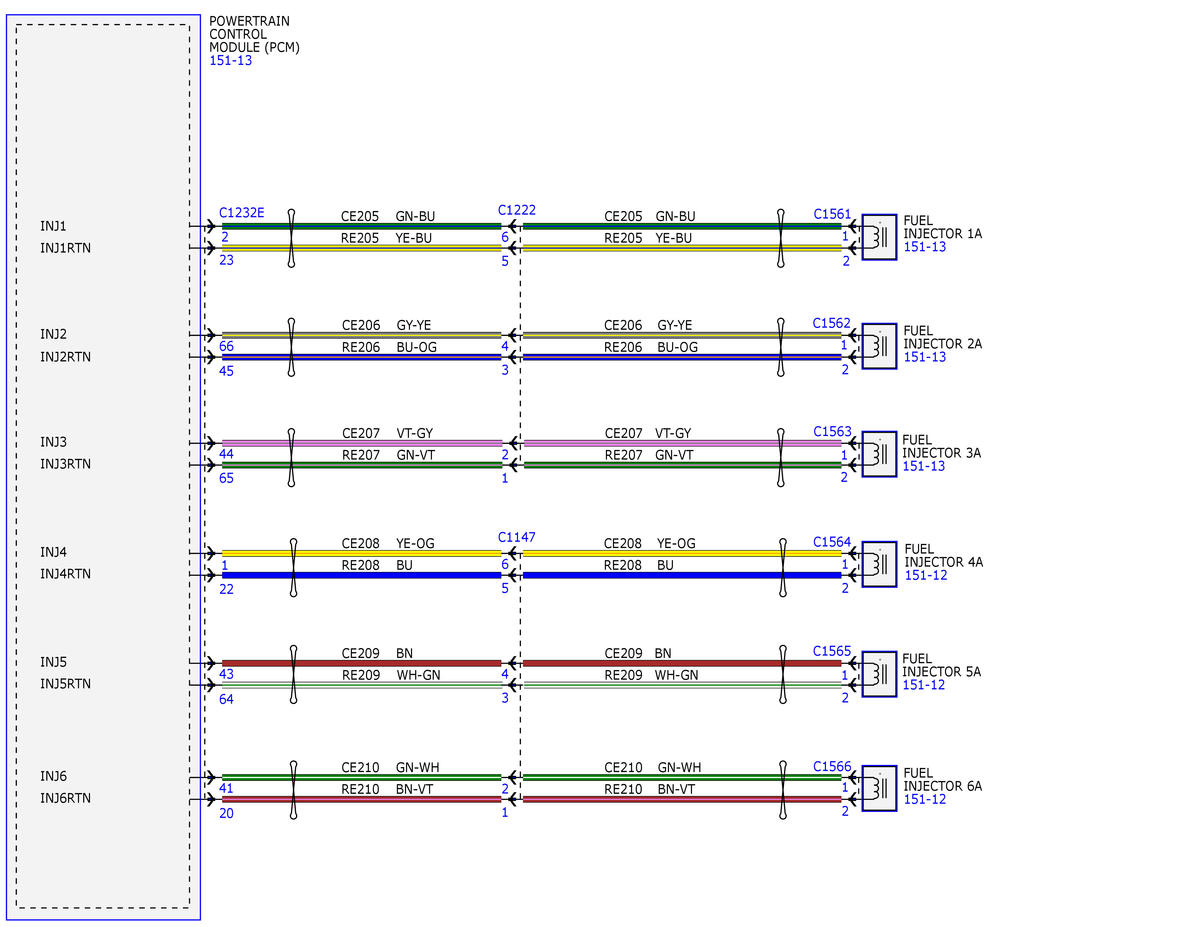

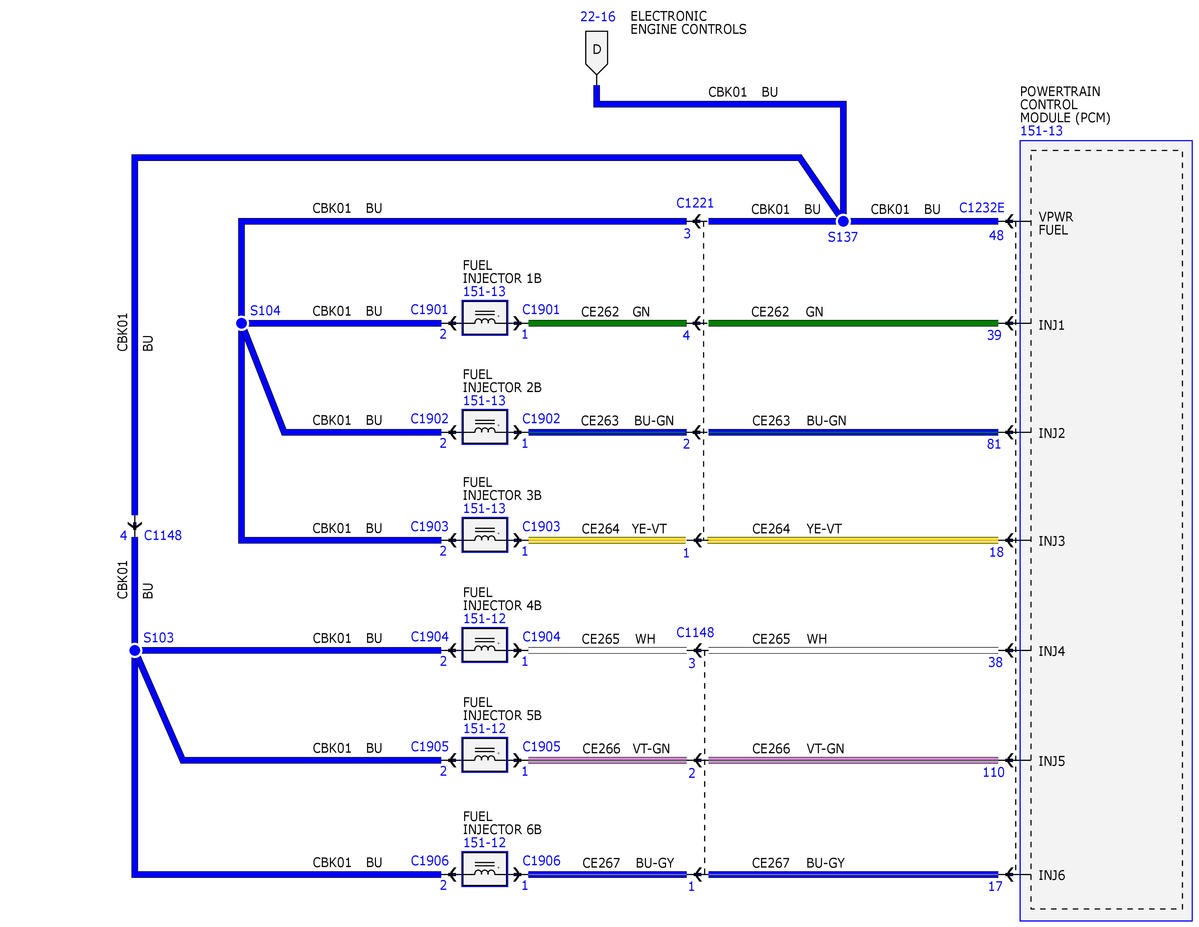

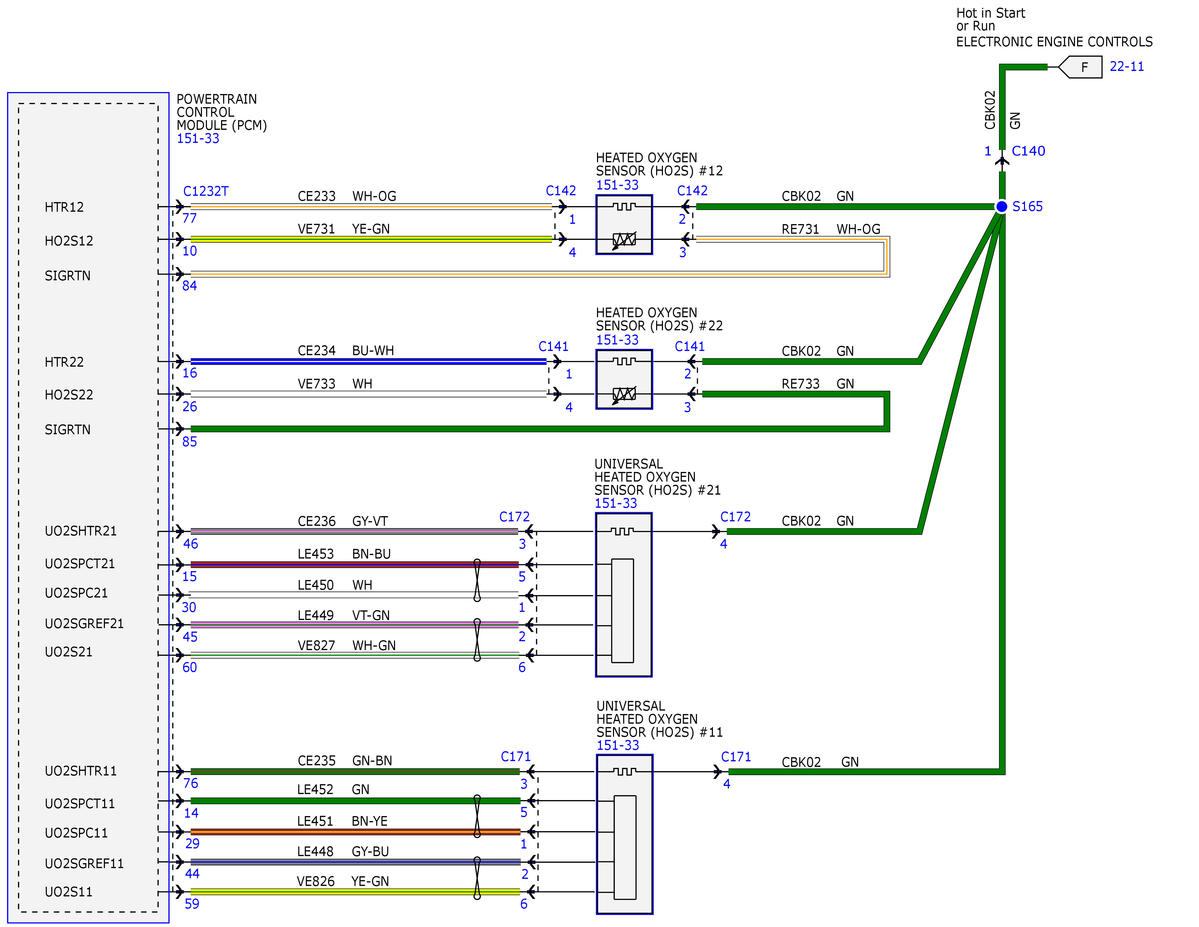

Fig 2: Electronic Engine Controls - 2.7L Wiring Diagram (2 Of 20)
Courtesy of FORD MOTOR COMPANY

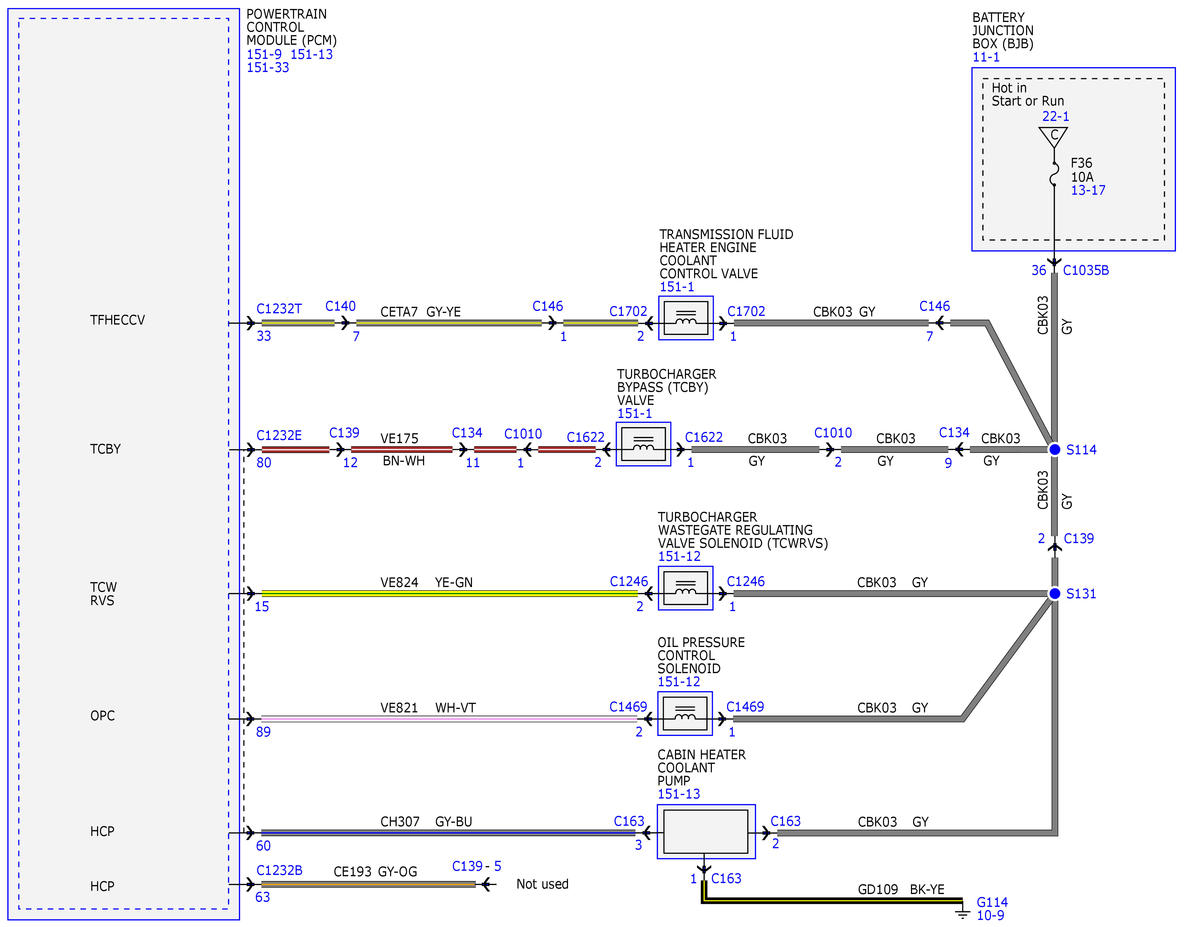

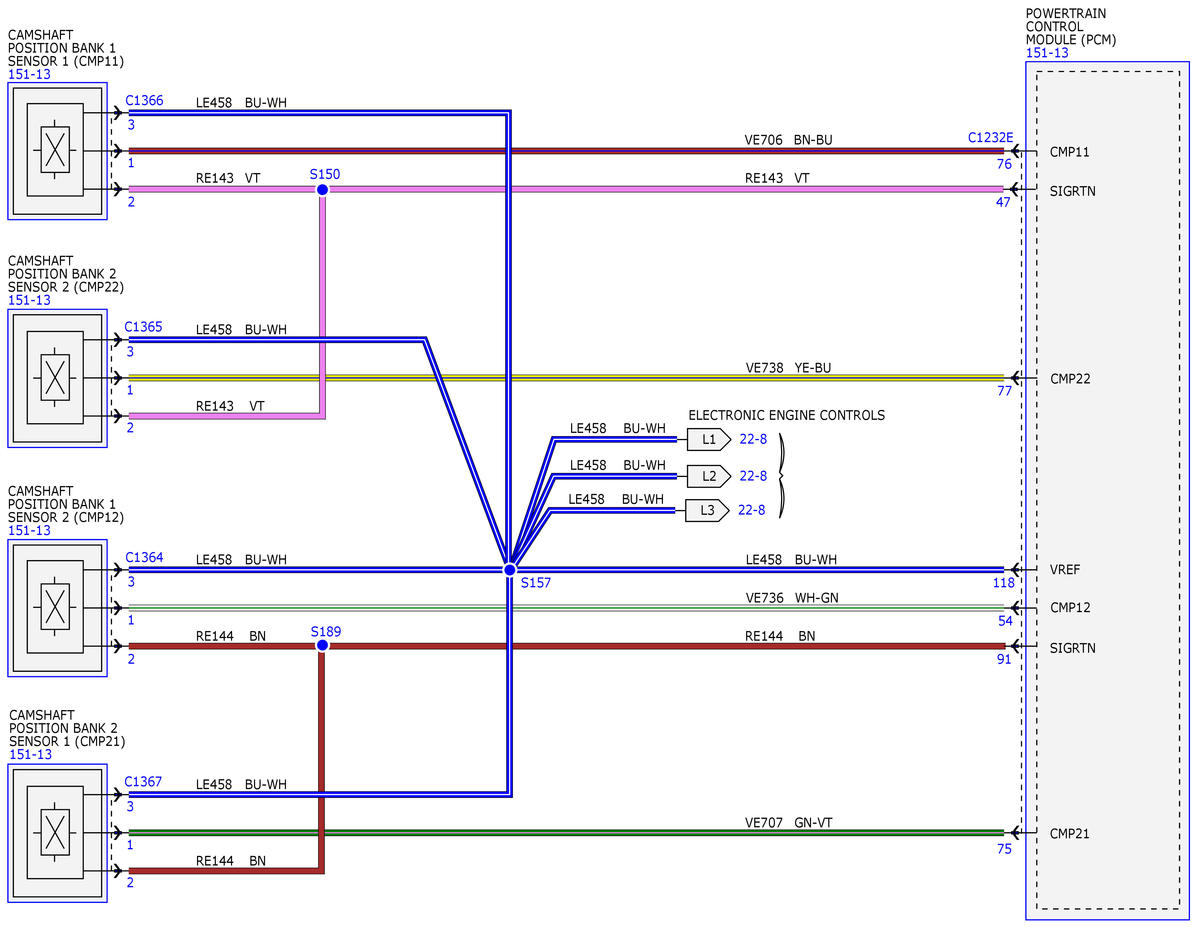

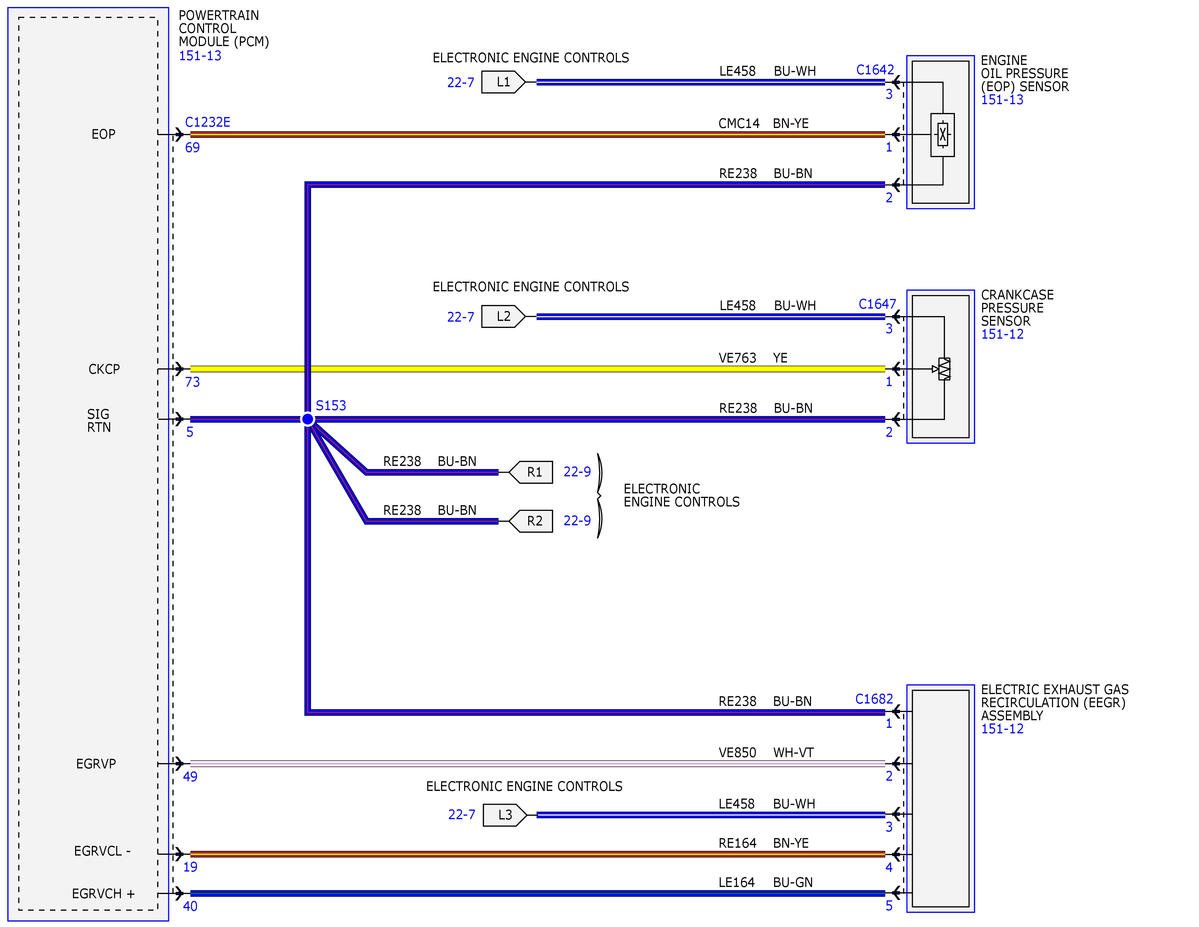

Fig 3: Electronic Engine Controls - 2.7L Wiring Diagram (3 Of 20)
Courtesy of FORD MOTOR COMPANY

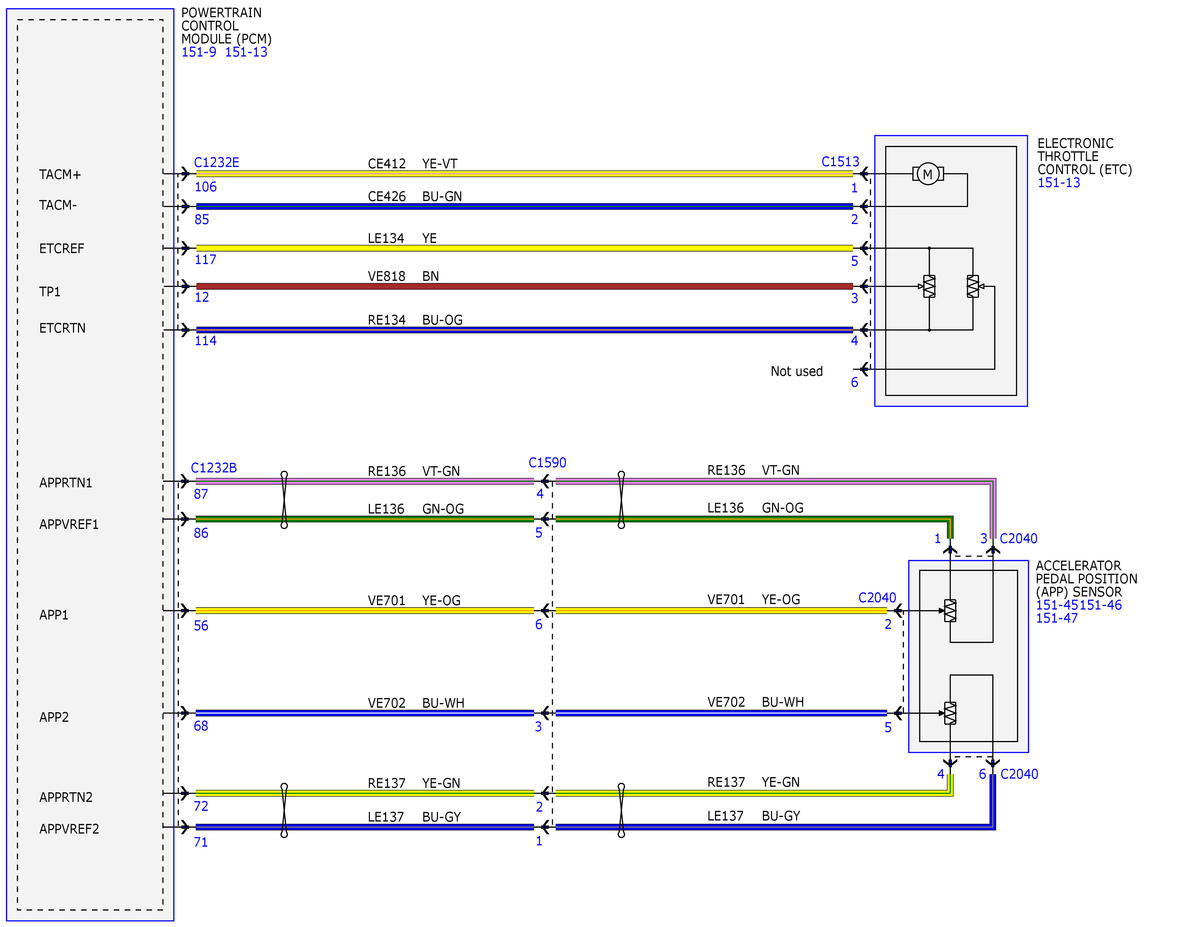

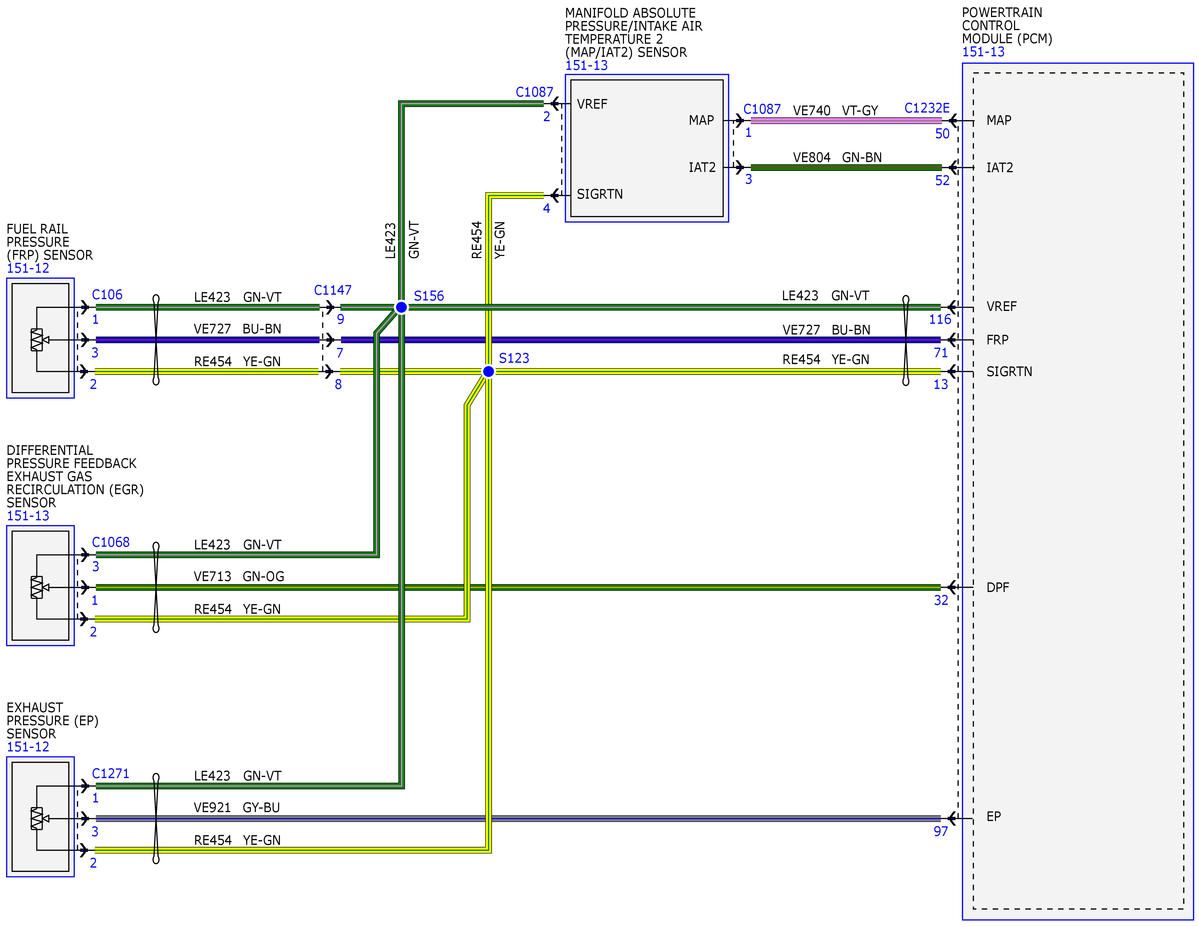

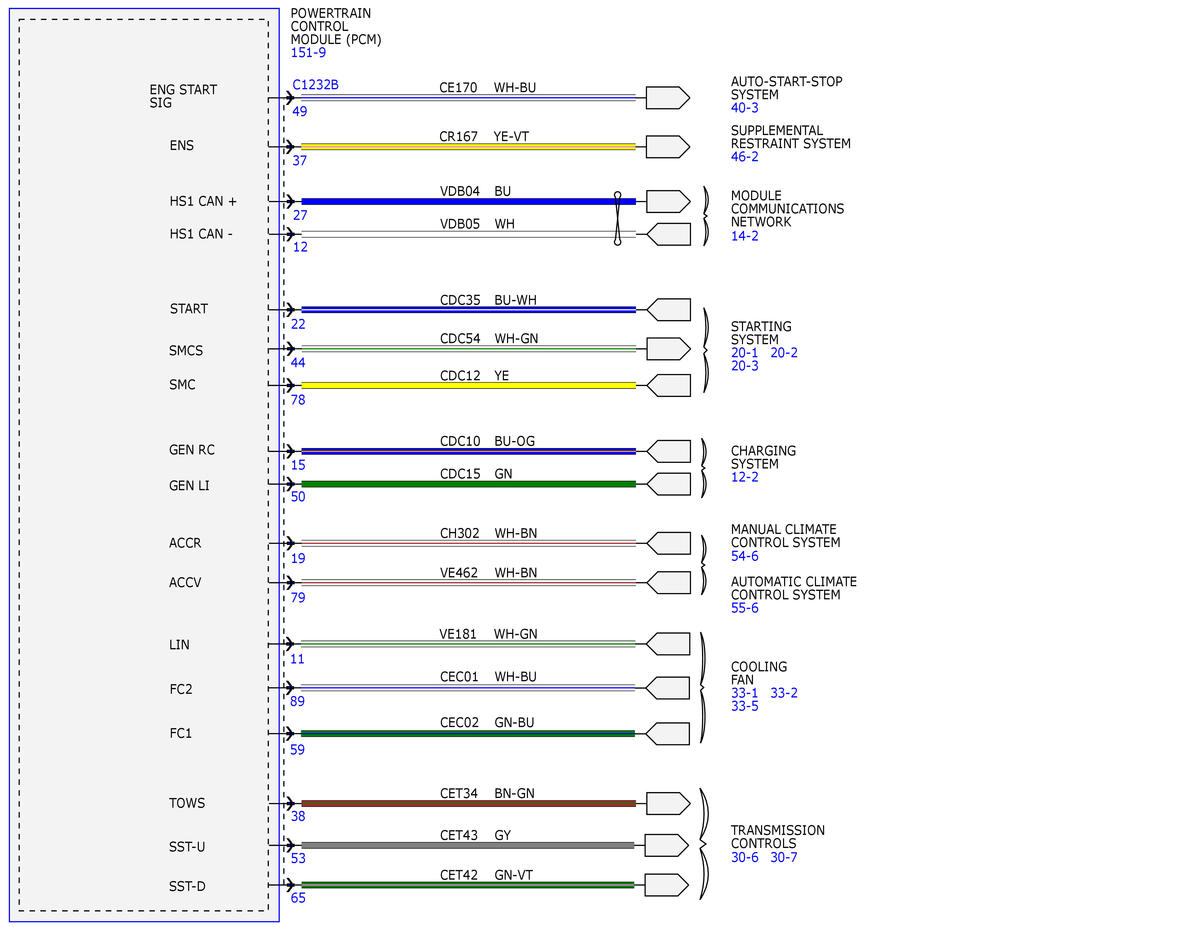

Fig 4: Electronic Engine Controls - 2.7L Wiring Diagram (4 Of 20)
Courtesy of FORD MOTOR COMPANY

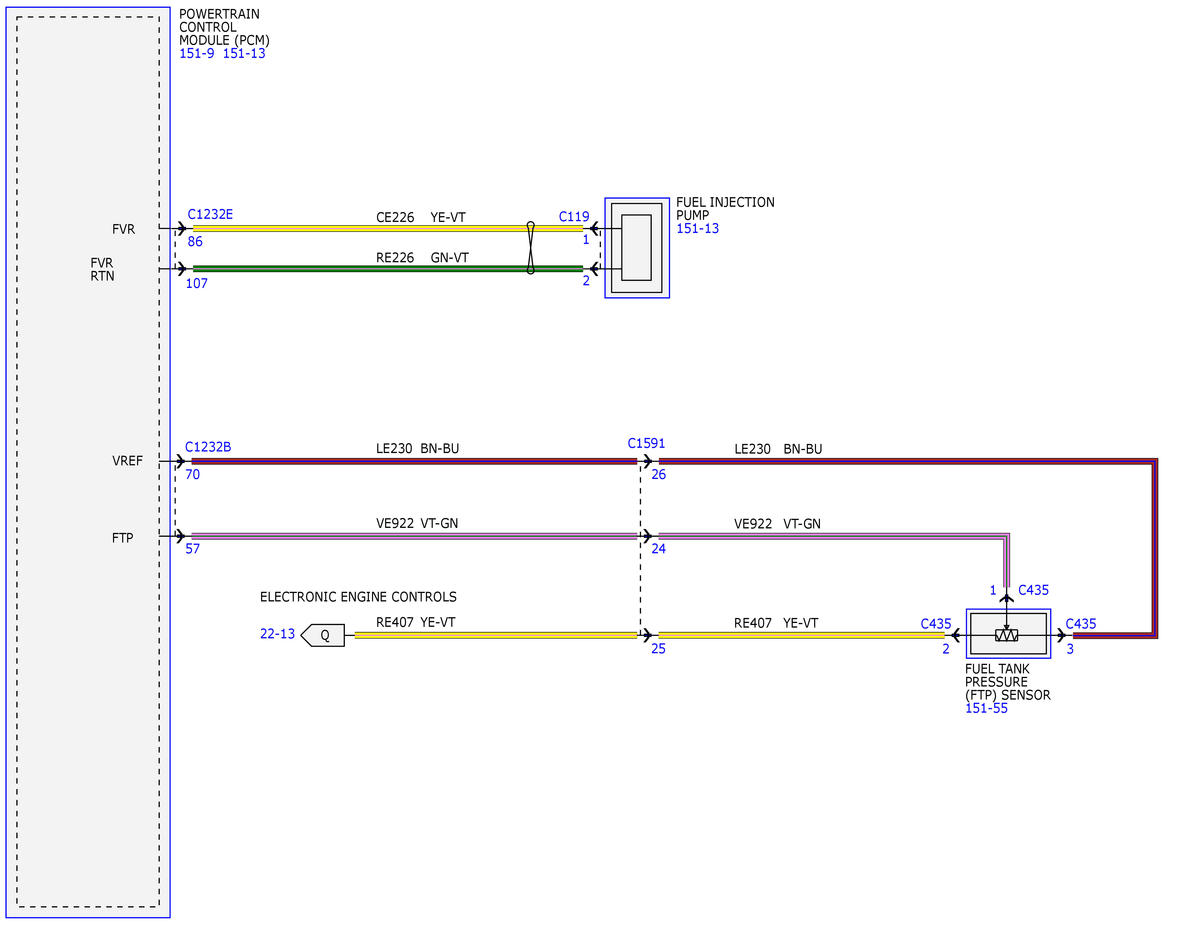

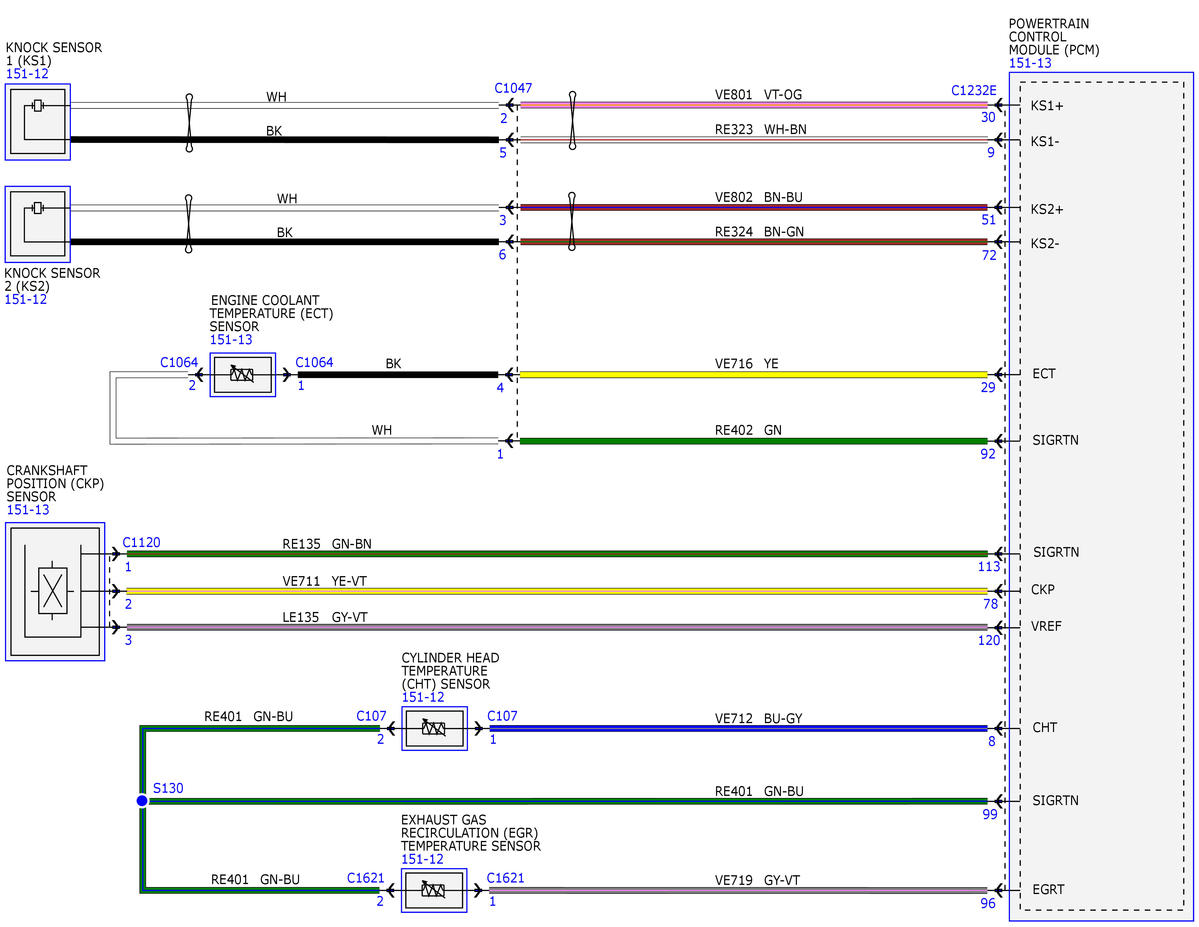

Fig 5: Electronic Engine Controls - 2.7L Wiring Diagram (5 Of 20)
Courtesy of FORD MOTOR COMPANY

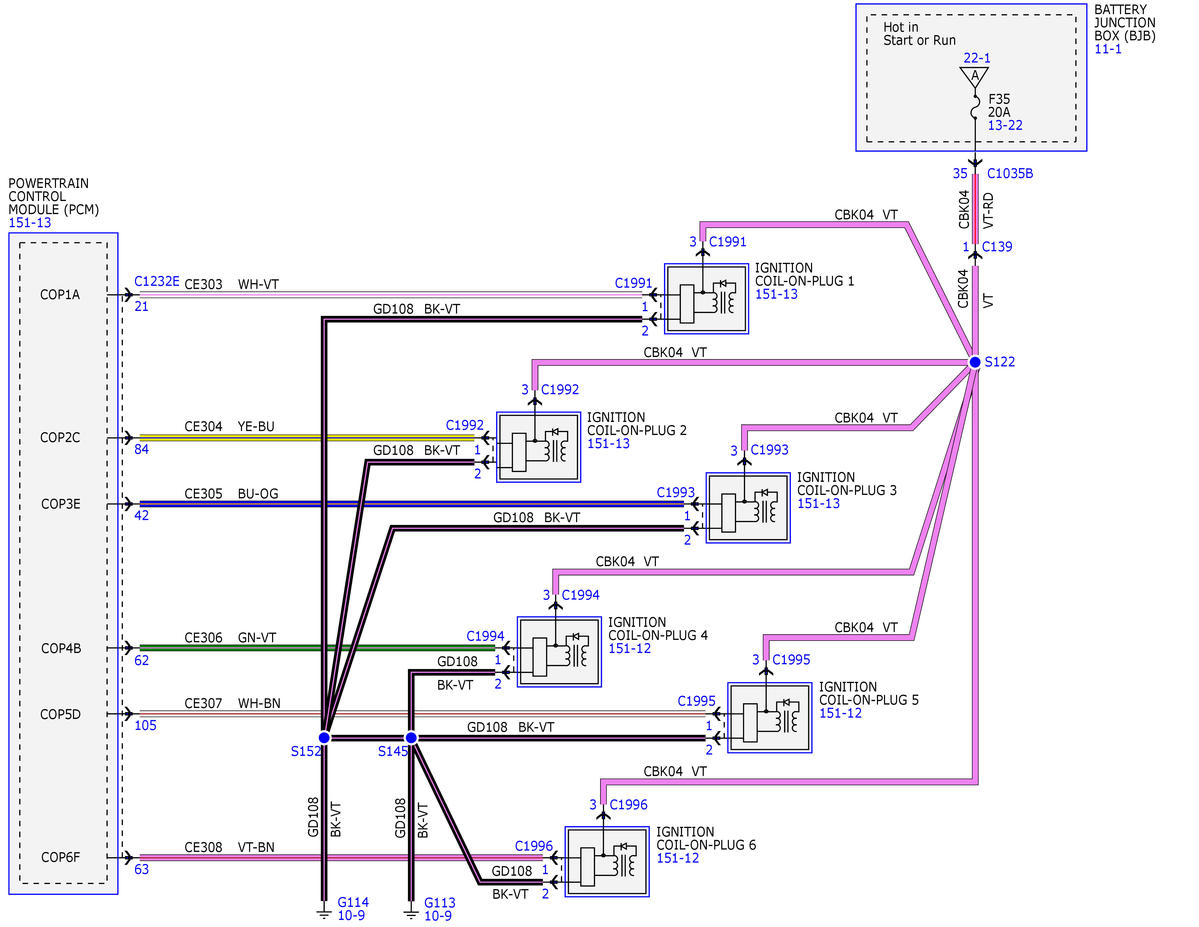

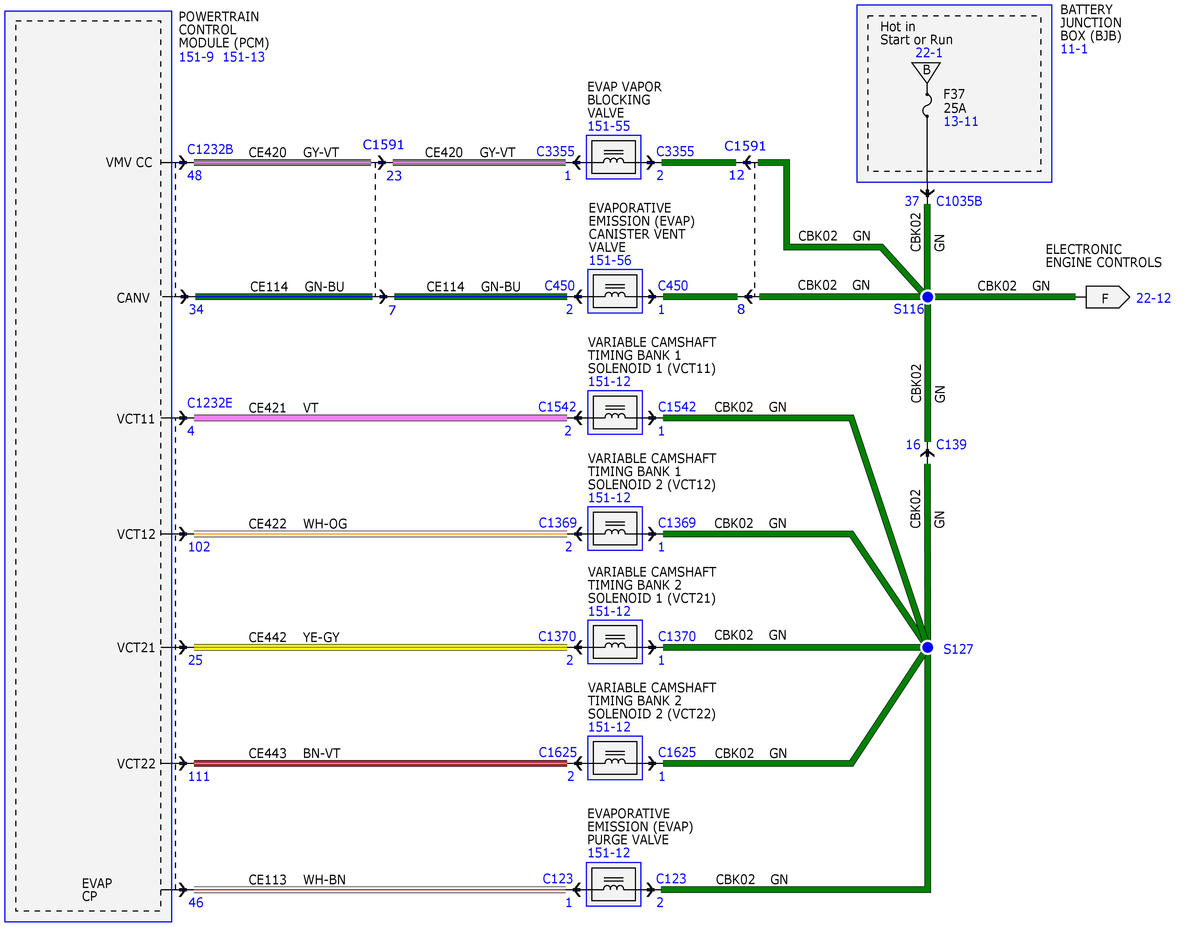

Fig 6: Electronic Engine Controls - 2.7L Wiring Diagram (6 Of 20)
Courtesy of FORD MOTOR COMPANY

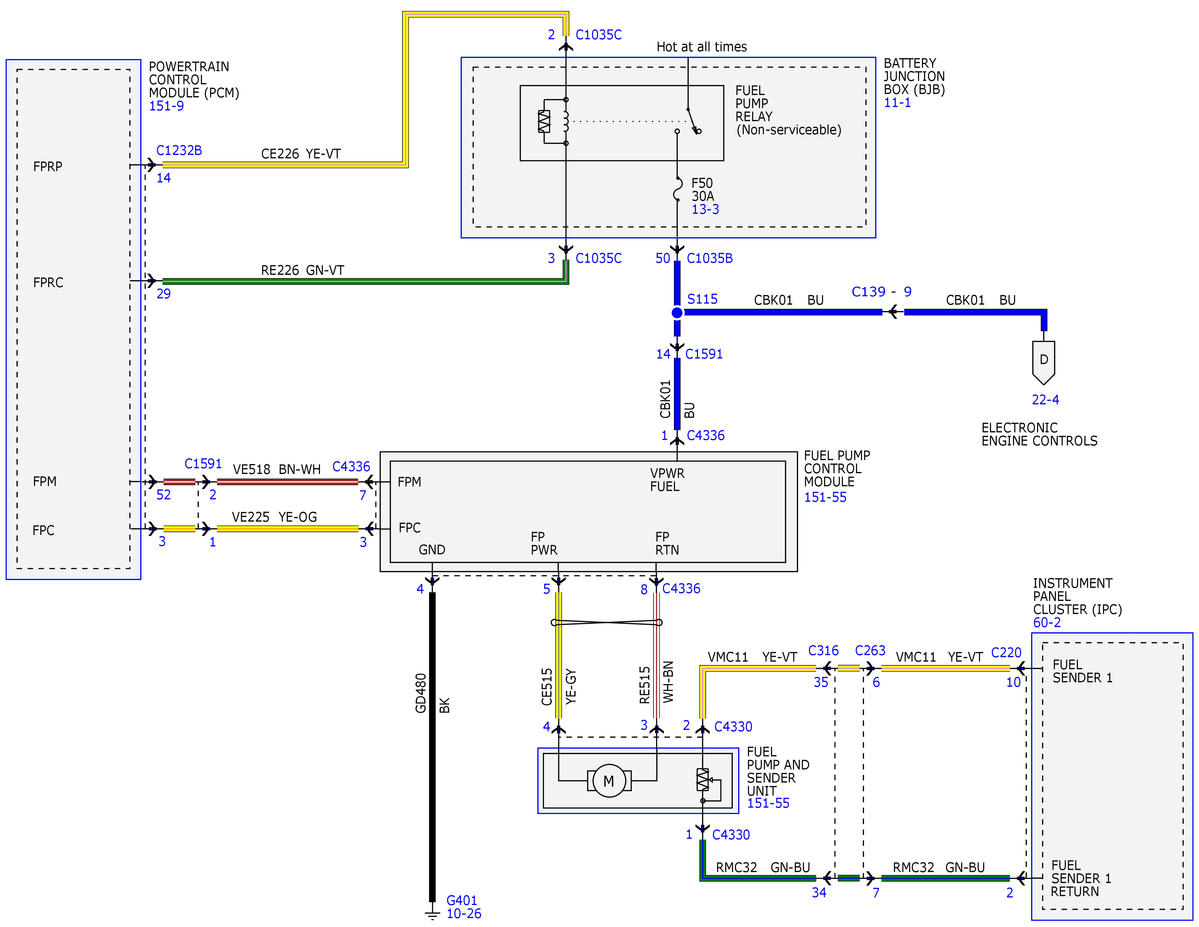

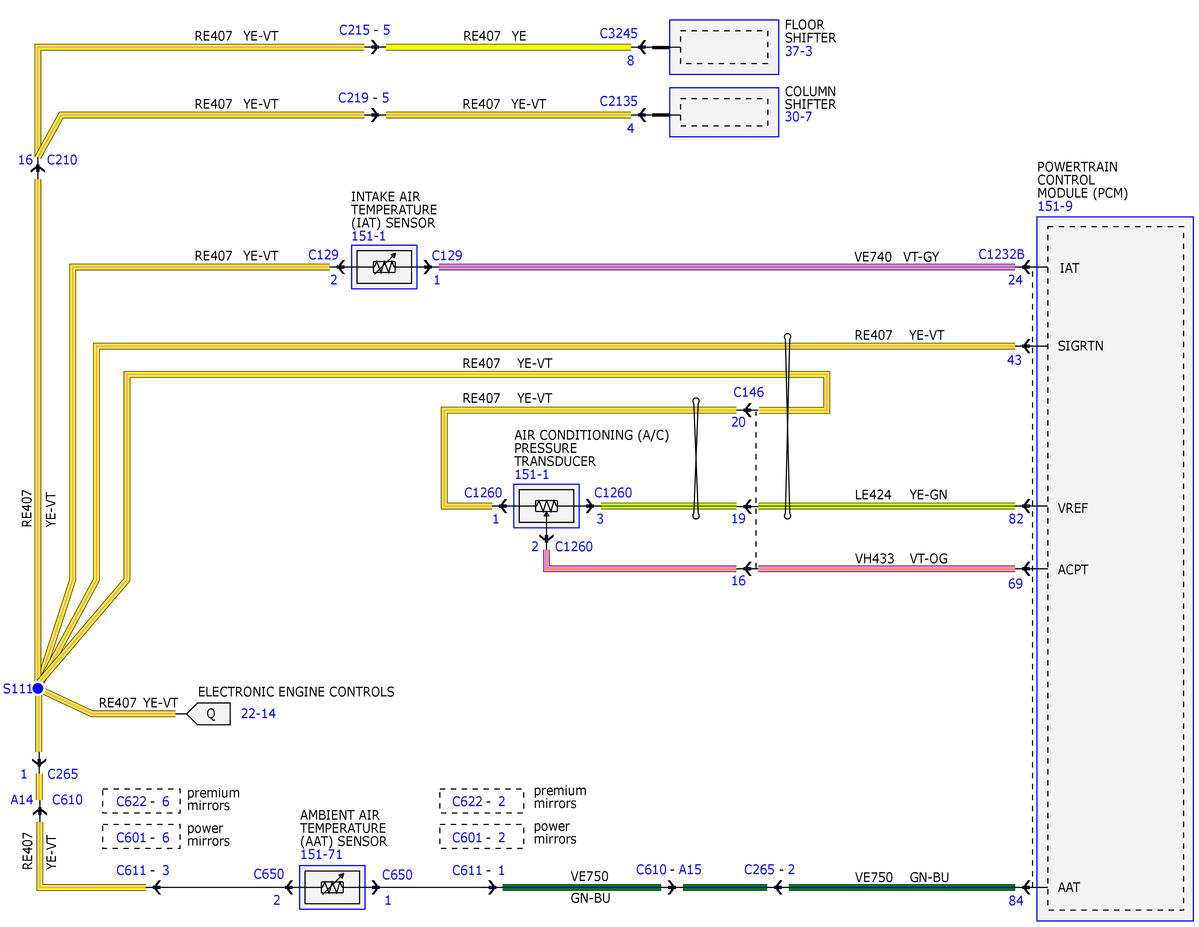

Fig 7: Electronic Engine Controls - 2.7L Wiring Diagram (7 Of 20)
Courtesy of FORD MOTOR COMPANY

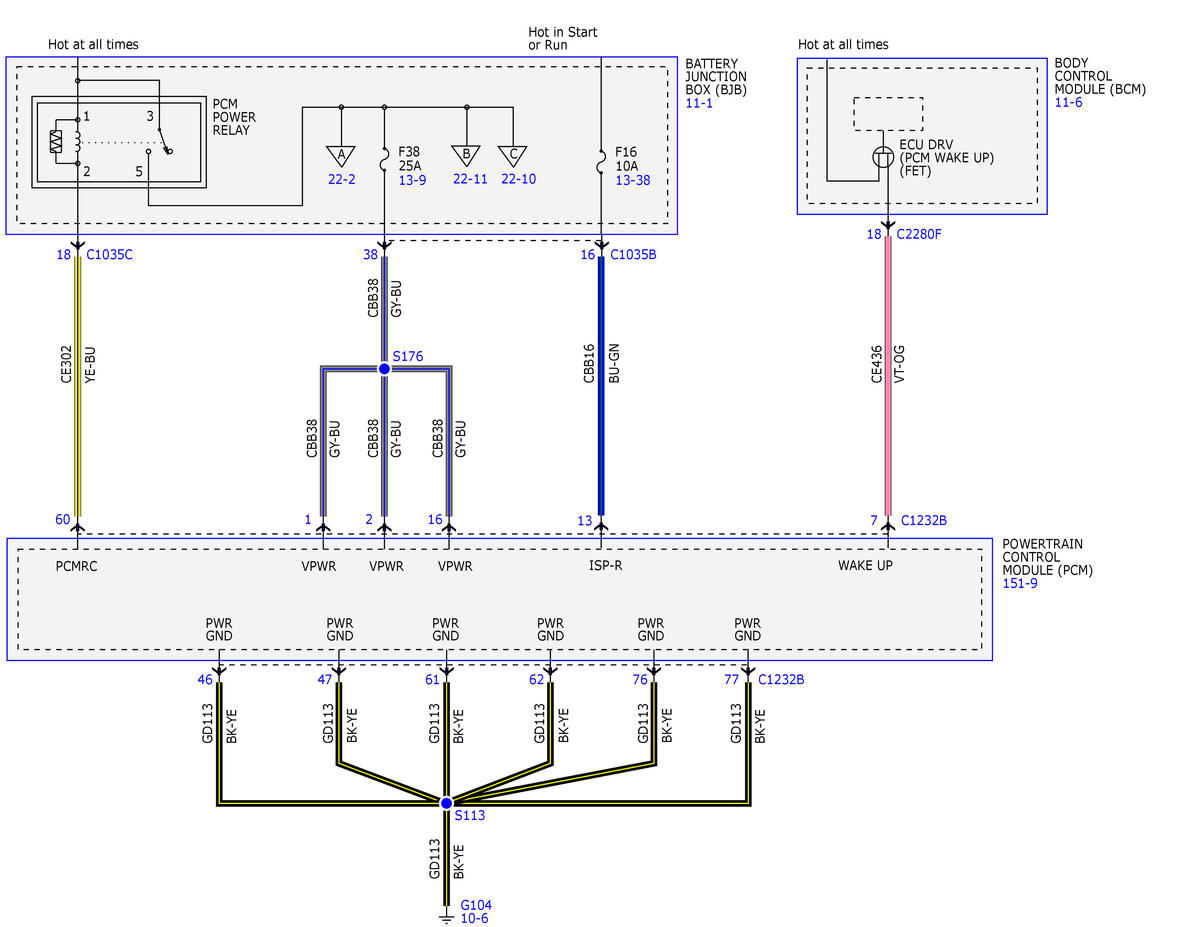

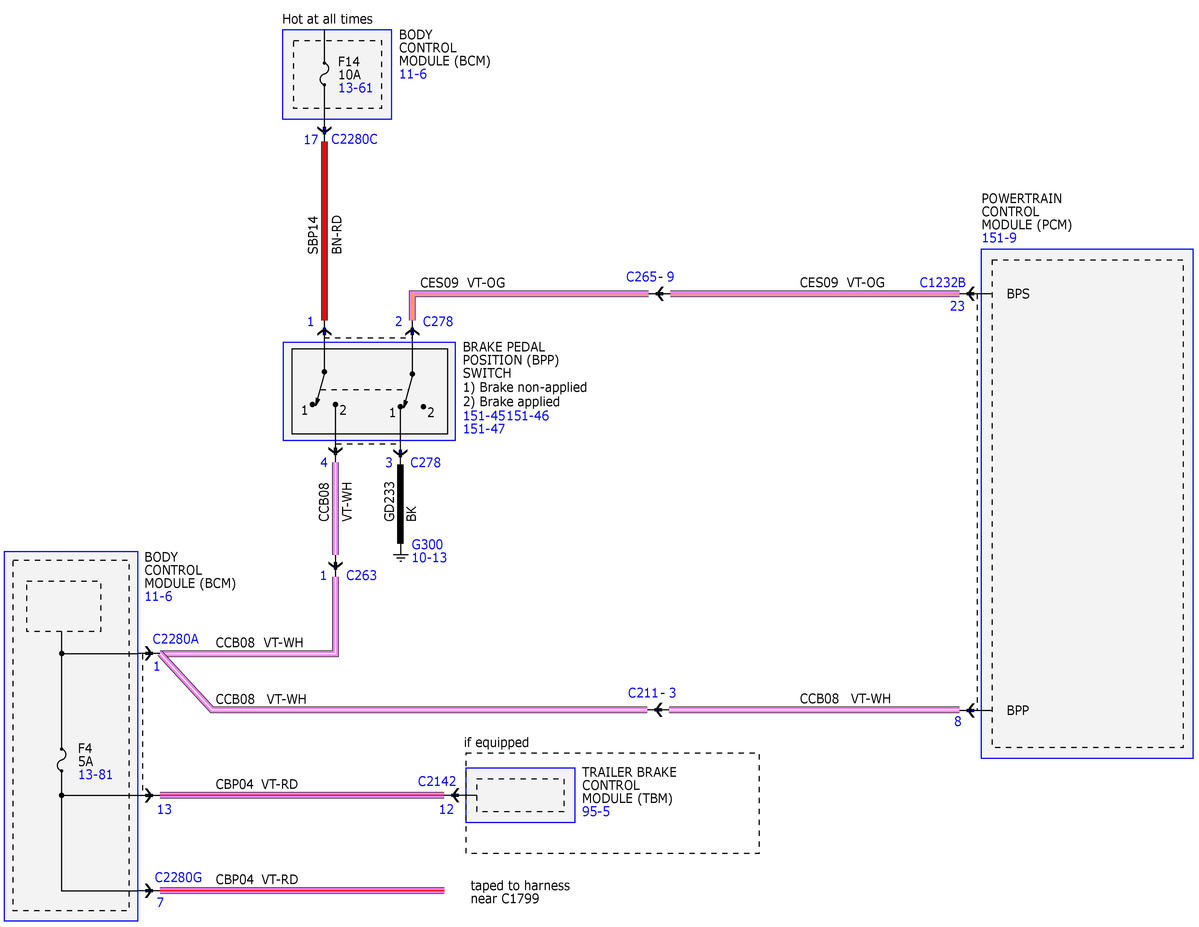

Fig 8: Electronic Engine Controls - 2.7L Wiring Diagram (8 Of 20)
Courtesy of FORD MOTOR COMPANY
Fig 9: Electronic Engine Controls - 2.7L Wiring Diagram (9 Of 20)
Courtesy of FORD MOTOR COMPANY
Fig 10: Electronic Engine Controls - 2.7L Wiring Diagram (10 Of 20)
Courtesy of FORD MOTOR COMPANY
Fig 11: Electronic Engine Controls - 2.7L Wiring Diagram (11 Of 20)
Courtesy of FORD MOTOR COMPANY
Fig 12: Electronic Engine Controls - 2.7L Wiring Diagram (12 Of 20)
Courtesy of FORD MOTOR COMPANY
Fig 13: Electronic Engine Controls - 2.7L Wiring Diagram (13 Of 20)
Courtesy of FORD MOTOR COMPANY
Fig 14: Electronic Engine Controls - 2.7L Wiring Diagram (14 Of 20)
Courtesy of FORD MOTOR COMPANY
Fig 15: Electronic Engine Controls - 2.7L Wiring Diagram (15 Of 20)
Courtesy of FORD MOTOR COMPANY
Fig 16: Electronic Engine Controls - 2.7L Wiring Diagram (16 Of 20)
Courtesy of FORD MOTOR COMPANY
Fig 17: Electronic Engine Controls - 2.7L Wiring Diagram (17 Of 20)
Courtesy of FORD MOTOR COMPANY
Fig 18: Electronic Engine Controls - 2.7L Wiring Diagram (18 Of 20)
Courtesy of FORD MOTOR COMPANY
Fig 19: Electronic Engine Controls - 2.7L Wiring Diagram (19 Of 20)
Courtesy of FORD MOTOR COMPANY
Fig 20: Electronic Engine Controls - 2.7L Wiring Diagram (20 Of 20)
Courtesy of FORD MOTOR COMPANY
