Cooling Fan

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

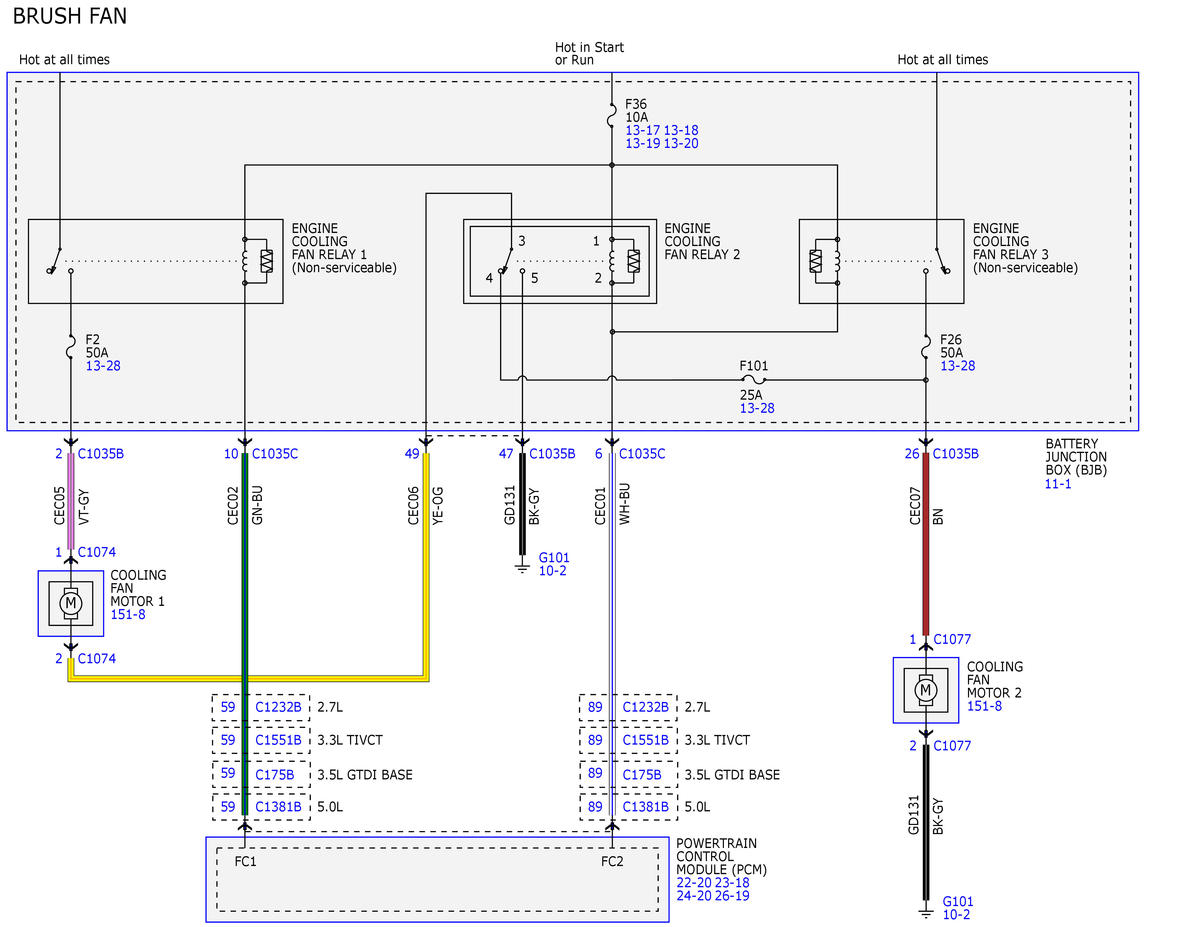

Fig 1: Cooling Fan Wiring Diagram (1 Of 7)

Courtesy of FORD MOTOR COMPANY

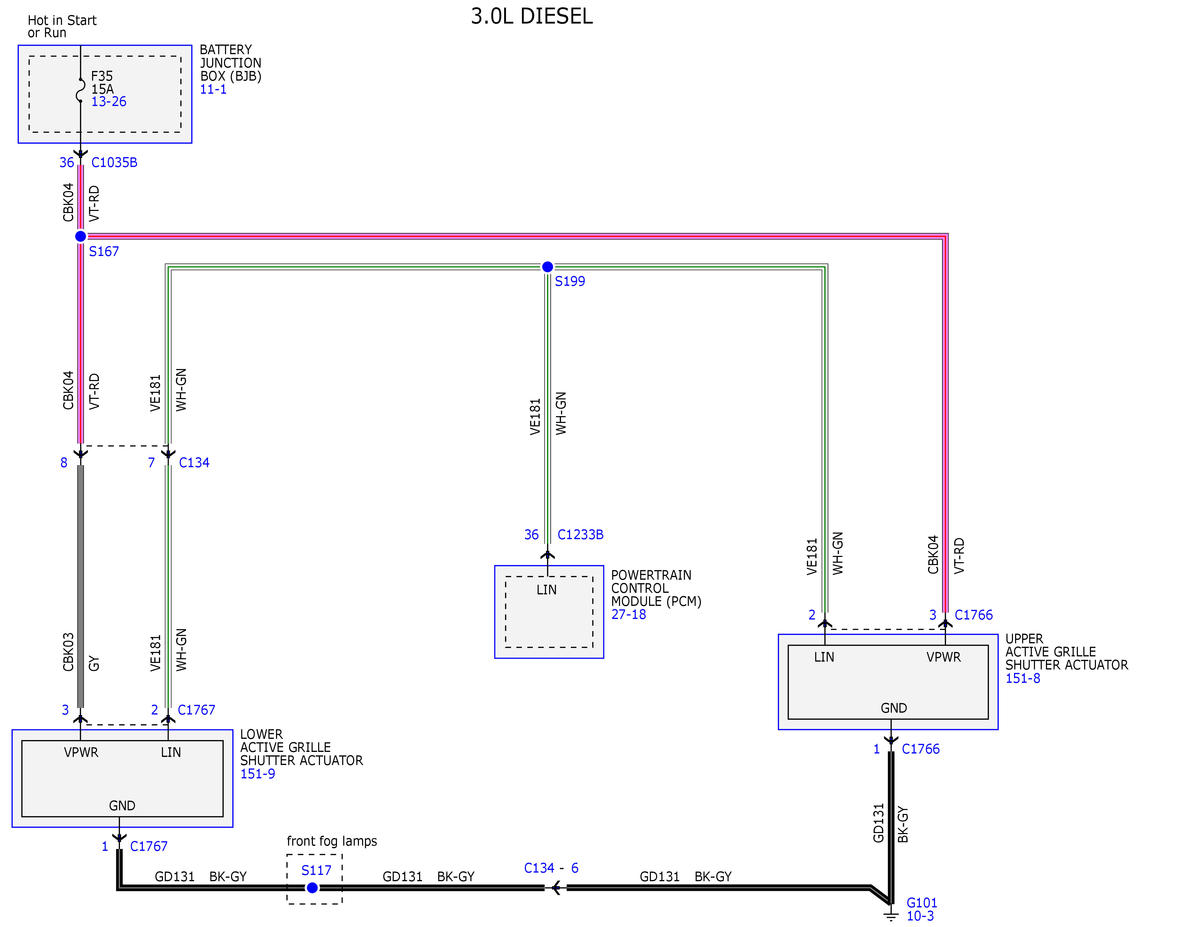

Fig 2: Cooling Fan Wiring Diagram (2 Of 7)

Courtesy of FORD MOTOR COMPANY

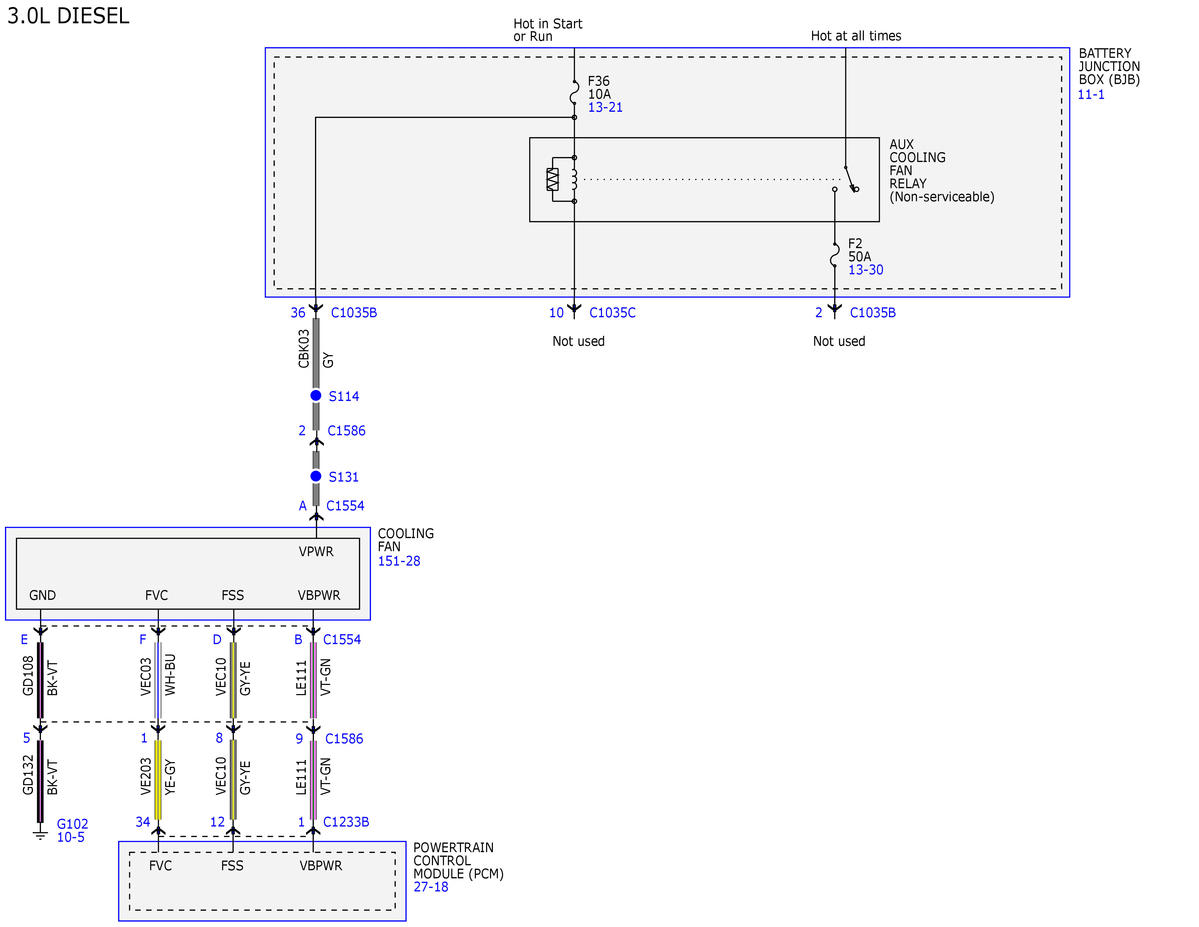

Fig 3: Cooling Fan Wiring Diagram (3 Of 7)

Courtesy of FORD MOTOR COMPANY

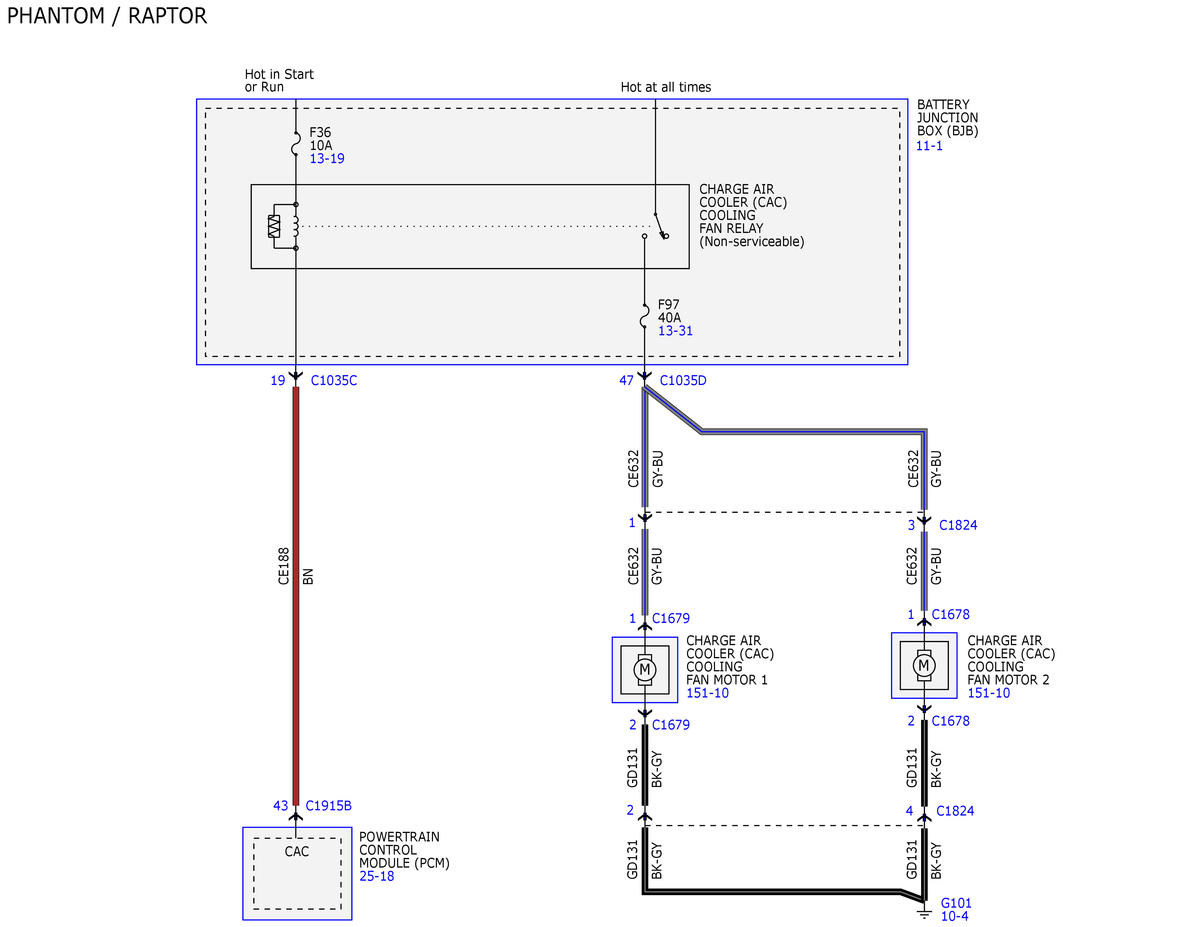

Fig 4: Cooling Fan Wiring Diagram (4 Of 7)

Courtesy of FORD MOTOR COMPANY

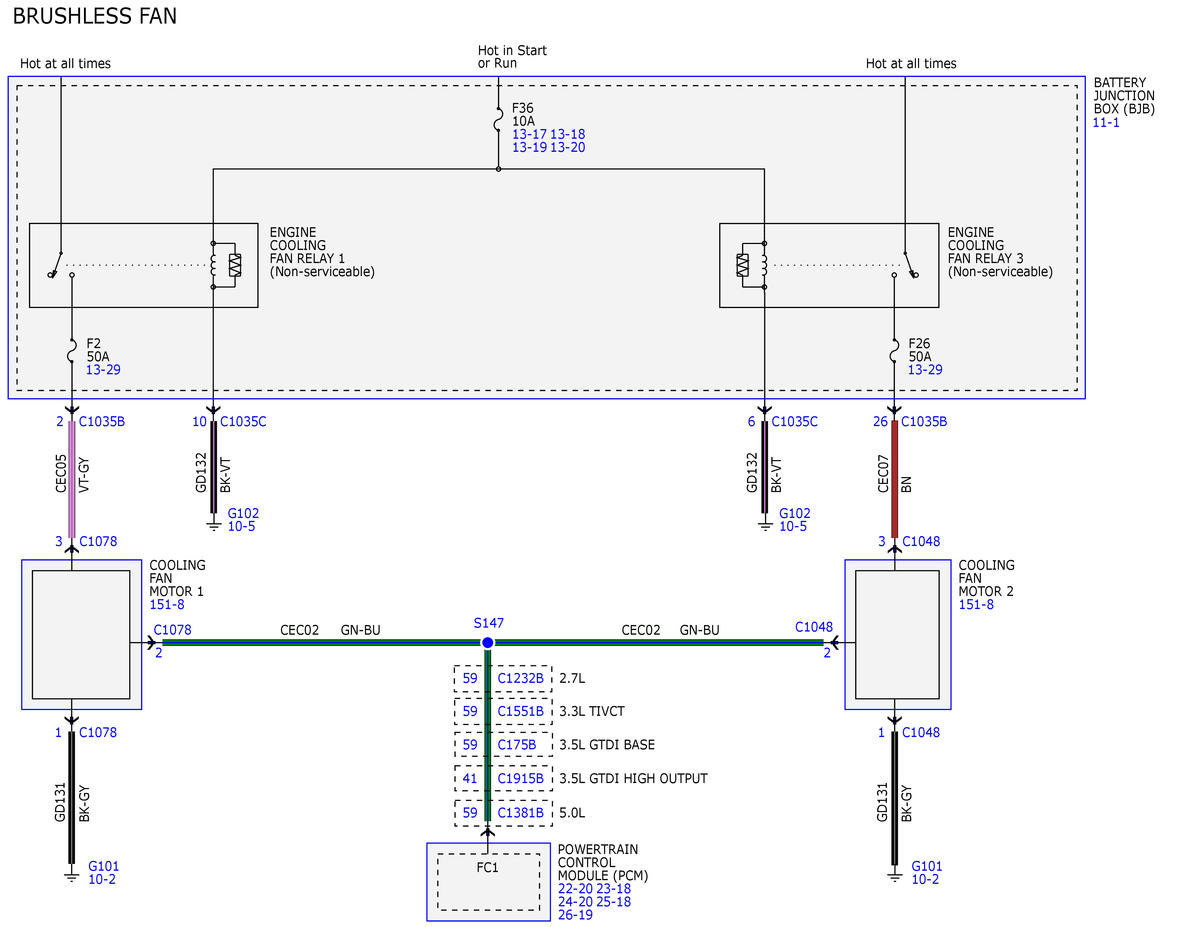

Fig 5: Cooling Fan Wiring Diagram (5 Of 7)

Courtesy of FORD MOTOR COMPANY

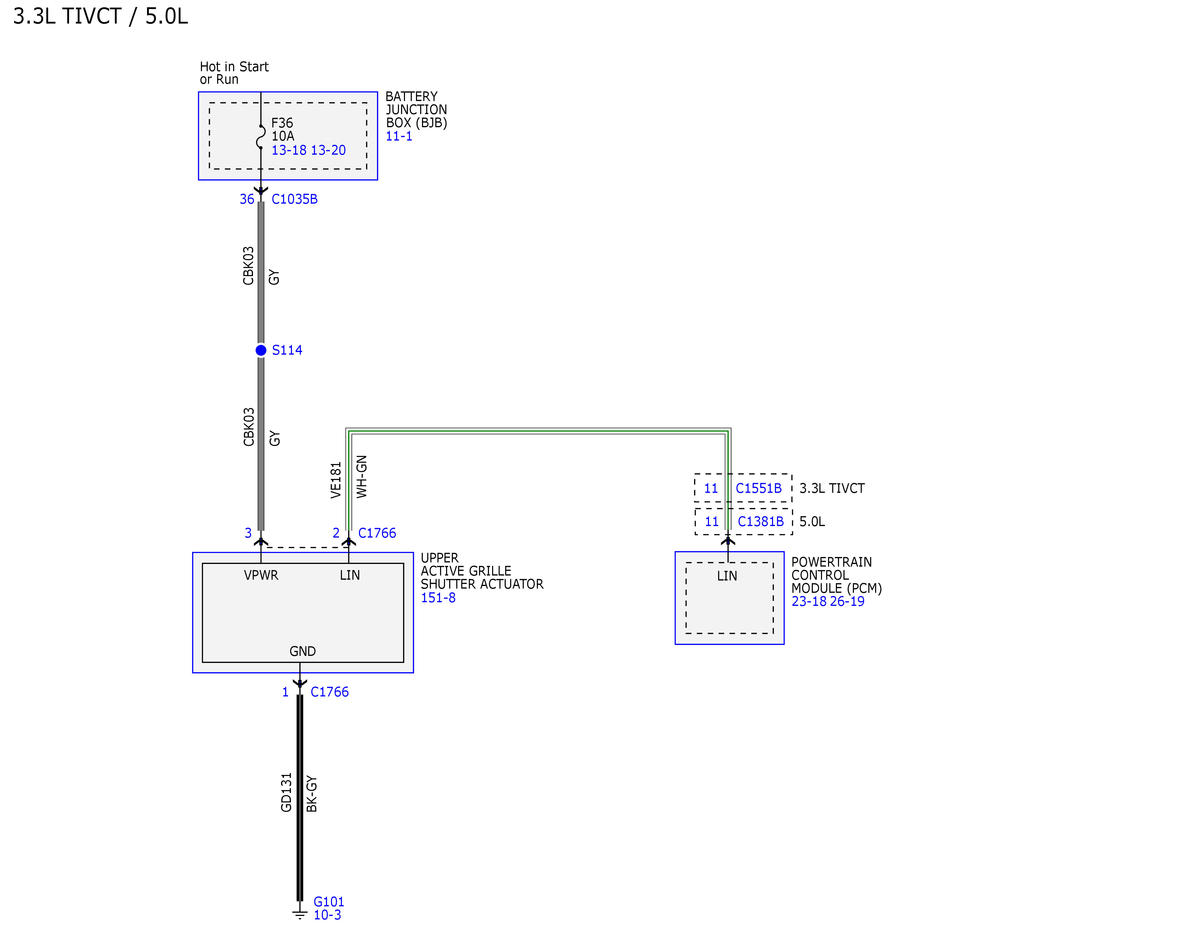

Fig 6: Cooling Fan Wiring Diagram (6 Of 7)

Courtesy of FORD MOTOR COMPANY

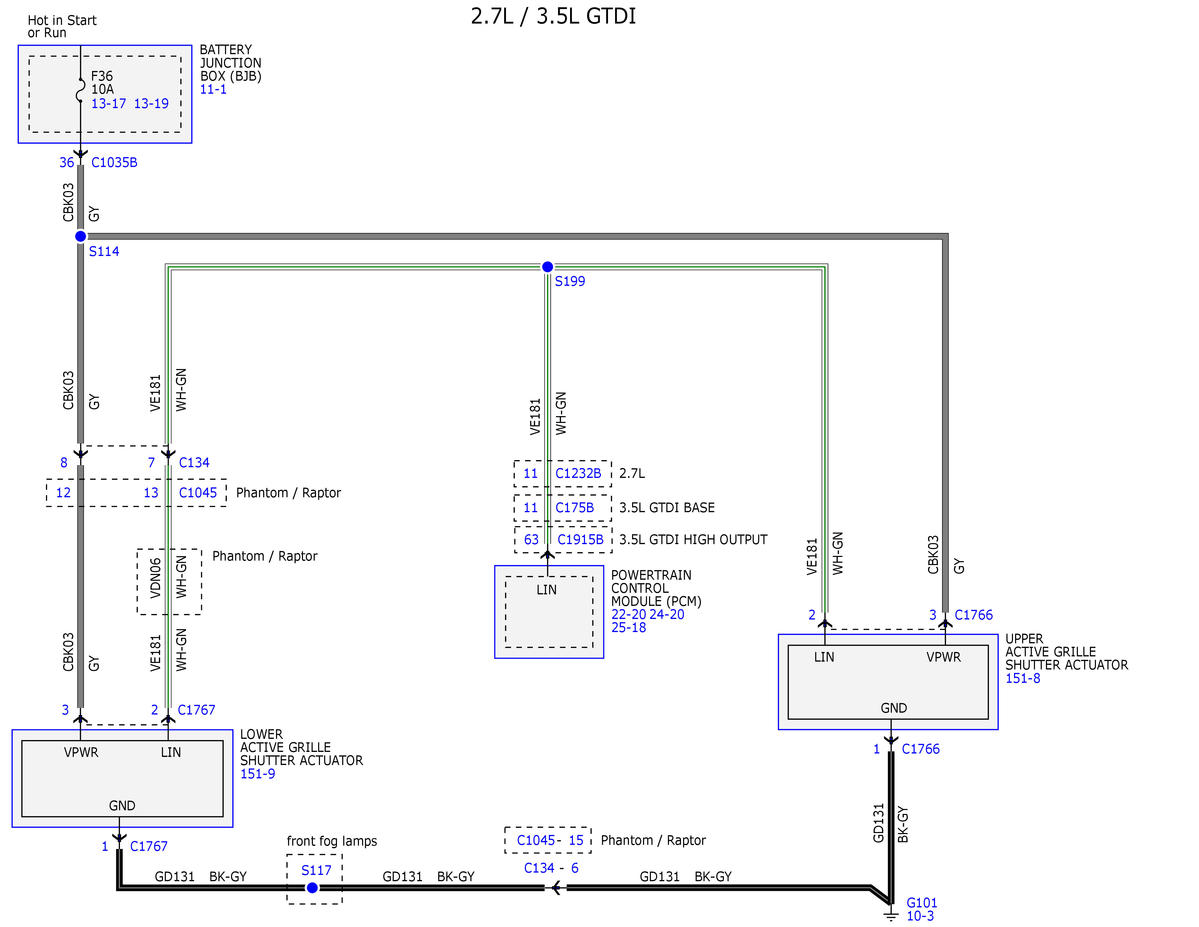

Fig 7: Cooling Fan Wiring Diagram (7 Of 7)

Courtesy of FORD MOTOR COMPANY
