Audio System/Navigation - Without SYNC

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

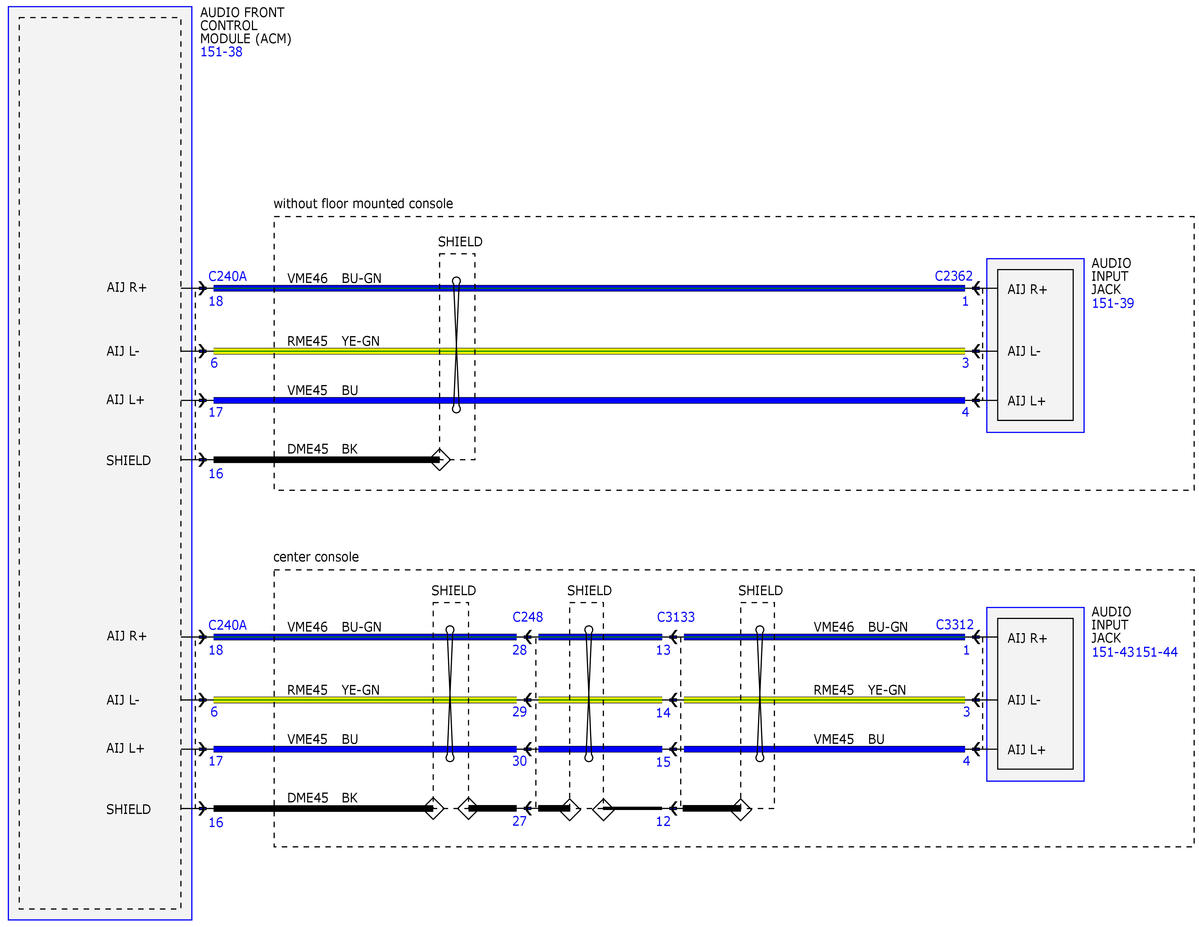

Fig 1: Audio System/Navigation - Without SYNC Wiring Diagram (1 Of 4)

Courtesy of FORD MOTOR COMPANY

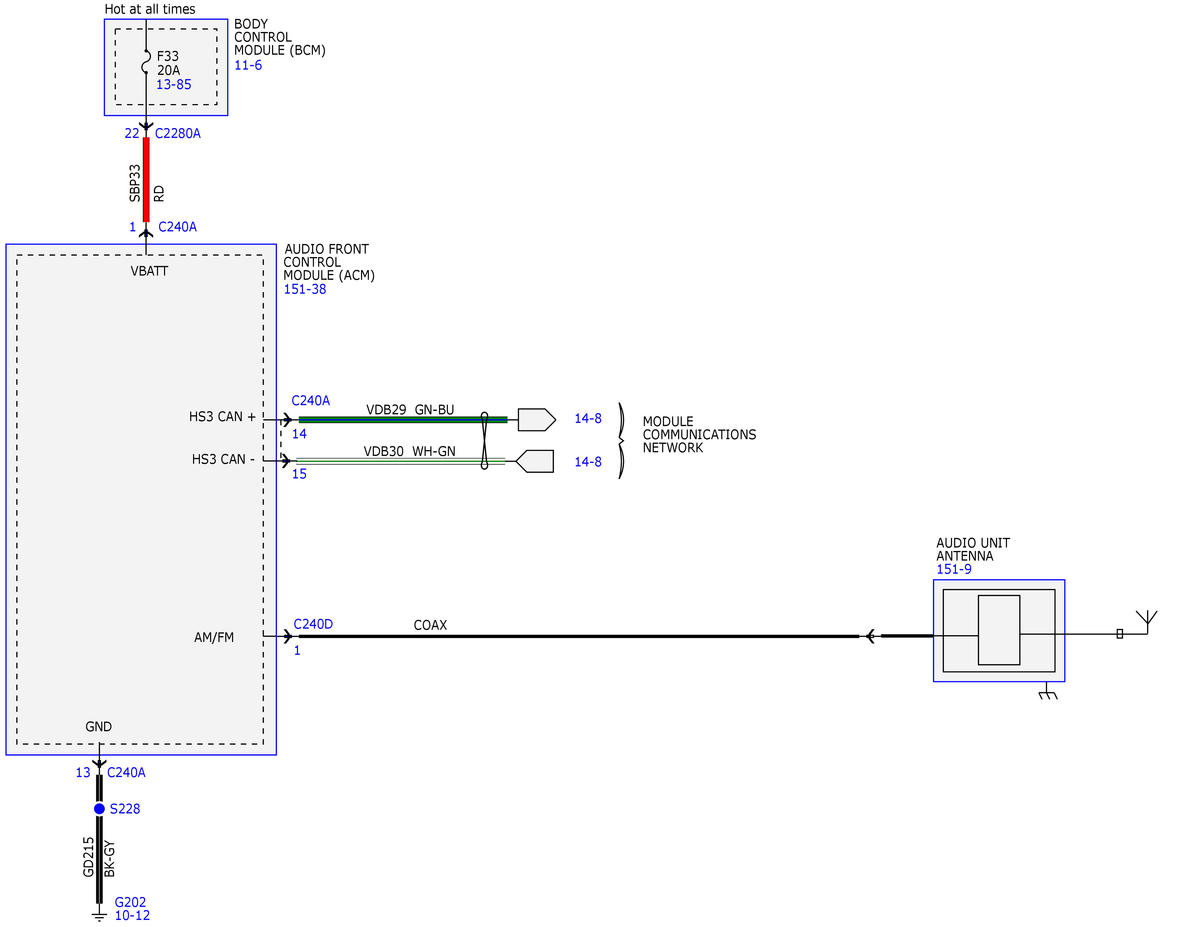

Fig 2: Audio System/Navigation - Without SYNC Wiring Diagram (2 Of 4)

Courtesy of FORD MOTOR COMPANY

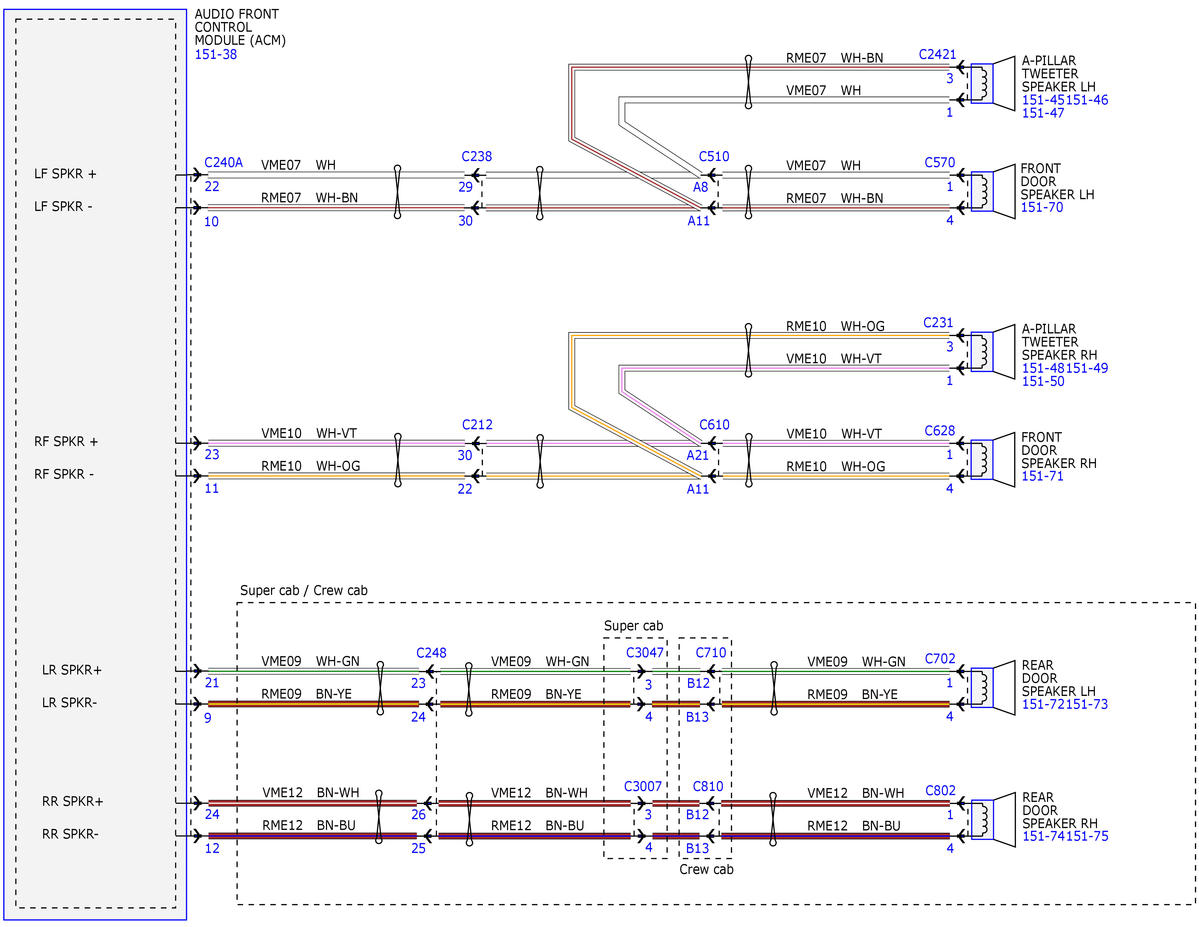

Fig 3: Audio System/Navigation - Without SYNC Wiring Diagram (3 Of 4)

Courtesy of FORD MOTOR COMPANY

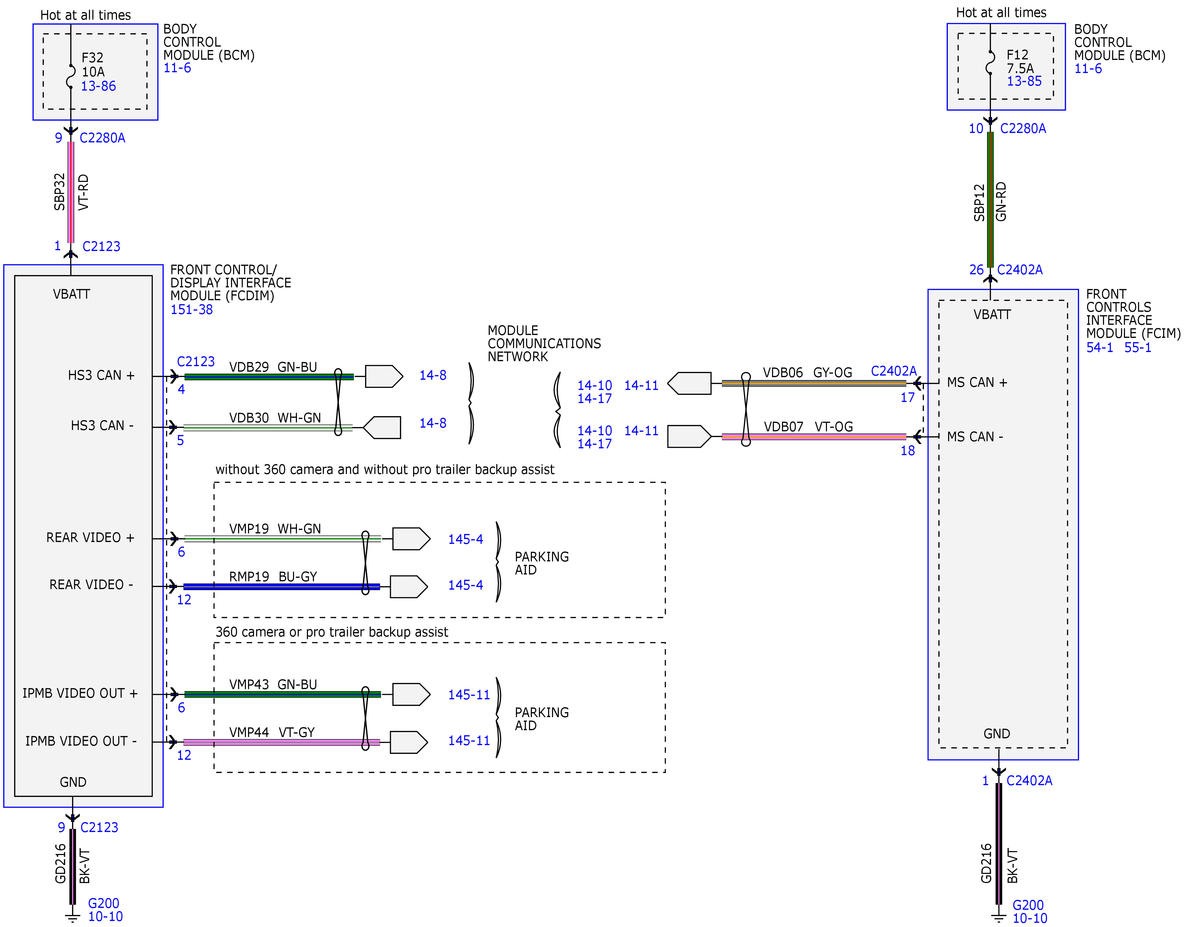

Fig 4: Audio System/Navigation - Without SYNC Wiring Diagram (4 Of 4)

Courtesy of FORD MOTOR COMPANY
