Audio System/Navigation - SYNC

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

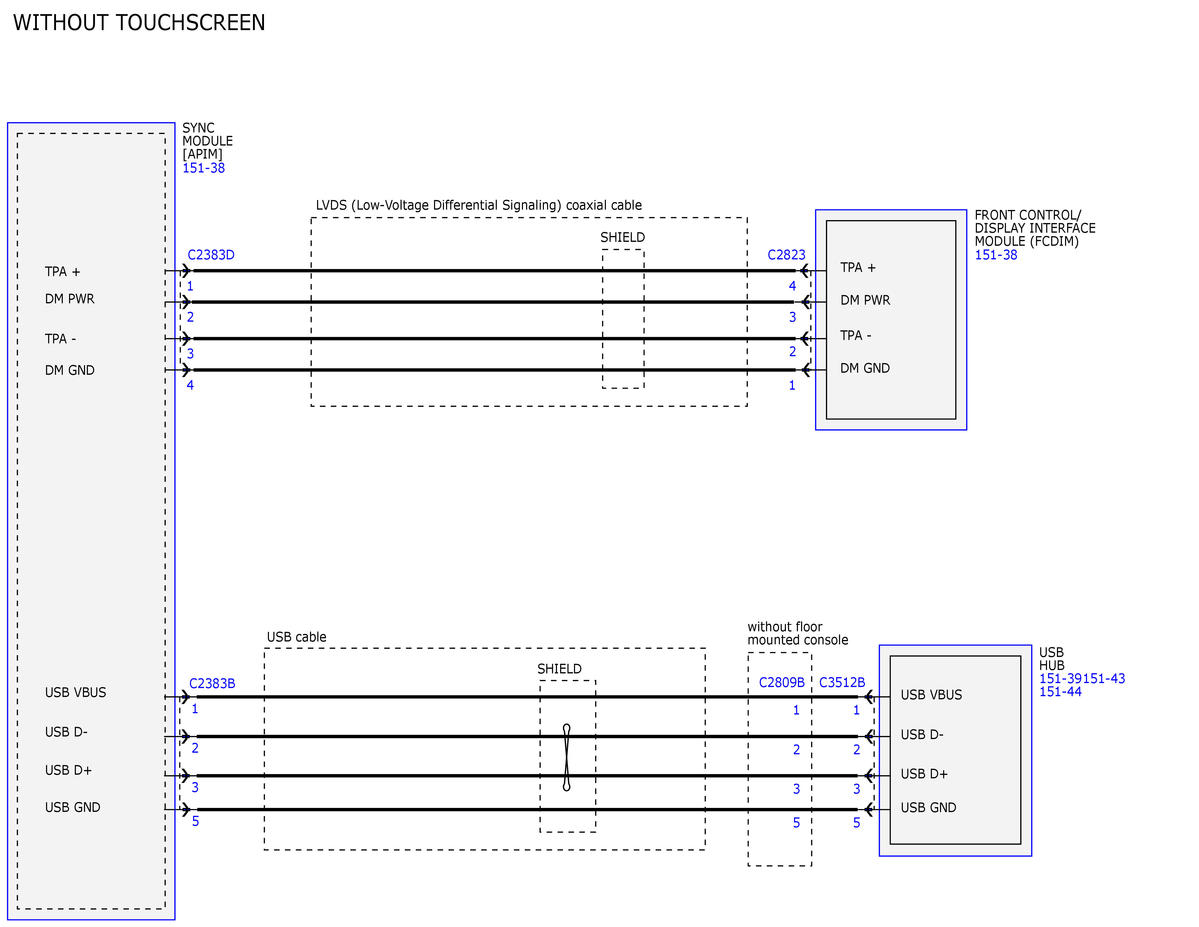

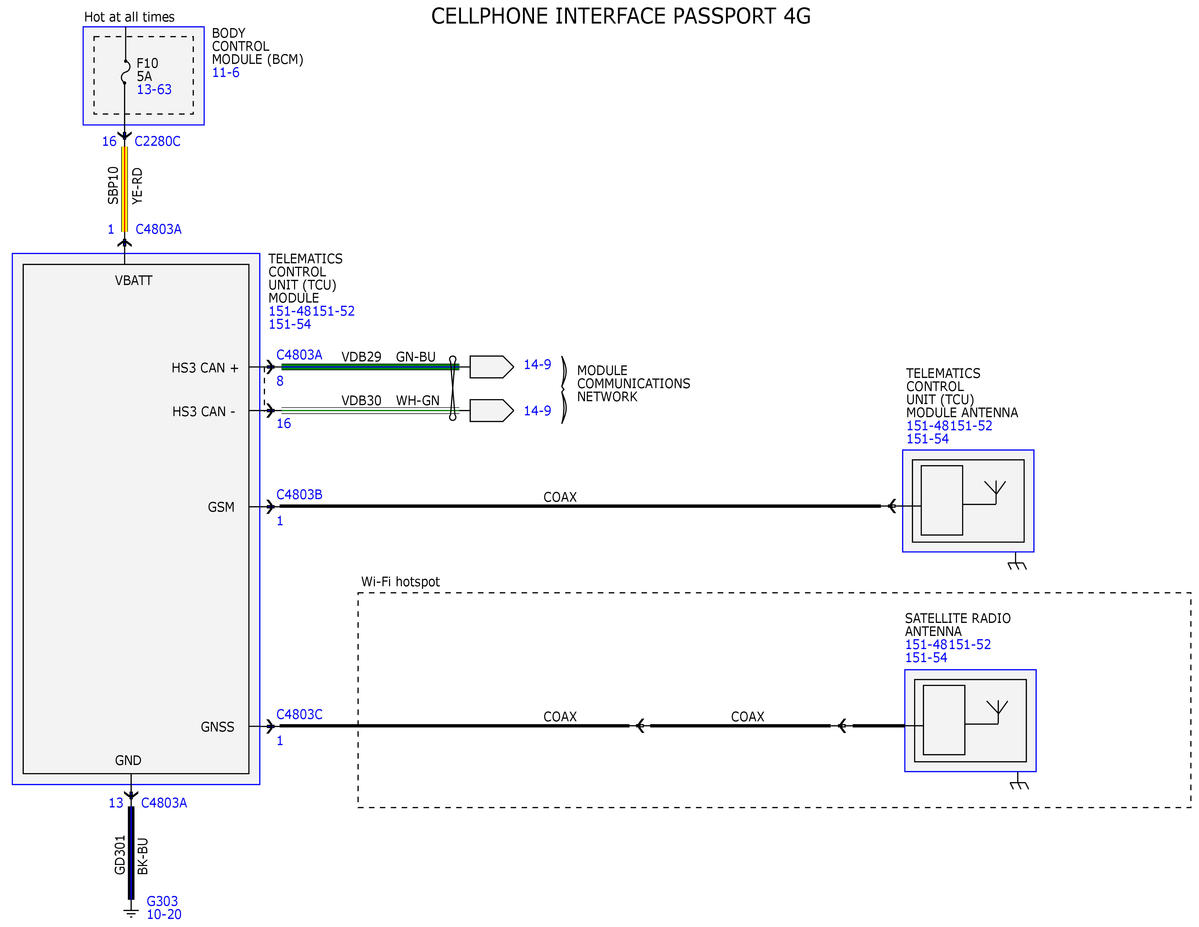

Fig 1: Audio System/Navigation - SYNC Wiring Diagram (1 Of 10)

Courtesy of FORD MOTOR COMPANY

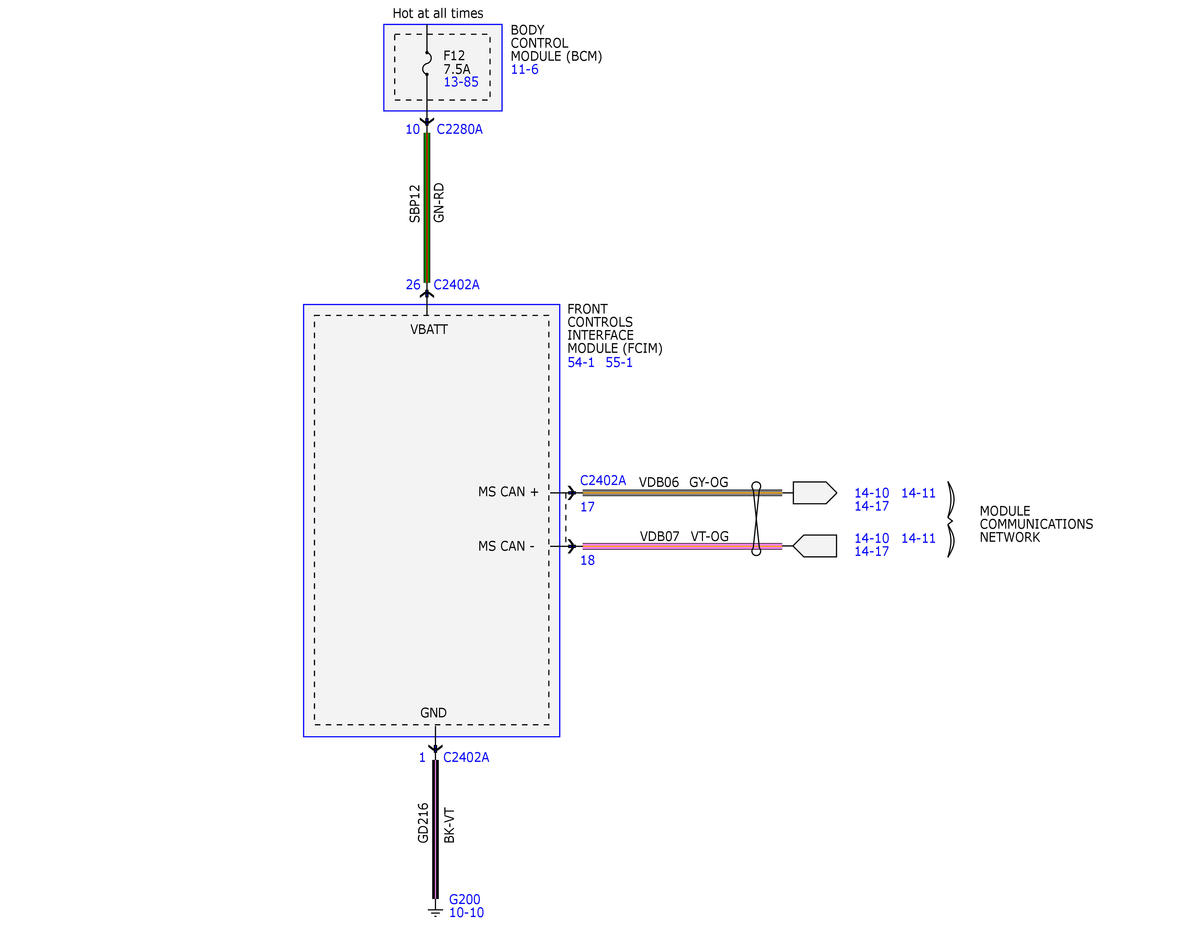

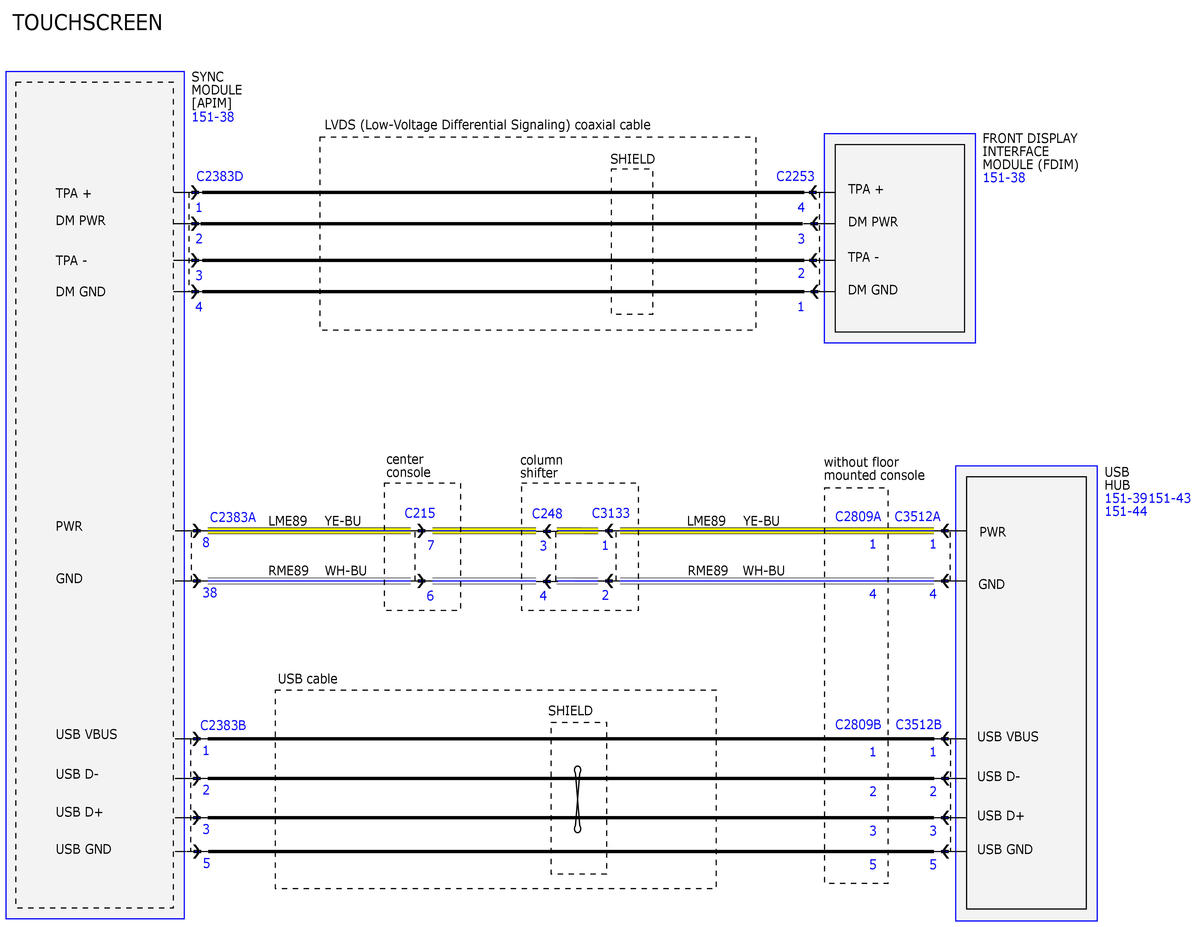

Fig 2: Audio System/Navigation - SYNC Wiring Diagram (2 Of 10)

Courtesy of FORD MOTOR COMPANY

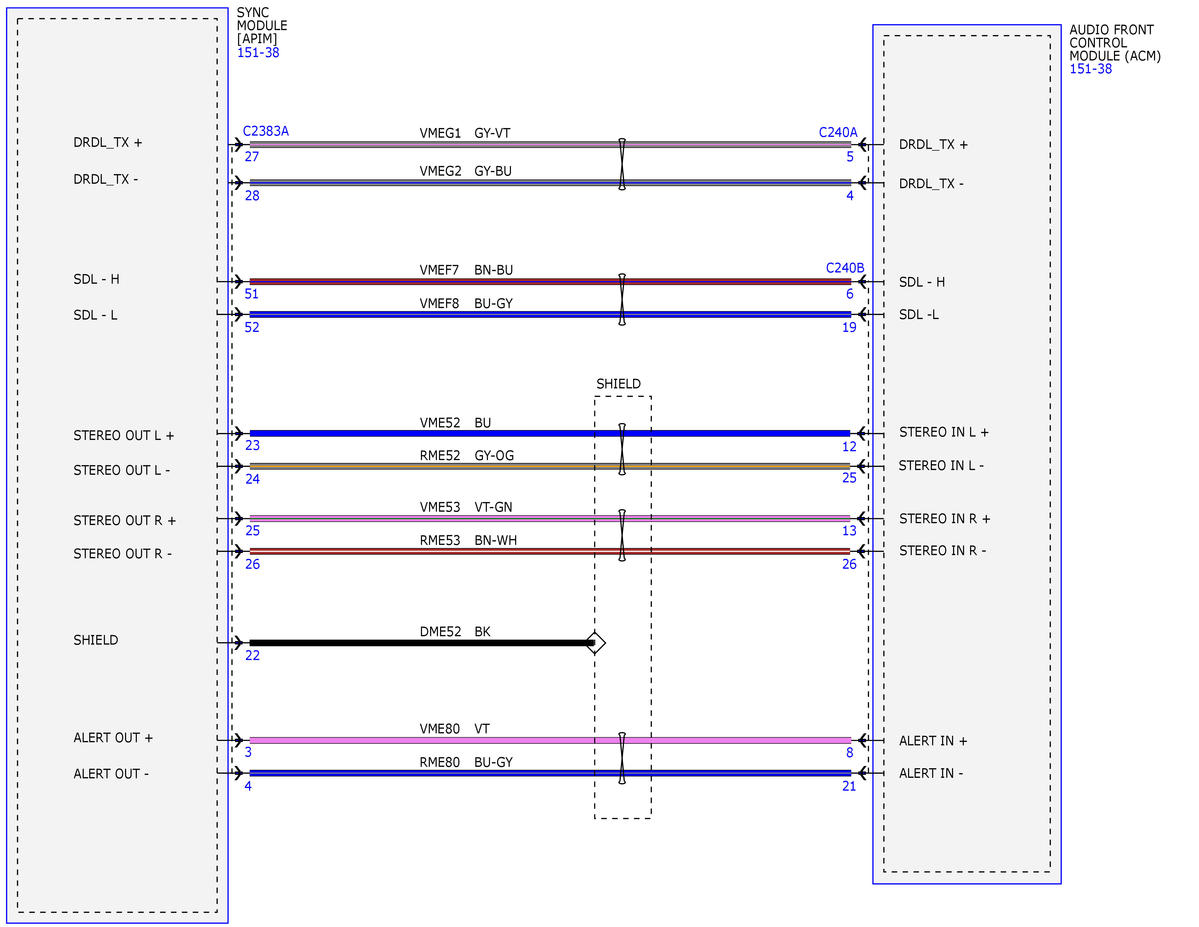

Fig 3: Audio System/Navigation - SYNC Wiring Diagram (3 Of 10)

Courtesy of FORD MOTOR COMPANY

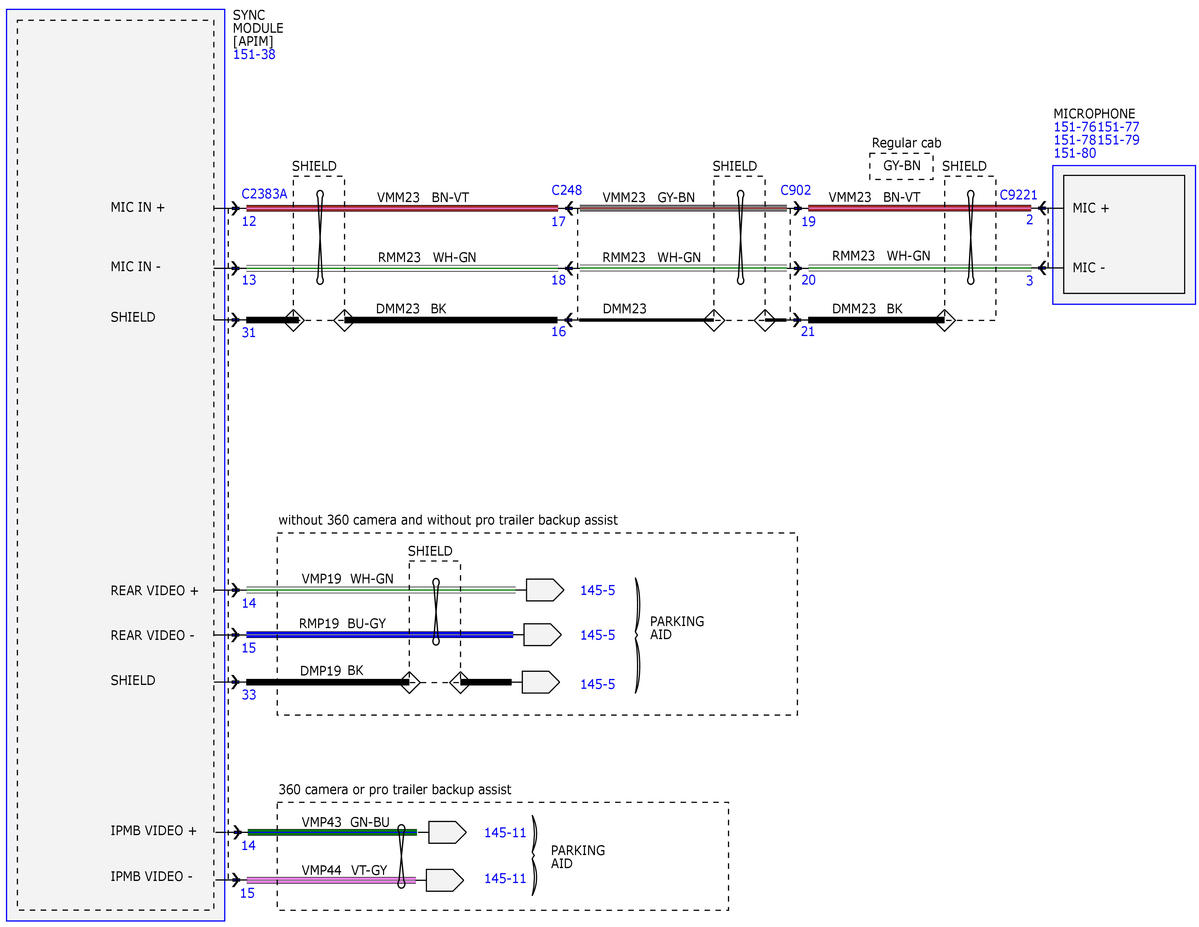

Fig 4: Audio System/Navigation - SYNC Wiring Diagram (4 Of 10)

Courtesy of FORD MOTOR COMPANY

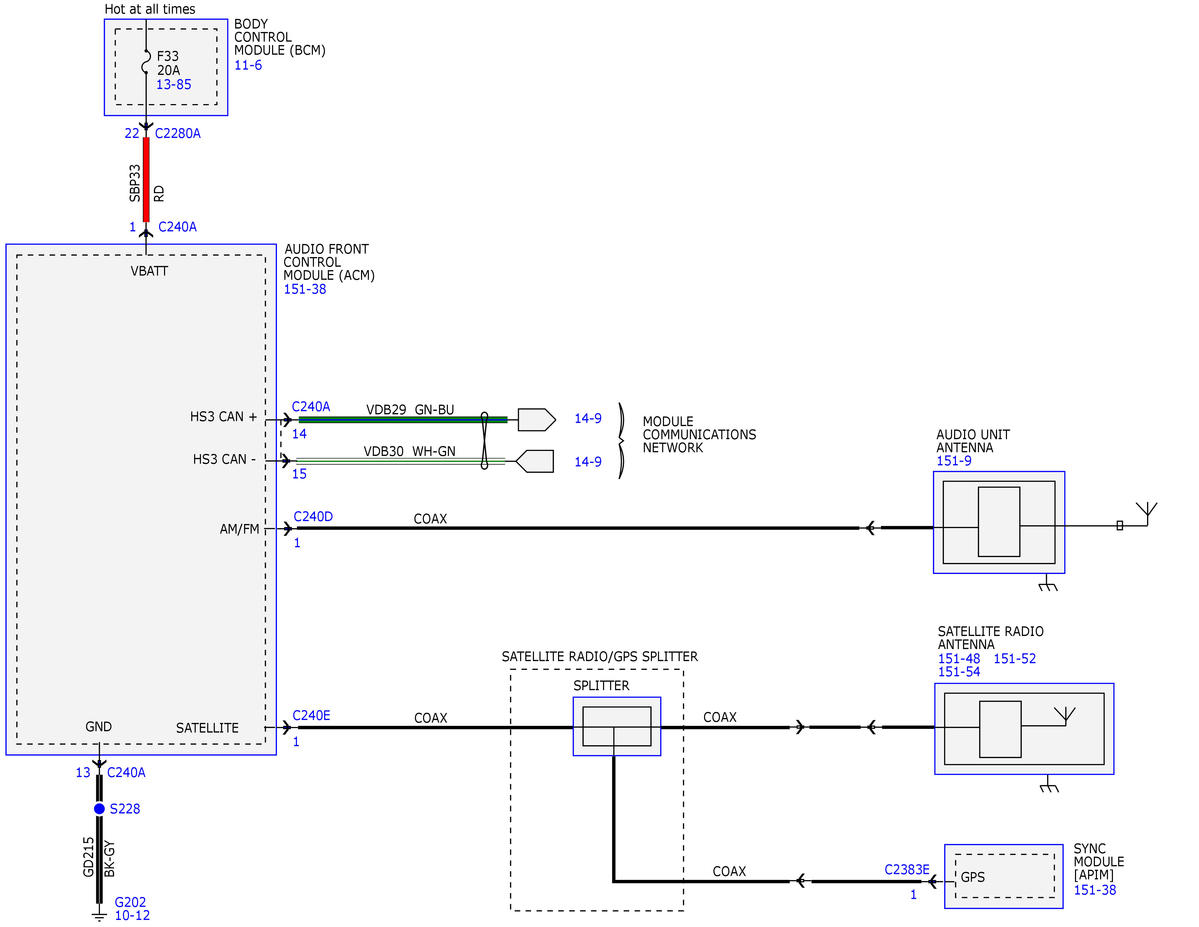

Fig 5: Audio System/Navigation - SYNC Wiring Diagram (5 Of 10)

Courtesy of FORD MOTOR COMPANY

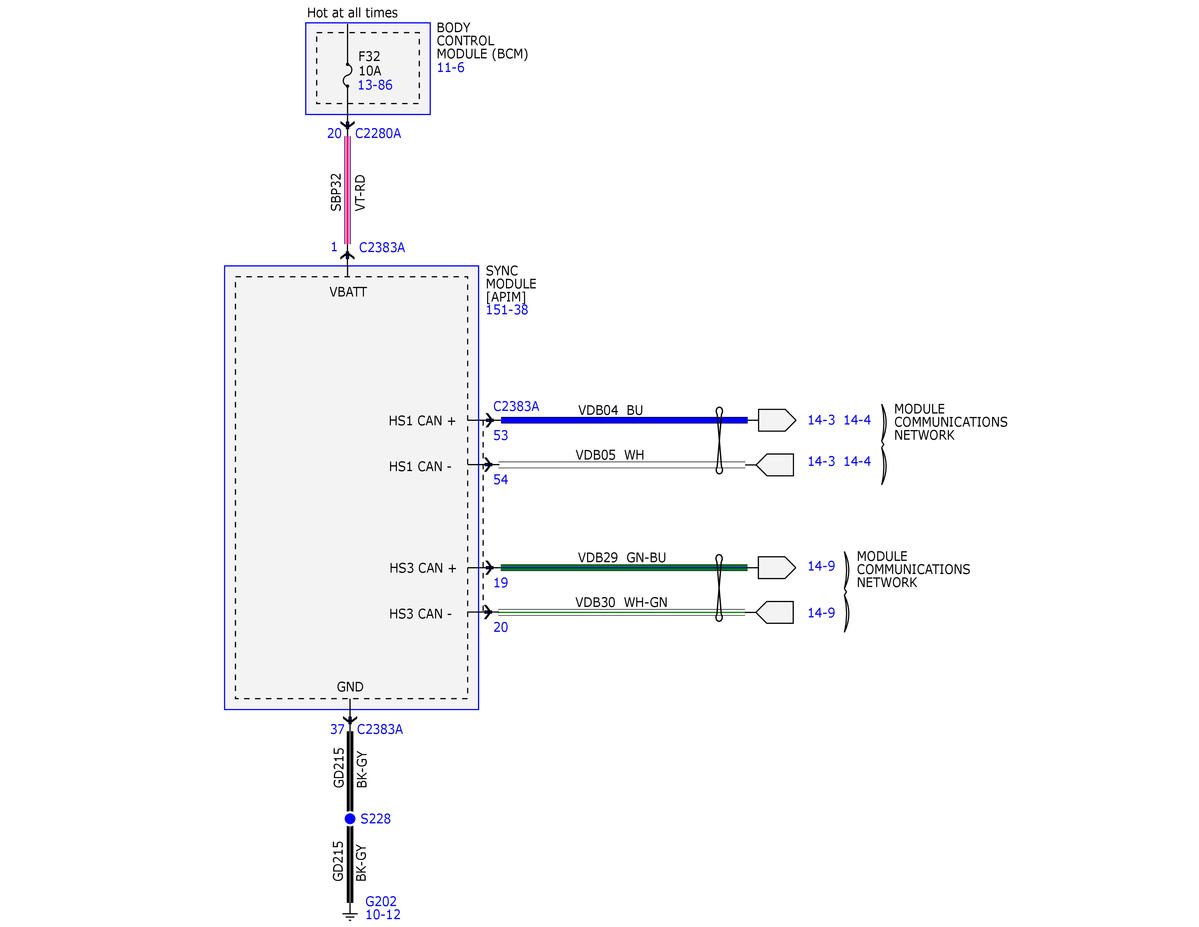

Fig 6: Audio System/Navigation - SYNC Wiring Diagram (6 Of 10)

Courtesy of FORD MOTOR COMPANY

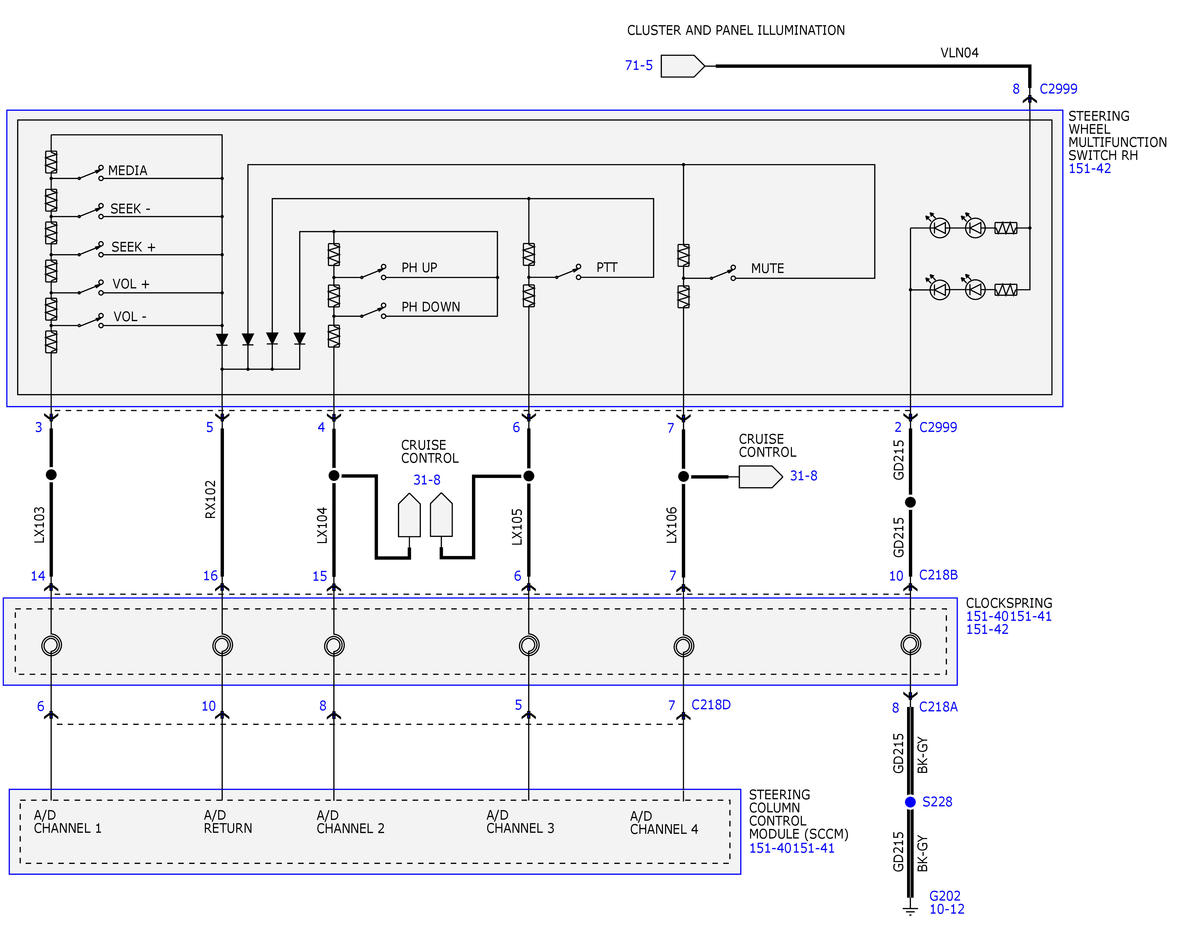

Fig 7: Audio System/Navigation - SYNC Wiring Diagram (7 Of 10)

Courtesy of FORD MOTOR COMPANY

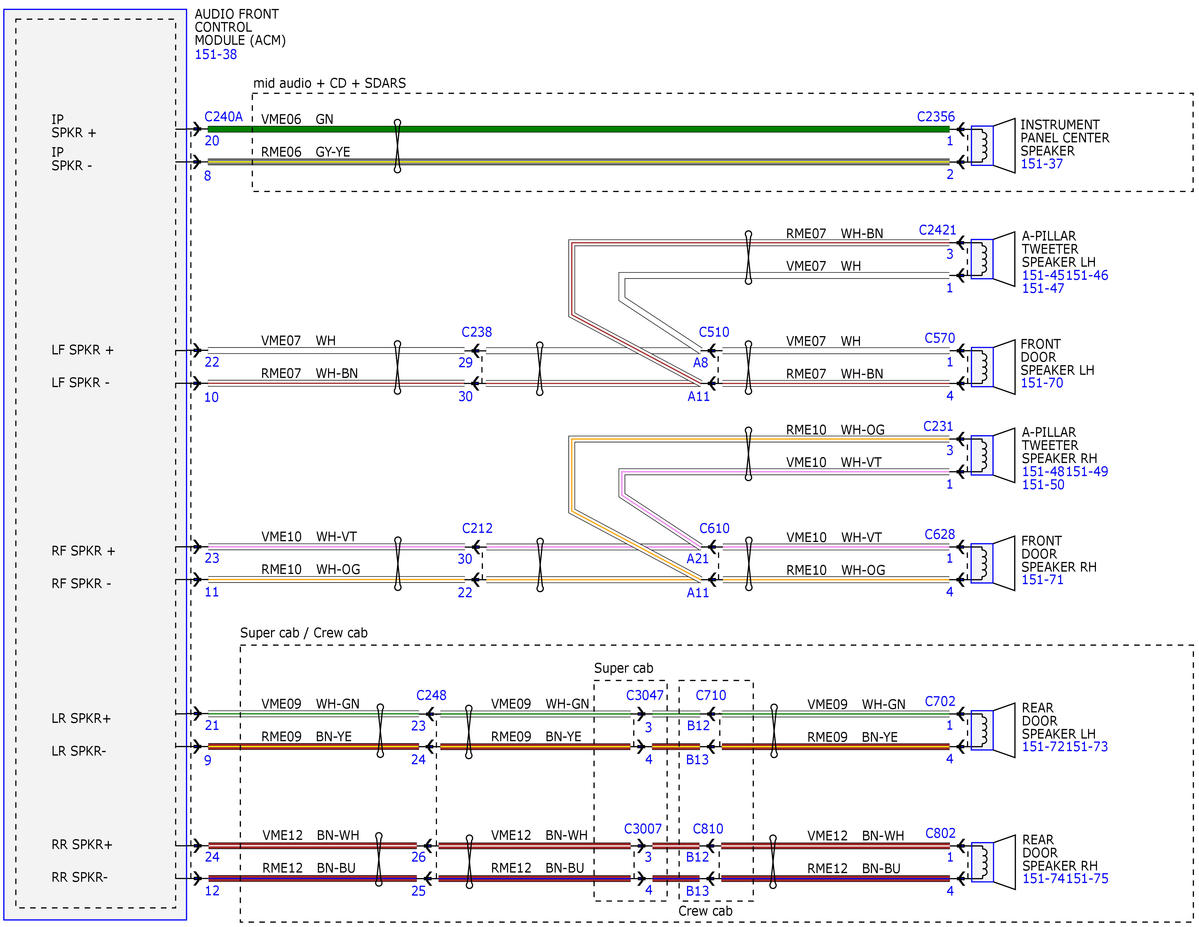

Fig 8: Audio System/Navigation - SYNC Wiring Diagram (8 Of 10)

Courtesy of FORD MOTOR COMPANY

Fig 9: Audio System/Navigation - SYNC Wiring Diagram (9 Of 10)

Courtesy of FORD MOTOR COMPANY

Fig 10: Audio System/Navigation - SYNC Wiring Diagram (10 Of 10)

Courtesy of FORD MOTOR COMPANY
