Fuse And Relay Information

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

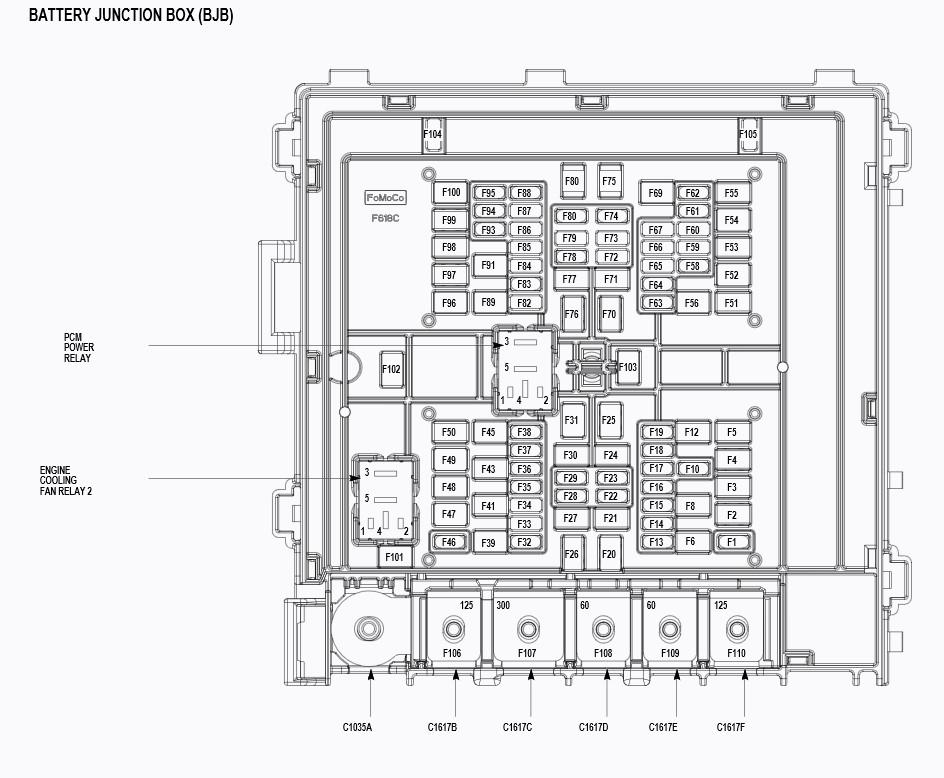

Fig 1: Battery Junction Box Component Location (1 of 2)

Courtesy of FORD MOTOR COMPANY

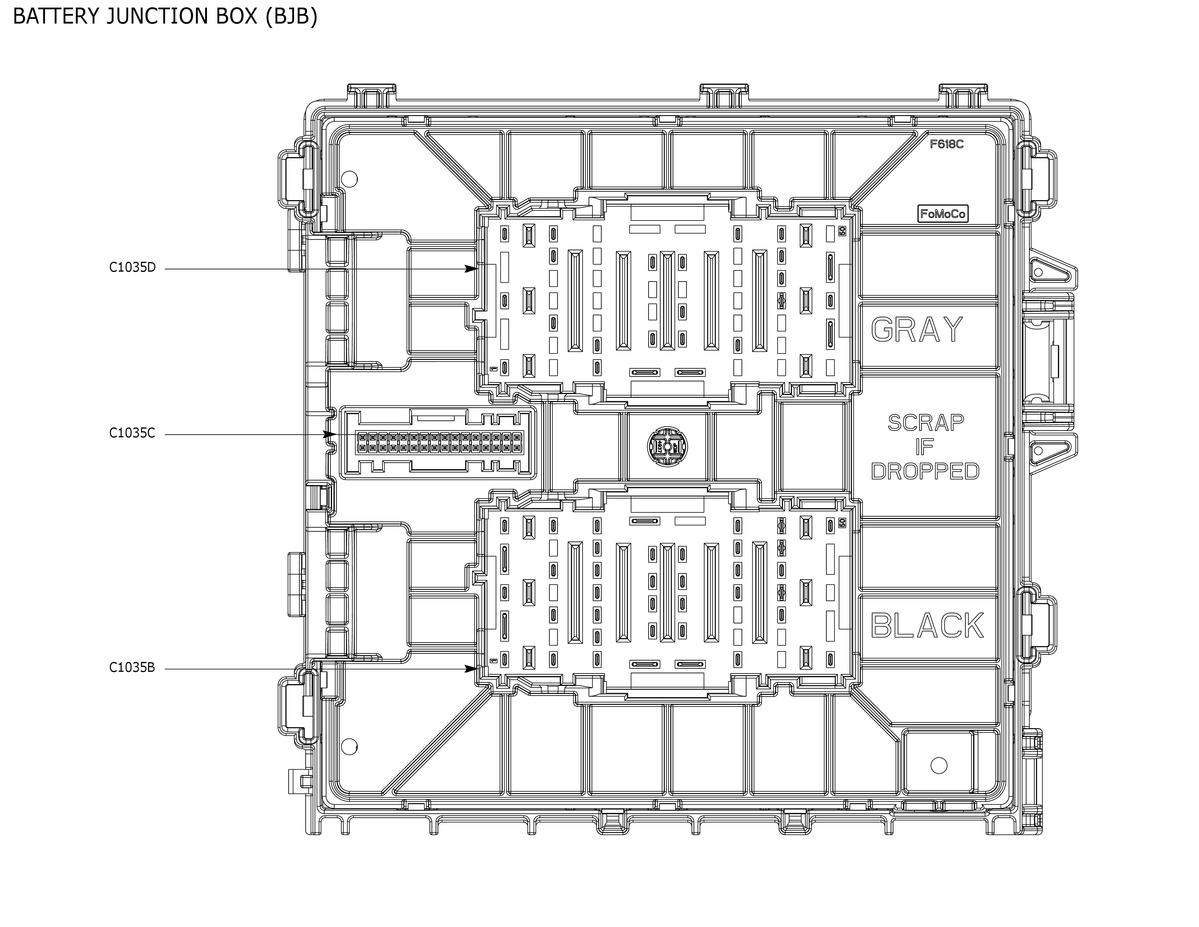

Fig 2: Battery Junction Box Component Location (2 of 2)

Courtesy of FORD MOTOR COMPANY

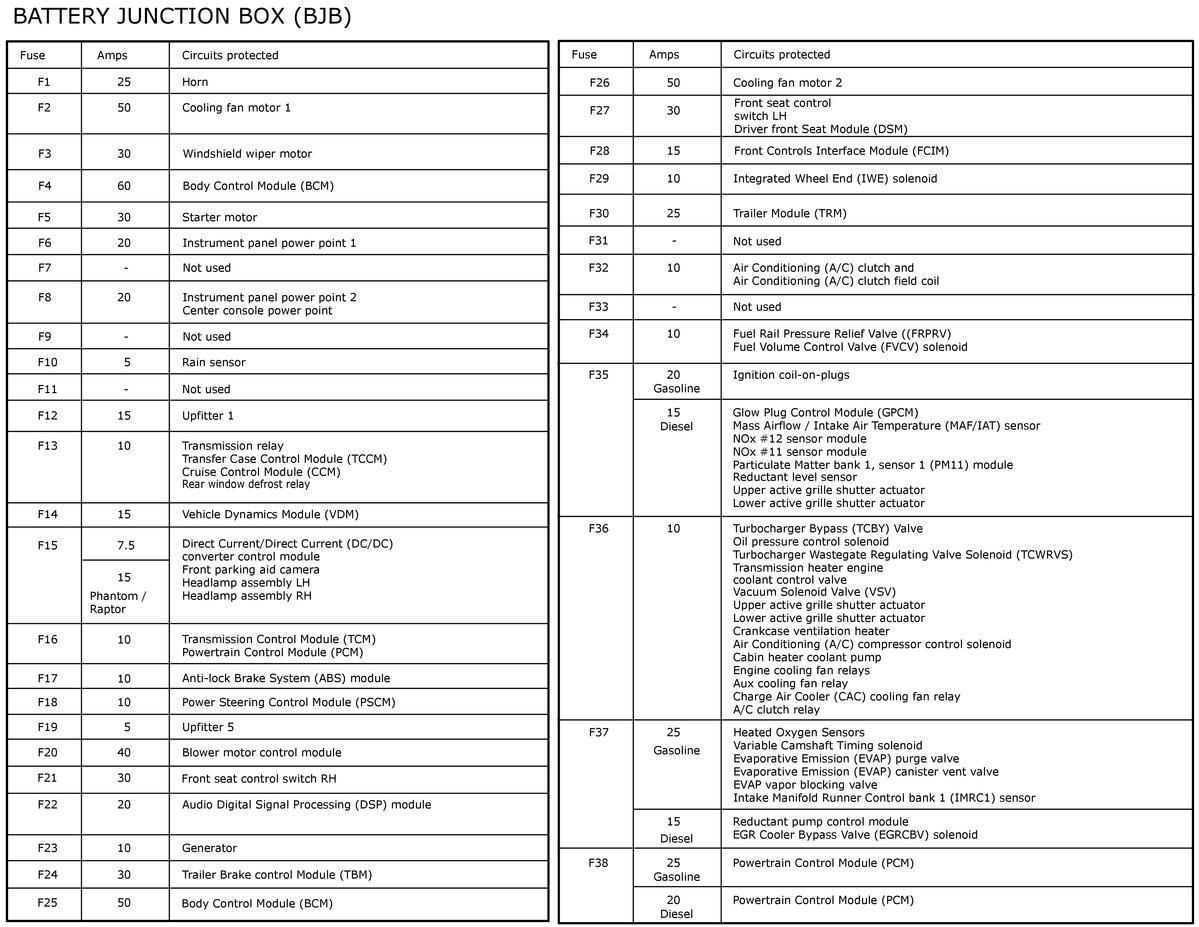

Fig 3: Battery Junction Box Component Location Legend (1 Of 3)

Courtesy of FORD MOTOR COMPANY

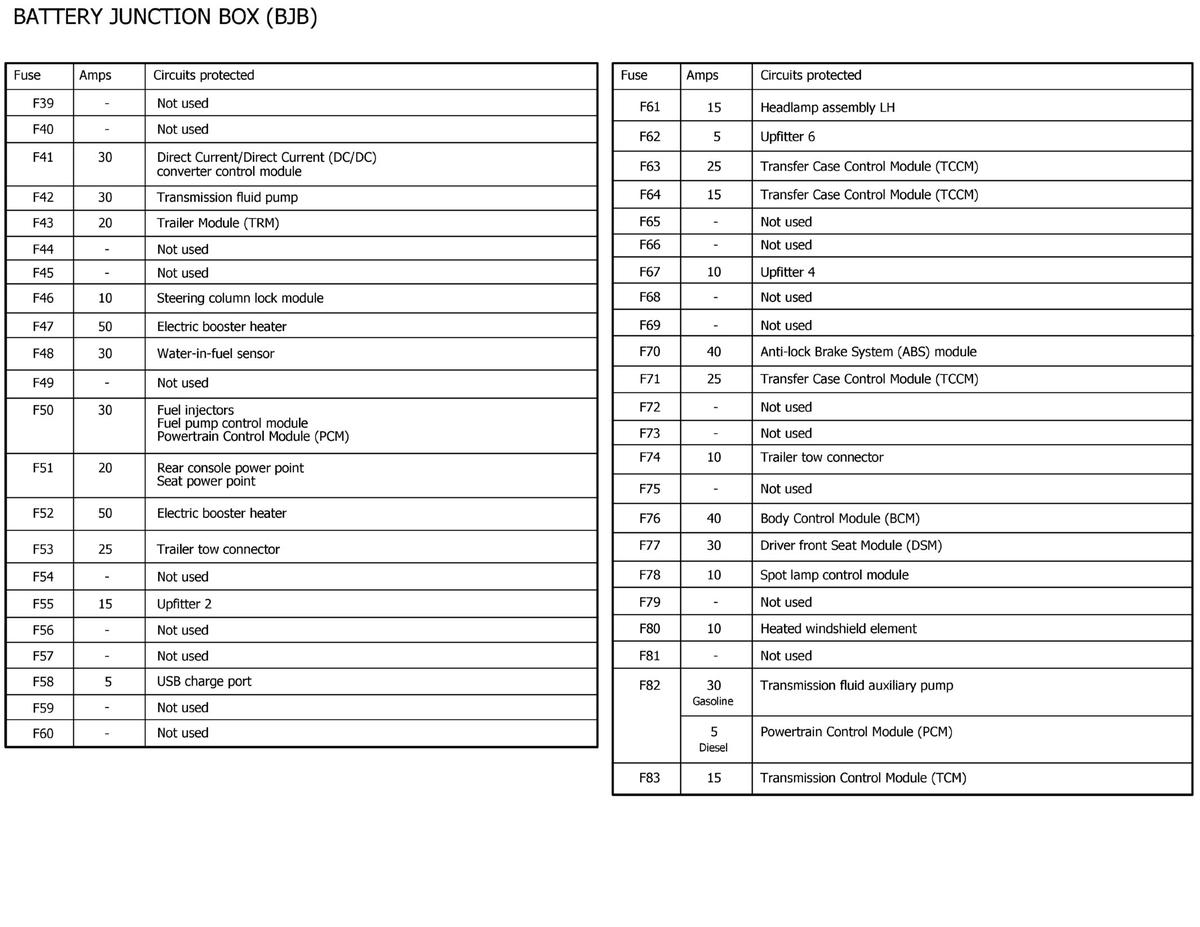

Fig 4: Battery Junction Box Component Location Legend (2 of 3)

Courtesy of FORD MOTOR COMPANY

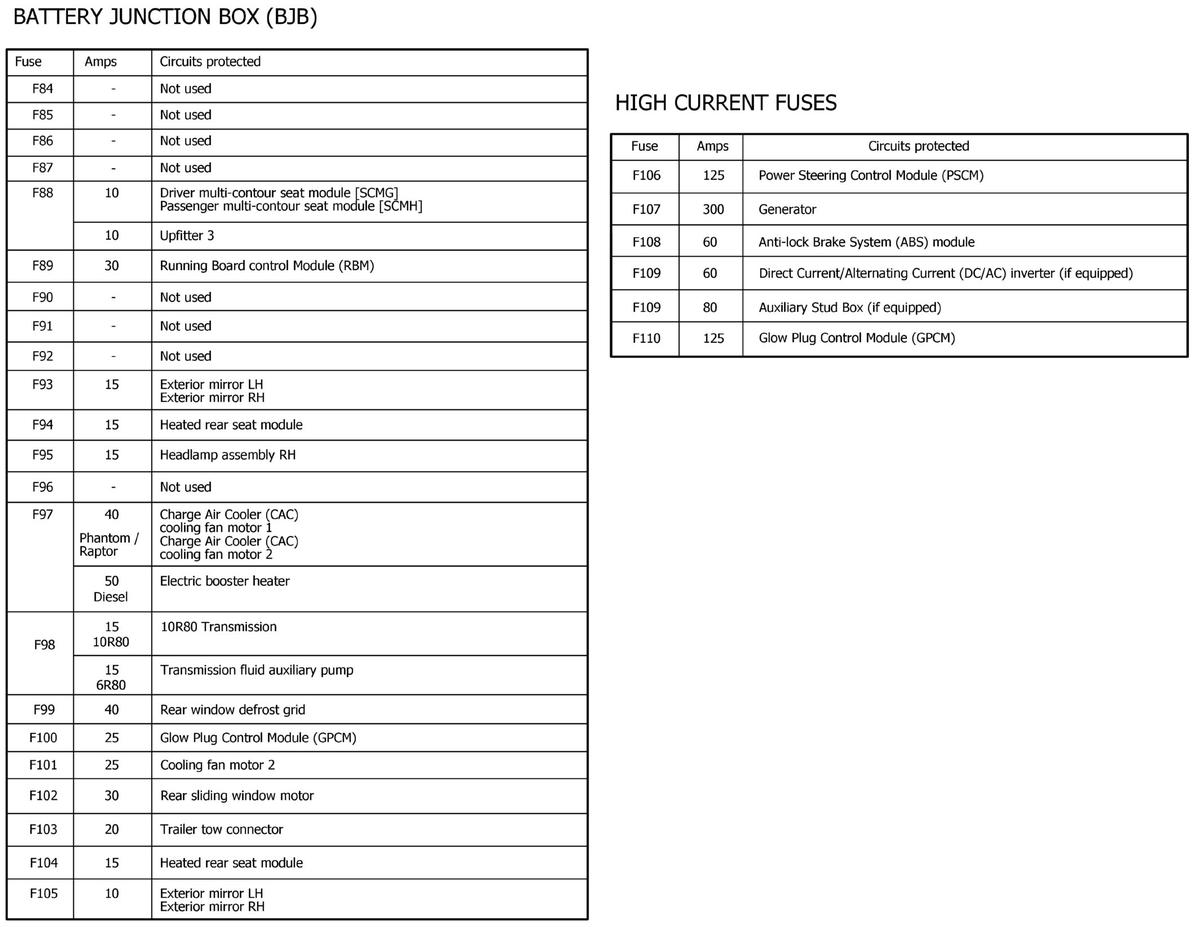

Fig 5: Battery Junction Box Component Location Legend (3 of 3)

Courtesy of FORD MOTOR COMPANY

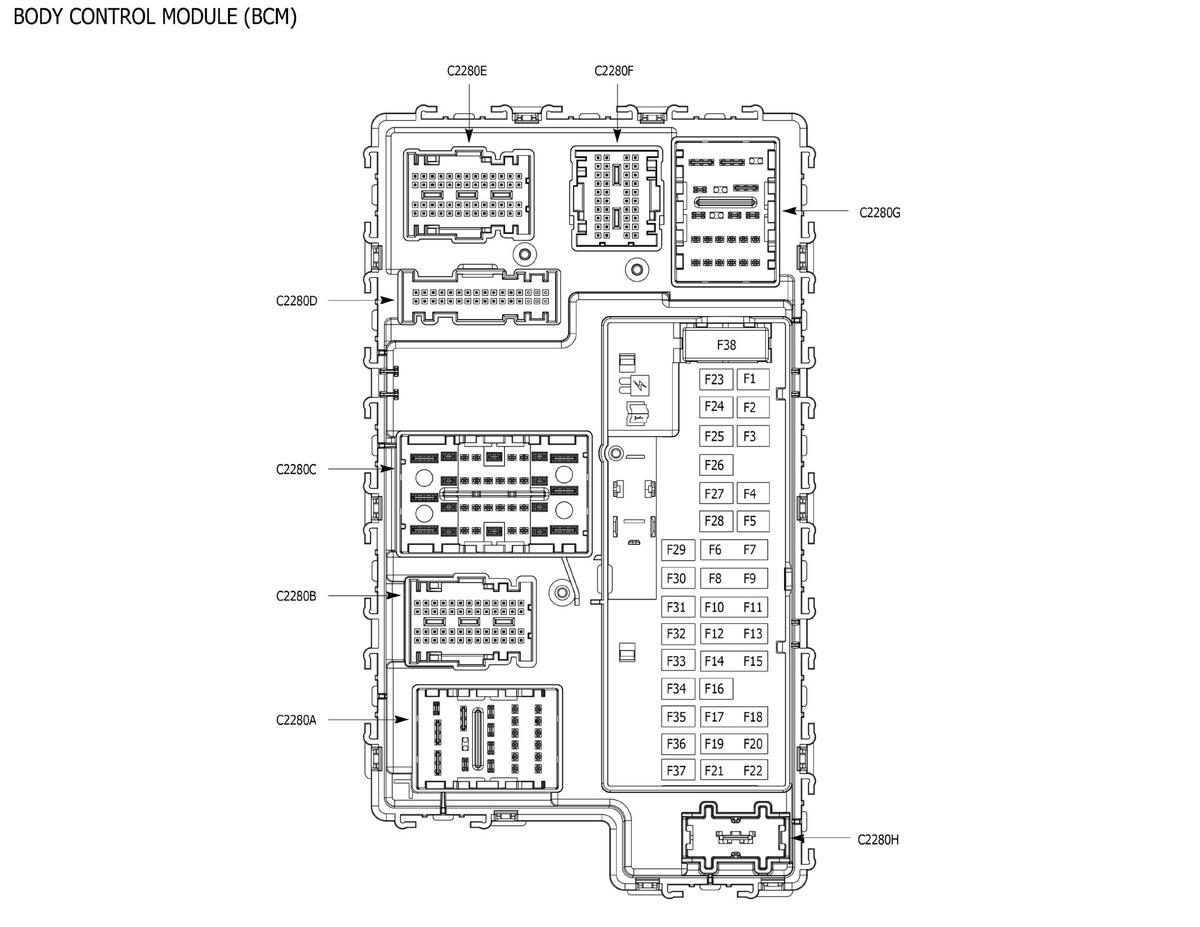

Fig 6: Body Control Module Component Location

Courtesy of FORD MOTOR COMPANY

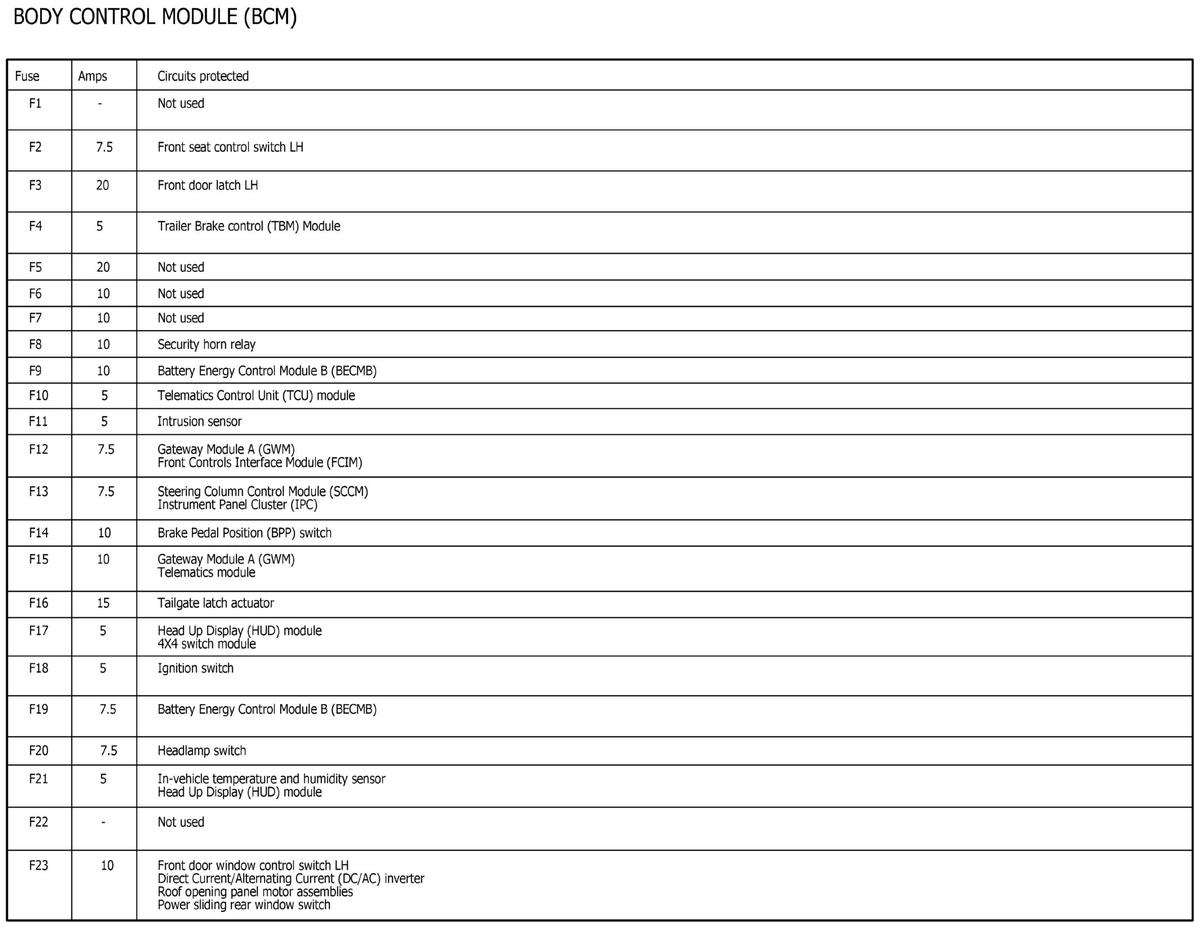

Fig 7: Body Control Module Component Location Legend (1 of 2)

Courtesy of FORD MOTOR COMPANY

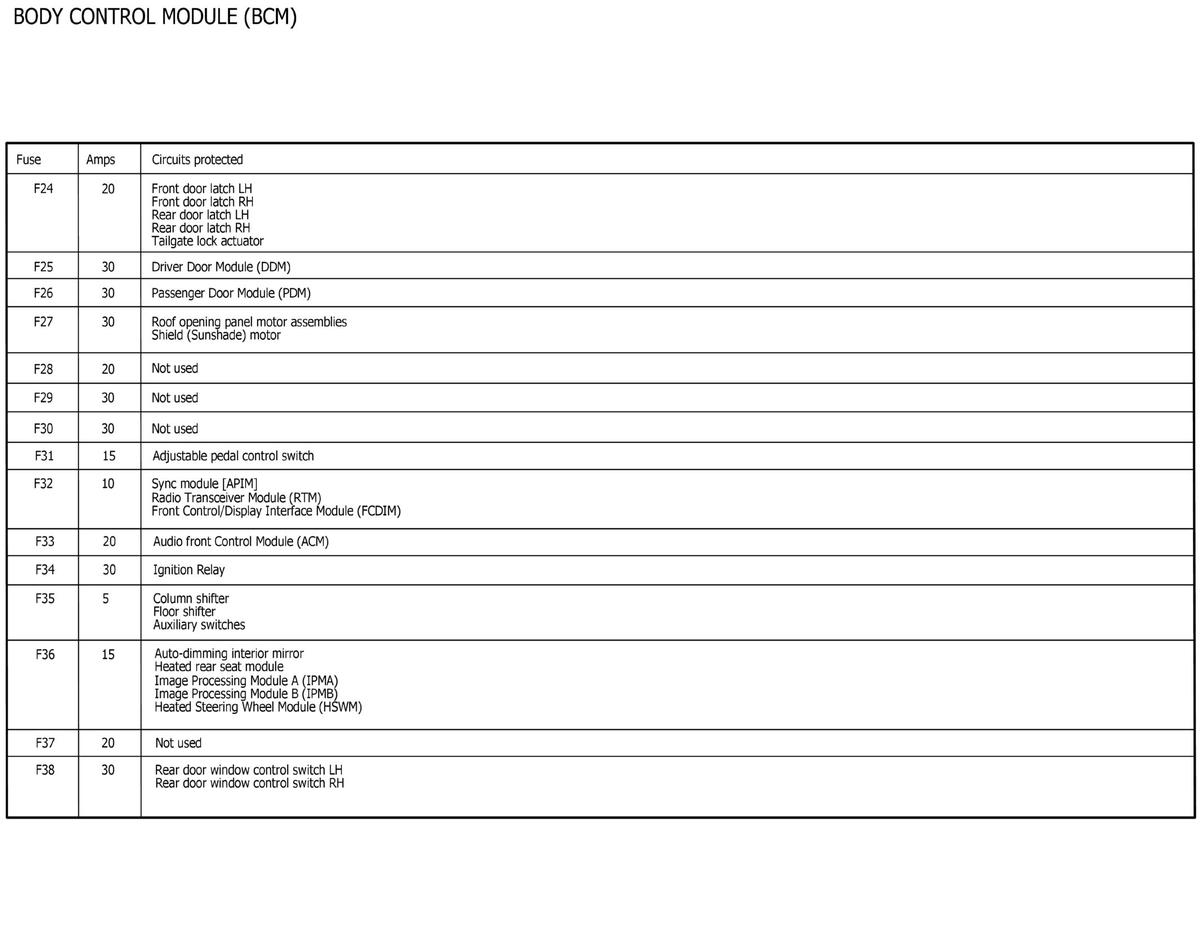

Fig 8: Body Control Module Component Location Legend (2 of 2)

Courtesy of FORD MOTOR COMPANY
