Transmission Internal Wiring Harness: Installation

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

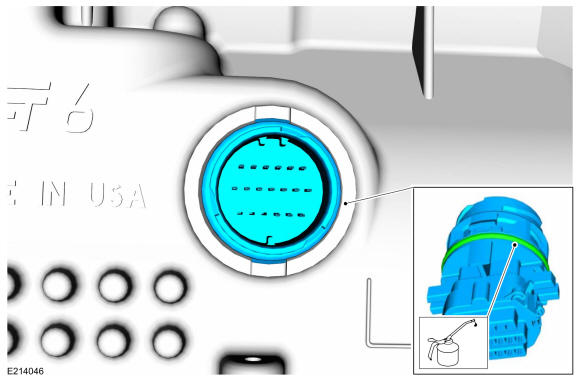

  1. Lubricate the wiring harness bulkhead O-ring with clean transmission fluid and install the wiring harness bulkhead in the transmission case. Make sure the tabs lock the bulkhead in the transmission case.

    Material: Motorcraft ® MERCON ® LV Automatic Transmission Fluid / XT-10-QLVC (MERCON ® LV) (WSS-M2C938-A)

    GFD204697Courtesy of FORD MOTOR COMPANY
  2. Position the wiring harness and connect the electrical connectors.

    1. Solenoids.
    2. TFT sensor.
    3. TR sensor.
    4. OSS sensor.
    5. TSS sensor.

    GFD204690Courtesy of FORD MOTOR COMPANY
  3. Connect the selector lever cable end.
    GFD204548Courtesy of FORD MOTOR COMPANY

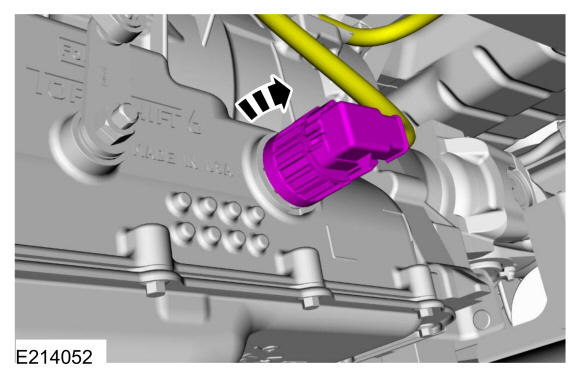

  4. Install the transmission vehicle harness connector and lock the transmission vehicle harness connector by rotating the outer shell clockwise.
    GFD204698Courtesy of FORD MOTOR COMPANY
  5. Install the transmission fluid pan. Refer to: Transmission Fluid Pan .
  6. Adjust the Selector lever cable. Refer to: Selector Lever Cable Adjustment - 6-Speed Automatic Transmission - 6R140 .
