Transmission Fluid Temperature (TFT) Sensor: Installation
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
- Install the TFT sensor.

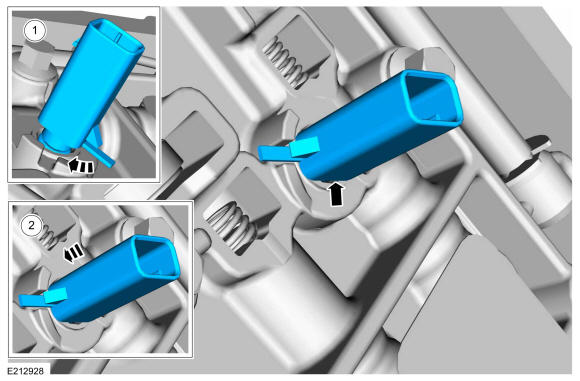

- Install the TFT sensor in the main control valve body and rotate 90 degrees clockwise.
- Push down the tab to lock the TFT sensor to lock tab in place.

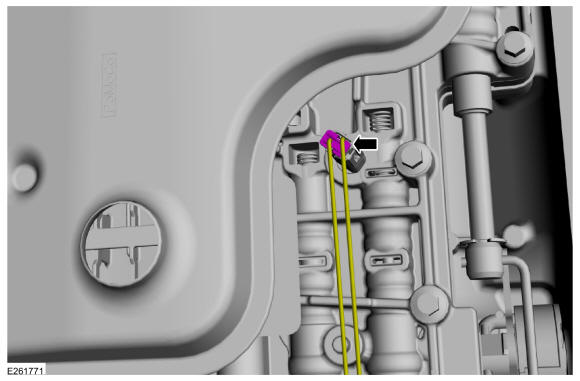

- Connect the TFT sensor electrical connector.
- Install the transmission fluid pan. Refer to: Transmission Fluid Pan .
