Transmission Fluid Pan: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Remove the transmission fluid pan bolts and the transmission fluid pan.
-
NOTE: The transmission fluid pan gasket can be reused if not damaged.
Remove the transmission fluid pan gasket.
- Clean and inspect the transmission fluid pan and magnet.

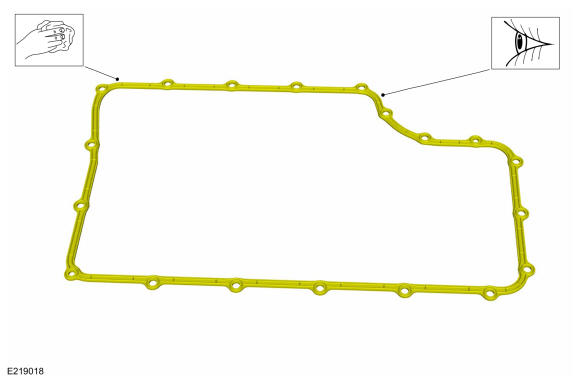

- Clean and inspect the transmission fluid pan gasket.
