Transmission Control Module (TCM): Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The TCM is located above the LHF fender splash shield.
- With the vehicle in NETURAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Remove the LHF fender splash shield. Refer to: Fender Splash Shield .
-
NOTE: Keep the TCM electrical connector straight when disconnecting it or damage the connector terminals can occur.

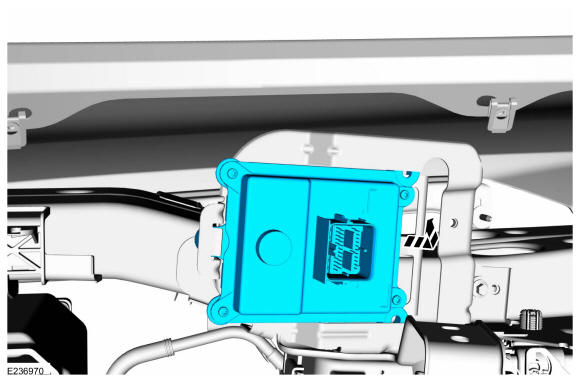

Slide the lock tab up and disconnect the TCM electrical connector.
- Slide the TCM backward in the bracket and remove the TCM.
