Transmission - 6.2L V8: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

  1. With the vehicle in NETURAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Remove the transmission fluid level indicator.
    GFD204571Courtesy of FORD MOTOR COMPANY
  3. NOTE: If transmission disassembly or installation of a new transmission is necessary, drain the transmission fluid.

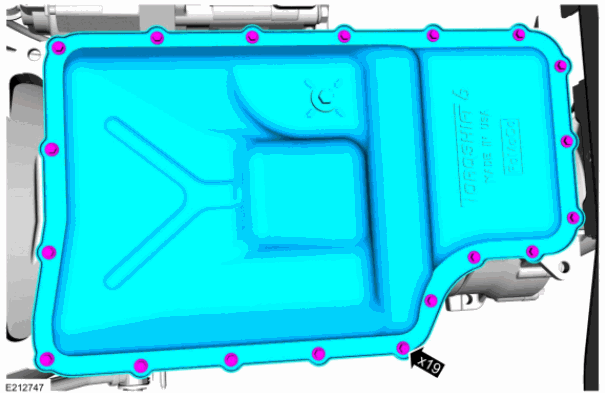

    Remove the bolts and the transmission fluid pan and allow the transmission fluid to drain.

    G00578643Courtesy of FORD MOTOR COMPANY
  4. NOTE: It is not necessary to torque transmission fluid pan bolts at this time.

    Install the transmission fluid pan and the bolts.

    G00578643Courtesy of FORD MOTOR COMPANY
  5. Remove the following items:
    1. Refer to: DUAL CATALYTIC CONVERTER Y-PIPE .
    2. Refer to: STARTER MOTOR .

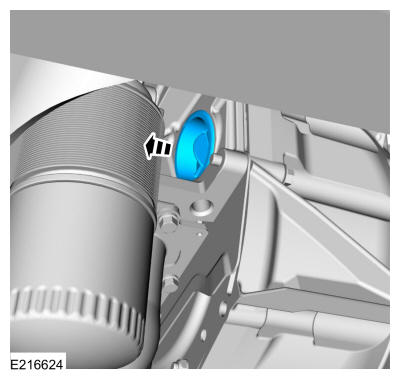

  6. Remove the rubber torque converter nut access cover.
    GFD204573Courtesy of FORD MOTOR COMPANY

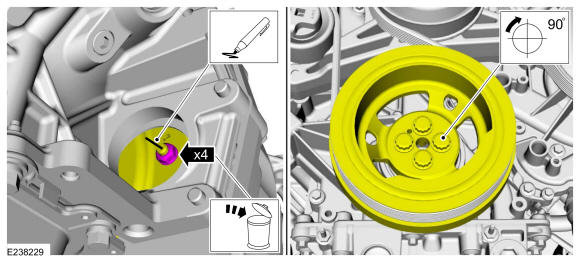

  7. NOTE: Index-mark the end of one torque converter stud and the flexplate for installation.
    NOTE: Using the crankshaft pulley bolts, turn the engine clockwise.

    Remove and discard the torque converter nuts (W715618).

    GFD204574Courtesy of FORD MOTOR COMPANY
  8. Remove the bolts and the flexplate inspection cover.
    GFD204575Courtesy of FORD MOTOR COMPANY

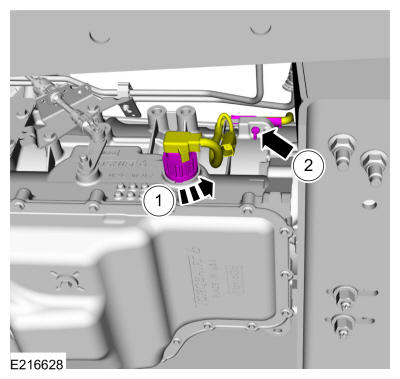

    1. Rotate the shell of the transmission vehicle harness connector counterclockwise and disconnect the transmission vehicle harness connector.
    2. Detach the wiring harness retainer from the transmission case.
    GFD204576Courtesy of FORD MOTOR COMPANY
    1. Disconnect the selector lever cable from the manual control lever.
    2. Remove the bolts and position the selector lever cable and bracket aside.
    GFD204577Courtesy of FORD MOTOR COMPANY
  11. Remove the wiring harness retainers from the transmission case and position the wiring harness aside.
    GFD204578Courtesy of FORD MOTOR COMPANY
  12. NOTE: Only use hand tools when loosening the engine support insulator nuts or damage to the engine support insulator may occur.
    NOTE: The RH engine support insulator studs may come out of the insulator while removing the nuts. Install new RH engine support insulator studs if the studs come out.

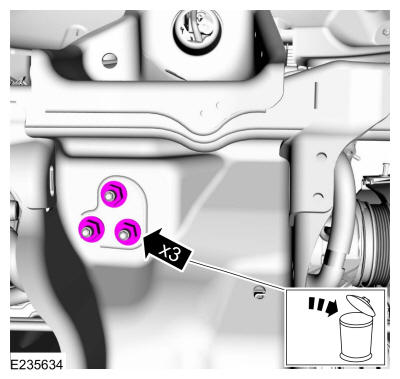

    Detach and discard the RH engine support insulator nuts.

    GFD204579Courtesy of FORD MOTOR COMPANY
  13. NOTE: Only use hand tools when loosening the engine support insulator nuts or damage to the engine support insulator may occur.

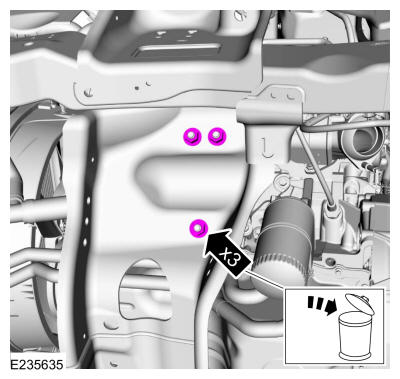

    Remove and discard the LH engine support insulator nuts.

    GFD204580Courtesy of FORD MOTOR COMPANY

    Rear Wheel Drive (RWD) vehicles

  14. NOTE: When removing the crossmember, support the transmission using a heavy duty transmission jack.

    • Place the jack so the fluid pan does not support the weight of the transmission.

    • Fasten a chain or ratchet strap over the top of the transmission and to both sides of the jack.

    Failure to use a heavy duty transmission jack can result in damage to the transmission.

    NOTE: The transmission support insulator studs may come out of the transmission support insulator while removing the transmission support insulator-to-crossmember nuts. Install new transmission support insulator studs if the studs come out.

    Remove the transmission support crossmember. Refer to: Transmission Support Crossmember .

    Rear Wheel Drive (RWD) vehicles equipped with a slip yoke

  15. Remove the rear driveshaft. Refer to: Rear Driveshaft .
  16. NOTE: If installing a new, remanufactured or overhauled transmission.

    Remove and discard the transmission support insulator-to-transmission bolts. Remove the transmission support insulator.

    GFD204581Courtesy of FORD MOTOR COMPANY

    Rear Wheel Drive (RWD) vehicles equipped with a fixed yoke

  17. NOTE: It may be necessary to tap the driveshaft yoke with a plastic or rubber soft-faced hammer if a pry area is not present on the driveshaft side.

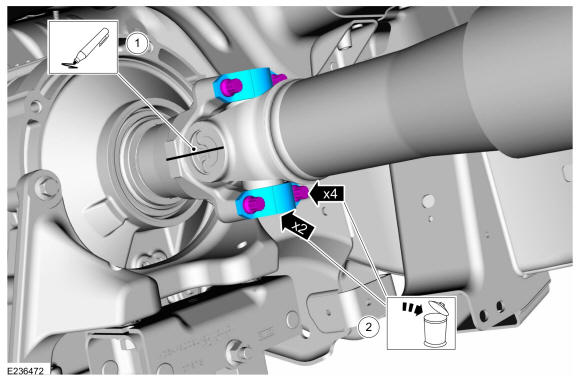

    1. Index mark the rear driveshaft.
    2. Remove and discard the driveshaft to output shaft flange bolts and straps (4A254).

    GFD204527Courtesy of FORD MOTOR COMPANY

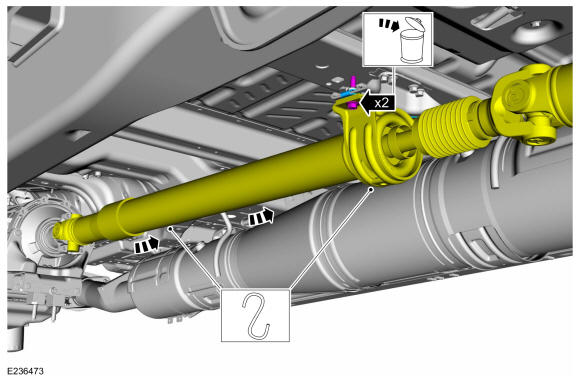

  18. Remove and discard the center bearing mounting bolts from the center bearing bracket. Position aside and support the driveshaft.
    GFD204528Courtesy of FORD MOTOR COMPANY
  19. NOTE: If installing a new, remanufactured or overhauled transmission.

    Remove and discard the transmission support insulator bracket to transmission bolts. Remove the transmission support insulator and bracket.

    GFD204582Courtesy of FORD MOTOR COMPANY

    Vehicles equipped with Four-Wheel Drive (4WD) and a manual shift transfer case

    1. Disconnect the transfer case linkage cable from selector lever.
    2. Detach the rotating slide snap ring (7H181) and position the transfer case linkage aside.
    GFD204583Courtesy of FORD MOTOR COMPANY
  21. Remove the nuts and the transfer case linkage bracket.
    GFD204584Courtesy of FORD MOTOR COMPANY

    Four-Wheel Drive (4WD) vehicles

  22. NOTE: When removing the crossmember, support the transmission using a heavy duty transmission jack.

    • Place the jack so the fluid pan does not support the weight of the transmission.

    • Fasten a chain or ratchet strap over the top of the transmission and to both sides of the jack.

    Failure to use a heavy duty transmission jack can result in damage to the transmission.

    NOTE: If the transmission is being removed for the flexplate or engine related repairs, the transfer case does not need to be separated from the transmission.

    Remove the transfer case. Refer to: Transfer Case .

    All vehicles

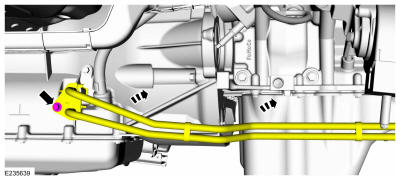

  23. Remove the bolt and position the transmission fluid cooler tubes aside.
    GFD204585Courtesy of FORD MOTOR COMPANY

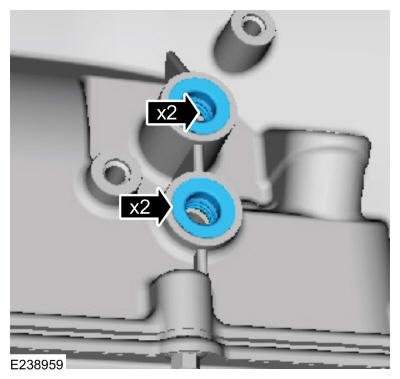

  24. Inspect the transmission to be sure the transmission fluid tube seals and backing rings were removed with the transmission fluid tubes and are not stuck in the transmission. If the transmission fluid tube seals or backing rings are stuck in the transmission, remove the seals and backing rings.
    GFD204586Courtesy of FORD MOTOR COMPANY
  25. Remove the lower transmission fluid filler tube bolt and position the transmission fluid filler tube aside.
    GFD204587Courtesy of FORD MOTOR COMPANY
  26. Remove and discard the transmission fluid filler tube O-ring (391308).
    GFD204588Courtesy of FORD MOTOR COMPANY
  27. NOTE: Secure the transmission to the transmission jack with a safety strap or chain.
    NOTE: Make sure the transmission jack makes contact on the outer ribs of the transmission fluid pan.

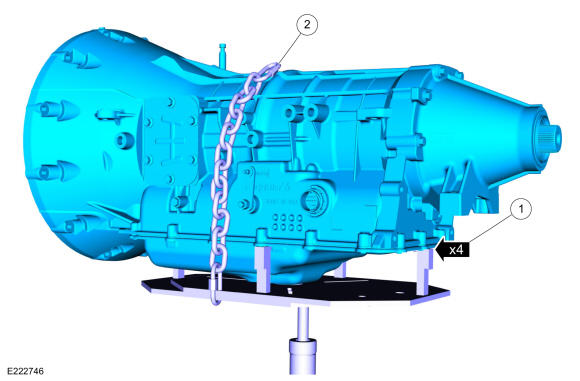

    Using a high-lift transmission jack, support the transmission.

    1. Outer ribs of the transmission fluid pan.

      Use the General Equipment: Transmission Jack

    2. Safety chain.

    GFD204589Courtesy of FORD MOTOR COMPANY
  28. NOTE: Note the location of the longer bolt for installation.

    Remove the RH transmission-to-engine bolts.

    GFD204590Courtesy of FORD MOTOR COMPANY
  29. Remove the upper bellhousing bolts and position aside the fuel tube bracket.
    GFD204591Courtesy of FORD MOTOR COMPANY
  30. NOTE: Be sure to position the Torque Converter Retainer in the proper position to ensure the torque converter is held securely in place.

    Slide the transmission back enough to install the special tool and remove the transmission.

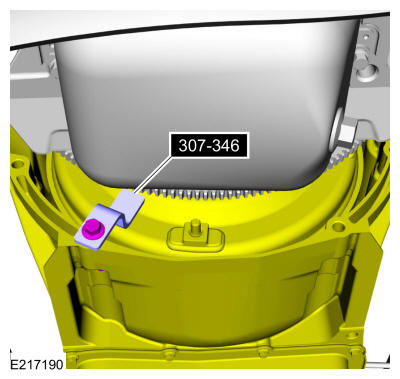

    Install Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.

    GFD204592Courtesy of FORD MOTOR COMPANY
  31. NOTE: Failure to flush the transmission fluid cooler and transmission fluid cooler tubes can result in metallic contamination of the transmission.

    If installing a new, remanufactured or overhauled transmission, clean and backflush the transmission fluid cooler tubes to prevent repeat repairs. Refer to: Transmission Fluid Cooler - Backflushing and Cleaning .

  32. NOTE: Failure to install a new auxiliary transmission fluid cooler can result in metallic contamination of the transmission.

    If installing a new, remanufactured or overhauled transmission install a new auxiliary transmission fluid cooler if equipped.

  33. NOTE: Failure to clean the Power Take-Off (PTO) can result in metallic contamination of the transmission.

    For vehicles equipped with a PTO assembly, prior to installing the transmission, flush and clean the PTO assembly to remove any foreign material. Failure to remove foreign material from the PTO assembly may result in subsequent transmission concerns.
