Shift Solenoids (SS): Installation
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: Solenoids are calibrated from the factory and are not all the same. To replace a solenoid, match the replacement solenoid type (normally high/normally low) and the band number with the original solenoid or harsh/erratic shifts, harsh/soft engagement or damage to the transmission can occur.

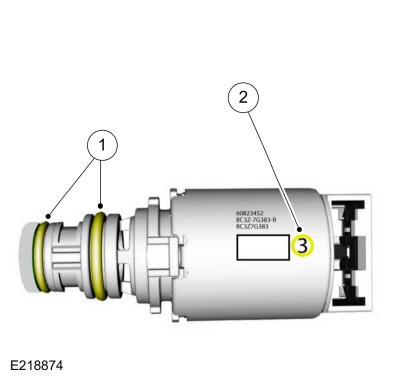

Identify what type (normally high/normally low) of solenoid is being replaced. Use the charts below to get the correct part number for the solenoid band number. Lubricate the solenoid O-rings with clean transmission fluid.
- O-rings
- Solenoid band number
Solenoid Band Number Normally High Solenoid Part Number 1 BC3Z-7G383-J 2 BC3Z-7G383-K 3 BC3Z-7G383-L 4 BC3Z-7G383-M 5 BC3Z-7G383-N Solenoid Band Number Normally Low Solenoid Part Number 1 BC3Z-7G383-R 2 BC3Z-7G383-S 3 BC3Z-7G383-T 4 BC3Z-7G383-U 5 BC3Z-7G383-V

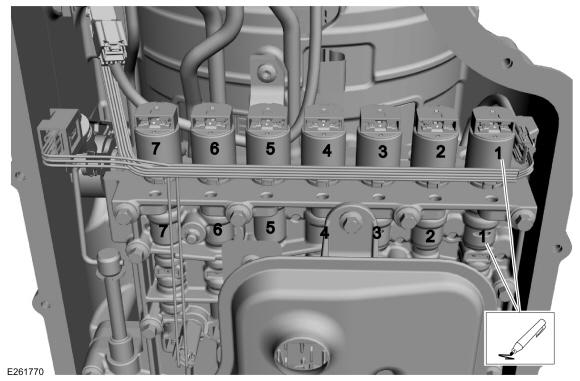

- Position the solenoid(s) in the main control valve body in the correct port(s) as marked during removal.
-
NOTE: Be sure the solenoid retainer is installed so the bolt hole surface rests flush against the main control valve body assembly or damage to the solenoids or retainer can occur.

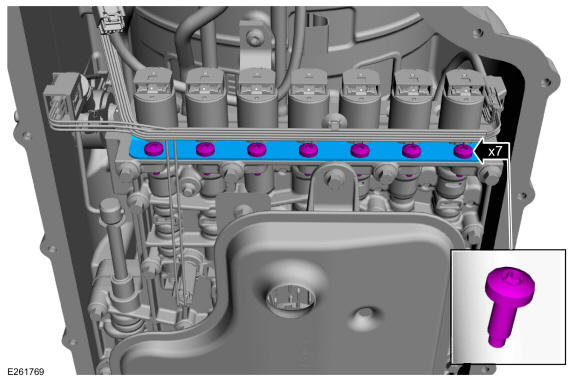

Install the solenoid bracket and the solenoid bracket bolts.
Torque: 97 lb.in (11 Nm)

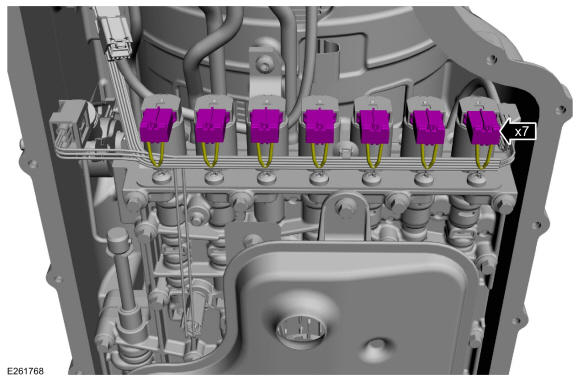

- Position the wiring harness in place and connect the solenoid electrical connector(s).
- Install the transmission fluid pan. Refer to: Transmission Fluid Pan .
