Selector Shaft Seal: Installation
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

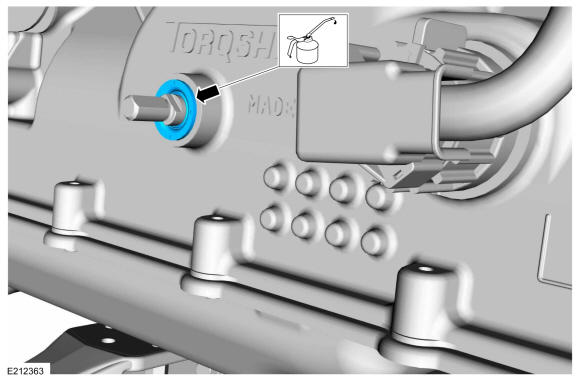

- Lubricate a new manual shaft seal with clean transmission fluid and install it in the transmission case.
Material: Motorcraft ® MERCON ® LV Automatic Transmission Fluid / XT-10-QLVC (MERCON ® LV) (WSS-M2C938-A)

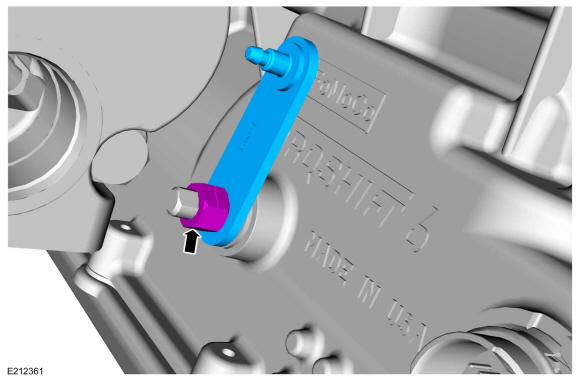

- Install the manual control lever and the nut.
Torque: 18 lb.ft (24 Nm)
- Connect the selector lever cable end to the manual control lever.
- Check the transmission fluid level. Refer to: Transmission Fluid Level Check .
