Output Shaft Speed (OSS) Sensor: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission fluid pan. Refer to: Transmission Fluid Pan .

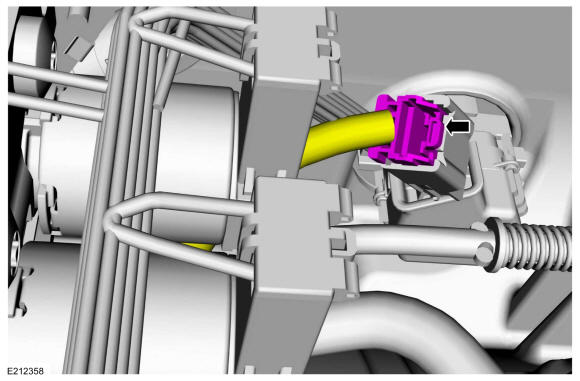

  2. Disconnect the OSS sensor electrical connector.
    GFD204542Courtesy of FORD MOTOR COMPANY

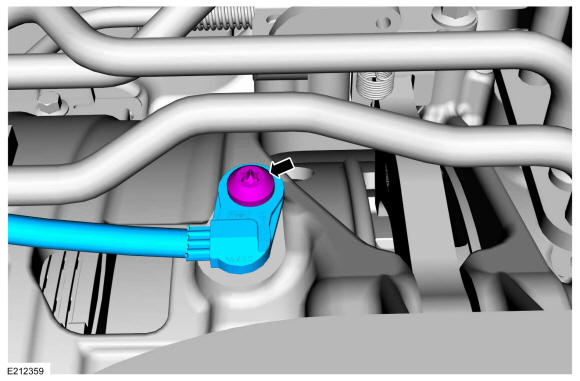

  3. Remove the bolt and remove the OSS sensor.

    Torque: 97 lb.in (11 Nm)

GFD204543Courtesy of FORD MOTOR COMPANY
