Output Shaft Seal - Vehicles With: Slip Yoke: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear driveshaft. Refer to: Rear Driveshaft .

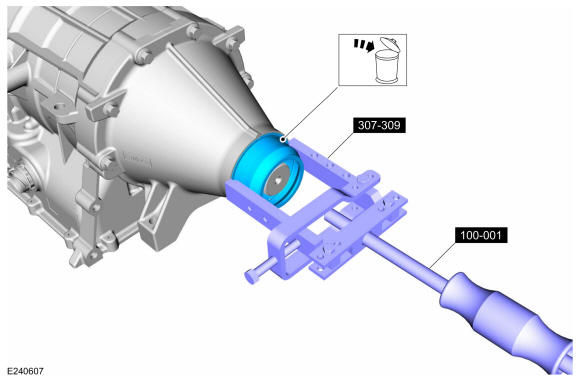

  2. Using the special tool, remove and discard the output shaft seal (7052).

    Use Special Service Tool: 307-309 Remover, Torque Converter Seal., 100-001 (T50T-100-A) Slide Hammer.

GFD204539Courtesy of FORD MOTOR COMPANY
