Output Shaft Seal - Vehicles With: Slip Yoke: Installation
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
- Clean any debris from the extension housing that may have been left when the seal was removed.

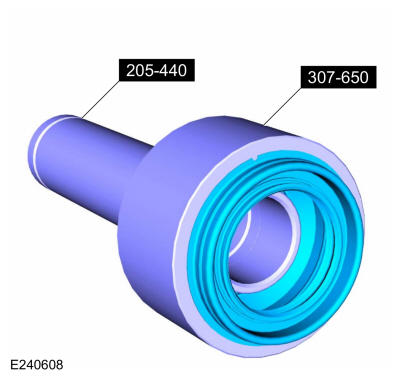

- Position a new output shaft seal (7052) on the special tool.
Use Special Service Tool: 205-440 Remover/Installer, Drive Pinion Oil Seal., 307-650 Installer, Output Shaft Seal.

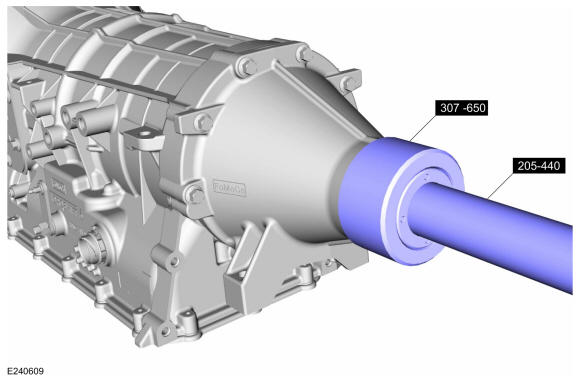

- Using the special tool, install a new output shaft seal.
- Install the rear driveshaft. Refer to: Rear Driveshaft .
- Start the engine. Move the selector lever through all gear ranges while checking for engagements to allow the main control hydraulic circuits to fill with transmission fluid.
-
NOTE: The use of any transmission fluid other than specified may result in the transmission failing to operate in a normal manner or transmission failure.
Using the scan tool with the engine running, check and make sure the transmission is at normal operating temperature 82-93°C (180-200°F). Check and adjust the transmission fluid level and check for any leaks. If transmission fluid is needed, add transmission fluid in increments of 0.24L (0.5 pt) until the correct level is achieved.
- Check the transmission fluid level. Refer to: Transmission Fluid Level Check .
