Extension Housing Seal: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Remove the following items:

    1. Refer to: Transmission Support Insulator .
    2. Refer to: REAR DRIVESHAFT .

  3. Remove the extension housing bolts and the extension housing.
    GFD204505Courtesy of FORD MOTOR COMPANY
  4. Remove and discard the O-ring seal (7B031) from the extension housing.
    GFD204506Courtesy of FORD MOTOR COMPANY

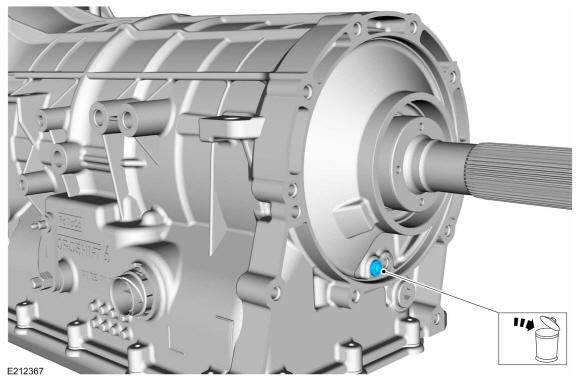

  5. Remove and discard the rear bushing fluid feed seal (7H366).
GFD204507Courtesy of FORD MOTOR COMPANY
