Extension Housing Seal: Installation
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

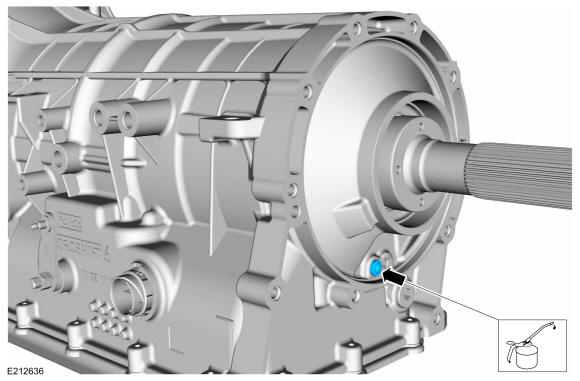

- Lubricate the new rear bushing fluid feed seal with clean transmission fluid and install it in the transmission case.
Material: Motorcraft ® MERCON ® LV Automatic Transmission Fluid / XT-10-QLVC (MERCON ® LV) (WSS-M2C938-A)

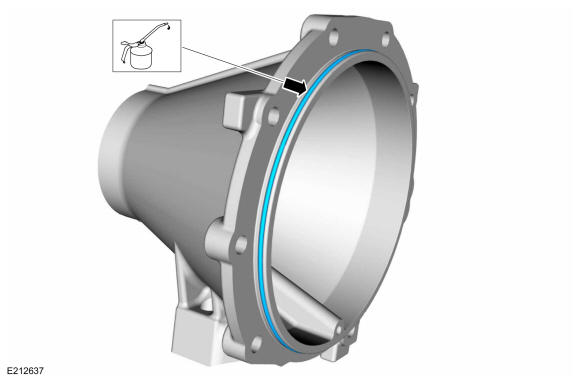

- Install a new O-ring seal on the extension housing and lubricate it with clean transmission fluid.
Material: Motorcraft ® MERCON ® LV Automatic Transmission Fluid / XT-10-QLVC (MERCON ® LV) (WSS-M2C938-A)

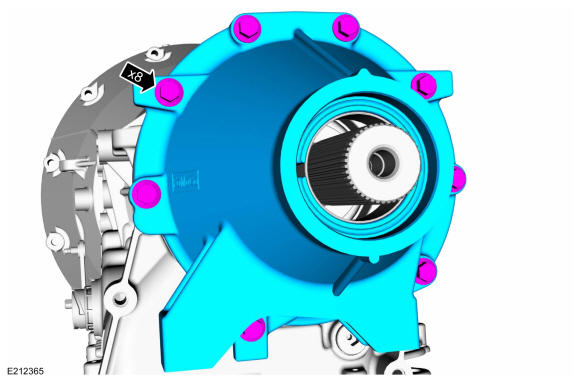

- Install the extension housing and the bolts.
Torque: 30 lb.ft (40 Nm)
- Install the following items:
- Refer to: Transmission Support Insulator .
- Refer to: REAR DRIVESHAFT .
