Center Support: Disassembly

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

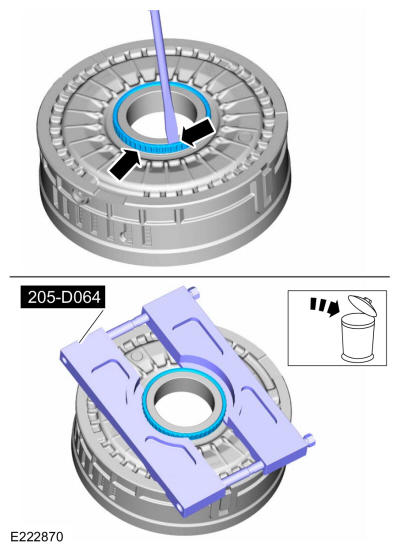

  1. NOTE: Vehicles equipped with 6 pinion rear planetary gearsets may not be equipped with center support bearings.

    If equipped, break the bearing cage. Using the special tool, gently pry the bearing race off of the center support.

    Use Special Service Tool: 205-D064 (D84L-1123-A) Puller, Bearing.

GFD204970Courtesy of FORD MOTOR COMPANY
